Viair Dual 400C Air Compressor Kit
Viair Dual 400C Air Compressor Kit - Chrome is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
DOUBLE YOUR PRESSURE. DOUBLE YOUR FUN.
Get ready to blast off into the world of fast-filling air compressors with the Viair 400C Dual Pack! This speedster duo delivers a combined 4.55 CFM and only maxes out at 60 amps, meaning you'll have the air you need, when you need it. Whether you're powering your train horn or suspension system, or just need to inflate a tire in a pinch, these nimble compressors will have you covered. With the fastest recharge times of any Viair dual pack, the 400C's can fill a 2-gallon tank from 110-145 PSI in 20 seconds and a 5-gallon tank in just 52 seconds.
This compressor does come with the option to add our 40 Amp Dual Air Compressor Wiring Kit to it as well!
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dirt Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Stainless Steel 1/4" Braided Leader Hose
- Remote Mountable Intake Filter Assembly
- Insulated Wiring with Connectors
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 4.55 | 39 | 0 | 129.0 | 39 |
| 10 | 4.18 | 40 | 1.0 | 115.6 | 41 |
| 20 | 3.96 | 42 | 2.0 | 106.5 | 45 |
| 30 | 3.74 | 45 | 3.0 | 96.6 | 47 |
| 40 | 3.50 | 46 | 4.0 | 86.4 | 50 |
| 50 | 3.25 | 48 | 5.0 | 78.4 | 53 |
| 60 | 3.00 | 50 | 6.0 | 70.8 | 58 |
| 70 | 2.83 | 52 | 7.0 | 64.0 | 57 |
| 80 | 2.60 | 55 | 8.0 | 57.5 | 54 |
| 90 | 2.46 | 59 | 9.0 | 50.6 | 52 |
| 100 | 2.28 | 57 | 10.0 | 43.7 | 50 |
| 110 | 2.12 | 55 | |||
| 120 | 1.97 | 53 | |||
| 130 | 1.80 | 52 | |||
| 140 | 1.60 | 51 | |||
| 150 | 1.48 | 49 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 1 min. 00 sec. (± 05 sec.) |
| 110 to 145 PSI | 20 sec. (± 03 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
| 110 to 145 PSI | 25 sec. (± 03 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 2 min. 30 sec. (± 10 sec.) |
| 110 to 145 PSI | 52 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts

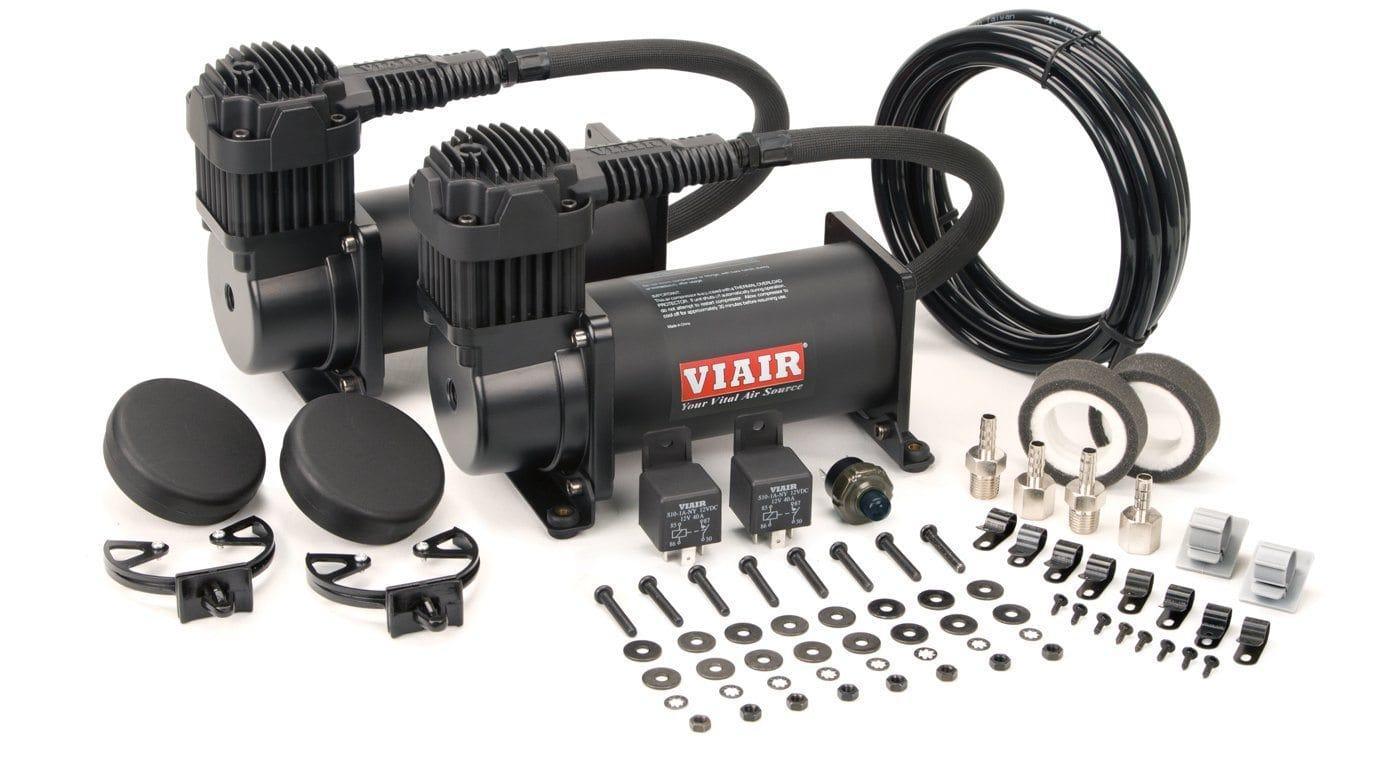

- Dual Viair 400C Air Compressor
- 1/4" NPT Stainless & Black Braided Leader Hose & Check Valve
- Remote Mount Two-Stage Air Filter
- Dual Viair 40 Amp Relays
- Viair 110/145 PSI Pressure Switch
- Installation Instructions
- Replacement Filter Elements
- 1 Year ManufactureR's Defect Warranty
- Mounting Hardware
| Part Number | DC-400C / DC-400K |
| Voltage | 12 Volts DC |
| Combined Max Amperage | 60 Amps |
| Maximum Duty Cycle | 33% @ 100 PSI |
| Maximum Pressure | 150 PSI |
| Max Tank Size | 10 Gallons |
| CFM @ 0 PSI | 4.55 CFM |
| Length | 9″ (228.6 mm) |
| Width | 4″ (101.6 mm) |
| Height | 6.75″ (171.5 mm) |
| Weight | 8.00 lb (3.63 Kg) |
-
