Viair 450C Air Compressor
Viair 450C Air Compressor - Silver / Single Compressor is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Viair 450C Air Compressor
Viair 450C Air Compressor - Silver / Single Compressor is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
THE ENERGIZER BUNNY OF COMPRESSORS.
Introducing the Viair 450C Air Compressor, the lifeline of your pneumatic needs. Masterfully crafted, it stands as the ideal solution for tire inflation, the roar of train horns, and powering air tools with precision and reliability.
- Unparalleled Performance: Specifically engineered to fill up to a 5-gallon air tank, this compressor ensures a consistent air supply with the capability to reach 150 PSI effortlessly.
- Weather Resilience: With the included air filter relocation kit, this compressor ensures optimal operation, even in challenging weather conditions.
- Efficiency & Durability: The unit comes equipped with a Permanent Magnetic Motor, high-performance PTFE piston ring, and stainless steel valves, guaranteeing both optimal efficiency and long-lasting durability.
- Safety & Comfort: Featuring an automatic reset thermal overload protector and mounting plates with vibration isolators, it promises both safety and a noise-reduced operation.
With the Viair 450C Air Compressor at its core, your onboard air system will never skip a beat. Commit to excellence, durability, and unmatched performance with the Viair 450C.
This item can also be used as a replacement alternative part for John Deere part number AA72119.
This compressor does come with the option to add our 40 Amp Air Compressor Wiring Kit to it as well!
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 12 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 18 |
| 40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
| 50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
| 60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
| 70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
| 80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
| 90 | 0.97 | 21 | 9.0 | 23.0 | 22 |
| 100 | 0.94 | 22 | 10.0 | 21.0 | 21 |
| 110 | 0.90 | 23 | |||
| 120 | 0.86 | 23 | |||
| 130 | 0.81 | 22 | |||
| 140 | 0.76 | 21 | |||
| 150 | 0.72 | 20 |
* Supply Voltage: 13.8 Volts
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 28 sec. (± 05 sec.) |
| 0 to 145 PSI | 3 min. 02 sec. (± 10 sec.) |
| 110 to 145 PSI | 59 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 00 sec. (± 10 sec.) |
| 85 to 105 PSI | 58 sec. (± 05 sec.) |
| 0 to 145 PSI | 6 min. 25 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 11 sec.(± 10 sec.) |
* Supply Voltage: 13.8 Volts

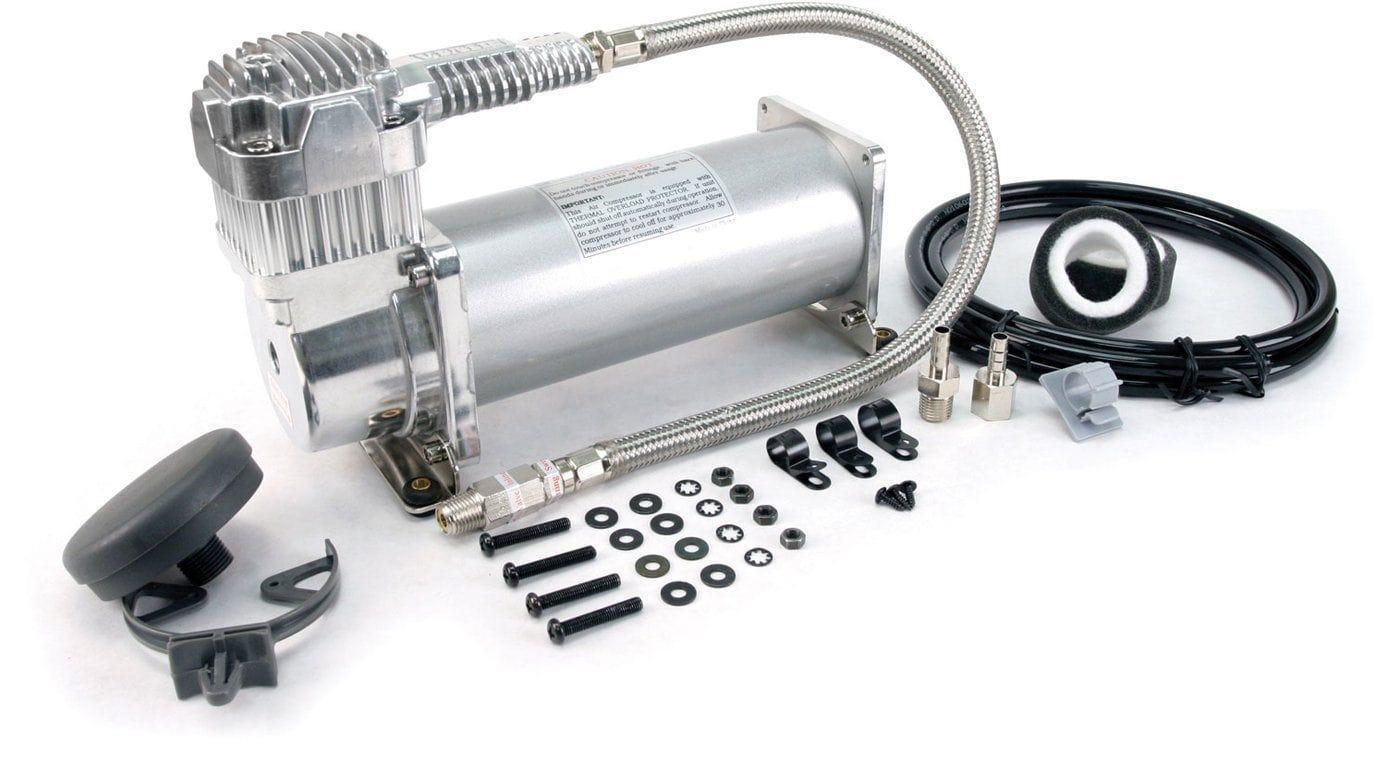

- Viair 450C Air Compressor
- 1/4" NPT Braided Leader Hose & Check Valve
- Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year ManufactureR's Defect Warranty
- Mounting Hardware
| SPECIFICATION | |
|---|---|
| Part Number | AC-450 / AC-450C |
| Manufacturers Part Number | 45012 / 45040 |
| Voltage | 12 Volts DC |
| Max Amperage | 23 Amps |
| Maximum Duty Cycle | 100% @ 100 PSI |
| Maximum Pressure | 150 PSI |
| CFM @ 0 PSI | 1.80 CFM |
| Length | 10.06″ (255.52 mm) |
| Width | 4.0″ (101.6 mm) |
| Height | 6.75″ (171.45 mm) |
| Weight | 9.75 lb (4.42 Kg) |
-
