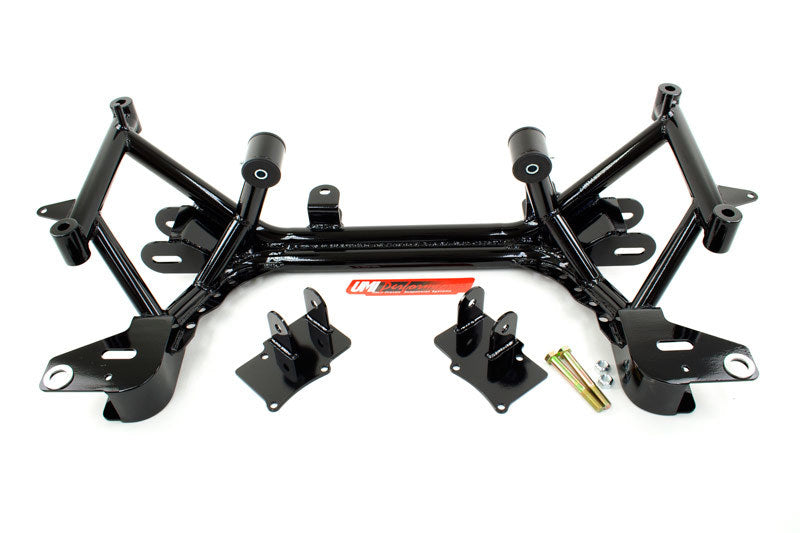

UMI Performance 93-02 GM F-Body K-Member SBC/BBC Motor Mounts

Build Features: - Main center tube constructed of 1.500” x 0.120” DOM seamless steel tubing - Additional cross braces use 1.250” x 0.120” DOM seamless steel tubing - Entire K-Member features both TIG & MIG welded construction for superior strength - Front & rear A-Arm mounts CNC machined & fabricated from 0.188" thick steel - Rear A-Arm mounts gusseted to with-stand extreme side loads & pressure - Dual tube center section adds increased strength over any competitors design - All mounting plates are CNC machined to ensure hole to hole accuracy - Factory locator pins included for easy installation & exact fit - Completely fixture welded to ensure factory fitment with no grinding or cutting - Standard power steering rack mounts included - Durable powder coat finish, available bright red or gloss black
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-2002	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1993-2002	Pontiac	Firebird	Base
1993-2002	Pontiac	Firebird	Formula
1993-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
