UMI Performance 82-92 GM F-Body Torque Arm Relocation Kit- TH350

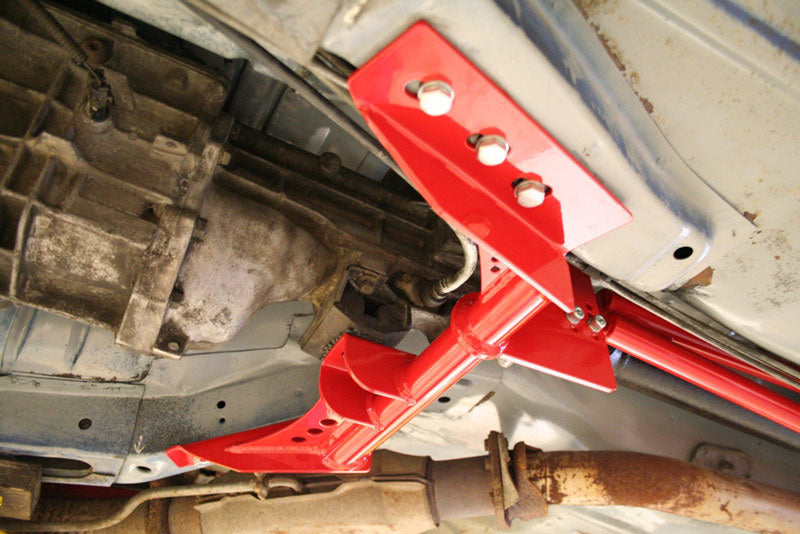

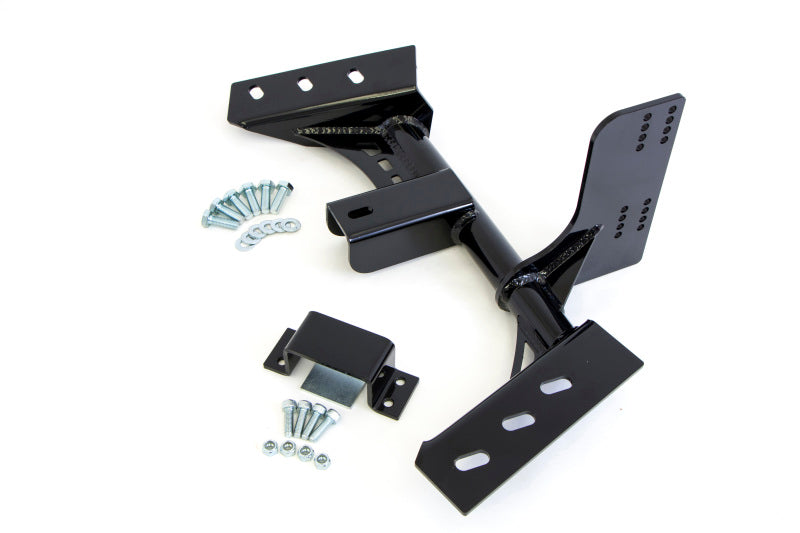

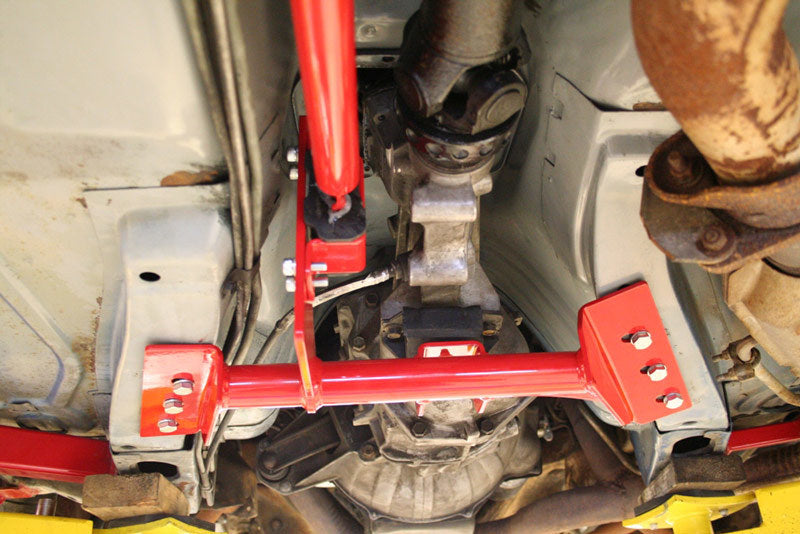

Installing a TH350 automatic transmission into your 1982-1992 Camaro or Firebird just got easier. This transmission cross-member with integrated torque arm mount features the correct provisions for mounting the TH350 transmission while still allowing the use of a factory style torque arm. The built in torque arm mount will work with virtually any stock style aftermarket torque arm as well as the factory torque arm and features instant center adjustment by moving the front of the torque arm up or down. This unit is built using DOM mild steel tubing, 0.188” mild steel mounting plates and includes all appropriate hardware needed for the installation. The torque arm mount is machined from 0.250” thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. There is no need to purchase any other torque arm brackets when using this kit. Q: What does this kit do? A: This kit allows the installation of a TH350 transmission into a 1982-1992 F-Body and features provisions for running a stock style torque arm. Q: Does this new relocation kit reduce ground clearance? A: No, our cross member is designed to tuck tight against the vehicle chassis and will not effect vehicle ground clearance. Q: Which brand torque arms will this work with? A: This set-up will work with virtually any torque arm on the market as long as it bolts into the stock location. It will also work excellent with the stock torque arm when using a 1-piece bushing (item #3004). Q: Does this kit require any drilling or welding? A: This kit is 100% bolt in and requires no drilling, no cutting and no welding. It bolts in place of the stock cross member using the existing holes.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1988	Chevrolet	Camaro	Base
1982-1986	Chevrolet	Camaro	Berlinetta
1985-1990	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989-1992	Chevrolet	Camaro	RS
1992	Chevrolet	Camaro	RS Heritage Edition
1982-1987	Chevrolet	Camaro	Sport
1982-1987,1991-1992	Chevrolet	Camaro	Z28
1992	Chevrolet	Camaro	Z28 Heritage Edition
1982	Chevrolet	Camaro	Z28 Indianapolis 500 Pace Car
1982-1992	Pontiac	Firebird	Base
1989-1992	Pontiac	Firebird	Formula
1982-1986	Pontiac	Firebird	S/E
1982-1992	Pontiac	Firebird	Trans Am
1989-1992	Pontiac	Firebird	Trans Am GTA
1989	Pontiac	Firebird	Trans Am GTA SE
