UMI Performance 82-92 GM F-Body Front Weight Jack System 850lb Street Handling

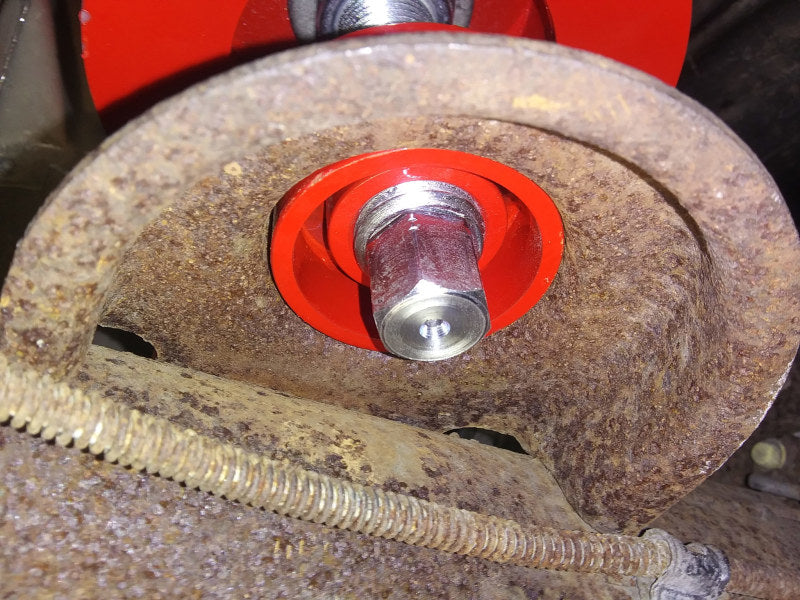

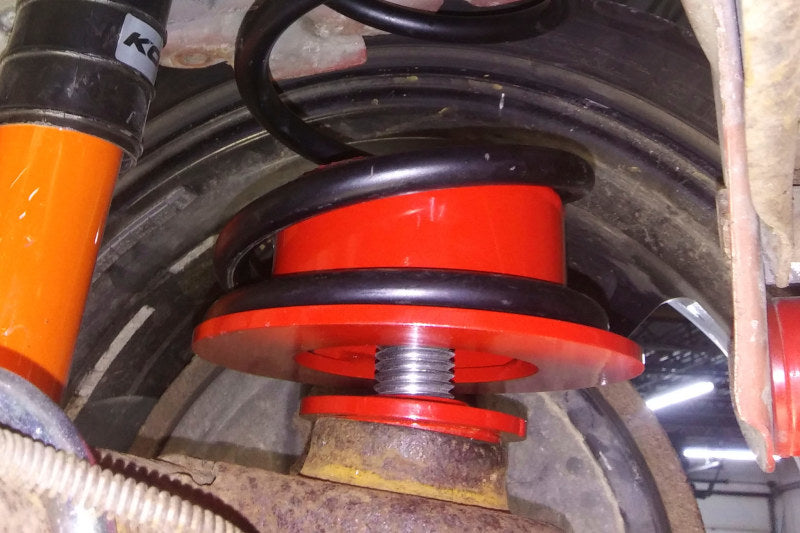

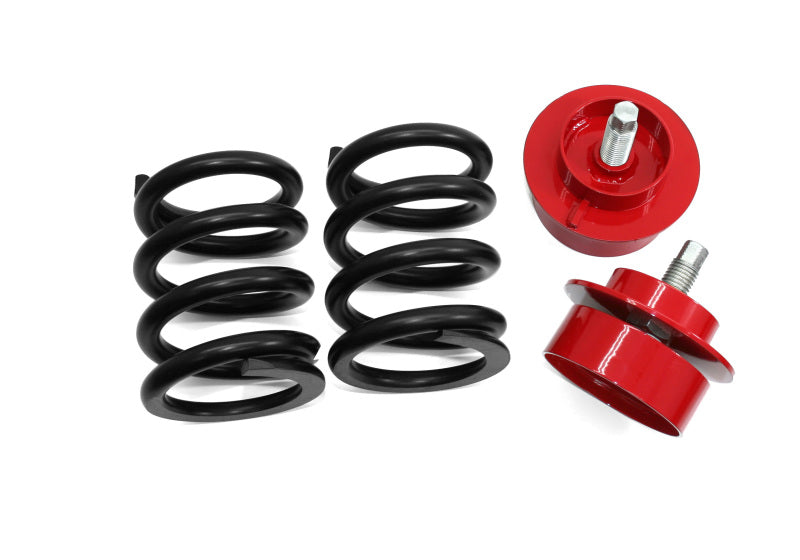

UMI’s 3rd Gen F-Body front weight jack system replaces the factory spring with a tough, adjustable weight jack bucket and a custom wound ultra-premium performance spring. This kit gives up to 2-½” lowering from factory height. The adjustment bucket features an extra thick ¼” base to resist bending under the force of competition. Ultra-smooth ride height adjustment with our acme bolt and industry exclusive thrust bearing system means easier ride height changes at the track. Bending potential is reduced by the thrust bearing system which also helps spread the load over a large surface area. Custom designed 850 lb/in springs offer a crisp ride suitable for back road corner carving as well as daily driving. The 2065 kit gives the ride height adjustability of a coilover while still allowing maximum tire clearance around the strut. Works great with the UMI Afco strut, Viking strut or Koni strut. This kit is available in UMI gloss black or red powder coat. 100% manufactured, tested and race proven in the USA.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1988	Chevrolet	Camaro	Base
1982-1986	Chevrolet	Camaro	Berlinetta
1985-1990	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989-1992	Chevrolet	Camaro	RS
1992	Chevrolet	Camaro	RS Heritage Edition
1982-1987	Chevrolet	Camaro	Sport
1982-1987,1991-1992	Chevrolet	Camaro	Z28
1992	Chevrolet	Camaro	Z28 Heritage Edition
1982	Chevrolet	Camaro	Z28 Indianapolis 500 Pace Car
1982-1992	Pontiac	Firebird	Base
1989-1992	Pontiac	Firebird	Formula
1982-1986	Pontiac	Firebird	S/E
1982-1992	Pontiac	Firebird	Trans Am
1989-1992	Pontiac	Firebird	Trans Am GTA
1989	Pontiac	Firebird	Trans Am GTA SE
