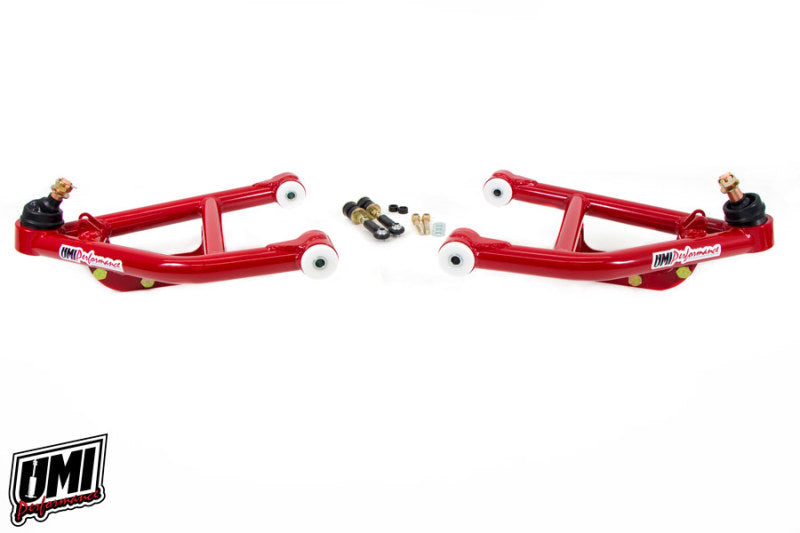

UMI Performance 64-72 GM A-Body Tubular Lower Front A-Arms Corner Max Standard Ball Joint

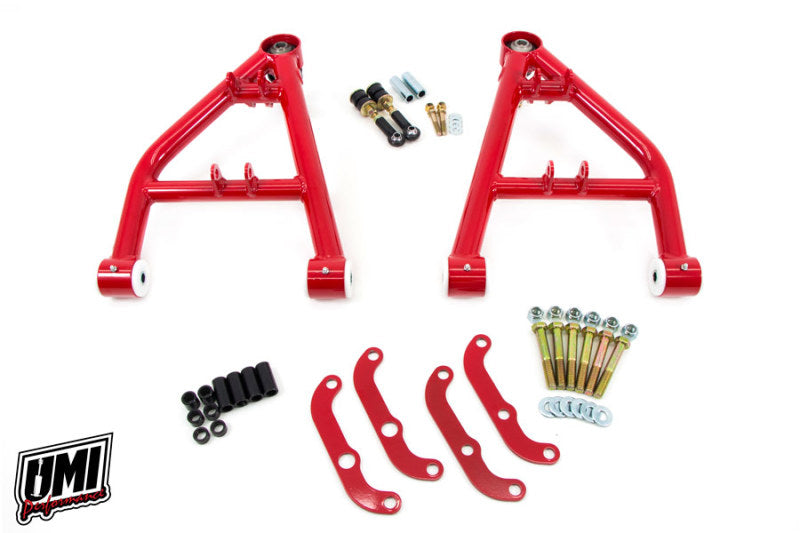

UMI’s Corner Max line of race a-arms are designed from the ground up to be the best performing stock mount a-arm upgrade on the market. The P/N 4062 arms are strong yet lightweight and feature a removable lower mounting system to permit spring changes at the track without separating the ball joints. The ball joint cup is moved forward the proper amount to add up to 4 degrees caster potential and is loaded with high quality Howe standard height ball joints. The double shear coilover mount accepts race industry standard ½” rod end shocks and comes with spacers for all popular models. Also included is a double shear sway bar mount and corresponding end link. The end link fits UMI 4035 and 4067 as well as many other factory fit sway bars. The P/N 4062 excels when paired with our DSGTECH 2” lowering tall spindle (tall spindle requires 4056 and standard ball joint height upper and lower).
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1965-1967	Buick	Gran Sport	Base
1970-1972	Buick	GS	Base
1968-1969	Buick	GS 350	Base
1968-1969	Buick	GS 400	Base
1970-1972	Buick	GS 455	Base
1970	Buick	GS 455	GSX
1970,1972	Buick	Skylark	350
1964-1972	Buick	Skylark	Base
1968-1972	Buick	Skylark	Custom
1964-1969	Buick	Special	Base
1964-1967	Buick	Special	Deluxe
1964-1972	Buick	Sportwagon	Base
1966,1968-1969	Buick	Sportwagon	Custom
1967-1968	Chevrolet	Chevelle	300
1967-1969	Chevrolet	Chevelle	300 Deluxe
1964-1968,1970-1972	Chevrolet	Chevelle	Base
1967-1972	Chevrolet	Chevelle	Concours
1969-1972	Chevrolet	Chevelle	Concours Estate
1965-1967	Chevrolet	Chevelle	Deluxe
1969-1972	Chevrolet	Chevelle	Greenbrier
1968-1972	Chevrolet	Chevelle	Malibu
1968-1972	Chevrolet	Chevelle	Nomad
1964-1972	Chevrolet	Chevelle	SS
1964-1972	Chevrolet	El Camino	Base
1968-1972	Chevrolet	El Camino	Custom
1968-1972	Chevrolet	El Camino	SS
1964-1967	Chevrolet	Malibu	Base
1970-1972	Chevrolet	Monte Carlo	Base
1971-1972	GMC	Sprint	Base
1972	GMC	Sprint	Custom
1964-1971	Oldsmobile	442	Base
1964-1972	Oldsmobile	Cutlass	Base
1972	Oldsmobile	Cutlass	Cruiser
1964-1967	Oldsmobile	Cutlass	Holiday
1968,1971-1972	Oldsmobile	Cutlass	S
1967	Oldsmobile	Cutlass	Turnpike Cruiser
1964-1972	Oldsmobile	Vista Cruiser	Base
1964-1967	Oldsmobile	Vista Cruiser	Custom
1969-1972	Pontiac	Grand Prix	Base
1964-1972	Pontiac	GTO	Base
1970-1971	Pontiac	GTO	The Judge
1964-1972	Pontiac	LeMans	Base
1972	Pontiac	LeMans	Luxury
1969-1970	Pontiac	LeMans	Safari
1970-1972	Pontiac	LeMans	Sport
1971	Pontiac	LeMans	T37
1964-1970	Pontiac	Tempest	Base
1964-1969	Pontiac	Tempest	Custom
1970	Pontiac	Tempest	GT
1964-1969	Pontiac	Tempest	Safari
