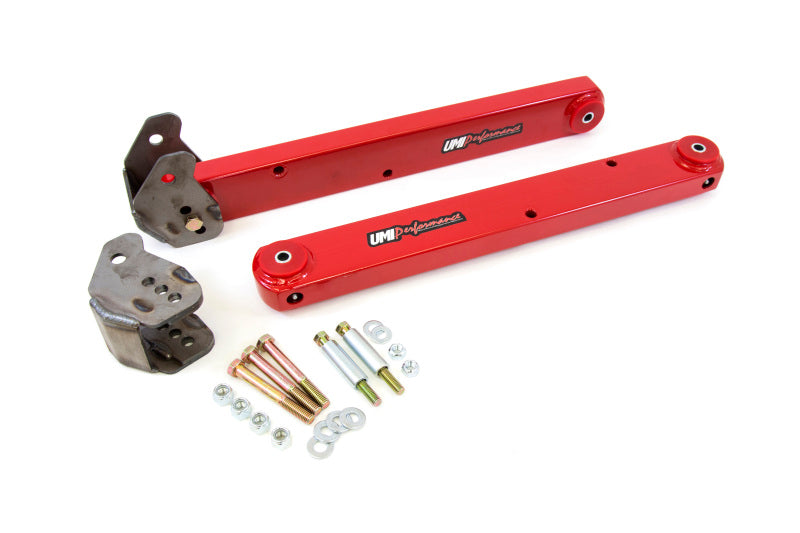

UMI Performance 64-72 GM A-Body Rear Lift Bar Set-Up-Weld-In

The UMI rear lift bars replace the factory rear control arms adding traction while not changing vehicle ride height. Lift bars work with axle torque to load the chassis of the car, forcing the rear wheels downward pushing the tires into the ground resulting in harder launches and improved 60-foot times. The UMI lift bars are designed to improve traction and reduce unwanted wheel hop. Lift bars are constructed of boxed mild steel tubing, 1/8" thick wall and 3/16" thick mounting brackets. Lift bars feature greaseable polyurethane bushings which are designed to reduce bushing deflection while being streetable. Lift bar kit features the correct provisions for adding a stock or aftermarket sway bar, the sway bar holes are placed in the correct pattern to maintain the sway bar level with the rear end while the lift bar is in the lowest hole. Sway bar holes are reinforced with a 1/8" wall thickness steel sleeve TIG welded into place. The rear mounting brackets feature three settings that allow the lift bar to be lowered 2", 2-3/4” or 3-1/4”. Lift bar set up is designed to correct lost geometry and correct instant center on a lowered vehicle. Add a set of UMI adjustable upper control arms for the maximal rear suspension set-up and performance.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1965-1967	Buick	Gran Sport	Base
1970-1972	Buick	GS	Base
1968-1969	Buick	GS 350	Base
1968-1969	Buick	GS 400	Base
1970-1972	Buick	GS 455	Base
1970	Buick	GS 455	GSX
1970,1972	Buick	Skylark	350
1964-1972	Buick	Skylark	Base
1968-1972	Buick	Skylark	Custom
1964-1969	Buick	Special	Base
1964-1967	Buick	Special	Deluxe
1964-1972	Buick	Sportwagon	Base
1966,1968-1969	Buick	Sportwagon	Custom
1967-1968	Chevrolet	Chevelle	300
1967-1969	Chevrolet	Chevelle	300 Deluxe
1964-1968,1970-1972	Chevrolet	Chevelle	Base
1967-1972	Chevrolet	Chevelle	Concours
1969-1972	Chevrolet	Chevelle	Concours Estate
1965-1967	Chevrolet	Chevelle	Deluxe
1969-1972	Chevrolet	Chevelle	Greenbrier
1968-1972	Chevrolet	Chevelle	Malibu
1968-1972	Chevrolet	Chevelle	Nomad
1964-1972	Chevrolet	Chevelle	SS
1964-1972	Chevrolet	El Camino	Base
1968-1972	Chevrolet	El Camino	Custom
1968-1972	Chevrolet	El Camino	SS
1964-1967	Chevrolet	Malibu	Base
1970-1972	Chevrolet	Monte Carlo	Base
1971-1972	GMC	Sprint	Base
1972	GMC	Sprint	Custom
1964-1971	Oldsmobile	442	Base
1964-1972	Oldsmobile	Cutlass	Base
1972	Oldsmobile	Cutlass	Cruiser
1964-1967	Oldsmobile	Cutlass	Holiday
1968,1971-1972	Oldsmobile	Cutlass	S
1967	Oldsmobile	Cutlass	Turnpike Cruiser
1964-1972	Oldsmobile	Vista Cruiser	Base
1964-1967	Oldsmobile	Vista Cruiser	Custom
1969-1972	Pontiac	Grand Prix	Base
1964-1972	Pontiac	GTO	Base
1970-1971	Pontiac	GTO	The Judge
1964-1972	Pontiac	LeMans	Base
1972	Pontiac	LeMans	Luxury
1969-1970	Pontiac	LeMans	Safari
1970-1972	Pontiac	LeMans	Sport
1971	Pontiac	LeMans	T37
1964-1970	Pontiac	Tempest	Base
1964-1969	Pontiac	Tempest	Custom
1970	Pontiac	Tempest	GT
1964-1969	Pontiac	Tempest	Safari
