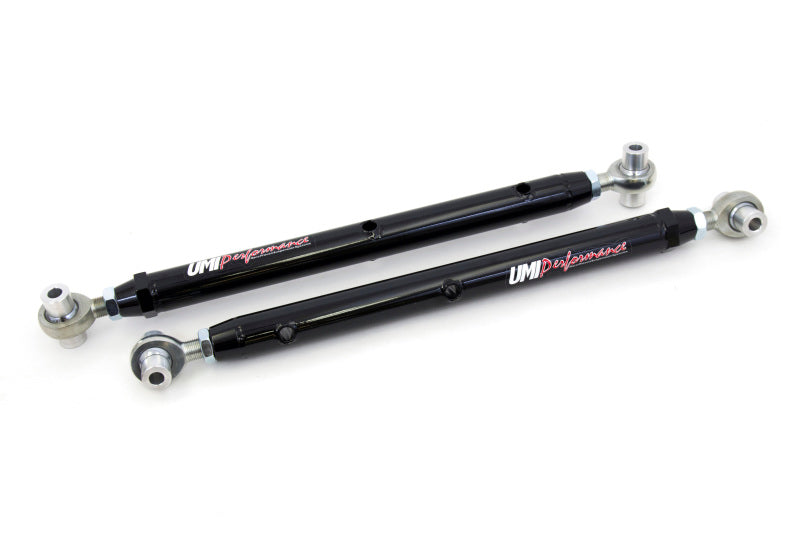

UMI Performance 64-72 GM A-Body Double Adjustable Lower Control Arms

Some competitors may consider these "Race Only" control arms while we consider them Race Ready. Our double adjustable lower control arms feature TIG welded fabrication, reinforced sway bar holes and QA1 Endura Series Teflon lined spherical rod ends. When you are looking for the maximal performance from your vehicle, you can't go wrong with this setup. The spherical bearing rod ends operate for a "bind" free operation when high handling is a concern and are designed to eliminate rear-end bind found with rubber and polyurethane bushings. This item also works excellent as a solid bushing drag race control arm and is designed to with stand high amounts of torque and horse-power. The TIG welded construction adds higher penetration for a much stronger weld over the commonly used MIG welding process. Each control arm features the correct provisions for adding a stock or aftermarket sway bar. Sway bar holes are reinforced with a 0.120" wall thickness steel sleeve TIG welded and sanded into place. The construction of the control arms features 0.120" x 1.500" mild steel DOM tubing and each end utilizes tube adapters CNC machined from 4140 Chrome Moly to ensure overall strength and improved thread durability; this is an area other competitors use mild steel as a cost saver. Features: - Constructed of 0.120" x 1.500" DOM Steel Tubing - 4140 Chrome Moly Threaded Tube Adapters - QA1 3/4" Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod End - Complete Arm Features TIG Welded Construction - CNC Machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves - Quick On-Car Adjust-ability Using Right and Left Hand Threads - Brilliant Durable Powder Coat - Uses OEM Hardware and sway bar Installation: Easy 1-hour bolt-on installation requires no drilling, uses OEM hardware.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1965-1967	Buick	Gran Sport	Base
1970-1972	Buick	GS	Base
1968-1969	Buick	GS 350	Base
1968-1969	Buick	GS 400	Base
1970-1972	Buick	GS 455	Base
1970	Buick	GS 455	GSX
1970,1972	Buick	Skylark	350
1964-1972	Buick	Skylark	Base
1968-1972	Buick	Skylark	Custom
1964-1969	Buick	Special	Base
1964-1967	Buick	Special	Deluxe
1964-1972	Buick	Sportwagon	Base
1966,1968-1969	Buick	Sportwagon	Custom
1967-1968	Chevrolet	Chevelle	300
1967-1969	Chevrolet	Chevelle	300 Deluxe
1964-1968,1970-1972	Chevrolet	Chevelle	Base
1967-1972	Chevrolet	Chevelle	Concours
1969-1972	Chevrolet	Chevelle	Concours Estate
1965-1967	Chevrolet	Chevelle	Deluxe
1969-1972	Chevrolet	Chevelle	Greenbrier
1968-1972	Chevrolet	Chevelle	Malibu
1968-1972	Chevrolet	Chevelle	Nomad
1964-1972	Chevrolet	Chevelle	SS
1964-1972	Chevrolet	El Camino	Base
1968-1972	Chevrolet	El Camino	Custom
1968-1972	Chevrolet	El Camino	SS
1964-1967	Chevrolet	Malibu	Base
1970-1972	Chevrolet	Monte Carlo	Base
1971-1972	GMC	Sprint	Base
1972	GMC	Sprint	Custom
1964-1971	Oldsmobile	442	Base
1964-1972	Oldsmobile	Cutlass	Base
1972	Oldsmobile	Cutlass	Cruiser
1964-1967	Oldsmobile	Cutlass	Holiday
1968,1971-1972	Oldsmobile	Cutlass	S
1967	Oldsmobile	Cutlass	Turnpike Cruiser
1964-1972	Oldsmobile	Vista Cruiser	Base
1964-1967	Oldsmobile	Vista Cruiser	Custom
1969-1972	Pontiac	Grand Prix	Base
1964-1972	Pontiac	GTO	Base
1970-1971	Pontiac	GTO	The Judge
1964-1972	Pontiac	LeMans	Base
1972	Pontiac	LeMans	Luxury
1969-1970	Pontiac	LeMans	Safari
1970-1972	Pontiac	LeMans	Sport
1971	Pontiac	LeMans	T37
1964-1970	Pontiac	Tempest	Base
1964-1969	Pontiac	Tempest	Custom
1970	Pontiac	Tempest	GT
1964-1969	Pontiac	Tempest	Safari
