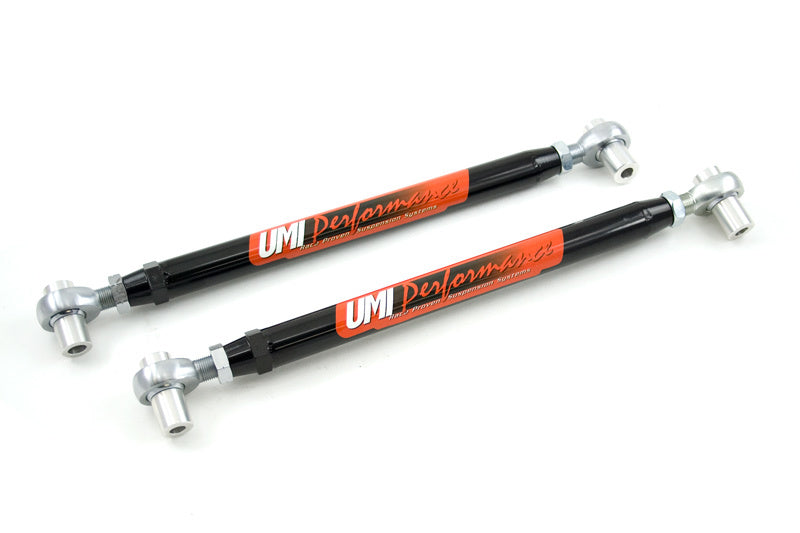

UMI Performance 64-72 GM A-Body Adjustable Lower Control Arms Off Set Bushings CrMo

UMI P/N 4023OFCM features off-set aluminum bushings and smaller diameter tubing that place the control arm inward for additional clearance when running large tires. This type of set-up is also needed when running a mini-tub to achieve the most clearance as possible. The supplied aluminum step bushings place the control arm inward 3/8 of an inch further then our standard control arm version. These double adjustable control arms are designed for race applications and light duty street use. The spherical rod ends offer a solid foundation and work excellent as a solid bushing control arm while eliminating rear suspension bind. The double adjustment allows easy on car changes for wider tire clearance and to center aftermarket rear ends. These race application control arms are manufactured from 4130 CrMo steel and TIG welded for the utmost in strength. The premium Teflon lined rod ends attach to the control arms using in-house machined 4130 CrMo tube adaptors. UMI P/N 4023OFCM allows adjustments of 1” longer or 1” shorter and are supplied pre-set to factory length. These race style control arms are designed for aftermarket sway bars that do not attach to the control arms; control arms are supplied with no sway bar holes.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1965-1967	Buick	Gran Sport	Base
1970-1972	Buick	GS	Base
1968-1969	Buick	GS 350	Base
1968-1969	Buick	GS 400	Base
1970-1972	Buick	GS 455	Base
1970	Buick	GS 455	GSX
1970,1972	Buick	Skylark	350
1964-1972	Buick	Skylark	Base
1968-1972	Buick	Skylark	Custom
1964-1969	Buick	Special	Base
1964-1967	Buick	Special	Deluxe
1964-1972	Buick	Sportwagon	Base
1966,1968-1969	Buick	Sportwagon	Custom
1967-1968	Chevrolet	Chevelle	300
1967-1969	Chevrolet	Chevelle	300 Deluxe
1964-1968,1970-1972	Chevrolet	Chevelle	Base
1967-1972	Chevrolet	Chevelle	Concours
1969-1972	Chevrolet	Chevelle	Concours Estate
1965-1967	Chevrolet	Chevelle	Deluxe
1969-1972	Chevrolet	Chevelle	Greenbrier
1968-1972	Chevrolet	Chevelle	Malibu
1968-1972	Chevrolet	Chevelle	Nomad
1964-1972	Chevrolet	Chevelle	SS
1964-1972	Chevrolet	El Camino	Base
1968-1972	Chevrolet	El Camino	Custom
1968-1972	Chevrolet	El Camino	SS
1964-1967	Chevrolet	Malibu	Base
1970-1972	Chevrolet	Monte Carlo	Base
1971-1972	GMC	Sprint	Base
1972	GMC	Sprint	Custom
1964-1971	Oldsmobile	442	Base
1964-1972	Oldsmobile	Cutlass	Base
1972	Oldsmobile	Cutlass	Cruiser
1964-1967	Oldsmobile	Cutlass	Holiday
1968,1971-1972	Oldsmobile	Cutlass	S
1967	Oldsmobile	Cutlass	Turnpike Cruiser
1964-1972	Oldsmobile	Vista Cruiser	Base
1964-1967	Oldsmobile	Vista Cruiser	Custom
1969-1972	Pontiac	Grand Prix	Base
1964-1972	Pontiac	GTO	Base
1970-1971	Pontiac	GTO	The Judge
1964-1972	Pontiac	LeMans	Base
1972	Pontiac	LeMans	Luxury
1969-1970	Pontiac	LeMans	Safari
1970-1972	Pontiac	LeMans	Sport
1971	Pontiac	LeMans	T37
1964-1970	Pontiac	Tempest	Base
1964-1969	Pontiac	Tempest	Custom
1970	Pontiac	Tempest	GT
1964-1969	Pontiac	Tempest	Safari
