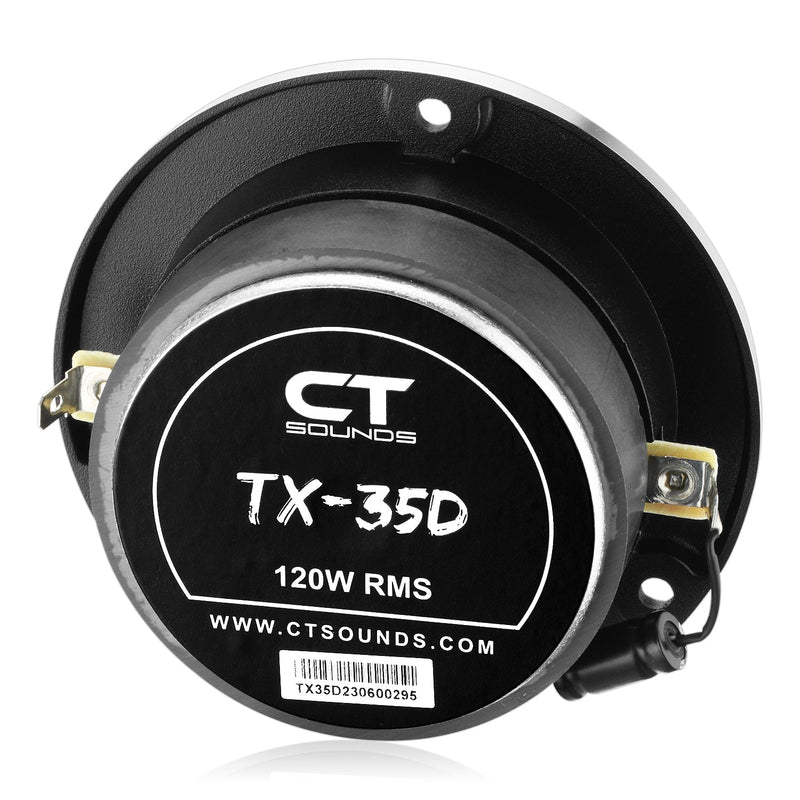

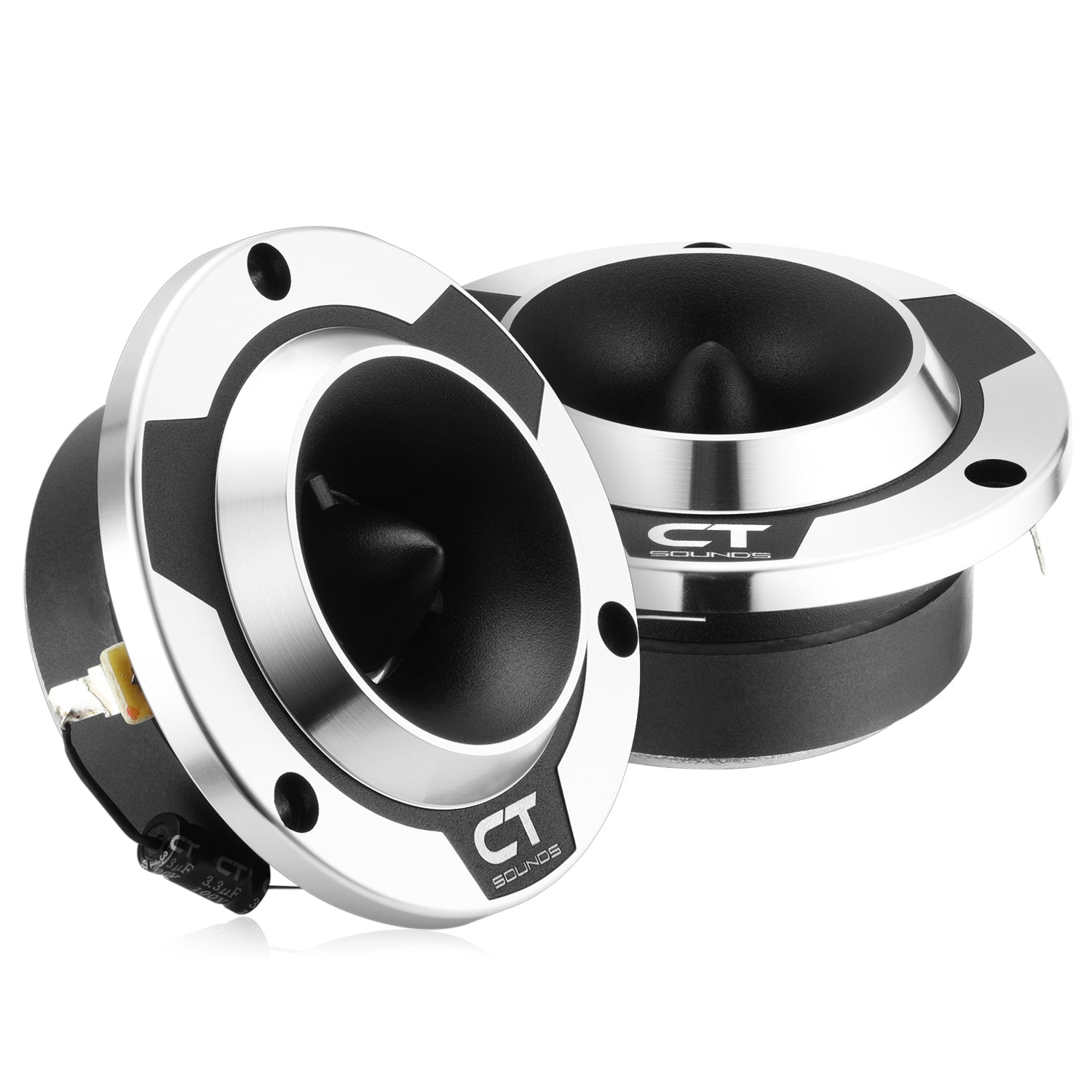

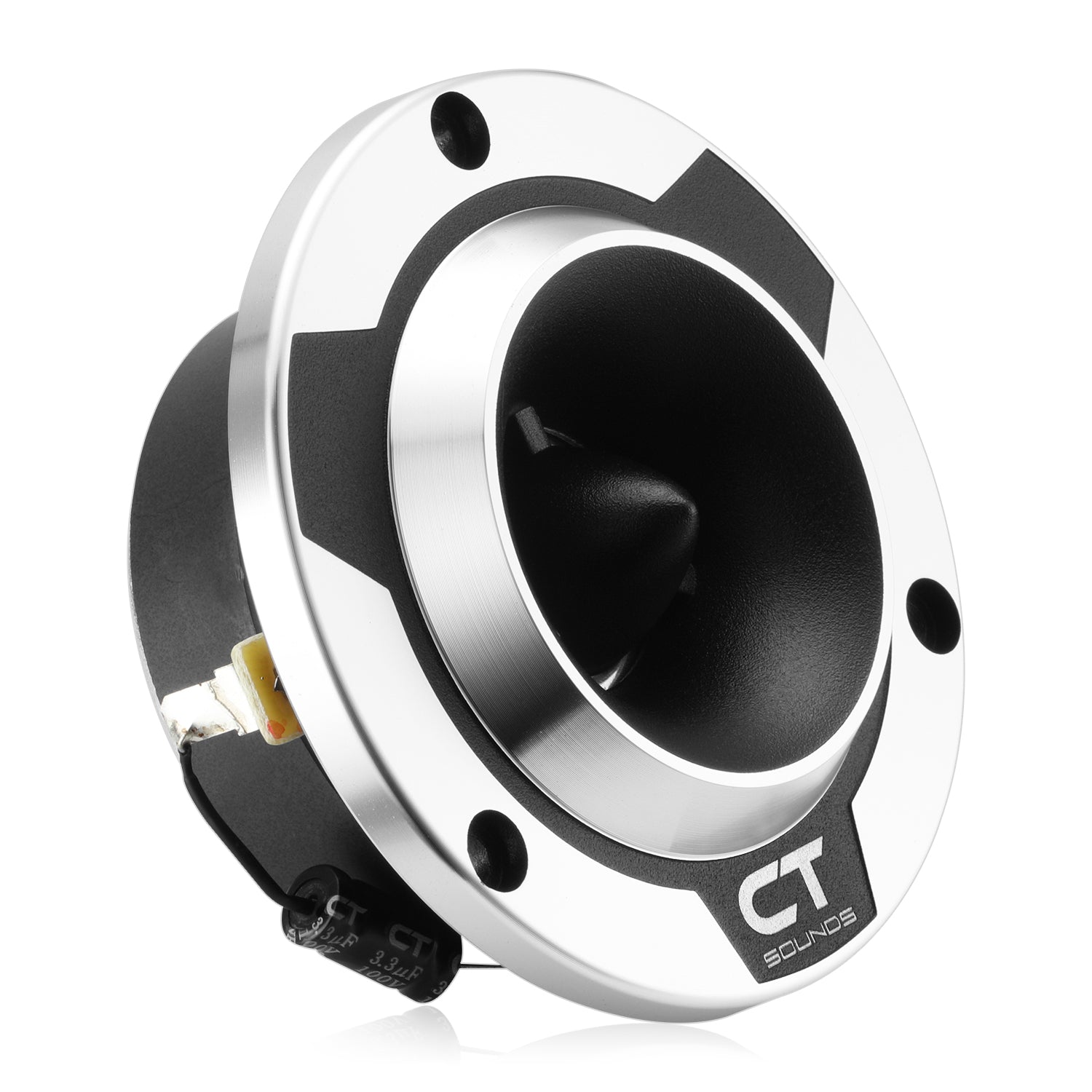

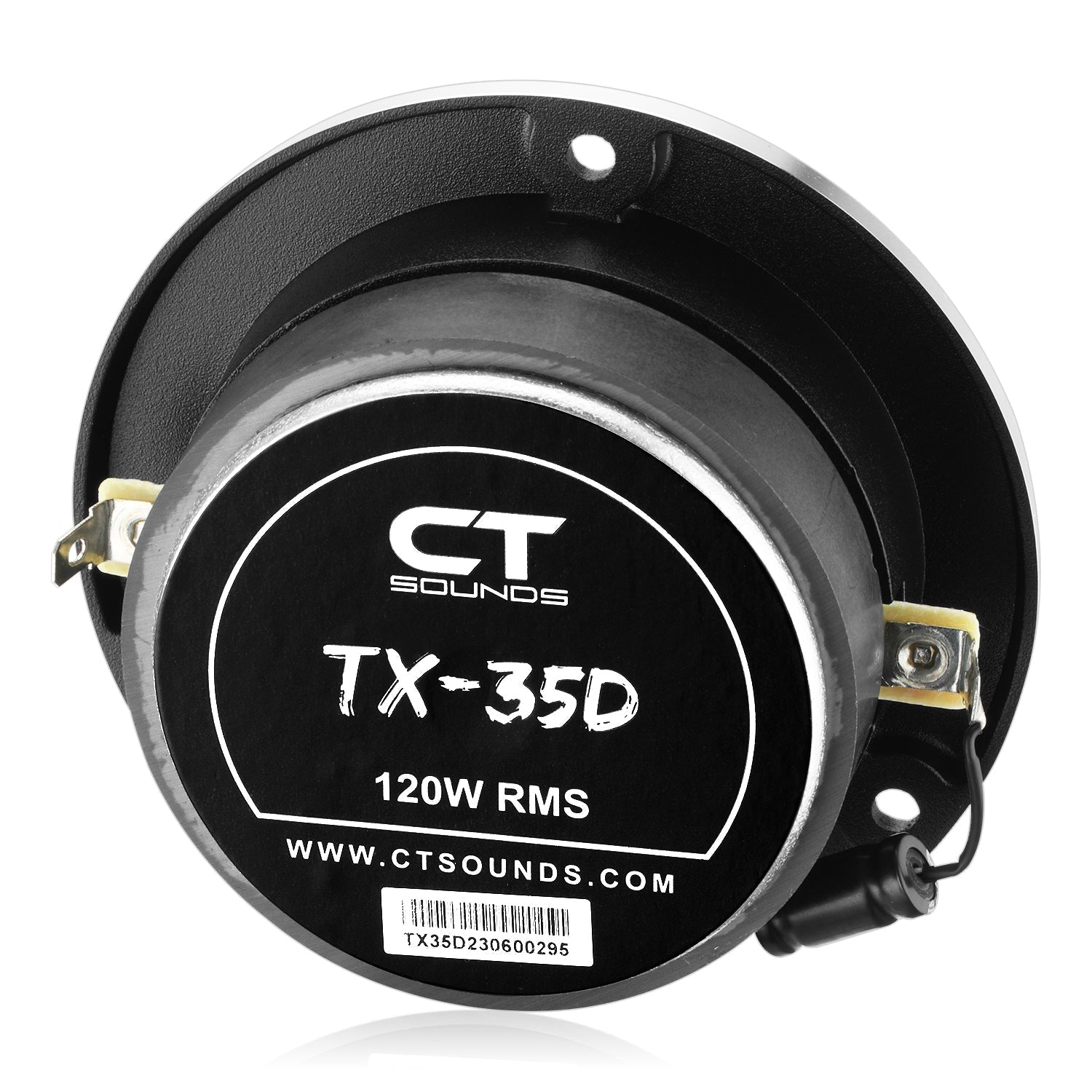

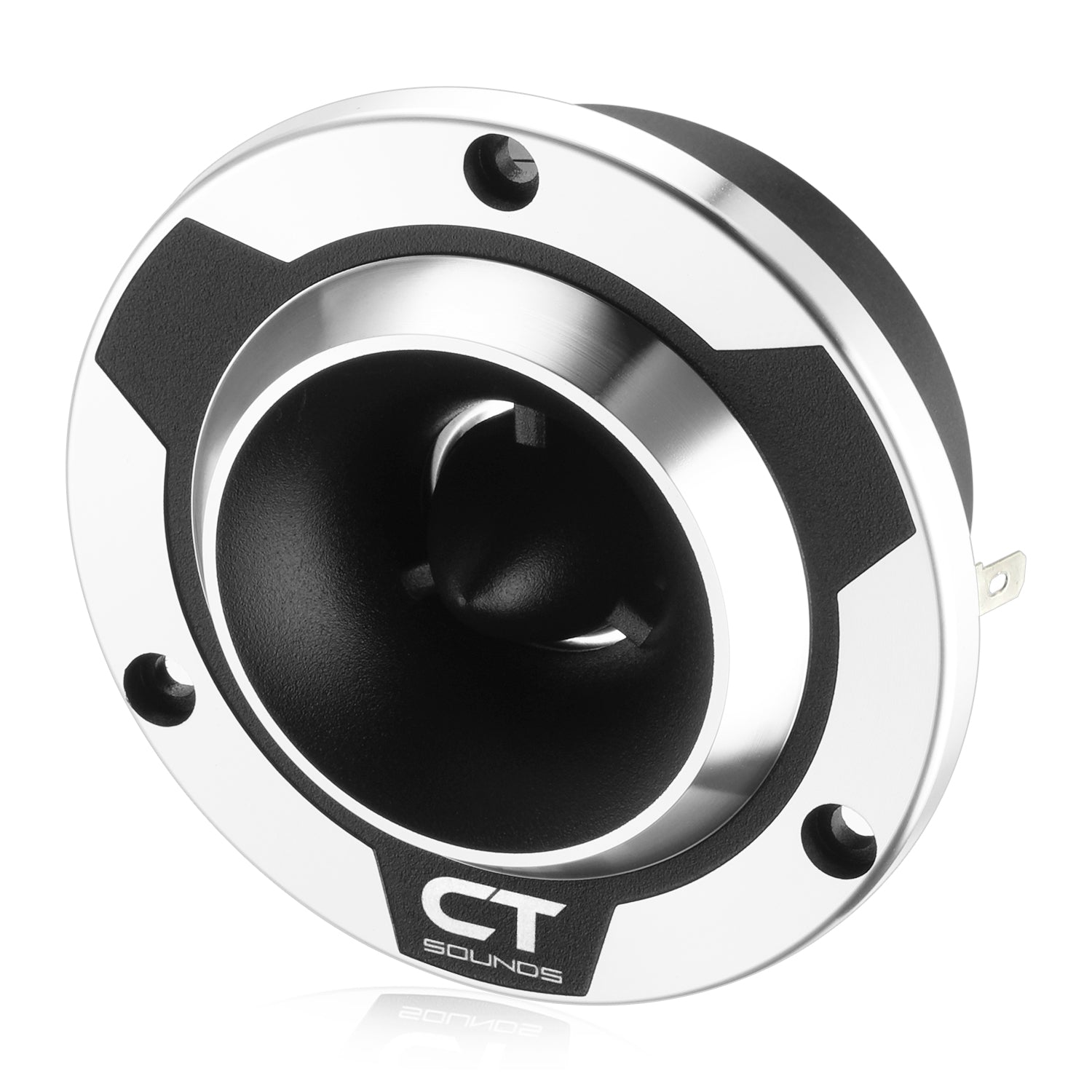

TX-35D // 3.5" 480 Watt Titanium Super Tweeters, Pair
Save 16%
Save 16%
Original price
$83.00
Original price
$83.00
-
Original price
$83.00
Original price
$83.00
Current price
$70.00
$70.00
-
$70.00
Current price
$70.00
| /
Introducing the CT Sounds TX-35D - the pinnacle of high-frequency audio reproduction. Crafted with precision and innovation, these super tweeters feature a professional-grade electrical system engineered for exceptional clarity and detail, thanks to the ferrite motor and round copper voice coil.
| Quick Facts: |
| RMS Power: |
240 Watts (Pair) |
| MAX Power: |
480 Watts (Pair) |
| Impedance: |
Single 4-Ohm
|
| Recommended High Pass Crossover |
4.5 kHz |
Equipped with a titanium diaphragm and custom-engineered bullet phase plug, these super tweeters reproduce every nuance of your favorite tracks with pristine accuracy and ensure consistent performance in demanding environments. Whether cruising down the highway or enjoying a ride in town, your sound will be heard from a long distance.

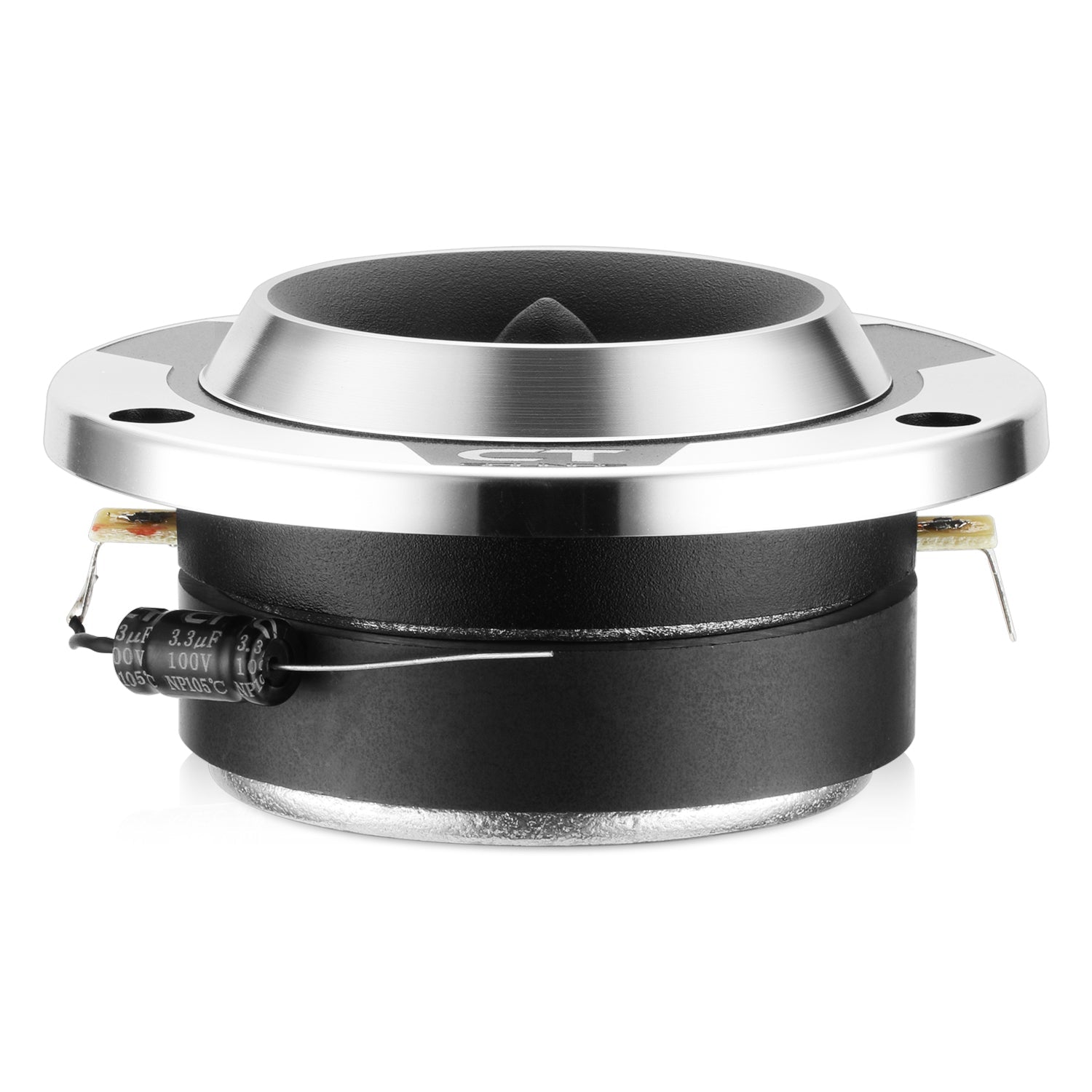

Installation is a breeze thanks to the built-in capacitors safeguarding your tweeters against low-end frequencies, preserving their sonic integrity. Additionally, we include our recommended mounting screws making installation even easier.
| General Specifications: |
| Tweeter Size: |
3.5" |
| Tweeter Type: |
Super Tweeter |
| Sold As Pair: |
Yes |
| Capacitor Included: |
Yes |
| Terminal Type: |
Spade Terminal |
| Impedance Per Tweeter: |
Single 4-Ohm |
| Minimum Impedance Per Tweeter: |
4-Ohm @ 3.5 kHz |
| Power Per Tweeter: |
120W RMS | 240W MAX |
| Total System Power: |
240W RMS | 480W MAX |
| Tweeter Specifications: |
| Voice Coil Size: |
1" |
| Voice Coil Winding Material: |
Copper |
| Voice Coil Former Material: |
KSV |
| Diaphragm Material: |
Titanium |
| Magnet Type: |
Ferrite |
| Throat Diameter: |
2.04" |
| Output SPL (@1w/1m): |
103 dB |
| Frequency Response (@SPL -10dB): |
2 kHz - 20 kHz |
| Sweep Voltage: |
3V |
| Crossover Circuit: |
3.3 μF capacitor / 100 V |
| Crossover Filter: |
12 dB / octave |
| Recommended High Pass Crossover: |
4.5 kHz |

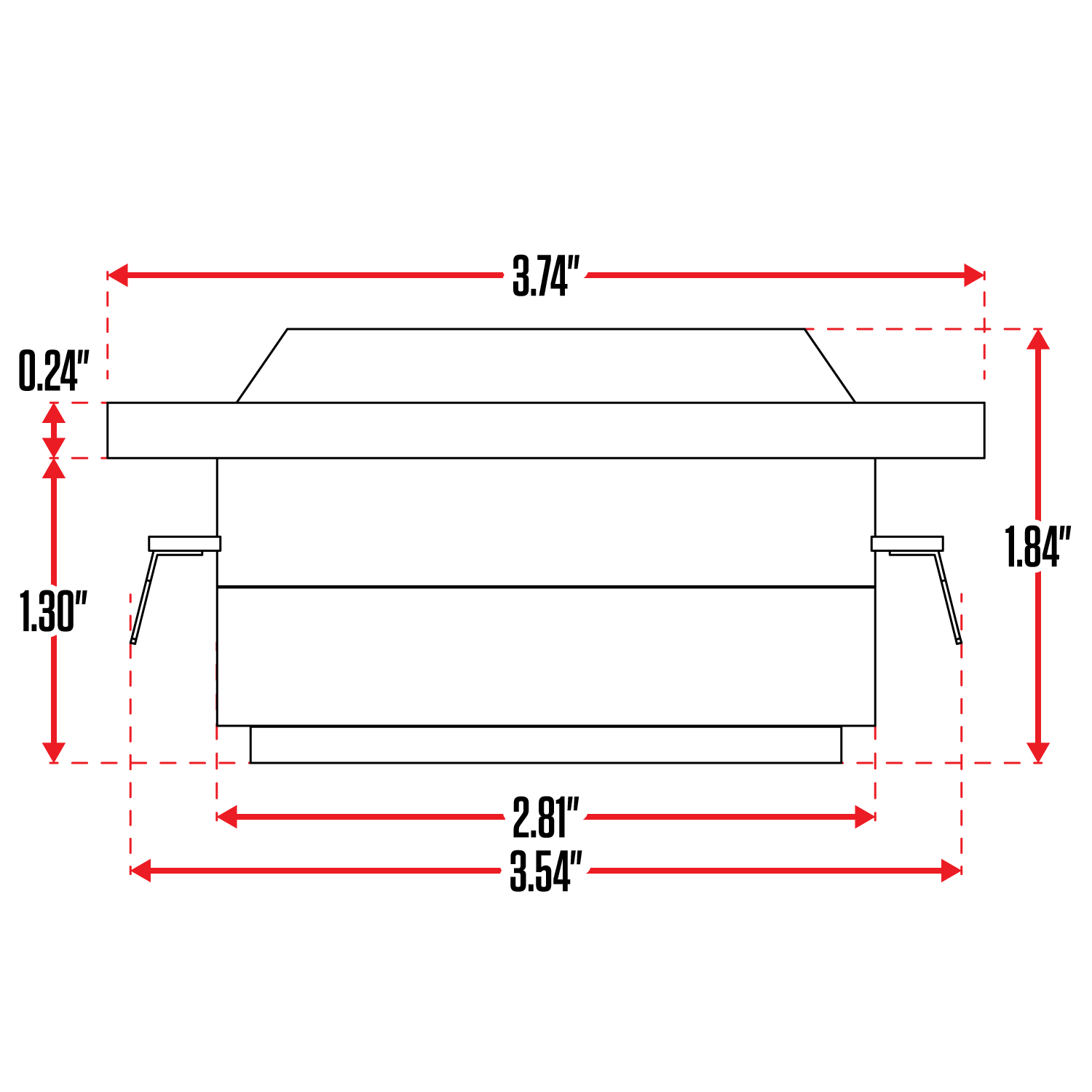

Mounting Info
| Install Specifications: |
| Overall Diameter: |
3.74" |
| Overall Height: |
1.84" |
| Cut-out Diameter: |
2.81" |
| Cut-out Diameter (incl. terminal slots): |
3.54" |
| Throat Depth: |
/ |
| Mounting Depth: |
1.30" |
| Flush Mount Lip Height: |
0.24" |
| Flush Mount Lip Width: |
3.74" |
