TX-35C // 3.5" 480 Watt Titanium Super Tweeters, Pair
Save 16%
Save 16%
Original price
$83.00
Original price
$83.00
-
Original price
$83.00
Original price
$83.00
Current price
$70.00
$70.00
-
$70.00
Current price
$70.00
| /
Introducing the CT Sounds TX-35C - the pinnacle of high-frequency audio reproduction. Crafted with precision and innovation, these super tweeters feature a professional-grade electrical system engineered for exceptional clarity and detail, thanks to the ferrite motor and round copper voice coil.
| Quick Facts: |
| RMS Power: |
240 Watts (Pair) |
| MAX Power: |
480 Watts (Pair) |
| Impedance: |
Single 4-Ohm
|
| Recommended High Pass Crossover |
4.5 kHz |
Equipped with a titanium diaphragm and custom-engineered bullet phase plug, these super tweeters deliver robustness and longevity, ensuring consistent performance in demanding environments. Whether cruising down the highway or enjoying a ride in town, your sound will be heard from a long distance.
Installation is a breeze thanks to the built-in capacitors safeguarding your tweeters against low-end frequencies, preserving their sonic integrity. Additionally, we include our recommended mounting screws making installation even easier.
| General Specifications: |
| Tweeter Size: |
3.5" |
| Tweeter Type: |
Super Tweeter |
| Sold As Pair: |
Yes |
| Capacitor Included: |
Yes |
| Terminal Type: |
Spade Terminal |
| Impedance Per Tweeter: |
Single 4-Ohm |
| Minimum Impedance Per Tweeter: |
4-Ohm @ 3.5 kHz |
| Power Per Tweeter: |
120W RMS | 240W MAX |
| Total System Power: |
240W RMS | 480W MAX |
| Tweeter Specifications: |
| Voice Coil Size: |
1" |
| Voice Coil Winding Material: |
Copper |
| Voice Coil Former Material: |
KSV |
| Diaphragm Material: |
Titanium |
| Magnet Type: |
Ferrite |
| Throat Diameter: |
2.25" |
| Output SPL (@1w/1m): |
103 dB |
| Frequency Response (@SPL -10dB): |
2 kHz - 20 kHz |
| Sweep Voltage: |
3V |
| Crossover Circuit: |
3.3 μF capacitor / 100 V |
| Crossover Filter: |
12 dB / octave |
| Recommended High Pass Crossover: |
4.5 kHz |

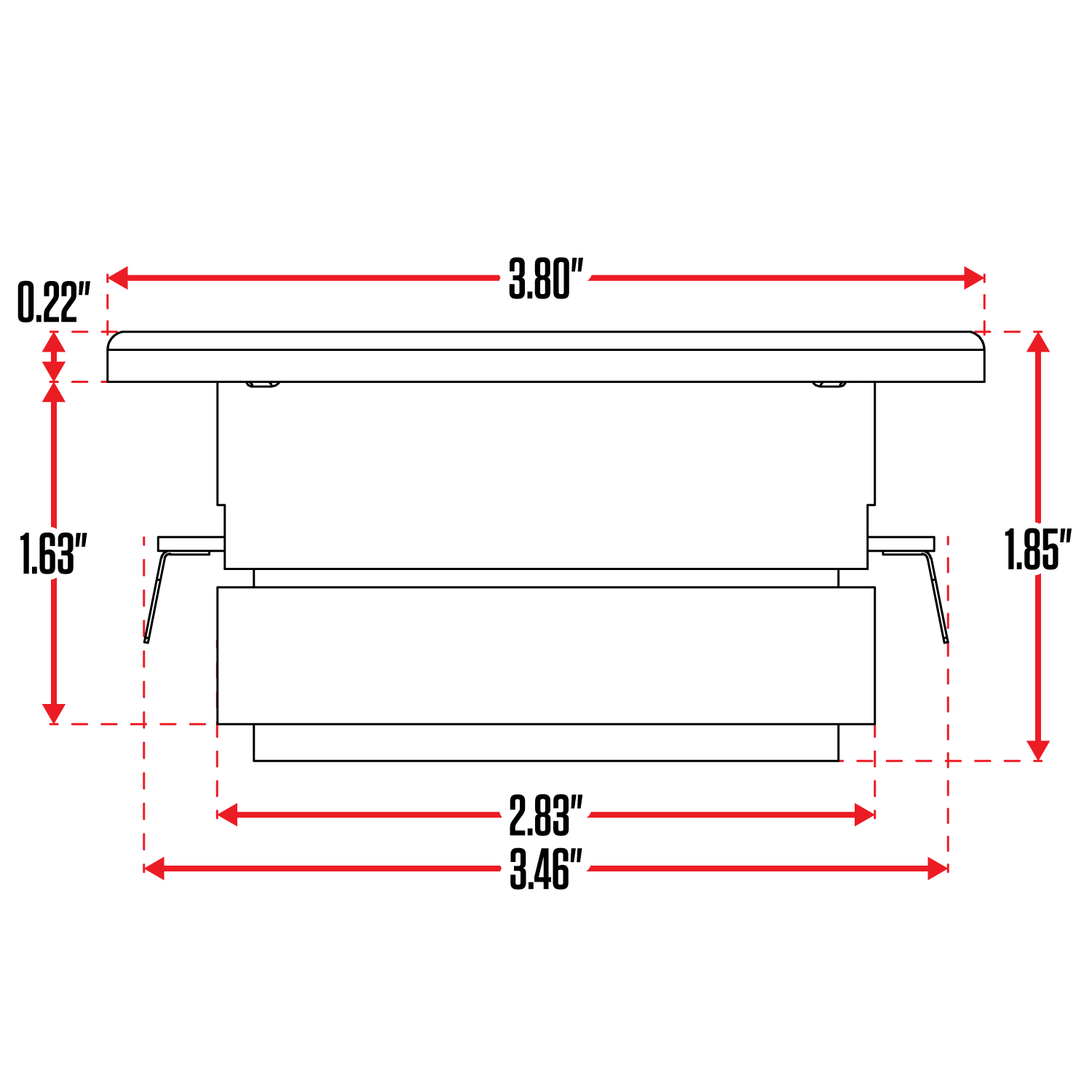

Mounting Info
| Install Specifications: |
| Overall Diameter: |
3.80" |
| Overall Height: |
1.85" |
| Cut-out Diameter: |
2.83" |
| Cut-out Diameter (incl. terminal slots): |
3.46" |
| Throat Depth: |
/ |
| Mounting Depth: |
1.63" |
| Flush Mount Lip Height: |
0.22" |
| Flush Mount Lip Width: |
3.80" |
