TPT-CX69-4 TPRO

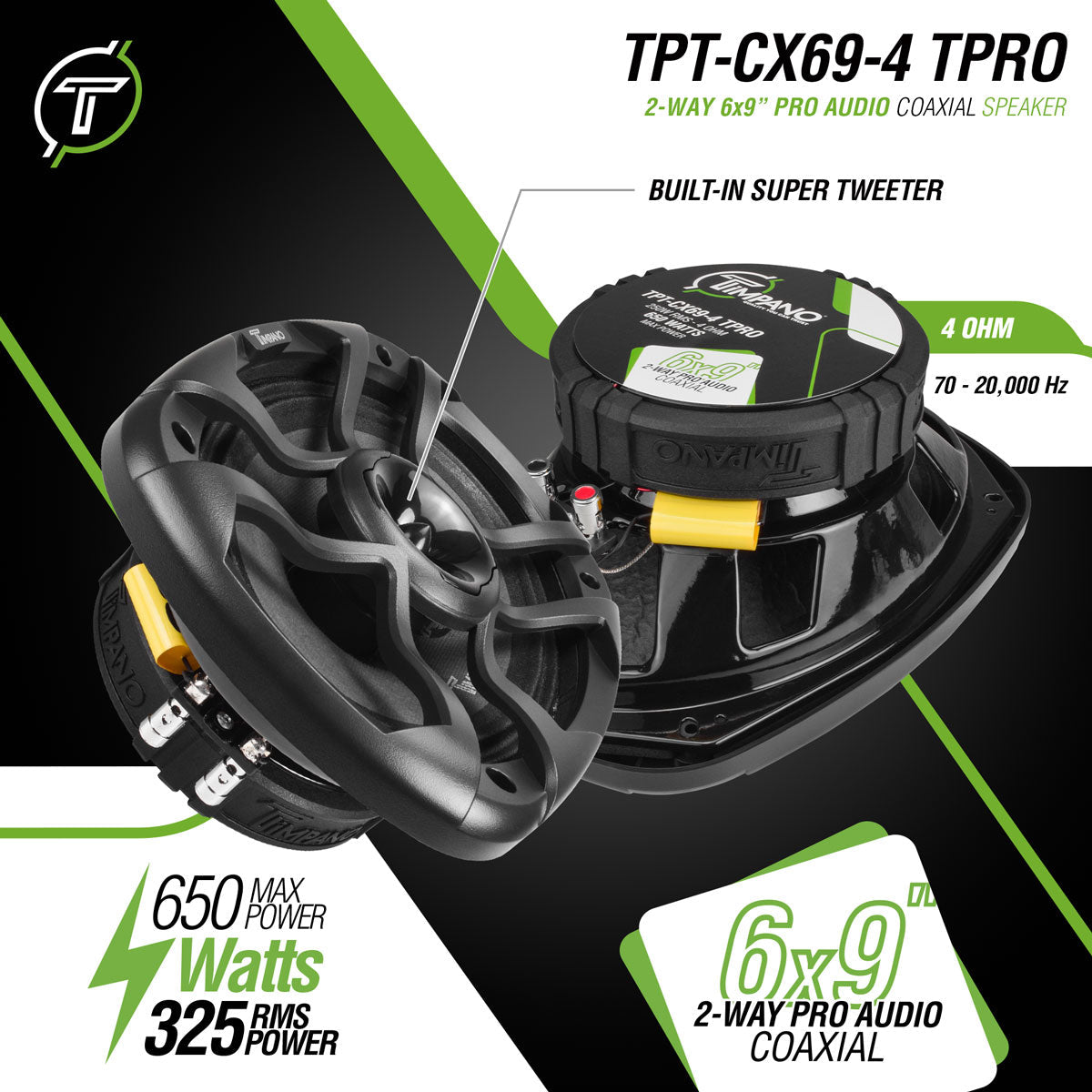

TPT-CX69-4 TPRO 6×9” PRO Audio Car Coaxial 4 Ohm – Built-In Super Tweeter

Listen to music to a whole new level with the TPT-CX69-4 PRO, a 6×9″ 2-Way Coaxial, that is basically a PRO Audio full-range loudspeaker combo.

This pro midbass speaker has an impressive punch combined with its bullet tweeter. It responds from 70 to 20,000 Hz and gives your system a new quality of sound.

Take your sound to the highest output level with this 2-Way coaxial to feel and listen to music the way it was meant to be heard!

• PREMIUM 6×9” CAR SPEAKERS: With 98dB sensitivity, you’ll get more output and a more impactful sound. Wide Frequency Response of 70 – 20,000 Hz provides the cleanest and most detailed vocal and sound reproduction.

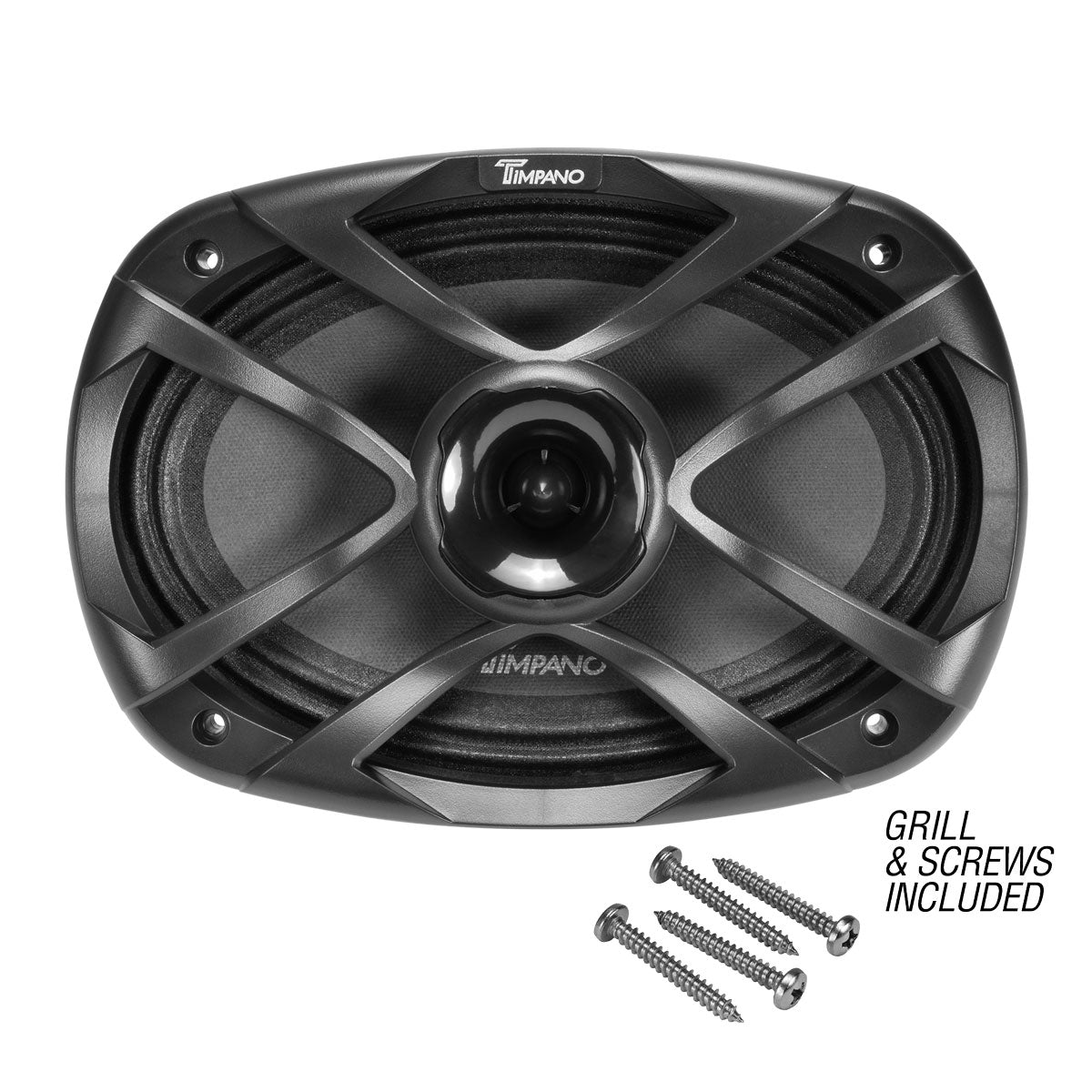

• HIGH PERFORMANCE: Experience exceptional sound quality with TIMPANO’s 6×9 inch coaxial speaker, designed specifically for car audio applications. These speakers provide crisp, clear audio, ensuring an immersive listening experience on the road. Grill and Screws Included

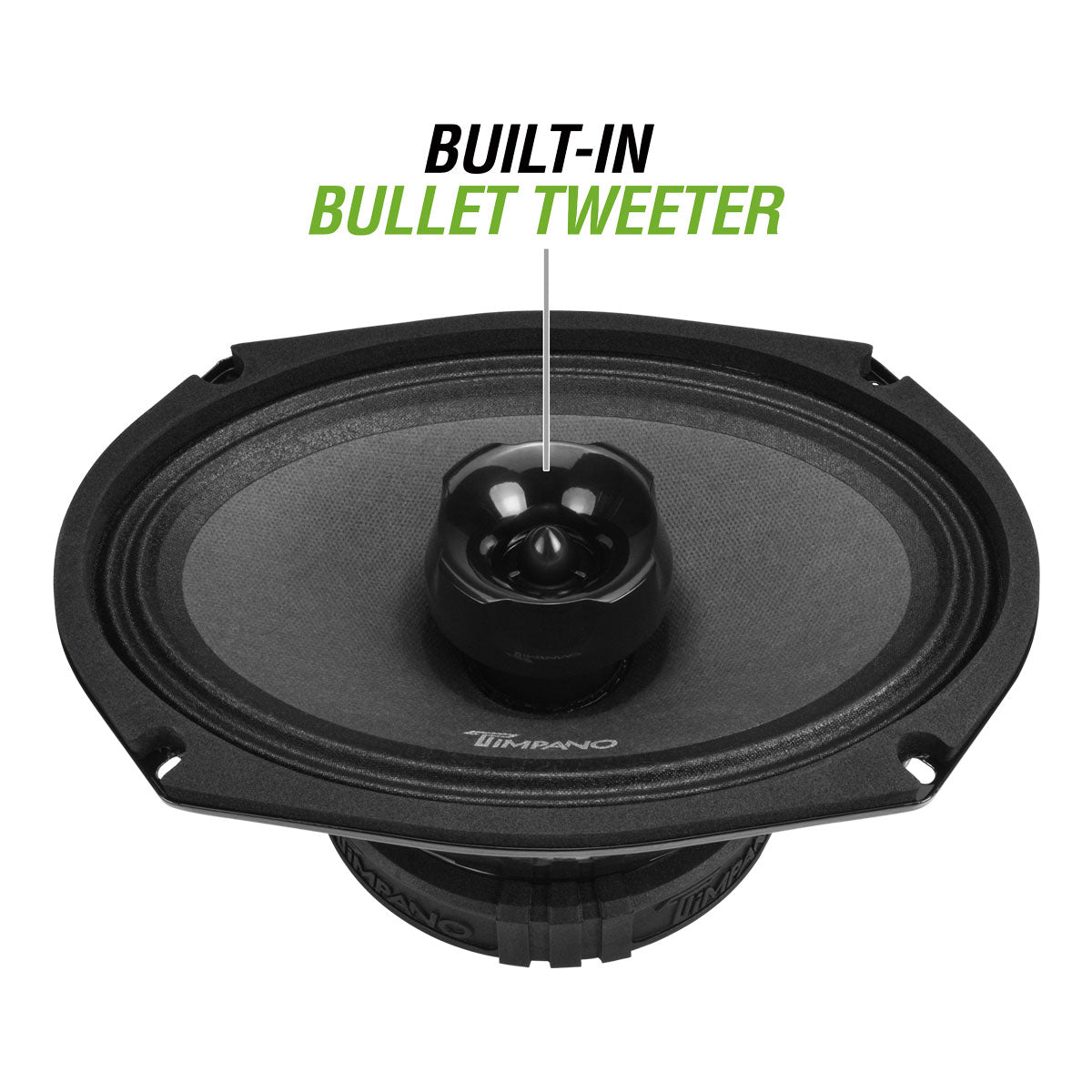

• FULL RANGE SOUND: Midbass PRO Audio mid with a built-in bullet tweeter, powered by a high-performance neodymium motor, delivering crisp, ultra-clear highs with unmatched efficiency.
• POWER YOU CAN RELY ON Can handle up to 650 Watts, able to deliver a tremendous amount of sound output. 4 Ohm Impedance.
• PERFECT FOR CAR STEREO: With premium components and technology for 2-Way systems ( Subwoofer, & Coaxial Speaker ) Perfect option for OEM location replacement that needs a loud mids and highs to keep up with high power subwoofer system. 3.31” of mounting depth, may require custom spacer.

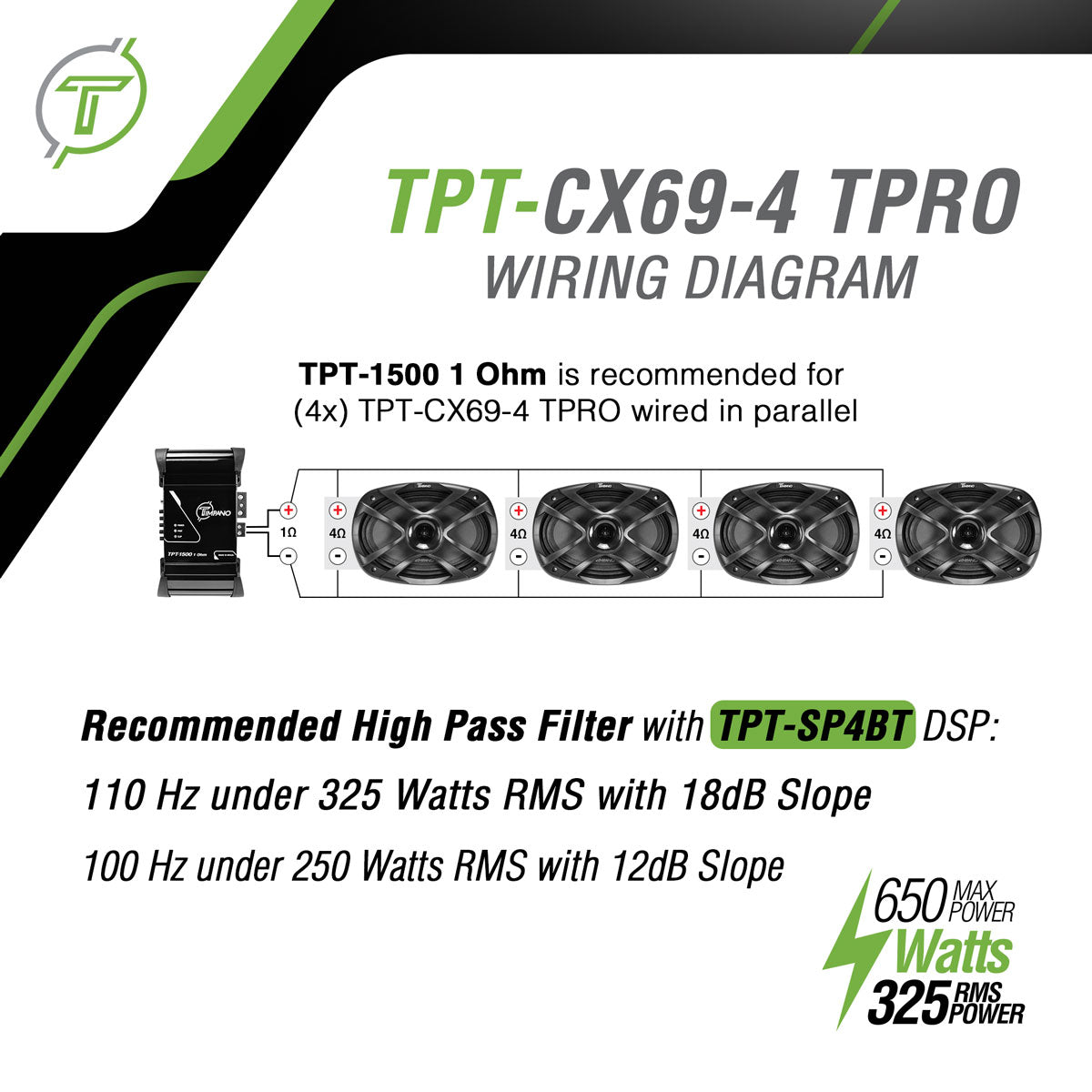

Install multiple speakers on a single system amplifier, you can easily wire 4x speakers in parallel to a TPT-1500 at 1 Ohm. Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

Specs:
650 Watts Max Power
325 Watts RMS Power with Digital DSP
225 Watts RMS Power with Car Audio Crossover
Impedance: 4 Ohm
Sensitivity: 98 dB
Frequency Response: 70 – 20,000 Hz
Speaker Voice Coil: 1.5”
Tweeter Voice Coil: 1”
Steel Basket with High Strength Ferrite Magnet and Neodymium Tweeters

Recommended High Pass Filter with TPT-SP4BT DSP:
110 Hz under 325 Watts of Amplifier RMS Power with 18dB Slope
100 Hz under *250 Watts of Amplifier RMS Power with 12dB Slope
(*Maximum power handling using a regular car audio amplifier crossover)

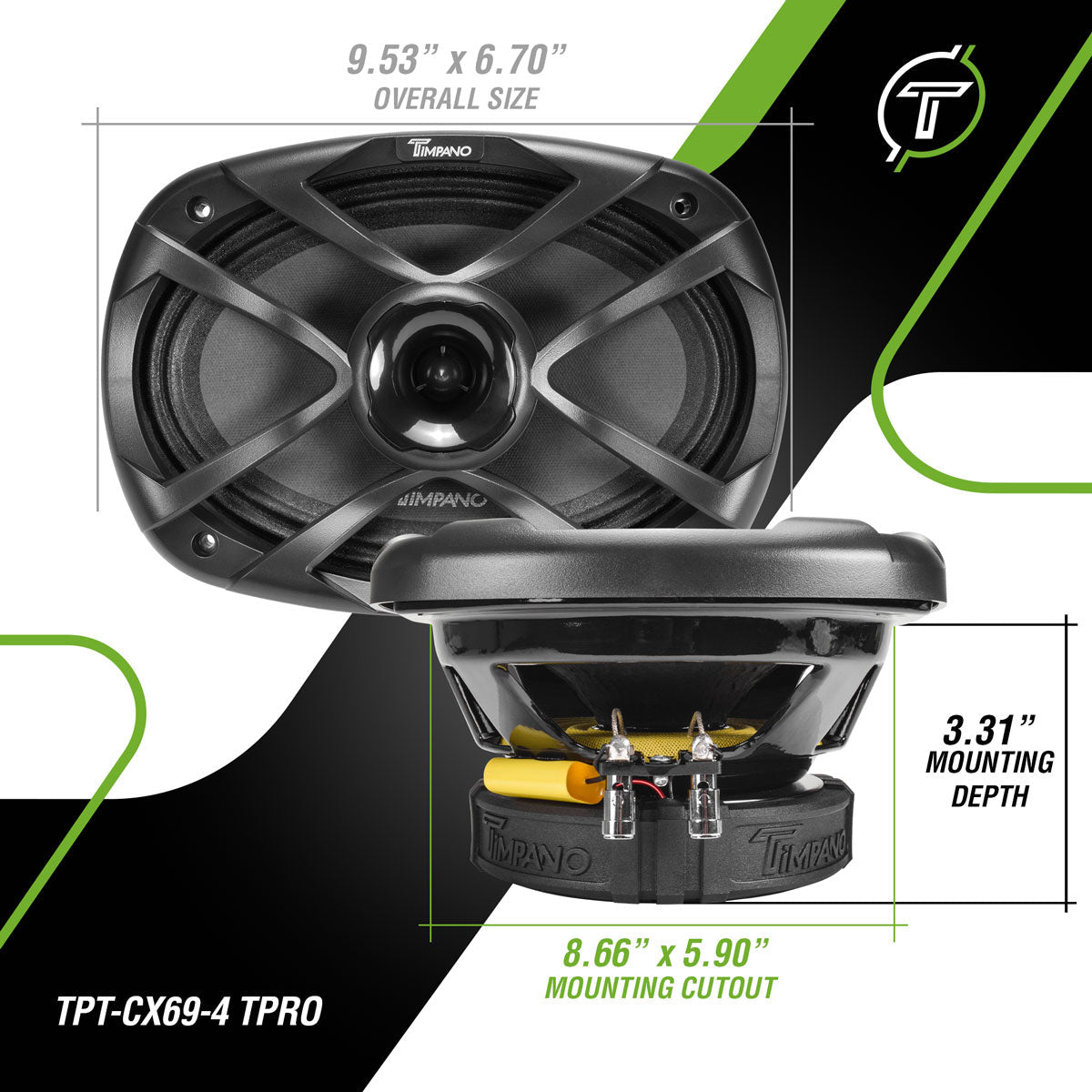

Sizing:
Mounting Depth: 3.31”
Mounting Cutout Diameter: 8.66″ x 5.90” Oval
Overall Diameter with Grill: 9.53” x 6.70” Oval
Overall Diameter without Grill: 9.25” x 6.49” Oval
Weight: 5.15 lbs
