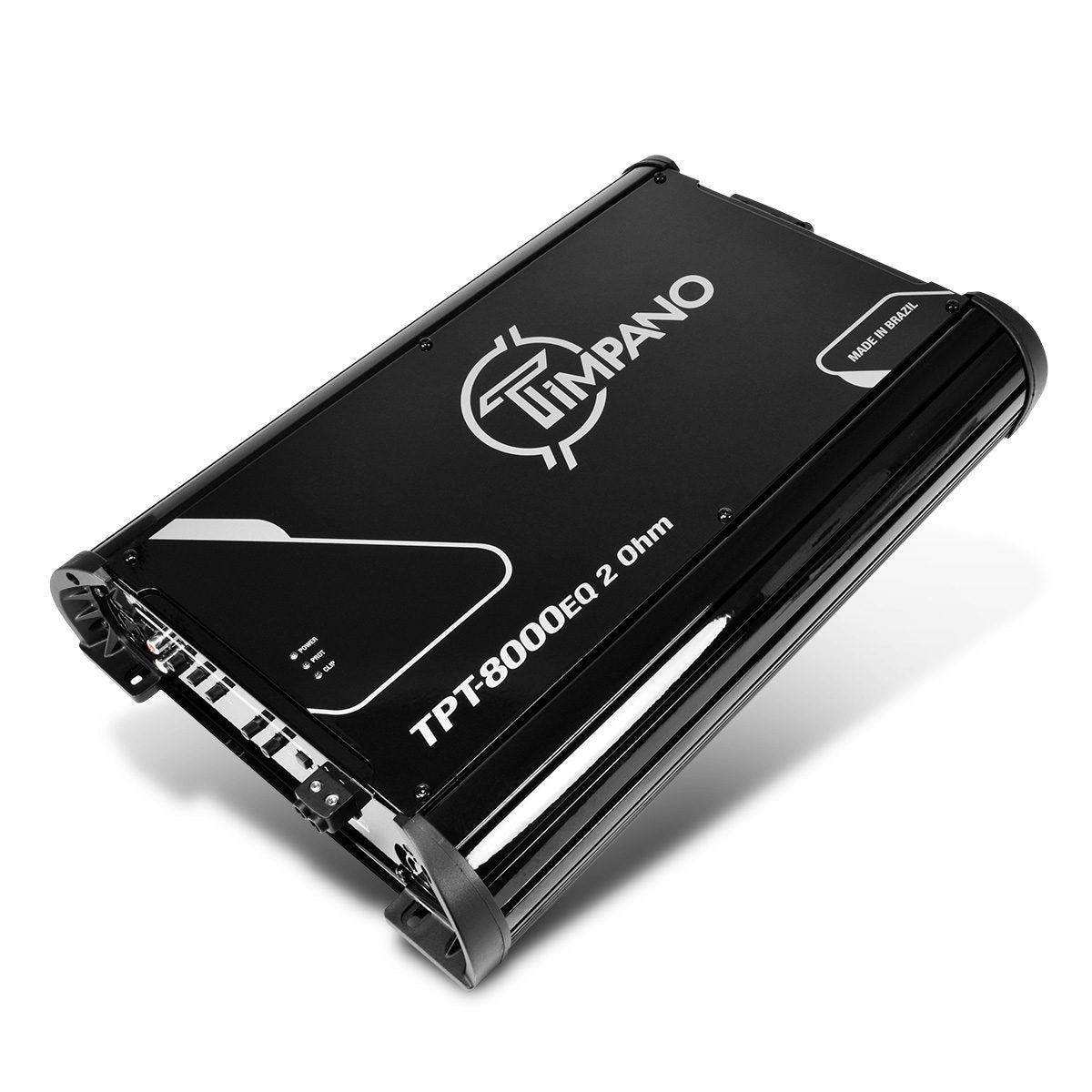

Timpano 1 Channel TPT-8000EQ 2 Ohms Car Audio Amplifier
Timpano 1 Channel TPT-8000EQ 2 Ohms Car Audio Amplifier is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Timpano 1 Channel TPT-8000EQ 2 Ohms Car Audio Amplifier
Timpano 1 Channel TPT-8000EQ 2 Ohms Car Audio Amplifier is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Small Footprint Technology!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact fullrange amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D fullrange amplifier.
Additional Information:
Number of Channels: 1

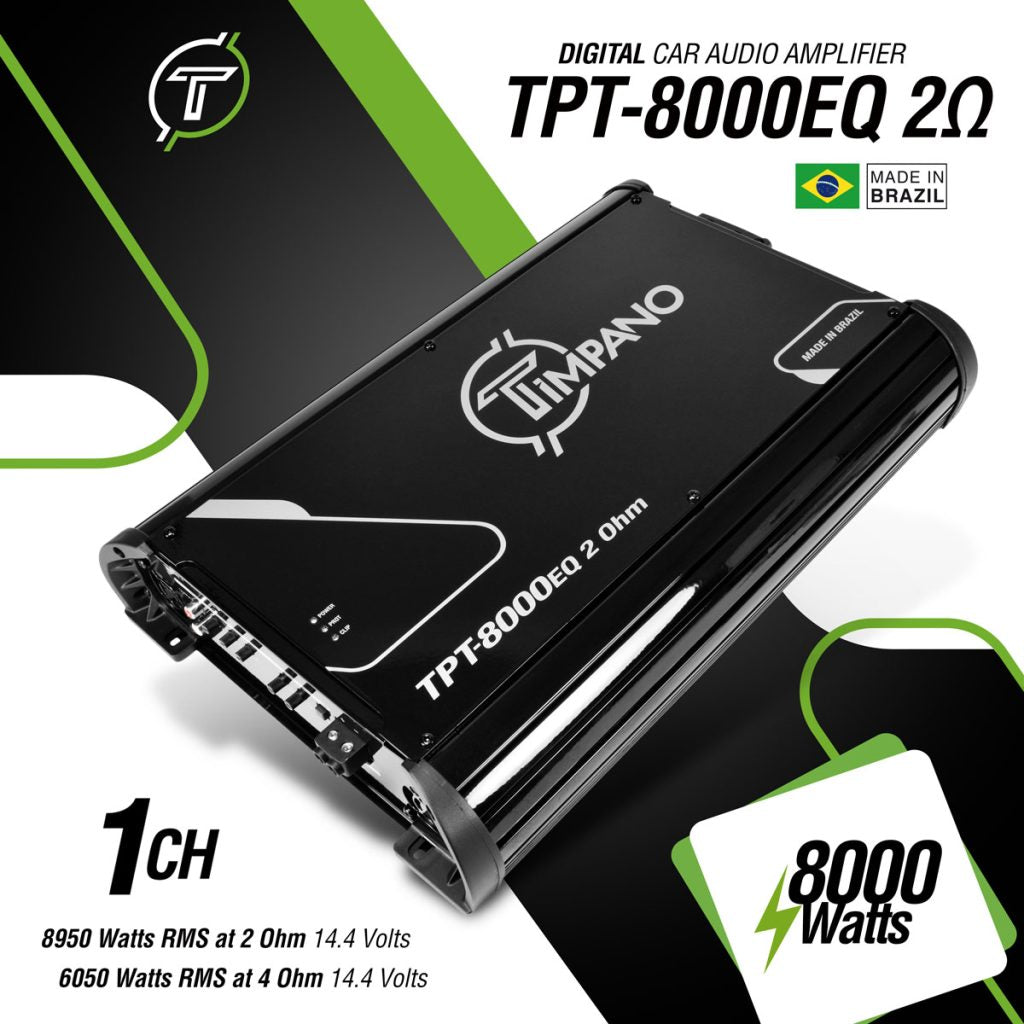

RMS Power at 2 Ohm 12.6 Volts: 8000 Watts RMS
RMS Power at 4 Ohm 12.6 Volts: 5000 Watts RMS
RMS Power at 2 Ohm 14.4 Volts: 8950 Watts RMS
RMS Power at 4 Ohm 14.4 Volts: 6050 Watts RMS
Supply Voltage: 9.5 ~ 15 Volts
Frequency Response: 10Hz ~ 15KHz
Crossover Low Pass: 50Hz ~ 15KHz
Crossover High Pass: 10Hz ~ 700Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Sensitivity: 0.2 Volts
Input Impedance: 26K Ohm
Impedance Output: 2 Ohm
Consumption with Signal Musical: 5.2A ~ 396A
Consumption with Signal Bass: 5.2A ~ 790A

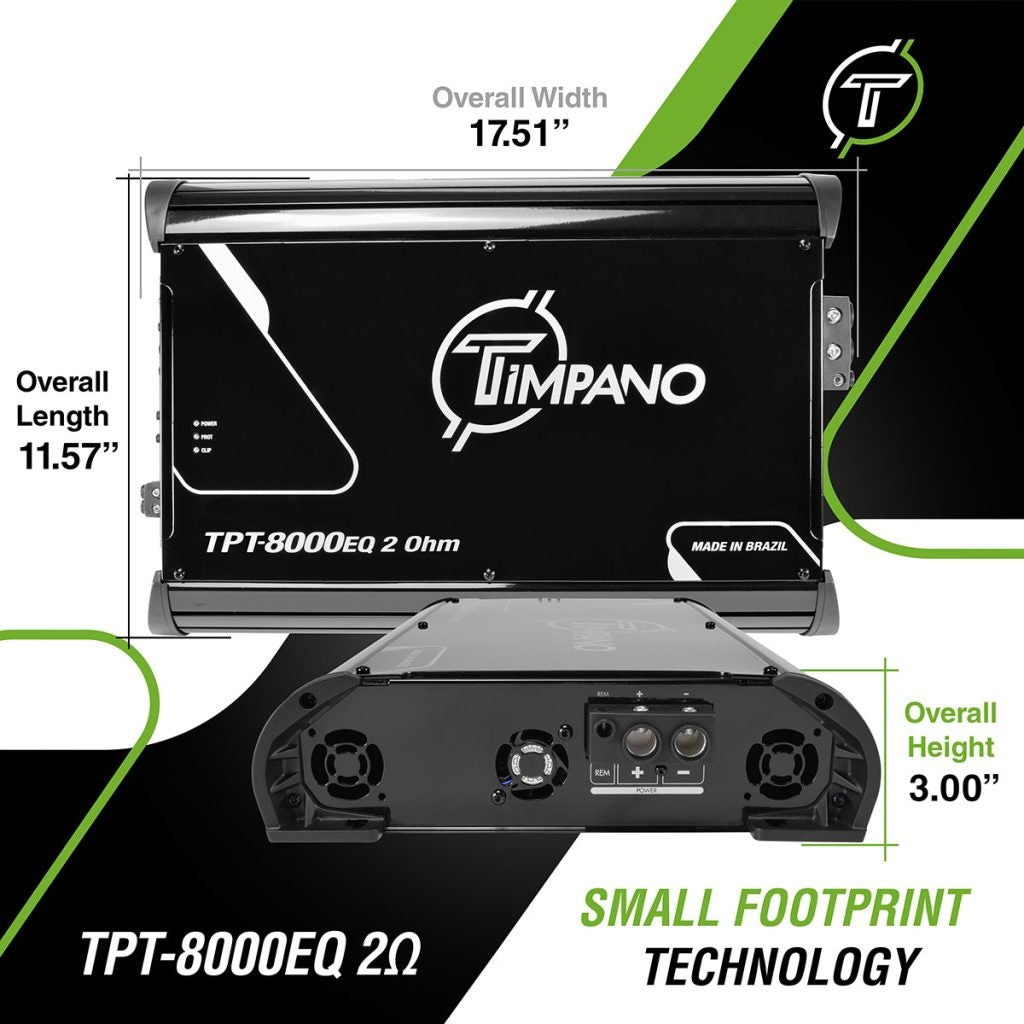

Dimensions (L x W x H): 11.57” x 17.51” x 3”
Weight: 14.3 Lbs
Features:

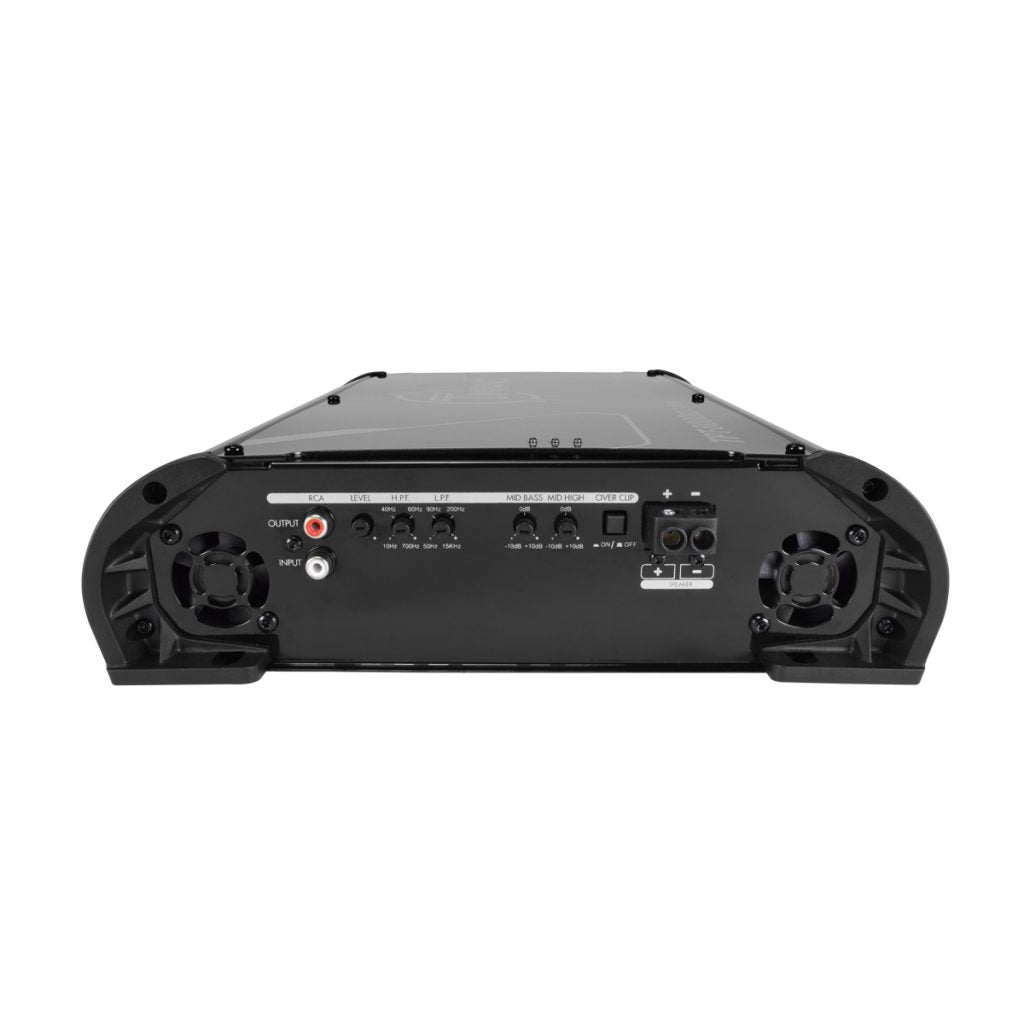

The TPT-8000EQ offer 1 channel with advanced individual equalization features for Bass, Midbass and Midhigh, plus the traditional Level, High Pass and Low Pass features. Its Full Range frequency response from 10Hz to 15KHz allows the installation of Subwoofers, Woofers, Drivers and Tweeters.
