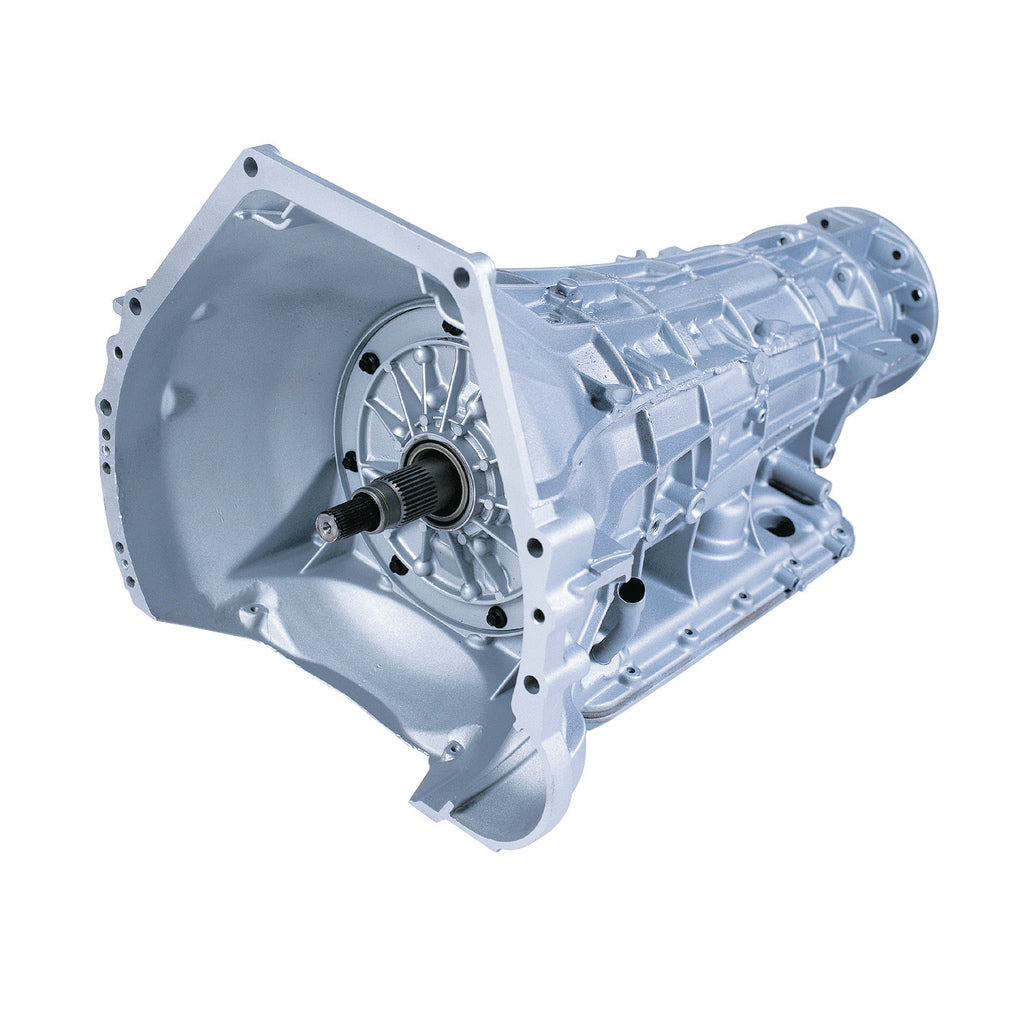

TowMaster Ford 4R100 Transmission - 1999-2003 4wd

[shortdesc]

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!

• Increase the durability of your drivetrain
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Re-calibrated accumulator body
• Quicker, firmer shifts
• Full shift kit with line mod valve to increase pressures
• Increased pressure to converter
• Added lube circuits to OD planet
• Added lube and support to output and intermediate shafts
• Drilled and tapped direct and intermediate feeds to prevent leaks at case
• Upgraded OD snap ring
• Machined center support
• Reworked front pump
• Fully rollerized geartrain
• Clutch Count: COAST CLUTCH 2
• Clutch Count: FORWARD 5 (25% increase over stock)
• Clutch Count: DIRECT 5
• Clutch Count: LOW REVERSE 7 (17% increase over stock)
• Clutch Count: INTERMEDIATE 4 (33% increase over stock)
• Clutch Count: OVERDRIVE 4 (33% increase over stock)
• Each transmission is dyno tested

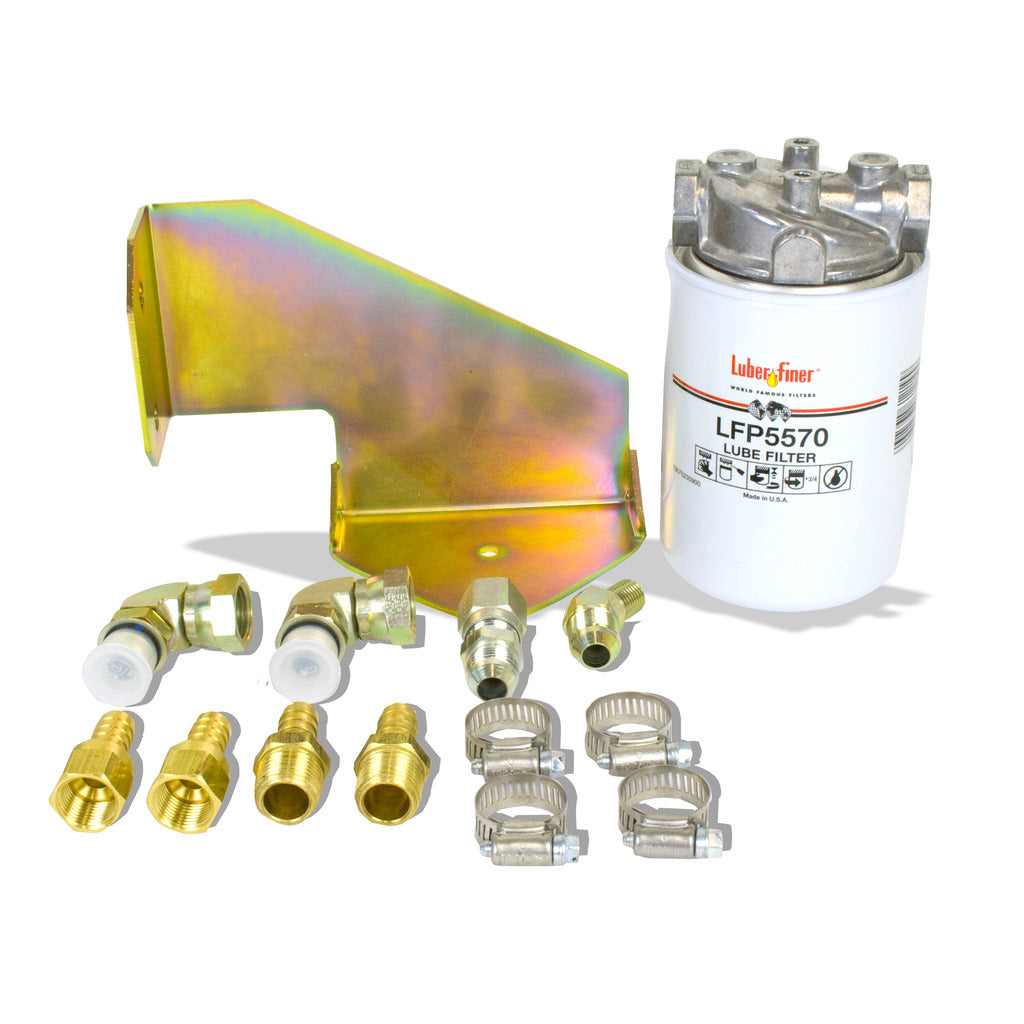

• 1990-2003 include auxiliary frame mounted full flow filter kit

• 7 Hours

Parts

• 36-Months
• 150,000 Miles

Labor

• 12-Months
• 24,000 miles

Note

• No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

• 2wd 4R100 vehicles with attached driveline brake assembly requires 4wd model
• Add "LR" for 4:88 rear end ratio or lower (i.e. 1064444FLR or 1064444FPTOLR)
• Add "PTO" to part number for PTO provision (i.e. 1064444FPTO or 1064444FPTOLR)
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
• Does not have PTO provision
• Excursion requires use of factory style transmission pan. BD Deep Pan will interfere with factory crossmember

• This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
