Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D full range amplifier.
Number of Channels: 1
RMS Power at 1 Ohm 12.6V: 3000W RMS
RMS Power at 2 Ohm 12.6V: 2100W RMS
RMS Power at 4 Ohm 12.6V: 1150W RMS
Supply Voltage: 9.5 ~ 15Vdc
Frequency Response: 10Hz ~ 25KHz
Crossover Low Pass: 50Hz ~ 25KHz
Crossover High Pass: 10Hz ~ 700Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Sensitivity: 0.2V
Input Impedance: 12K OHMS
Impedance Output: 1 OHM
Consumption with Signal Musical: 2A ~ 140A
Consumption with Signal Bass: 2A ~ 280A
Dimensions (L x W x H): 8.75” x 7.40” x 3”
Weight: 5.30 Lbs
Features:

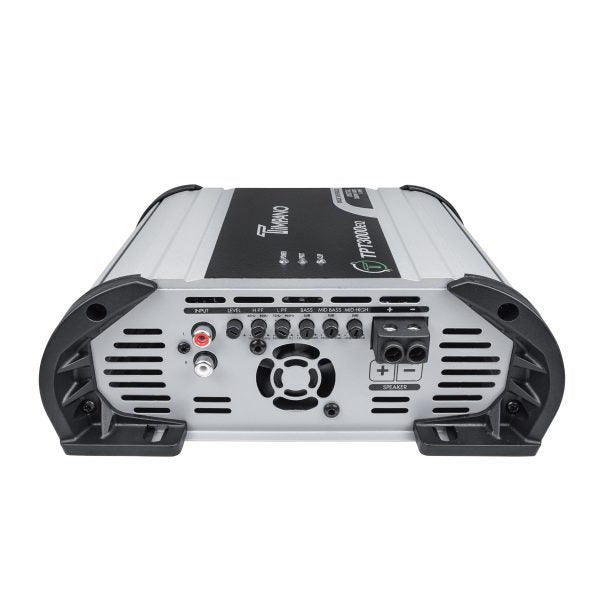

The TPT-3000EQ offer 1 channel with advanced individual equalization features for Bass, Mid Bass and Mid High, plus the traditional Level, High Pass and Low Pass features. Its Full Range frequency response from 10Hz to 25KHz allows the installation of Subwoofers, Woofers, Drivers and Tweeters.
Use the guide Below for recommended applications, where you can get the full potential of your amplifier.
Product Update:
The 2022 version has an improvement on its ventilation system, its right fan from the power supply side has been moved to the controls side, increasing air flow and efficiency on its performance.
Before Installing:
You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;
• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
• Always use 100% Cooper cables and good quality connectors. This guarantees the sound’s quality and fidelity;
• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a 150A fuse 12 inches away from the battery as a safety precaution
The power rated data are based on equipment from the STETSOM laboratory. Frequency reference of 1Khz with THD+N to ≤10% in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
