Switch-Pros® RCR-FORCE® 12 Switch Panel Power System
Switch-Pros® RCR-FORCE® 12 Switch Panel Power System - None (+$0) is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Switch-Pros® RCR-FORCE® 12 Switch Panel Power System - None (+$0) is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

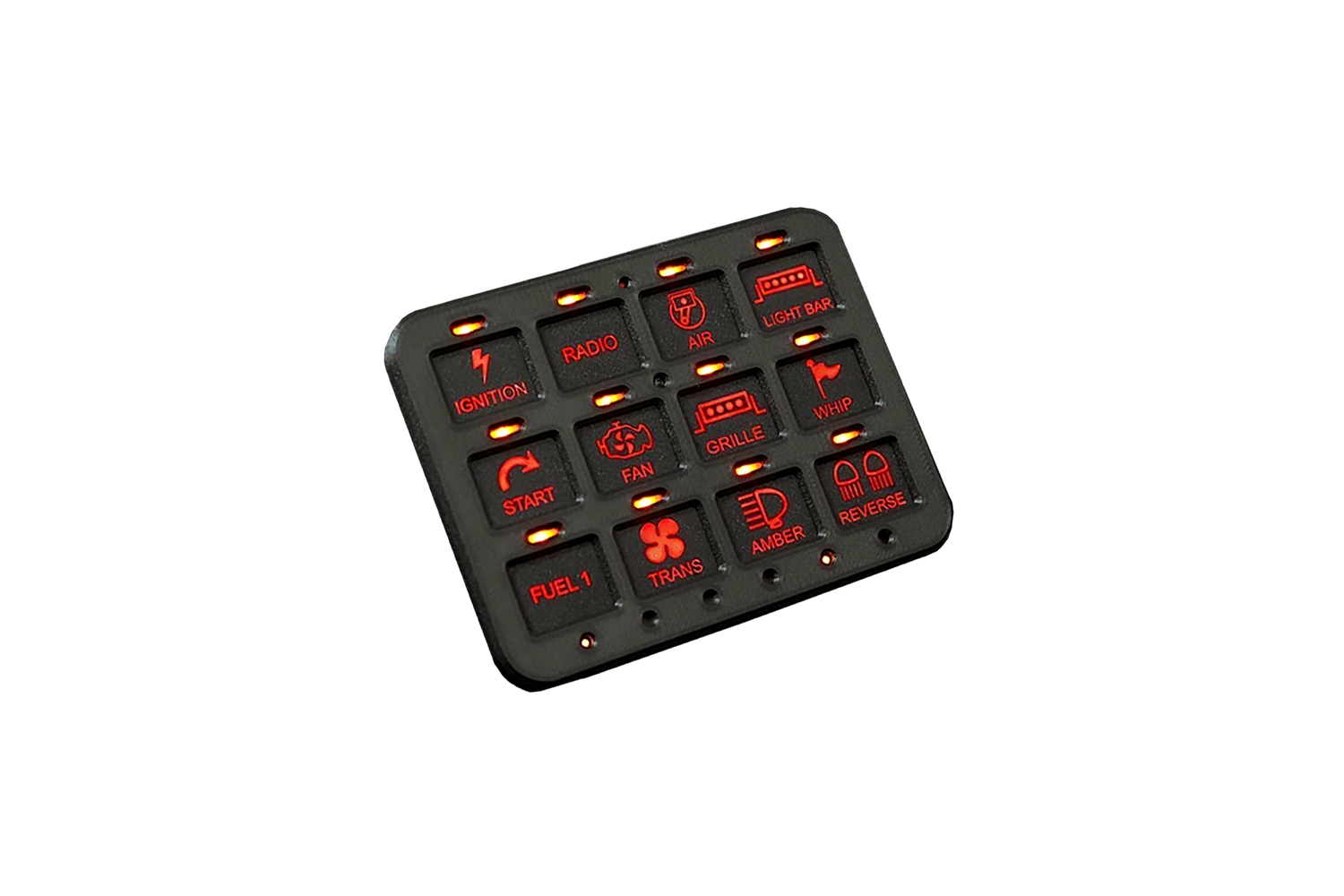

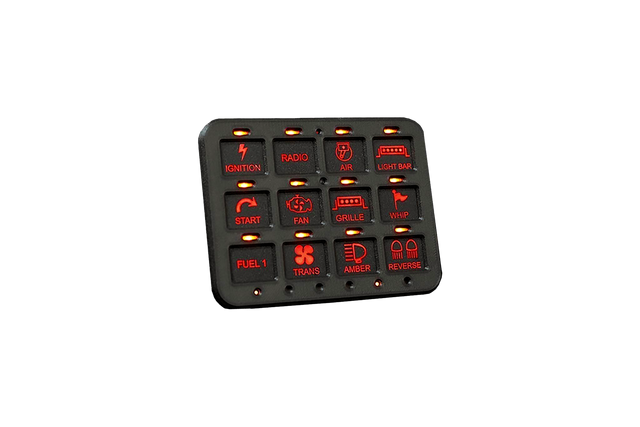

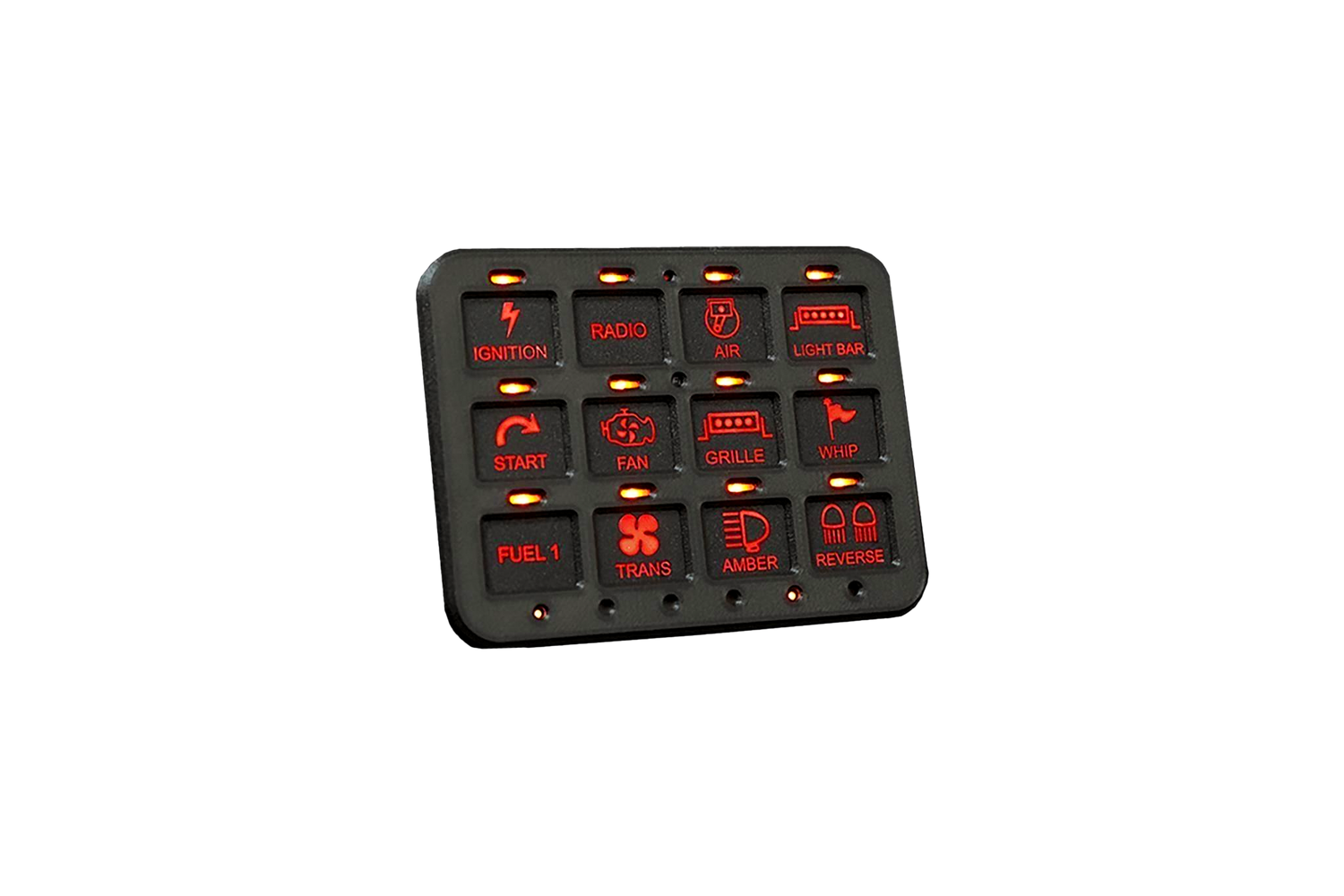

- 12 user-programmable switches
- RCR-TOUCH™ switch cover
- Waterproof, solid state power module
- 150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A
(High In-Rush circuits) - 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
- 4 rated @ 35A and 1 rated @ 30A
- Built-in Bluetooth module
- Program and operate accessories with phone or tablet
- System can be used to start vehicle
Switch Panel Specs:
- RCR-Touch™ cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
- Switch Panel enclosure measures
4” L x 3” W x .375” H - Splash proof with Polycarbonate overlay faceplate

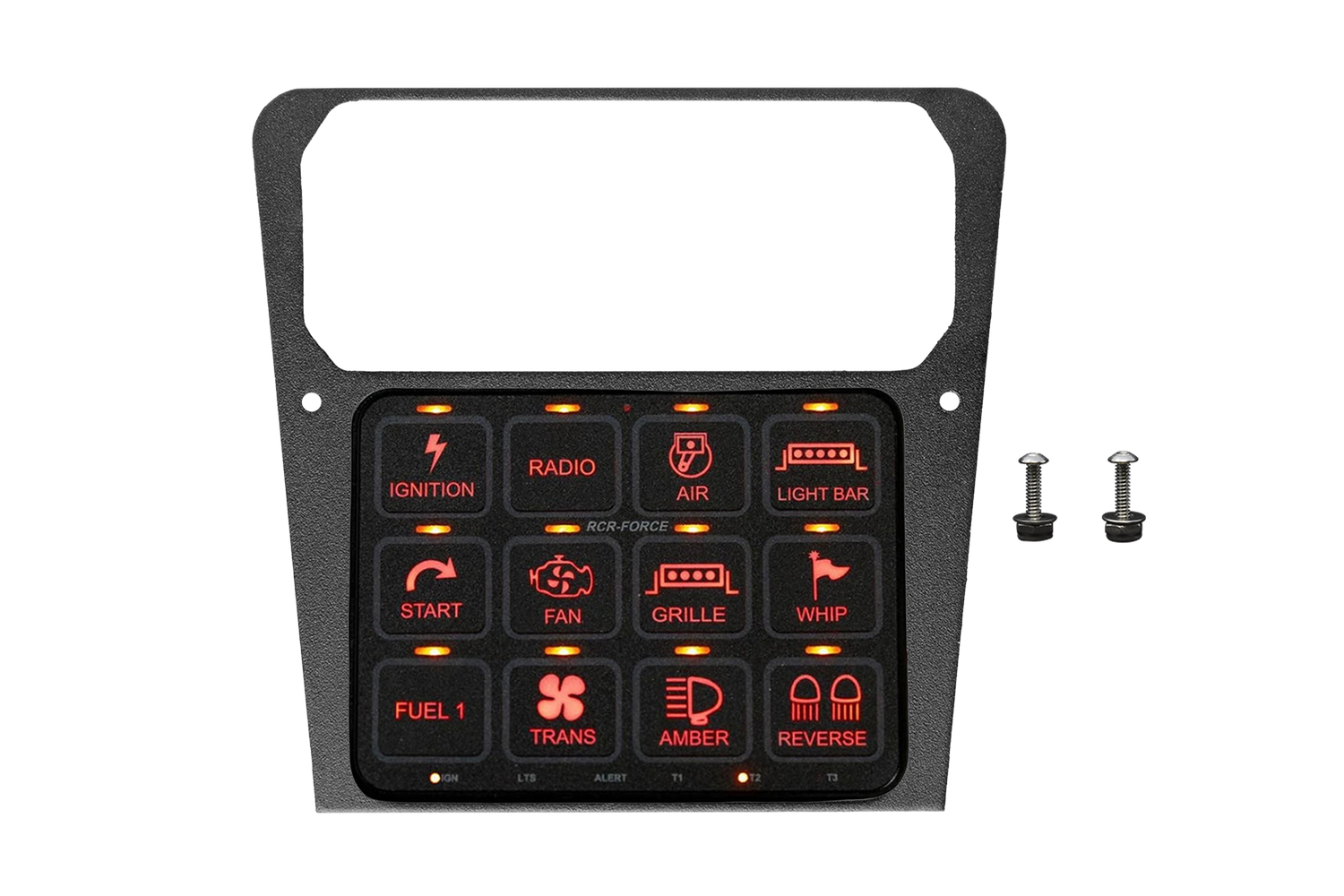

- Pre-machined for factory- look installation
- RGB backlighting
- Orange LED switch indicators
- 6 Programmable LED Status indicators
Power Module Specs:
- 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
- 150A maximum rating
- 7”L x 3.5”W x .5”H (excluding connectors)
- Waterproof and Solid State
- Under hood rated 125° to -40°C
- LED Ignition Input Status Indicator
Kit Also Includes:
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 150A inline Circuit protection
- 100 User Selectable Legends included (Horizontal orientation)

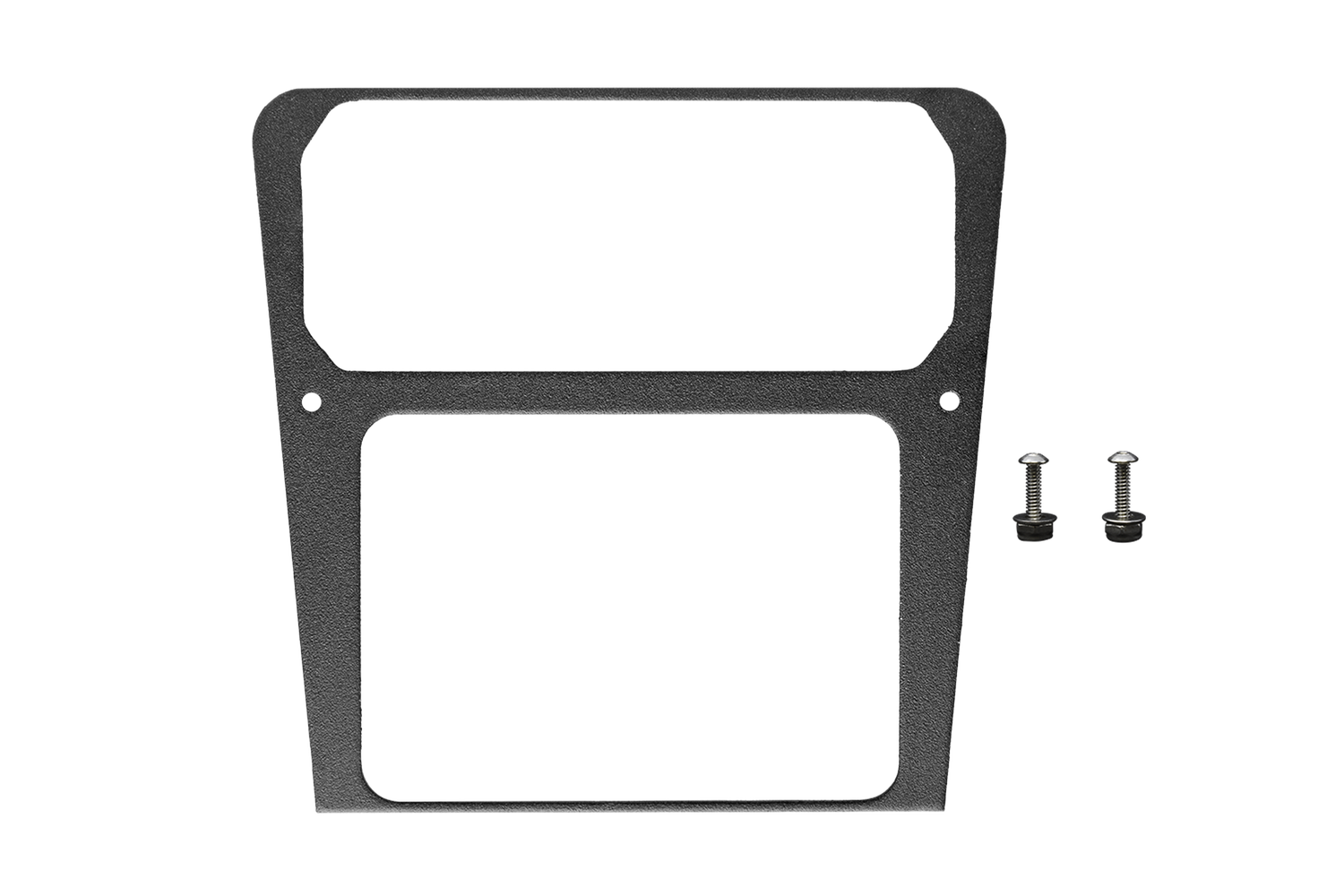

- Installation brackets and hardware
- Color Coded Output wires
- Wire harness with waterproof, sealed automotive grade connectors
Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
