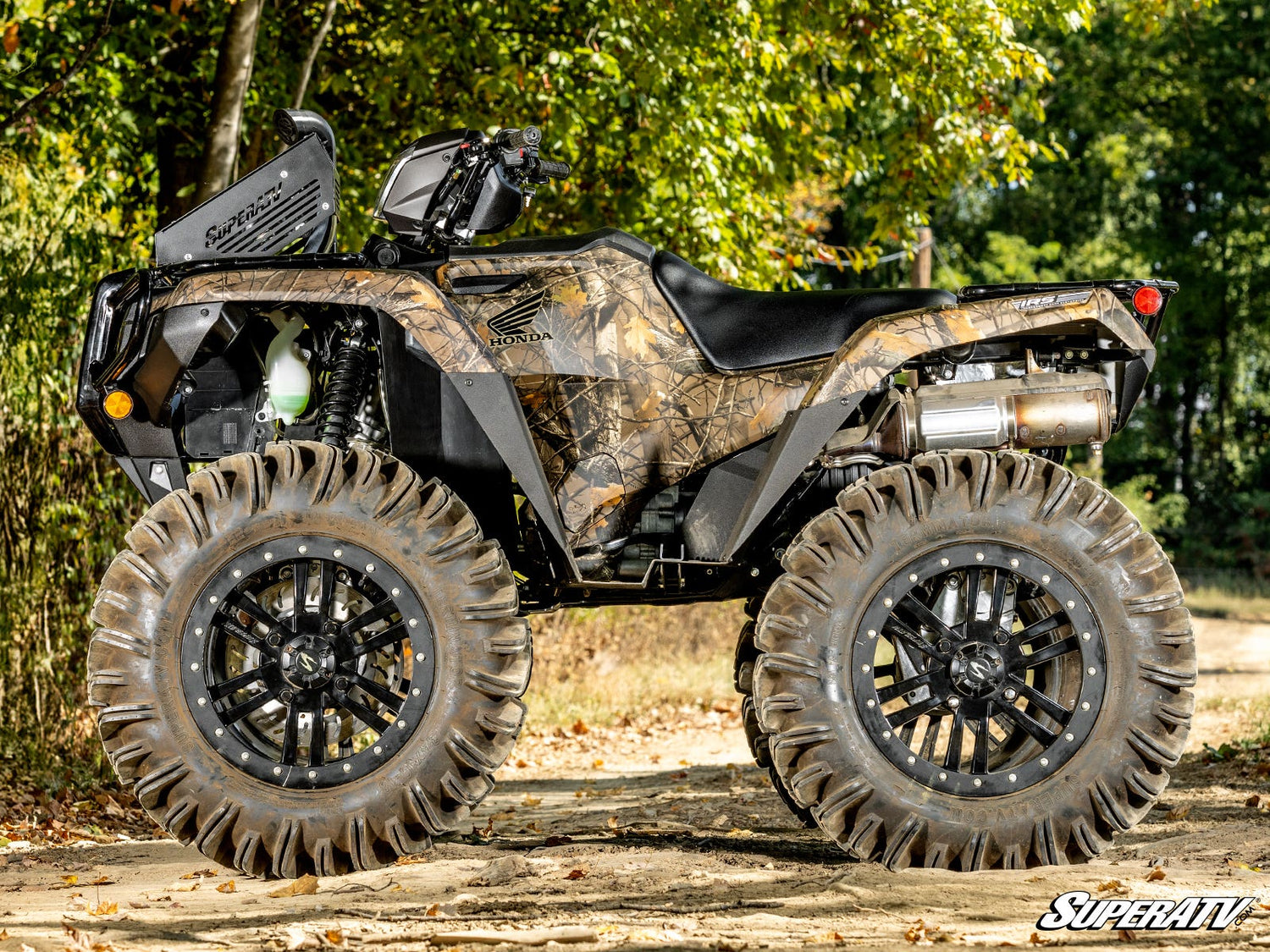

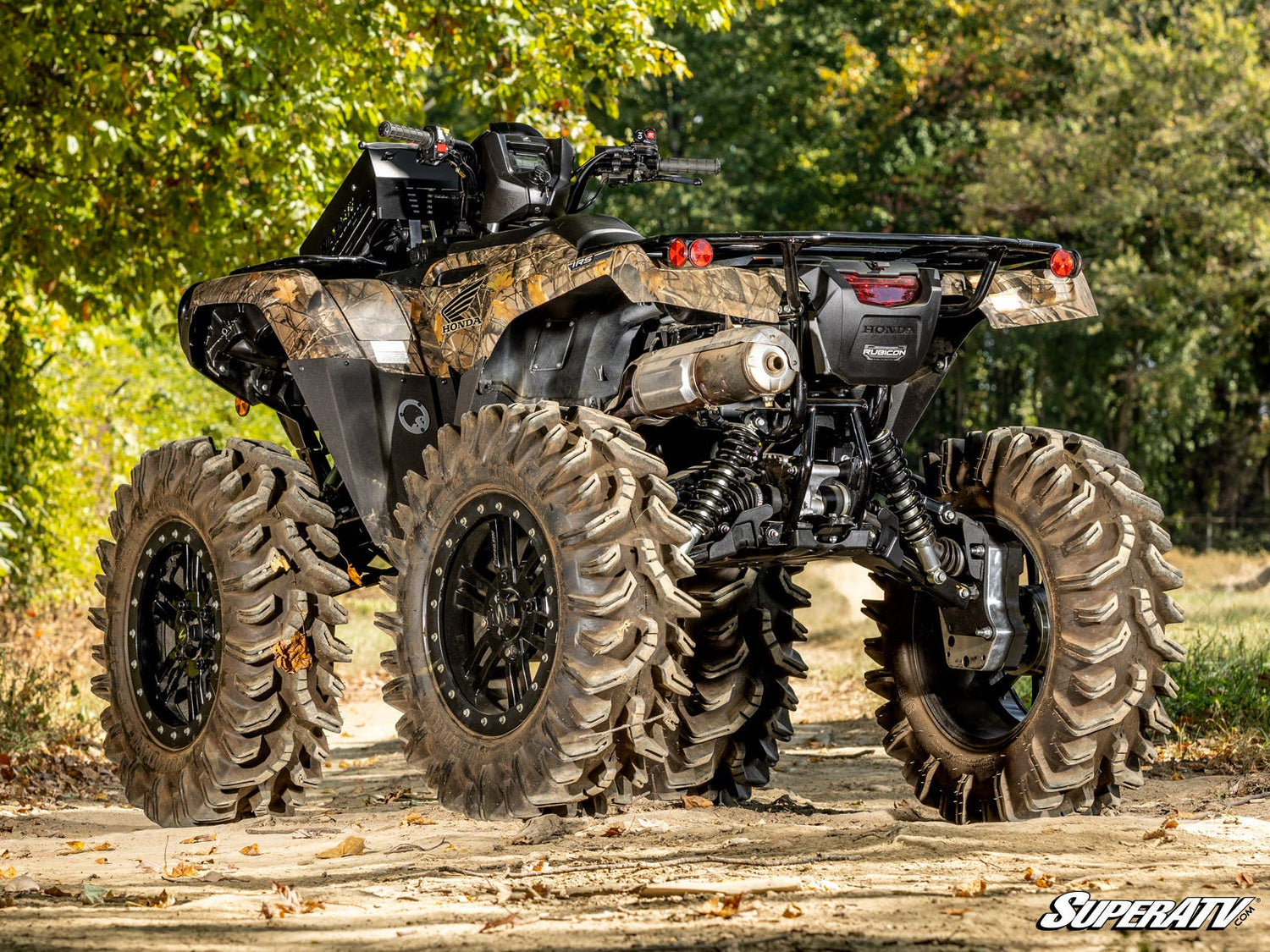

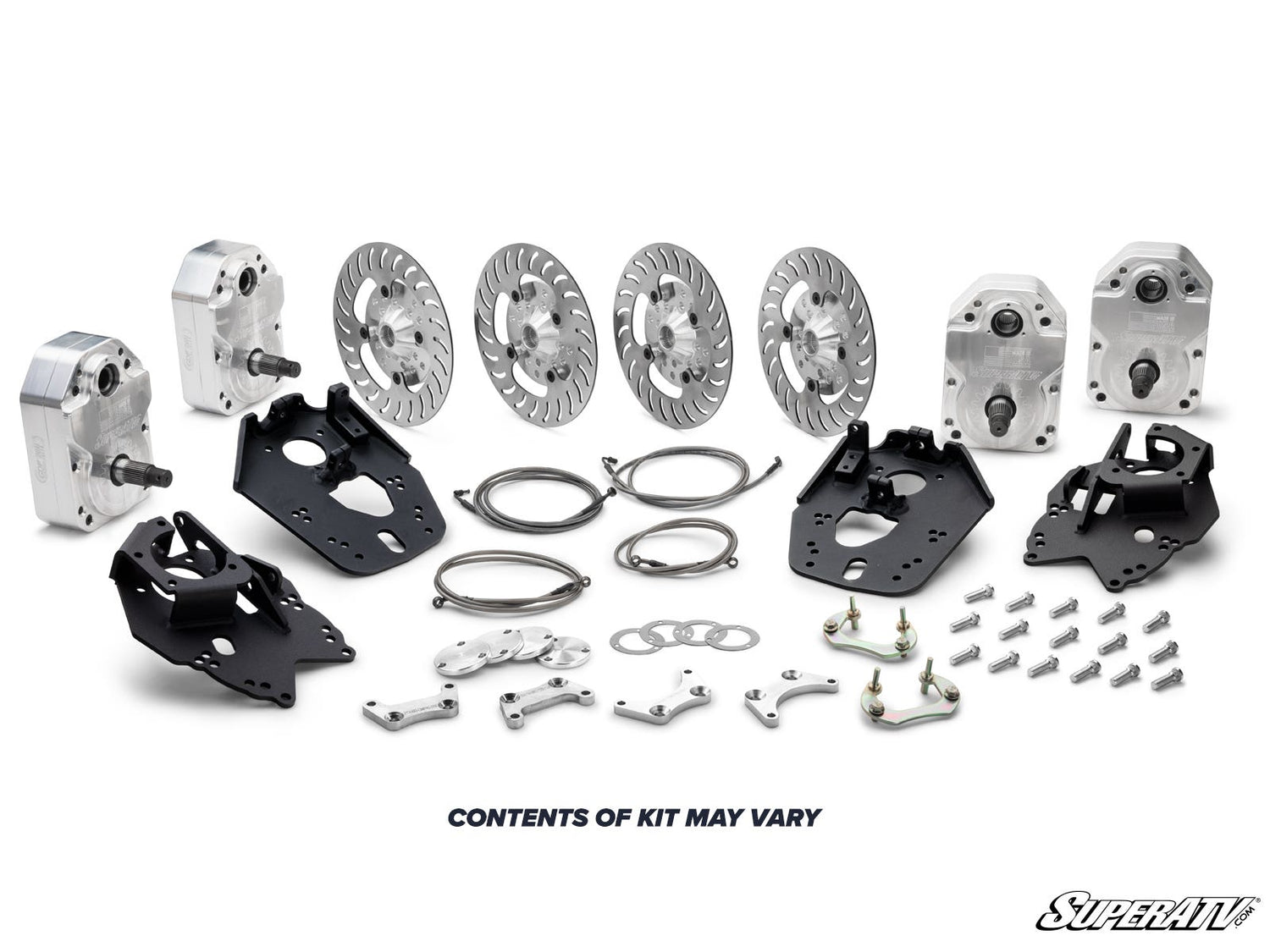

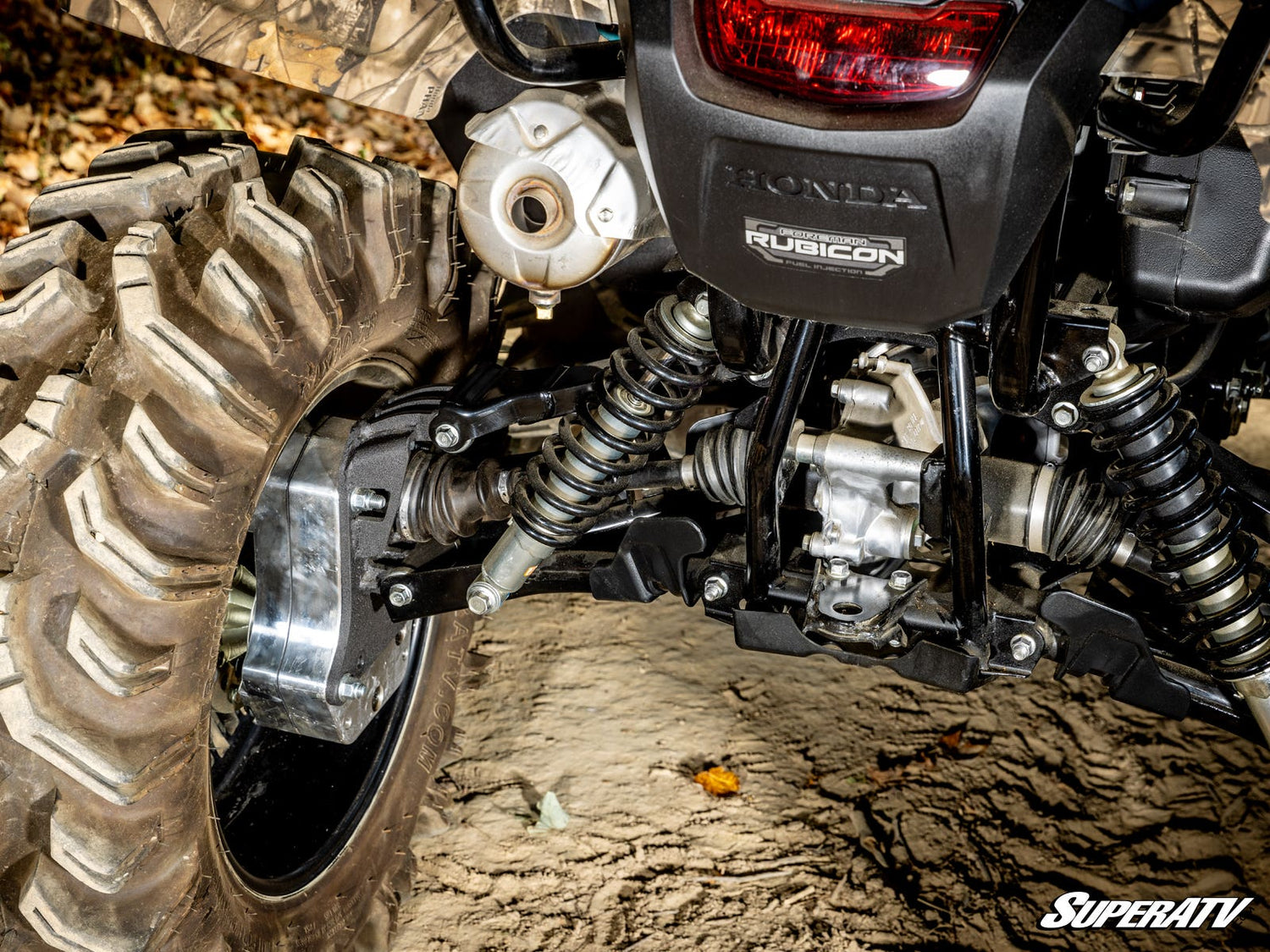

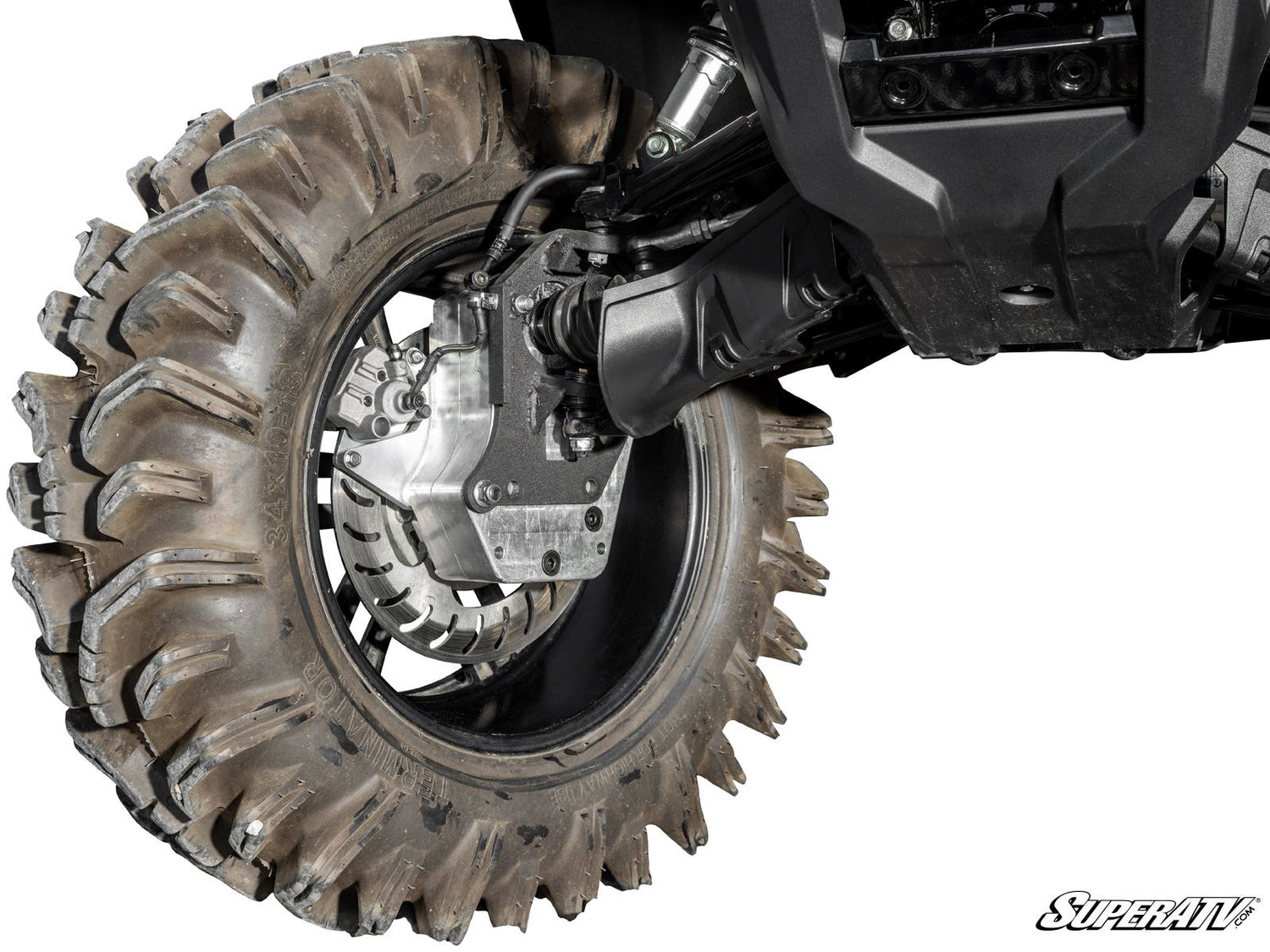

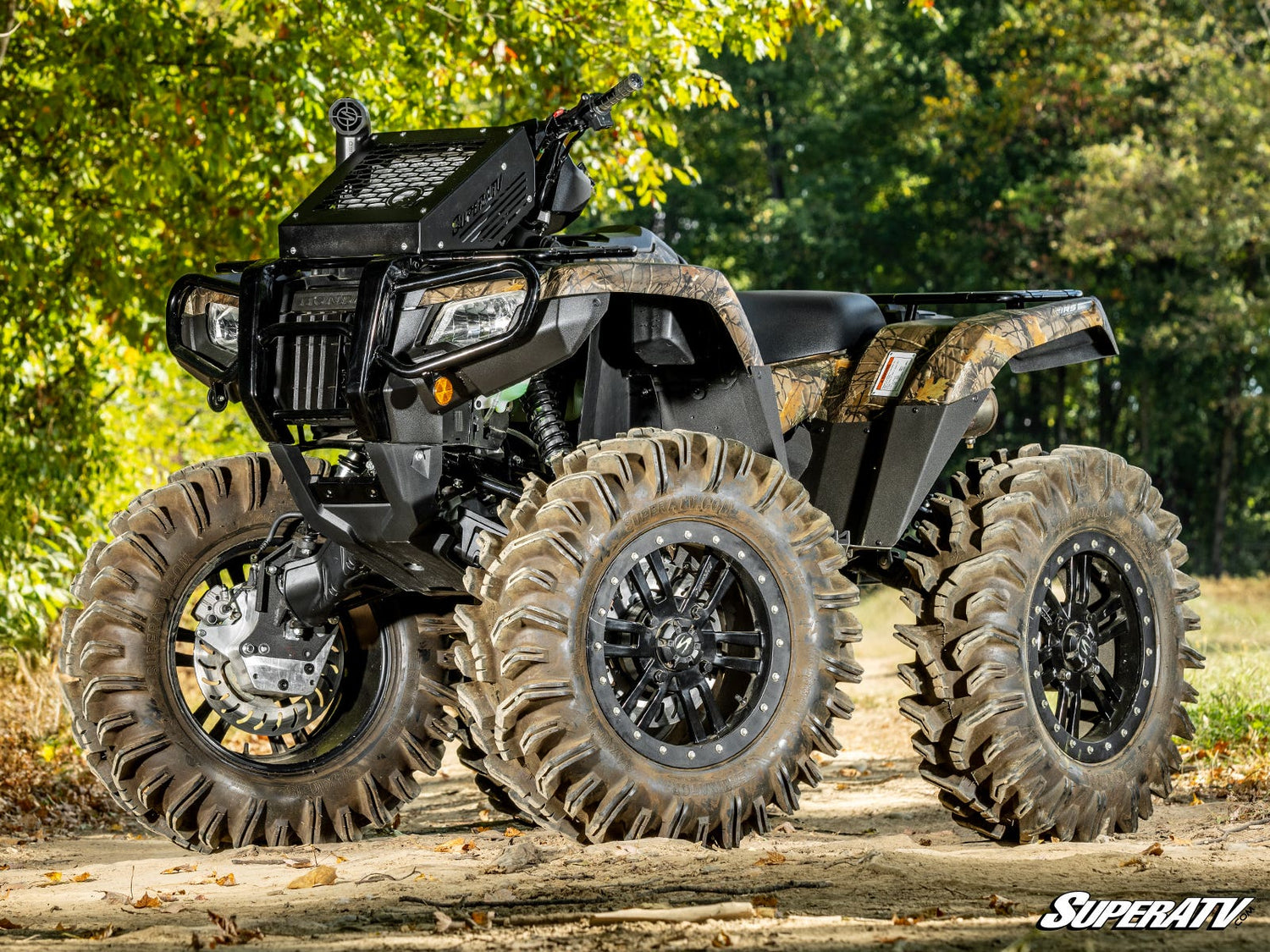

Unleash the full potential of your Honda Rancher with this 6-inch portal gear lift that combines a massive lift with your choice of a 30% or 45% gear reduction. This dual-purpose upgrade boosts your torque for deep mud and big hills while providing the ground clearance needed to run 28-inch tires on stock suspension.

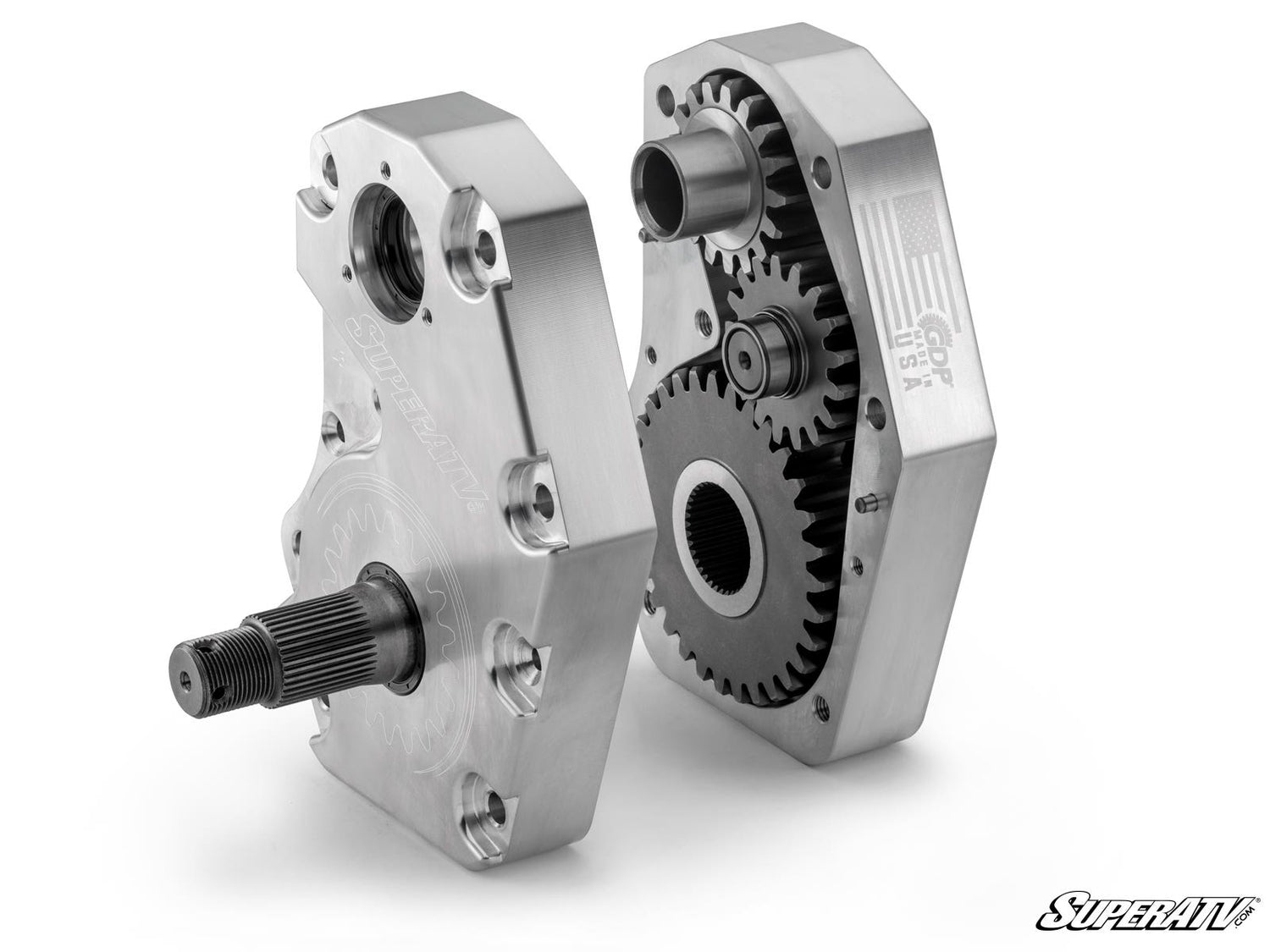

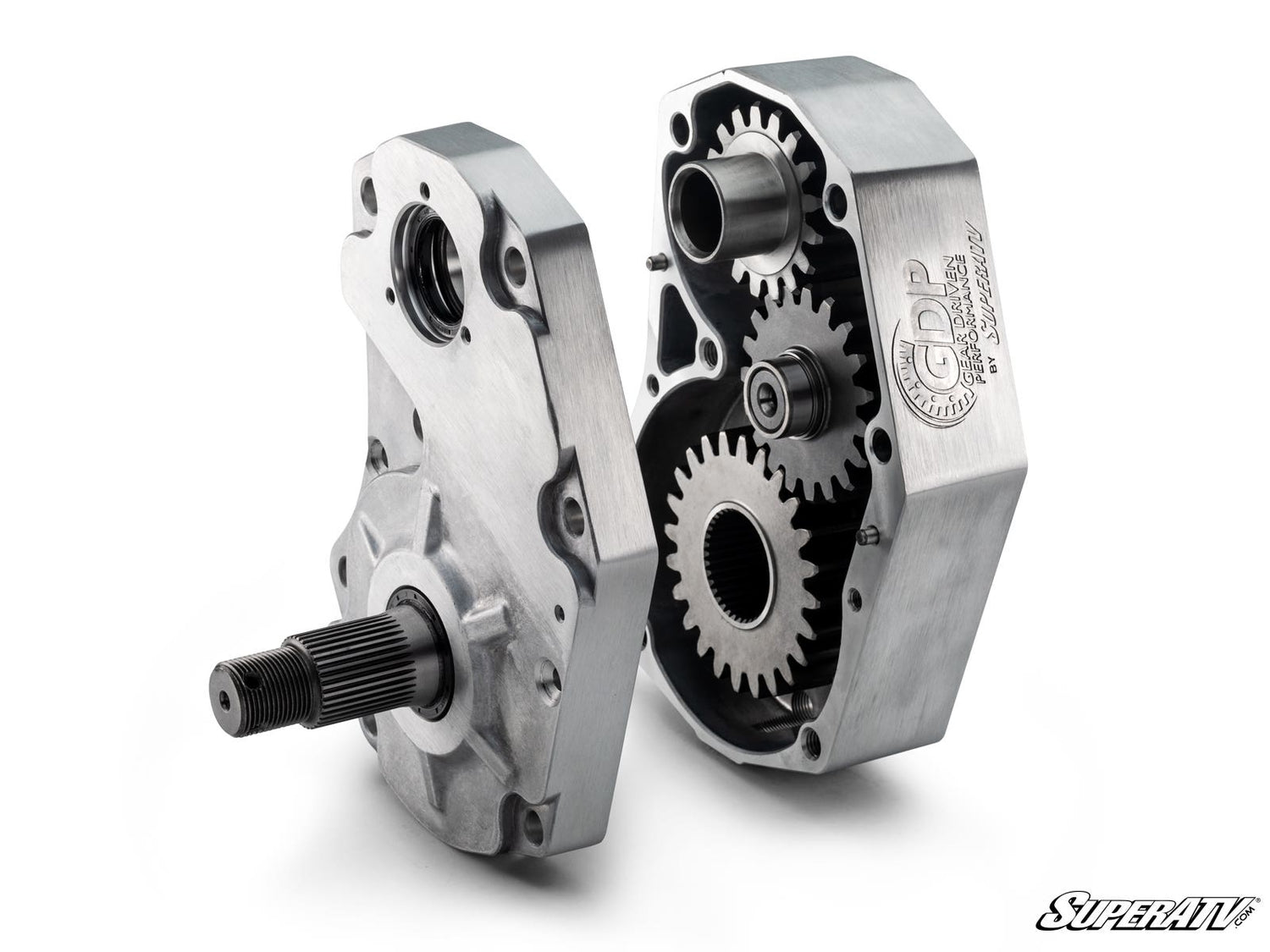

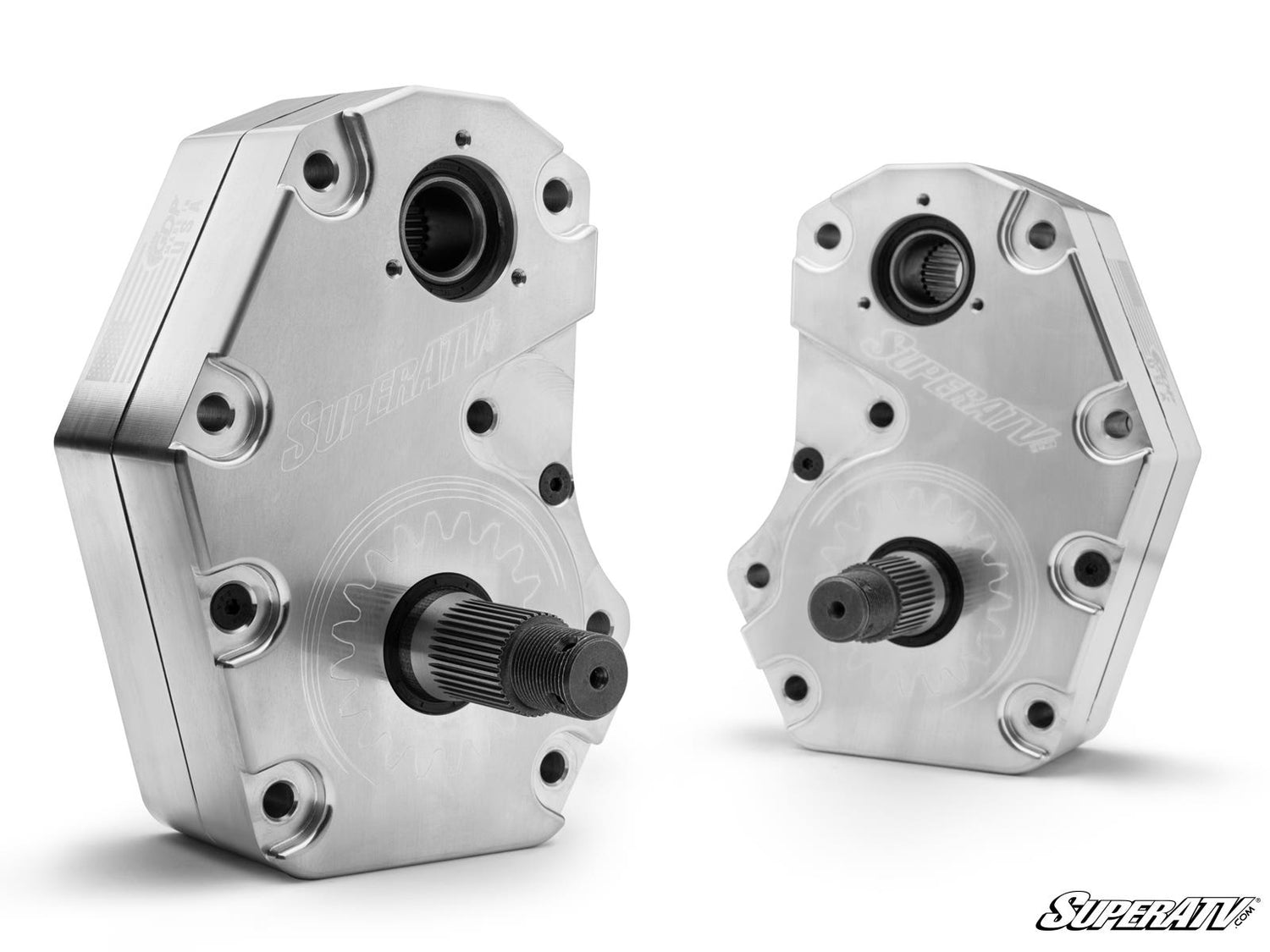

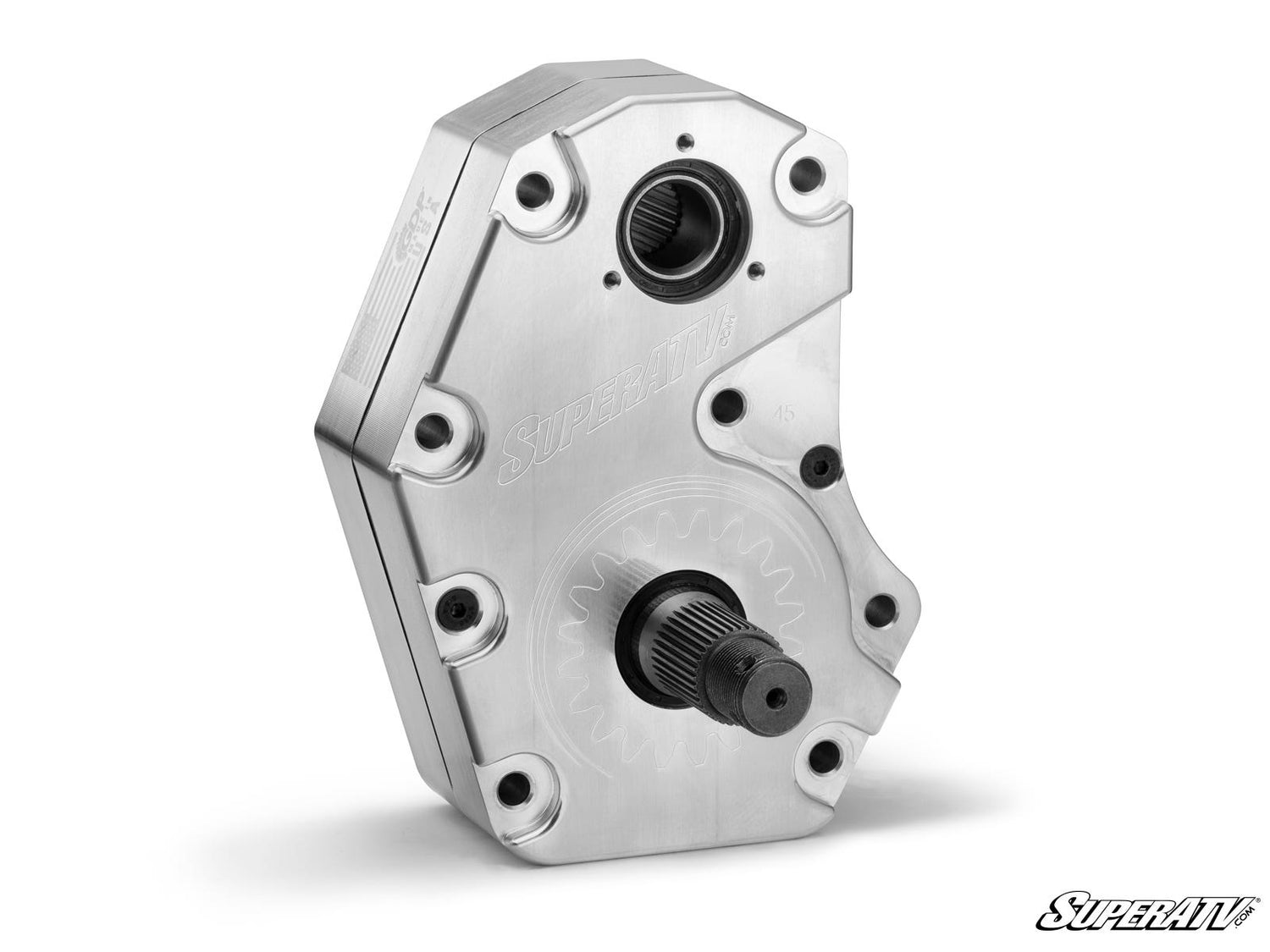

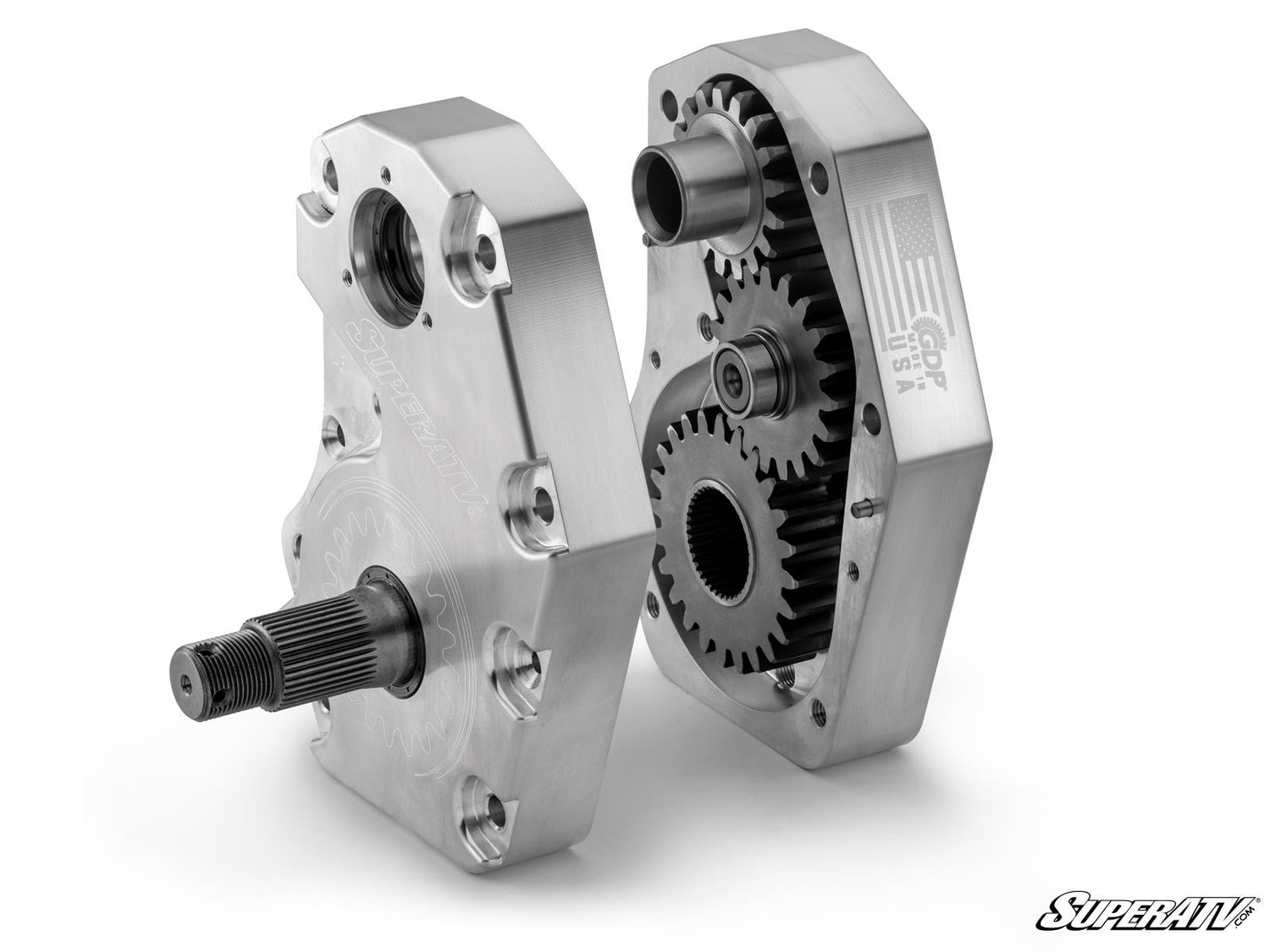

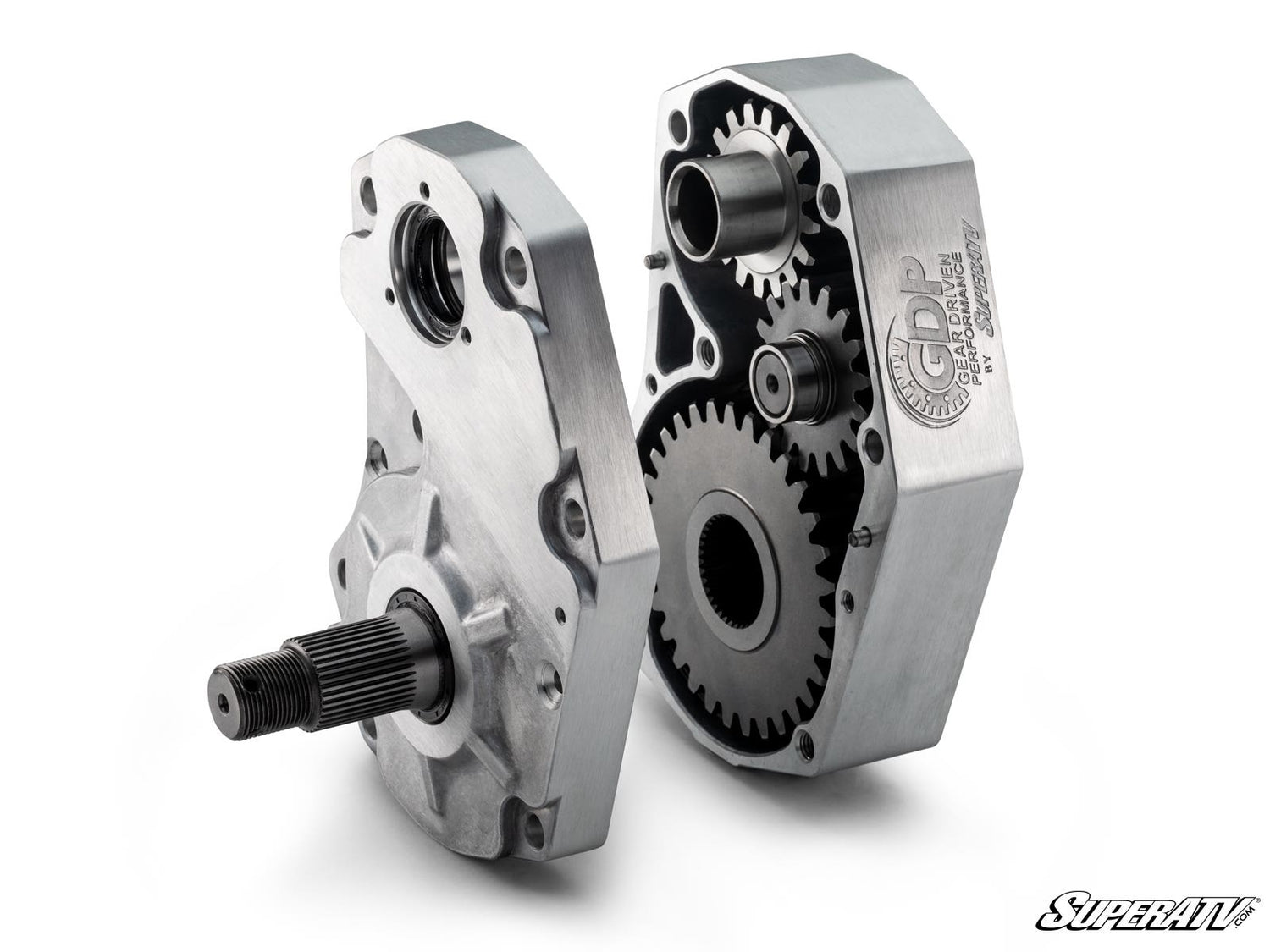

Built for the roughest trails, these portals feature reinforced cast or 6061 billet aluminum housings and advanced steel alloy backing plates that outperform chromoly. The gear reduction happens right at the hub, which significantly reduces stress on your axles, differential, and transmission for a cooler, longer-lasting drivetrain.
| Housing Material | Cast or 6061 billet aluminum |
| Gear Material | 9310 alloy billet steel |
| Drive Shaft Diameter | 1.5 in. |
| Drive Shaft Material | 4340 hardened steel |

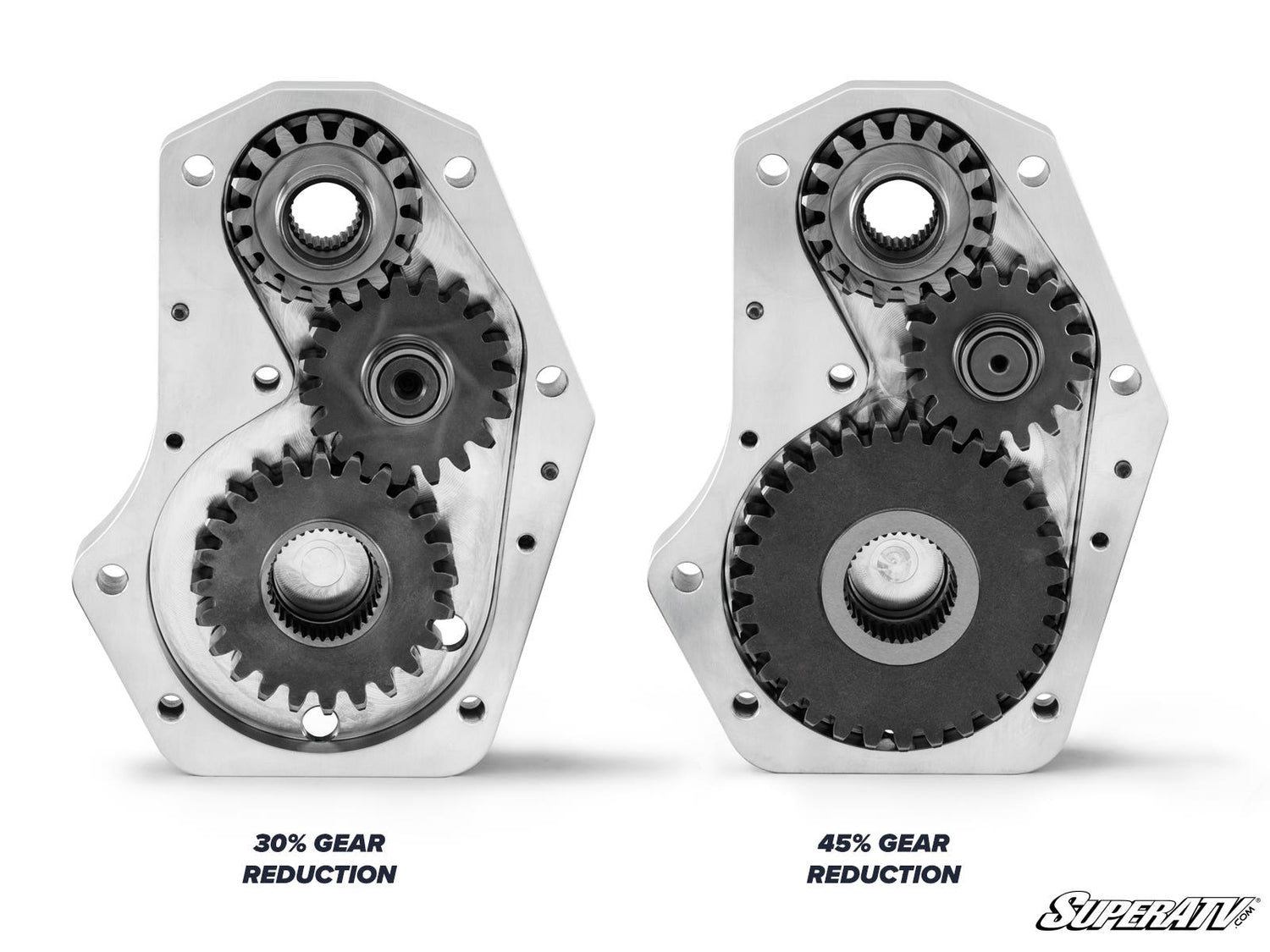

| Gear Reduction Options | 30% or 45% |
| Minimum Wheel Size | 18 in. |
| Maximum Backspacing | 5 in. (for 20 in.+ wheels) |
| Minimum Center Hole | 3.25 in. |
| Vehicle Compatibility | Honda Rancher 420 (2014+) |
| Suspension Requirement | IRS (Independent Rear Suspension) |
| Patent Numbers | 11,299,042; 11,318,787 |
