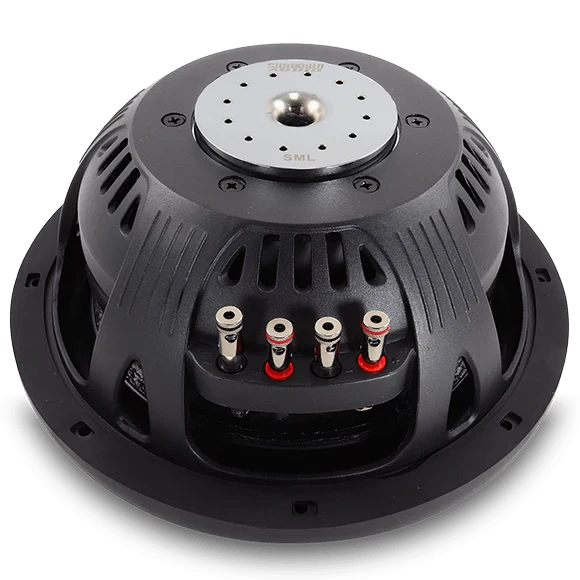

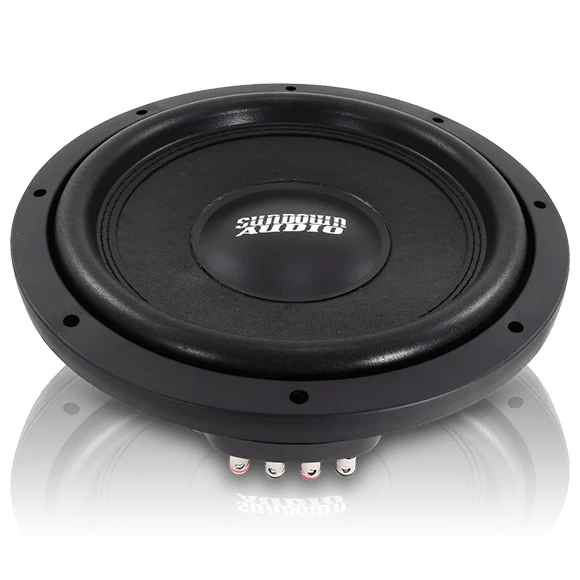

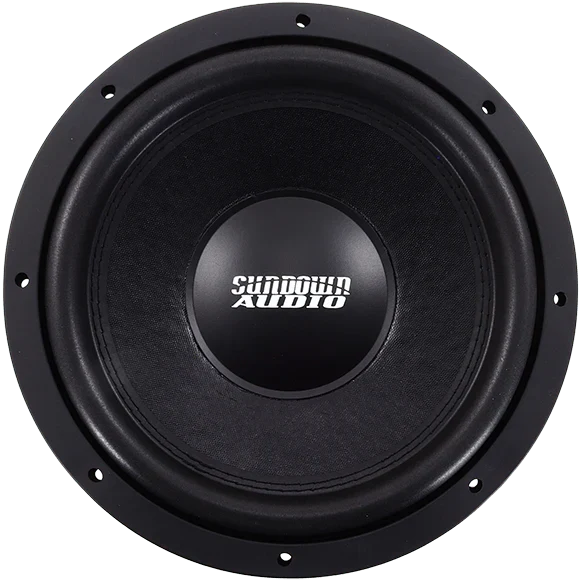

Sundown Audio SML12 12" 600W RMS Shallow Subwoofer DVC
Sundown Audio SML12 12" 600W RMS Shallow Subwoofer DVC - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Sundown Audio SML12 12" 600W RMS Shallow Subwoofer DVC
Sundown Audio SML12 12" 600W RMS Shallow Subwoofer DVC - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
- RMS 600 watts
- Dual 2 or 4 ohm voice coils
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High temperature 4-layer copper voice coil wire
- Stitched-on “Mini-XL” tinsel leads to prevent fatigue and failure
- Vented pole-piece and multi-vented magnetic gap
- Dual-magnet design for smooth acoustic response
- Custom tooled cone shape for reduced mechanical noise over high excursion
- Bolt-through motor design to ensure maximum longevity and ruggedness
Introducing the SML series: a revolutionary line of subwoofers by Sundown Audio. This series is an inch shallower than the SLD line, yet delivers nearly the same excursion, making it the ultimate choice for customers in search of an extremely shallow driver with deep bass. Specifically designed to fit under or behind your seat, the SML series excels in performance, especially within small enclosures.
Specifications
| T/S SPECS | SML 10" D2 | SML 10" D4 | SML 12" D2 | SML 12" D4 |
|---|---|---|---|---|
| RE (Ohms) | 3.650 | 6.850 | 3.650 | 6.850 |
| FS (Hz) | 35.210 | 36.116 | 34.932 | 39.905 |
| VAS (L) | 23.679 | 24.828 | 39.012 | 29.593 |
| Qes | 0.931 | 0.469 | 0.456 | 0.617 |
| Qms | 2.703 | 2.766 | 2.862 | 3.035 |
| Qts | 0.341 | 0.401 | 0.394 | 0.513 |
| BL (NA) | 17.431 | 21.022 | 17.879 | 22.801 |
| Mms (Grams) | 146.986 | 133.242 | 182.067 | 186.887 |
| Cms (uM/N) | 139.003 | 145.749 | 114.018 | 85.771 |
| Sens (dB @ 1w/1m) | 86.1dB | 85.8dB | 87.5dB | 86.7dB |
| Xmax | 11mm | 11mm | 11mm | 11mm |
Enclosure Specifications
| SML 10" | SML 12" | |
| Sealed Enclosure | 0.5-0.75 ft^3 | 0.75-1.0 ft^3 |
| Ported Enclosure | 1.0-1.25 ft^3 | 1.25-1.75 ft^3 |
| Recommended Tuning | 35hz | 35hz |
| Recommended Port Area | 26-30 sq in | 26-30 sq in |
| Mounting Depth | 3.78” | 4.45” |
| Physical Dimensions | Download | Download |
