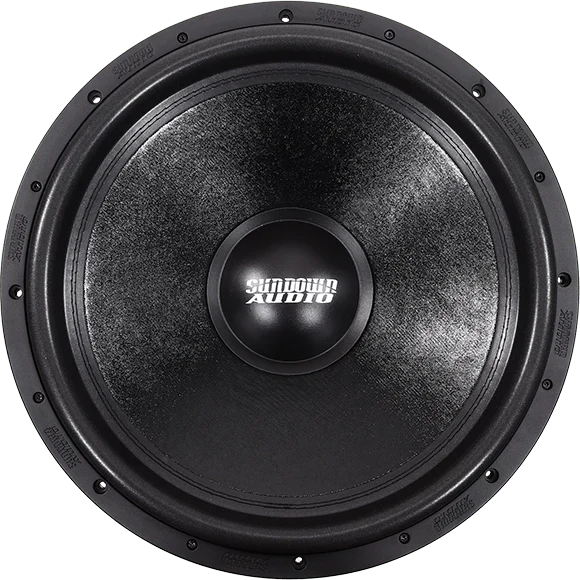

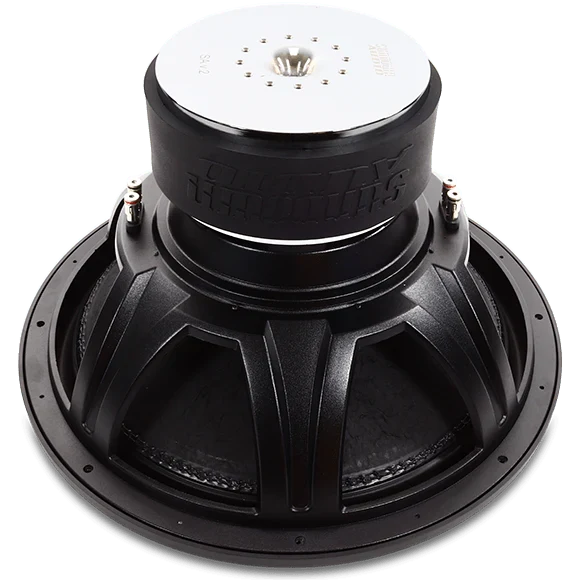

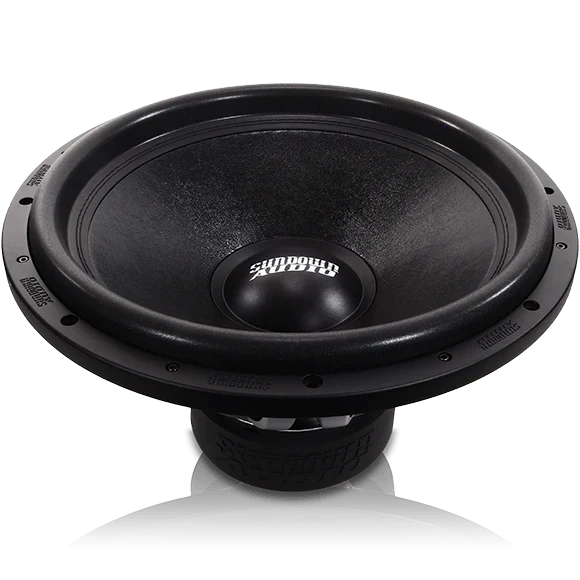

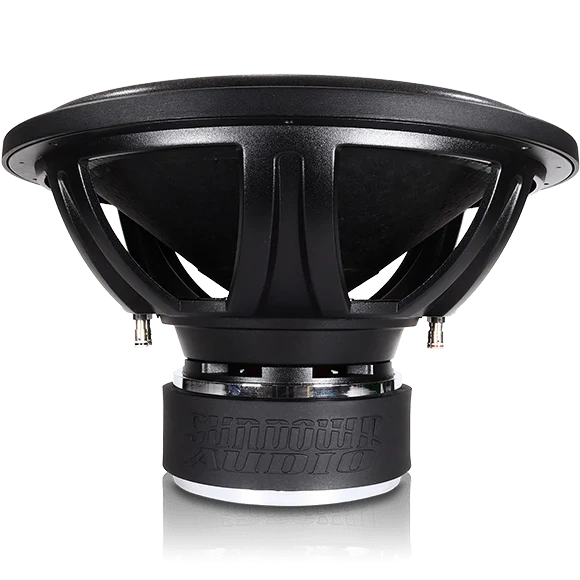

Sundown Audio SA18 V2 18" 1250W RMS Subwoofer DVC
Sundown Audio SA18 V2 18" 1250W RMS Subwoofer DVC - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Sundown Audio SA18 V2 18" 1250W RMS Subwoofer DVC
Sundown Audio SA18 V2 18" 1250W RMS Subwoofer DVC - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
- 1250 Watts RMS / 2500 Watts Peak
- Dual 2 or 4 ohm voice coils
- Vented magnetic gap
- Aluminum 2.75” voice coil former for superior heat dissipation
- Innovative high-velocity vented frame spacer ring
- Large aluminum Faraday ring for smooth acoustic response
- Patented high-strength cast aluminum frame
- High-temperature voice coil wire
- Spring-loaded terminals
- Stitched-on double “XL” tinsel lead wires
A top-down improvement from previous models, the SA 18-inch sub features the largest motor in the series, now delivering over 35mm of mechanical excursion. The 2.75” coil punches way above its weight, outperforming most 3” coils without adding mass. The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor and coil setup is mated to an extremely robust double-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone and a strong foam surround were used to complete this masterpiece.
| T/S SPECS | SAV2 18″ D2 | SAV2 18″ D4 |
|---|---|---|
| RE (Ohms) | 3.97 | 6.06 |
| FS (Hz) | 29.051 | 31.868 |
| VAS (L) | 114.234 | 106.964 |
| Qes | 0.424 | 0.458 |
| Qms | 3.052 | 2.853 |
| Qts | 0.372 | 0.395 |
| Le (mH) | 3.6326 | 4.7903 |
| BL (NA) | 32.523 | 38.159 |
| Mms (Grams) | 619.174 | 549.519 |
| Cms (uM/N) | 48.474 | 45.389 |
| Sens (dB @ 1w/1m) | 90.1 | 90.7 |
| Xmax | 19mm | 19mm |
| Sealed Enclosure | 3.5 cu ft |
| Ported Enclosure | 4.5 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 64 sq in |
| Displacement | 0.2 cu ft |
| Depth | 10.125" |
| Outside Diameter | 18.62" |
| Cut-Out | 16.69″ |
| Physical Dimensions | Download |
