Venture With Confidence

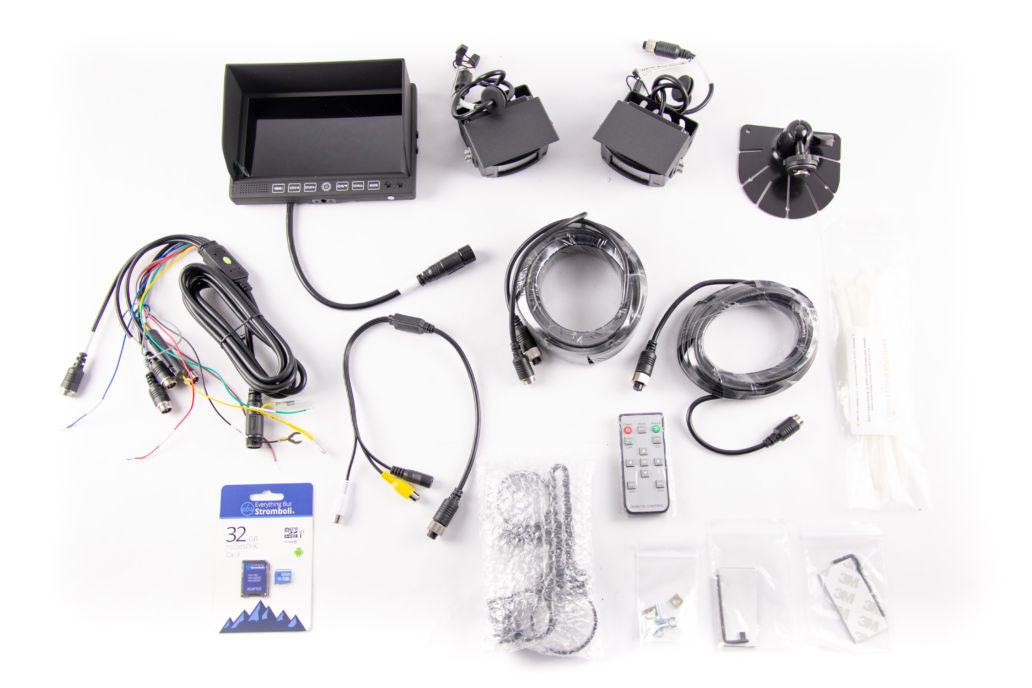

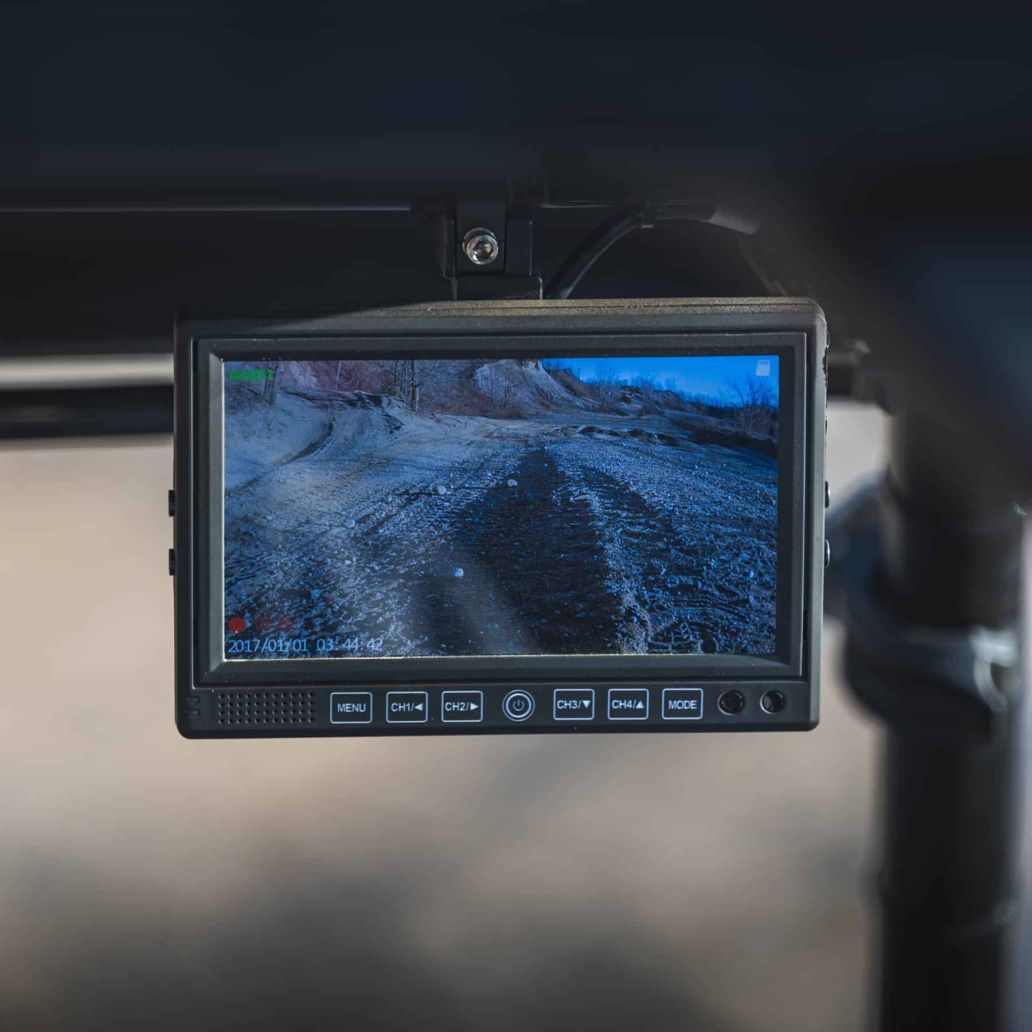

Brandmotion’s Heavy Duty Vision System with 7″ AHD Monitor provides higher quality and smoother video through standard composite video connections. This system is perfect for commercial fleets, providing a crystal clear image on the 7″ digital monitor giving your drivers the maximum visibility. With the ability to equip up to 4 cameras, decrease downtime by removing blindspots, significantly reducing unwanted collisions.
Features
- 4 Inputs with Trigger Wires
- DVR Optional (SD card not included)
- Always On Observation
- Heavy Duty for Increased Visibility
- Night Vision
- Built-In Monitor Speaker and Camera Microphone (optional)
Front Camera & Rear Camera Specifications
| Working Voltage | 10v – 16v |
| Rated Voltage / Current | 130ma |
| Working Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃〜85℃ |
| Connection Type | 4-Pin Aviator Wired |
| Mounting Locations | Rear or front |
| Mounting Type | U-Bracket |
| Field of View (H) (V) | 140º, 90º |
| Low Light Night Vision | 0.1 LUX |
| Lens Size | 1/4 inch |
| Built in IRs | Yes |
| Waterproof Rating | IP68 |
| Video Format Output | AHD |
| Resolution | 1080p |
Display Specifications
| Working Voltage | DC12V to DC24V |
| Power Consumption | 4W |
| Working Temperature | -20℃-60℃ |
| Storage Temperature | -30℃-70℃ |
| Display Brightness | 500cd/m2 |
| Screen Size | 7 inch |
| Resolution | 1024*600(IPS) |
| Aspect Ratio | 16:9 |
| Camera Connection Type | 4-Pin Aviator Wired (Max 4 cameras) |
| Video Format Input | AHD |
| DVR Built-in Y/N | Yes |
| Built in speaker | Yes |
| Video trigger input triggers | Yes |
Installation
- Professional Installation Always Recommended
- DIY Installation Estimate: 180-210 Minutes
- Professional Installation Estimate: 120-180 Minutes
Compatibility
This kit is designed to work with most UTV/Rockcrawler vehicles. This kit will also work in any off-road vehicle, however custom installation may be required. The versatile mounting options for both the monitor and the camera make this a truly universal application kit. The included roll cage brackets support roll cage bars 1.5″, 1.75″ and 2″ in diameter.
