Strictly Diesel 7.3L Powerstroke Dipstick Adapter Repair Kit

Dipstick Adapter Repair Kit – 7.3L Powerstroke

As 7.3L trucks continue to age, oil pan leaks are becoming increasingly common—and one of the most frequent leak sources is the factory dipstick adapter in the side of the oil pan. Over the years, we’ve seen countless attempted repairs ranging from silicone and sealants to epoxy products like JB Weld. We’ve also seen dipstick adapter nuts overtightened to the point that the factory adapter becomes permanently distorted and impossible to seal, even with a new O-ring.

Whether you’re chasing an existing oil leak or building a fresh engine and want to eliminate a future problem, this Dipstick Adapter Repair Kit is a true once-and-for-all solution.

How It Works

This kit completely eliminates the factory dipstick adapter and replaces it with a precision-machined aluminum adapter that seals on the outside of the oil pan using a double O-ring design. The result is a reliable, serviceable seal that can be installed without removing the oil pan or engine—even with the engine still in the truck.

If the O-rings ever need replacement, the adapter can be removed and resealed entirely from outside the oil pan.

Kit Features & Benefits

• Eliminates the factory dipstick adapter leak permanently

• Seals on the outside of the oil pan using double O-rings

• No oil pan or engine removal required

• Fully serviceable in the future

• Ideal for stock engines and performance builds

What’s Included

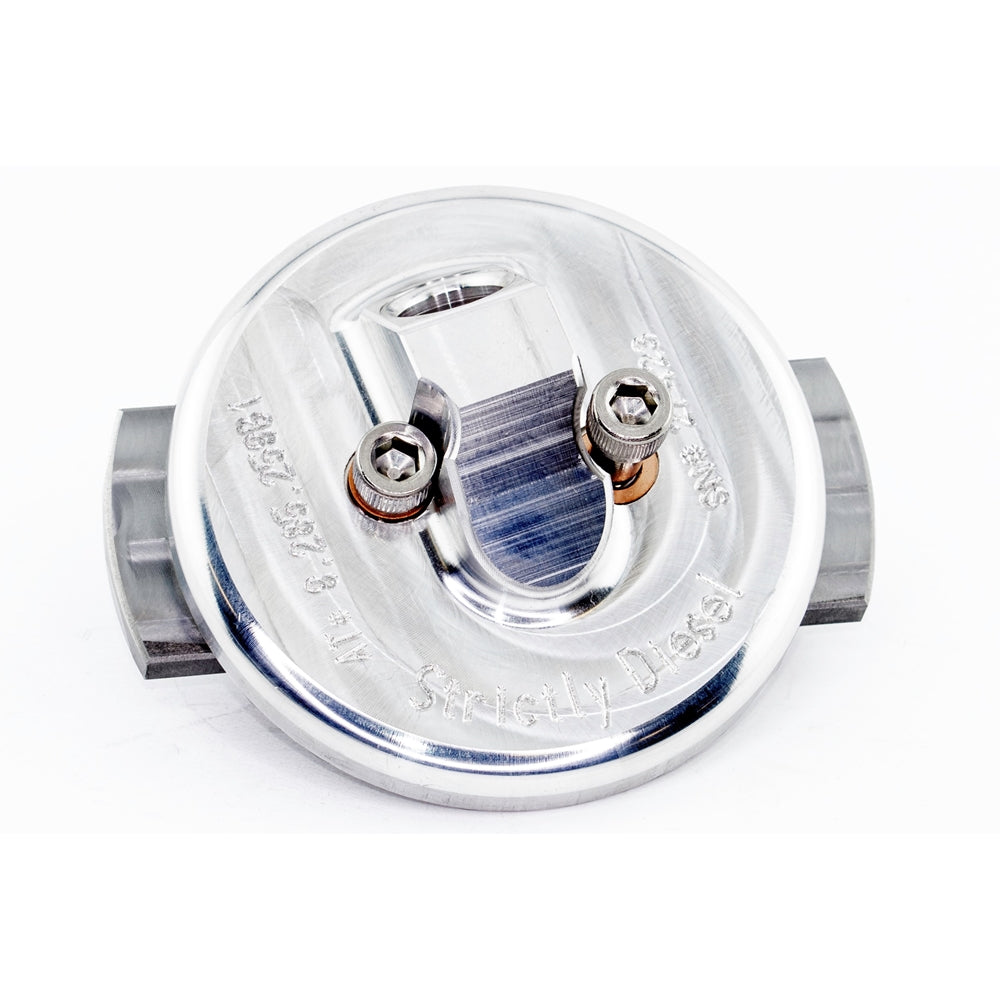

(1) Machined Dipstick Adapter Assembly

• CNC-machined aluminum construction (not pot metal)

• Machined steel backing plate / support brace

• Stainless steel fasteners

• Copper sealing washers

• Double O-ring seal for positive oil control

(1) New Genuine Ford Dipstick O-Ring
(1) Detailed Full-Color Installation Instruction Manual

Fitment

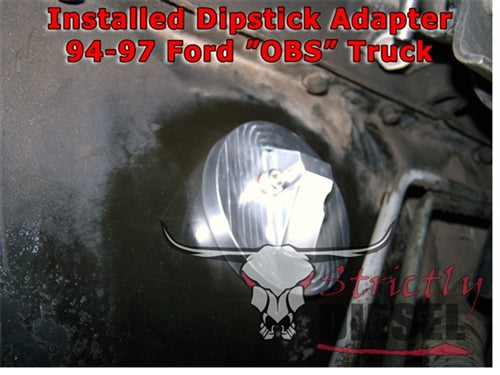

✔ 1994–1997 Ford OBS 7.3L Powerstroke

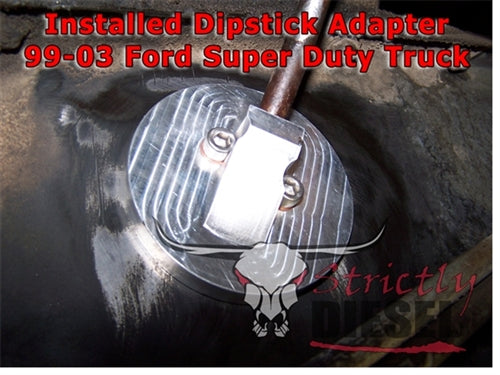

✔ 1999–2003 Ford Super Duty 7.3L
✔ 1999–2003 Excursion 7.3L
✔ E-Series Vans with 7.3L
✔ T444E applications (see notes below)

Important Notes

• May require clearance checks or minor modification when used with Hypermax connecting rods or aftermarket engine girdles

• No drilling or modification to the oil pan is required

• Factory dipstick adapter body remains safely in the oil pan sump after installation and poses no risk to the engine

T444E Customers

This repair adapter has been successfully used on multiple T444E applications with the same results as Ford Powerstroke engines. While we do not specialize in heavy-duty platforms, all known T444E applications should be compatible. If ordering for a T444E engine, use the “If you know your part number” option during checkout.

Frequently Asked Questions

Do I need to remove the engine or oil pan?
No. Installation and future servicing are done entirely from the outside of the oil pan.

Is drilling or modification required?
No. This kit installs using the factory oil pan opening.

Can the factory adapter left in the pan cause damage?
No. It sinks to the bottom of the sump and cannot interfere with the oil pickup or internal components.

Are installation instructions included?
Yes. This kit includes detailed, full-color instructions covering both OBS and Super Duty installations.
