SKAR Single 12" 'SPL Series' Armor Coated Ported Subwoofer Enclosure

Name: SKAR Single 12" 'SPL Series' Armor Coated Ported Subwoofer Enclosure
Brand: Platinum High Performance Solutions, LLC.
Price: 325.00 CAD
Availability: InStock

$325.00

Shipping calculated at checkout.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

SKAR

Single 12" 'SPL Series' Armor Coated Ported Subwoofer Enclosure

The Skar Audio AR1X12V-SPL is an armor coated, best in class, single 12", universal fit, 'SPL' grade, ported subwoofer enclosure. Our engineers developed this enclosure to offer the most demanding audiophiles a premium solution when looking to achieve maximum bass output from their sub-stage.

QUICK FACTS
Mounting Depth	13.8125"
Cut-Out Diameter	11.20"
Tuning Frequency	41 Hz
Total Gross Air Space (Volume)	2.65 ft³

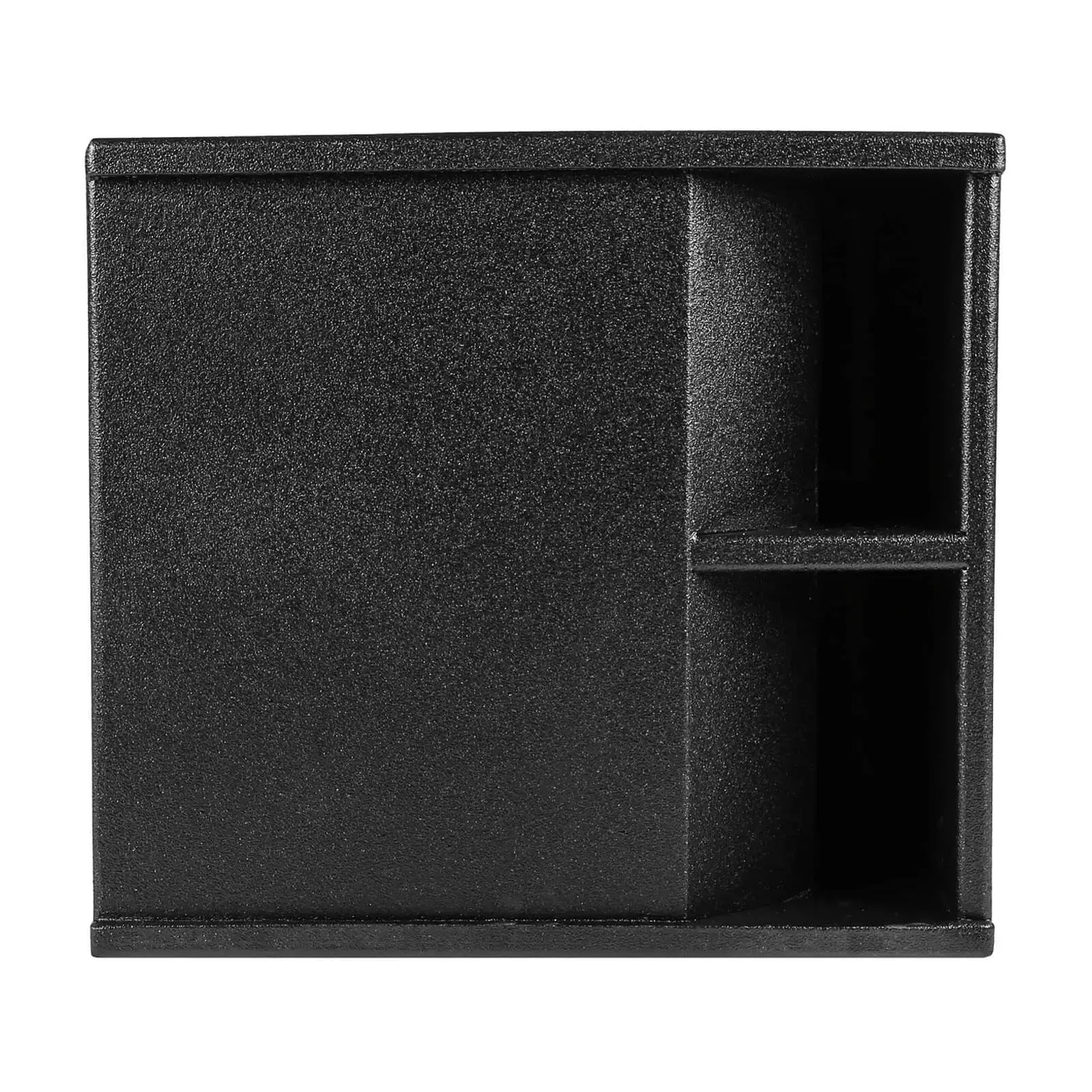

As it's name suggests, this enclosure is part of our SPL series of subwoofer enclosures, which are notably more performant than anything else on the market. Optimally tuned at 41 Hz, this ported enclosure utilizes an all new, rear, side port design which serves to increase bass output. The port was engineered strategically to maximize SPL output by routing air internally in a manner that maximizes pressure as it travels through the enclosure.

From the minute you open the packaging, it is evident how the quality of this enclosure stands in a league of it's own. Unparalleled in durability, it utilizes 1" MDF for the high-strength front baffle, with the remainder of the enclosure finished in 3/4" MDF. Every seam is carefully adjoined using high quality adhesives ensuring the enclosure is air tight. Thereafter, we line the internal walls of the enclosure with poly-fill to enhance the overall depth of sound it can reproduce.

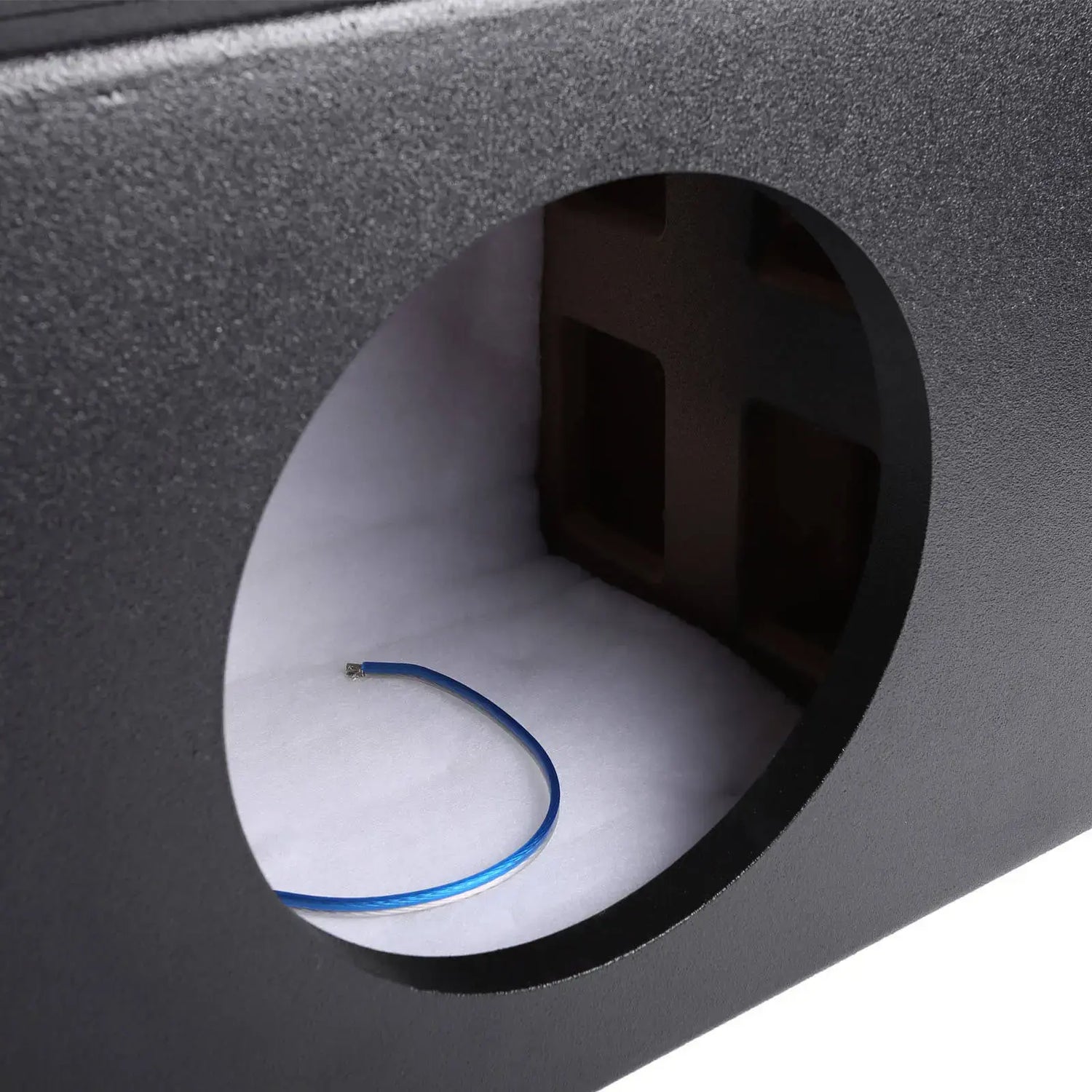

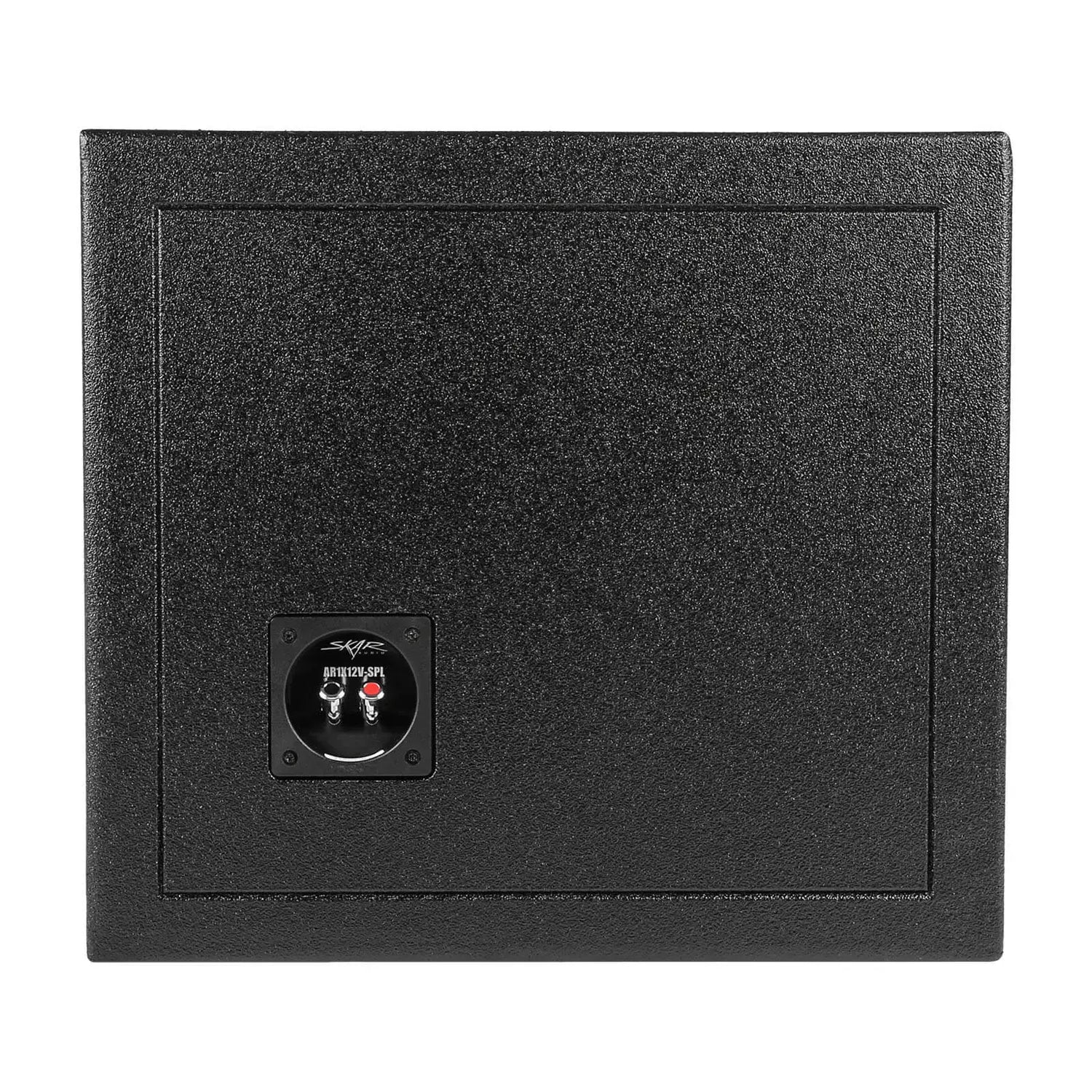

Finally, the enclosure is finished in a black, premium grade, armored coating that is visually stunning and also adds to it's extreme strength. In the rear of the enclosure is the push terminals for connecting your subwoofer, which is internally pre-wired with 12-gauge (OFC) speaker wire, making it easier than ever to wire up and install your subwoofer.

SPECIFICATIONS

Product Info

MPN	AR1X12V-SPL
UPC	810028812338

General Specifications

Wood Type	MDF
Fitment Type	Universal
Material Type	MDF
Enclosure Type	Ported
Subwoofer Size	12"
Wood Thickness	1" Front Baffle \| Remainder 3/4"
Ultra SPL Model	Yes - (MegaBass Design/Larger Volume/Rear Side Port)
Enclosure Finish	Armor Coated
Fits How Many Subs	1
Material Thickness	1" Front Baffle \| Remainder 3/4"
Enclosure Finish Color	Black
Internal Speaker Wire Leads Pre-soldered	12 AWG
External Push Terminal Wire Gauge Opening	8 AWG

Technical Specifications

Port Width	2.50"
Number of Ports	1
Total Box Volume	2.65 Cubic Ft
Number of Subwoofer Chambers	1
Tuning Frequency of Enclosure	41 Hz
Number of Terminal Cup Connections	1

Enclosure External Dimensions

Depth	17.75"
Height	16.00"
Length	27.25"

Subwoofer Mounting Parameters

Subwoofer Hole Cut-out Diameter	11.20"
Subwoofer Maximum Mounting Depth	13.8125"

OX INFO

Compatibility Chart

IX-12 D2/D4	✔️
VD-12 D2/D4	✔️
VS-12 D2/D4	✔️
SDR-12 D2/D4	✔️
SVR-12 D2/D4	✔️
DDX-12 D2/D4	✔️
EVL-12 D2/D4	✔️
VXF-12 D2/D4	✔️
ZVX-12 D2/D4	✔️
