Mini-Tug 232 Air Horn Kit
Mini-Tug 232 Air Horn Kit is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
This model has been discontinued. You can find similar models here!

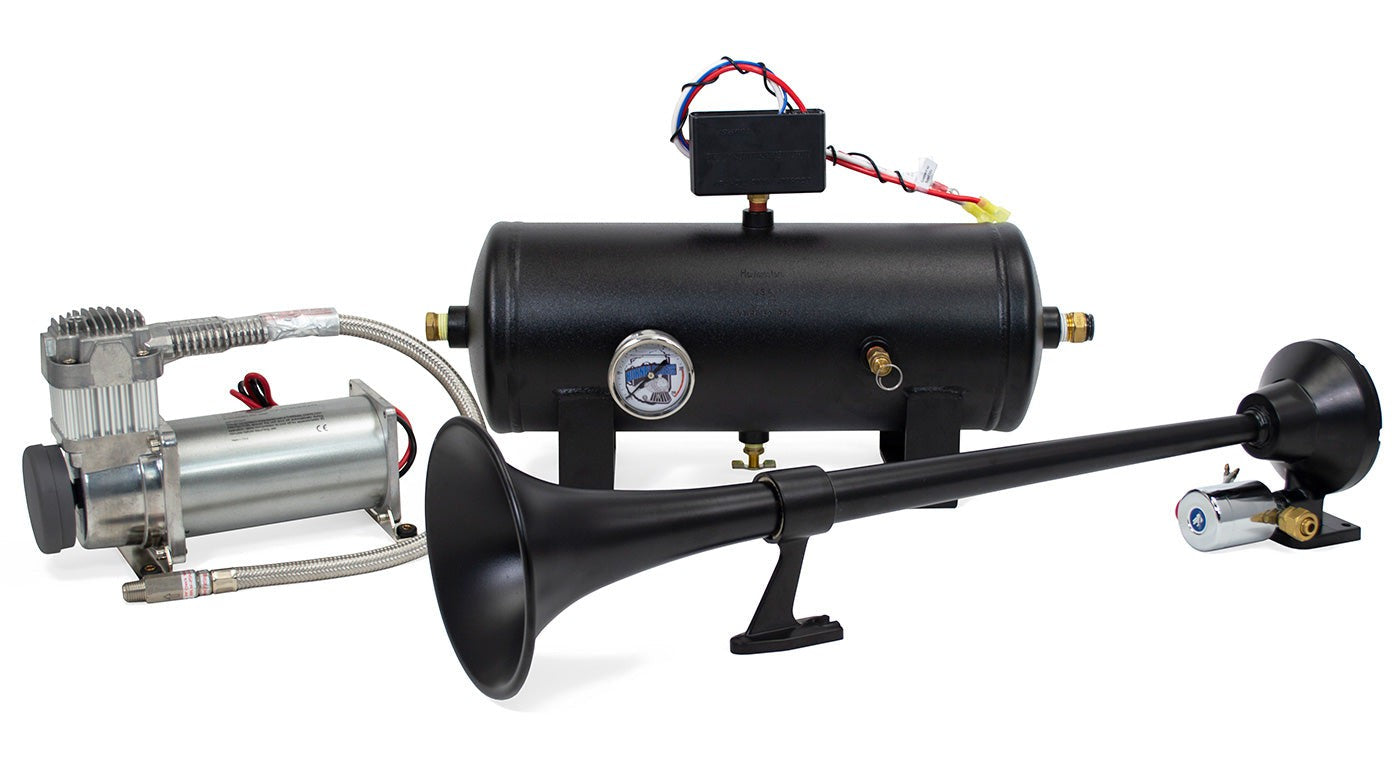

THE SMALLEST BIG HORN WE HAVE.
Looking for the fabled brown note? Our Mini-Tug 232 air horn kit produces a tone loud and low enough to make anyone rumble down under. While not considered a train horn due to the fact that it's a single bell, if you are looking for a deep, dirty tone out of your horn, the Mini-Tug 232 air horn kit will definitely leave you feeling like you need to change your drawers.

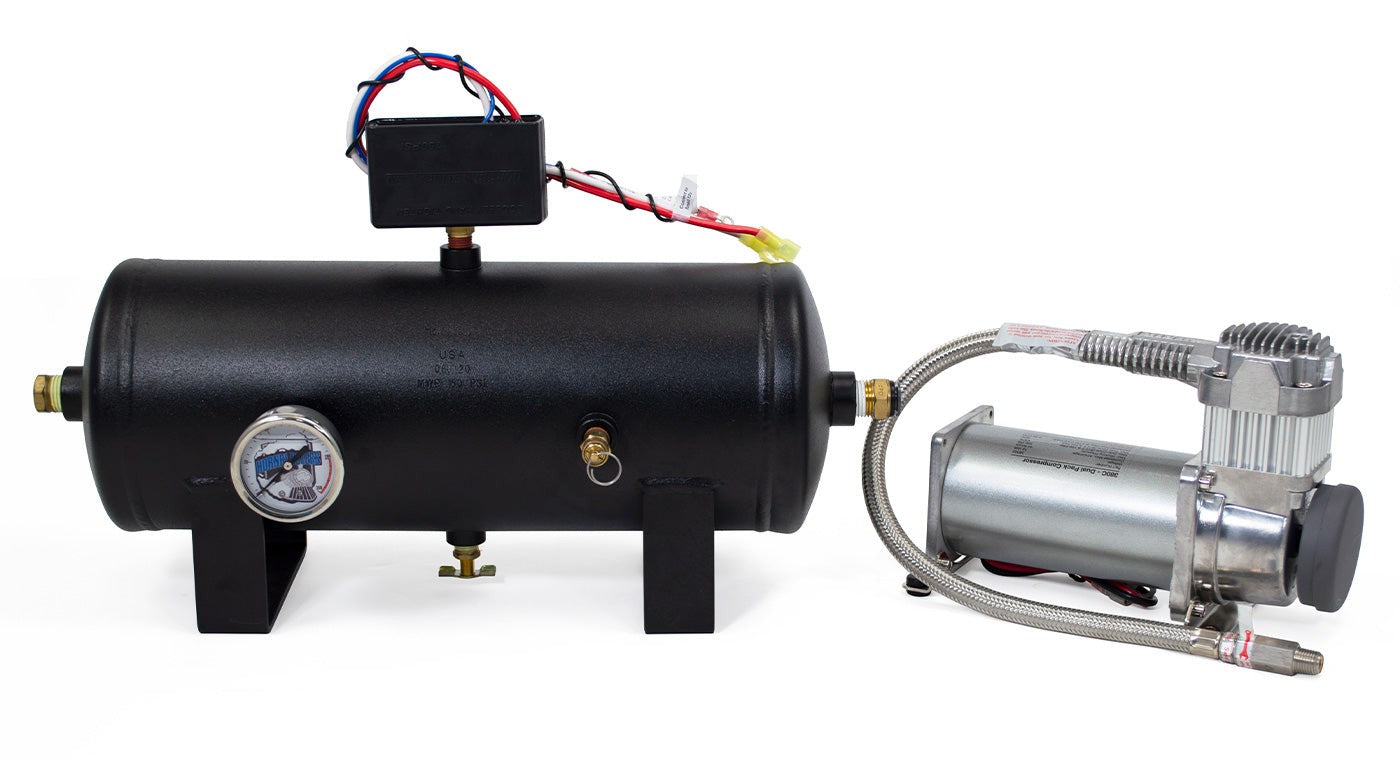

Our HornAir 232 onboard air system is our most popular entry-level system and our lowest cost weather-resistant unit. Ideal for blasting horns and even light pneumatic use, our HornAir 232 Onboard Air System provides enough air to give your Shart horn a stunning 5-6 seconds of continuous honk time and the included Viair 380C air compressor recovers the tank from 110-150 PSI in just 56 seconds!
- All-inclusive air horn solution!
- Complete with pre-installed air valve & fittings
- 150 PSI air system
- Max honk time: 5 to 6 seconds
- HornBlasters Mini-Tug air horn
- 2-gallon 6 port air tank
- Viair 380C air compressor
- 110/150 PSI pressure switch w/ 40 amp relay
- Remote mountable intake filter assembly
- Spare air filter elements
- 17 ft of 1/2" D.O.T. approved air line
- 6ft 3/8" air line (for air compressors air intake)
-
22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire
- Pre-installed 1/4" electric air valve
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- Brass NPT fittings kit including a safety blow-off & drain cock
-
Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Air line cutter
- Detailed instructions
- Earplugs
- Part Number: HK-S25-232
- Operating Pressure: 150 PSI
- Restart Pressure: 110 PSI
- Voltage: 12-Volt DC

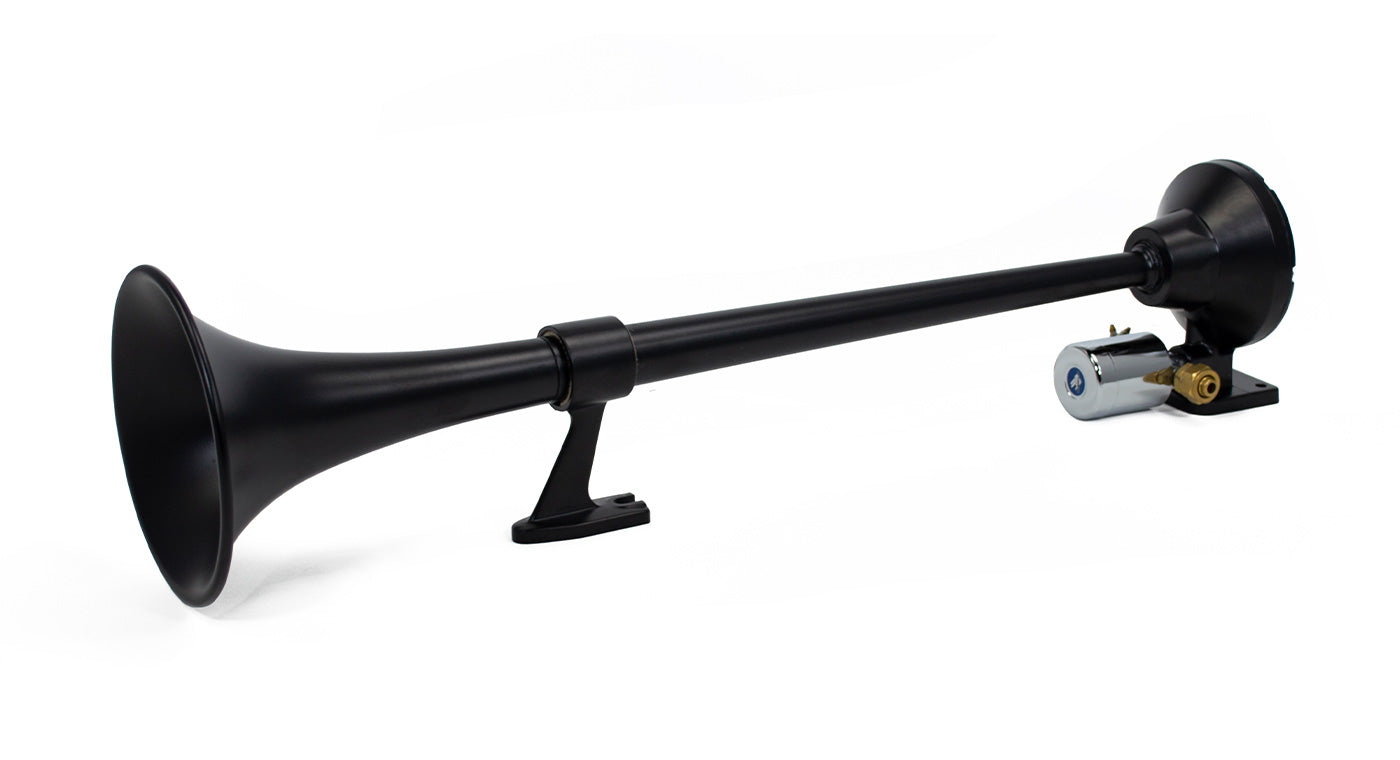

- Horn: HornBlasters Mini-Tug air horn
- Horn Length: 24" (609.6 mm)
- Horn Width: 6" (152.4 mm)
- Horn Height: 6" (152.4 mm)
- Horn Weight: 4.50 lb (2.041 Kg)
- Horn Air Inlet: Accepts 1/2" Air Line
- Air Tank: 2-gallon 6-port air tank
- Tank Length: 17″ (431.8 mm)
- Tank Diameter: 6″ (152.4 mm)
- Tank Height: 8″ (203.2 mm)(With Legs)
- Tank Weight: 10 lb (4.54 Kg)
- Tank Ports: x2 1/2" NPT, x4 1/4" NPT
- Air Compressor: Viair 380C air compressor
- Max Amperage: 23 Amps
- Maximum Duty Cycle: 100% @ 100 PSI
- CFM @ 0 PSI: 1.58 CFM
- Compressor Length: 9″ (228.6 mm)
- Compressor Width: 4″ (101.6 mm)
- Compressor Height: 6.75″ (171.5 mm)
- Compressor Weight: 6.95 lb (3.15 Kg)
2-Gallon Air Tank Dimensional Drawing
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.58 | 12 | 0 | 44.7 | 12 |
| 10 | 1.45 | 13 | 1.0 | 38.1 | 13 |
| 20 | 1.22 | 14 | 2.0 | 33.2 | 15 |
| 30 | 1.17 | 15 | 3.0 | 30.6 | 16 |
| 40 | 1.09 | 16 | 4.0 | 29.1 | 17 |
| 50 | 1.06 | 17 | 5.0 | 27.1 | 18 |
| 60 | 1.02 | 17 |
6.0 |
25.3 |
19 |
| 70 | 0.97 | 18 |
7.0 | 24.0 | 20 |
| 80 | 0.92 | 18 |
8.0 | 22.4 |
21 |
| 90 | 0.88 | 19 |
9.0 | 21.0 |
23 |
| 100 | 0.85 | 20 | 10.0 | 19.5 | 21 |
| 110 | 0.81 | 21 | |||
| 120 | 0.78 | 22 | |||
| 130 | 0.74 | 23 | |||
| 140 | 0.71 | 21 | |||
| 150 | 0.67 | 20 |
* Supply Voltage: 13.8 Volts
| 12-VOLT COMPRESSOR | |
|---|---|
| 2.0 GALLON TANK | FILL RATE |
| 0 to 150 PSI | 2 min. 52 sec. (± 10 sec.) |
| 110 to 150 PSI | 56 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
-
