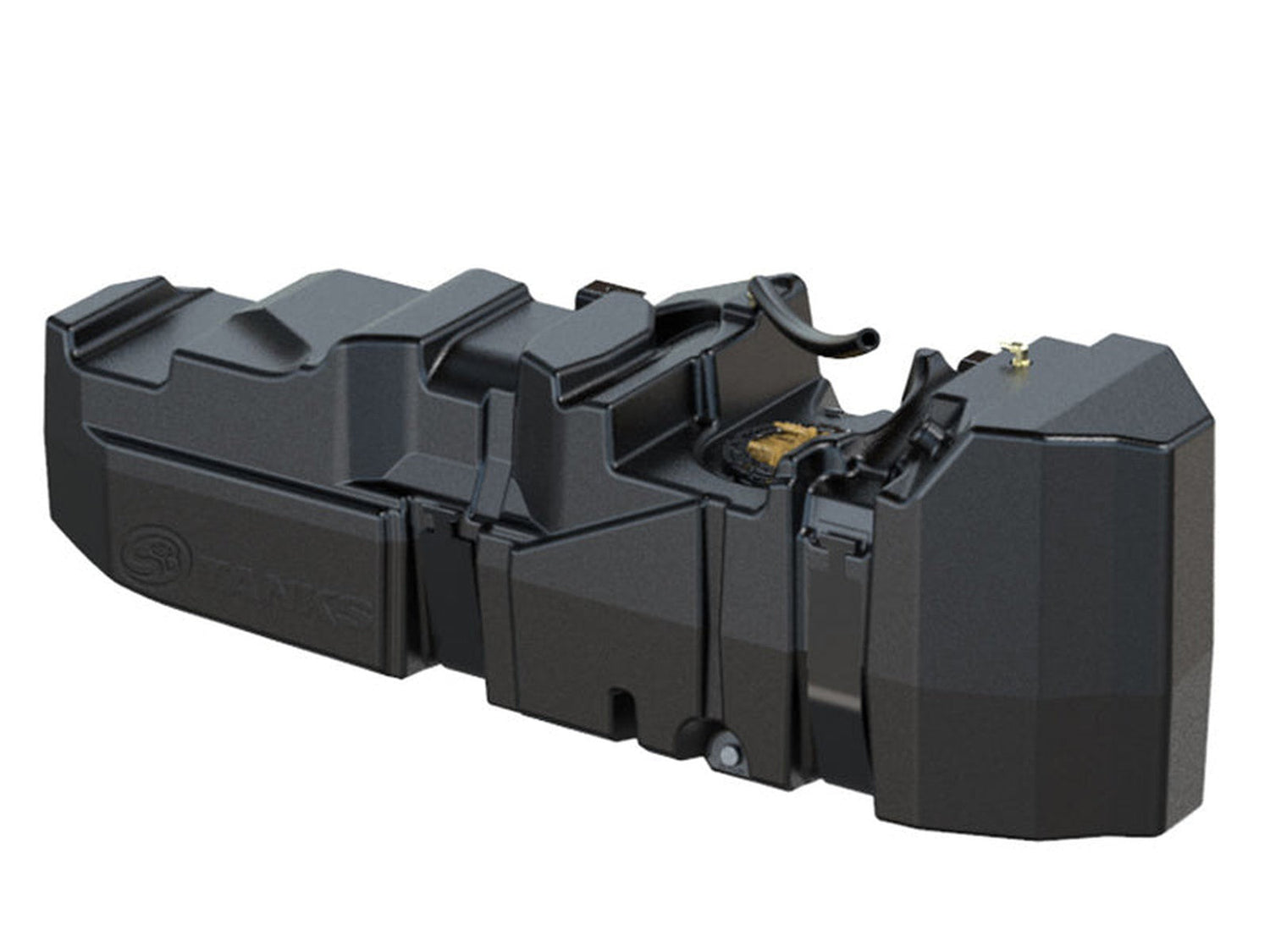

S&B 10-1021-1 52 Gallon Replacement Fuel Tank for 2005-2025 Dodge Ram Cummins Crew and Quad Cab Short Bed

S&B 10-1021-1 52 Gallon Replacement Fuel Tank.

For 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2024 Dodge Ram Cummins.

Crew and Quad Cab Short Bed. Capacity Approximate 52 gallons.

Note - Fuel sending unit is not included

Important Notes:

• The fuel gauge will continue to work however the distance to empty will not be accurate. There is no way to update the fuel tank size for the distance to empty to be accurate.
•  OEM sending unit & float are reused because the S&B Tank is taller the gauge will stay on full for the first 8-10 gallons.
• The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically.

Save Time. Go Further. Get More Out of Your Truck. Being stuck with a small tank isn't fair. You spend more time looking for fuel stations, are stuck paying high fuel prices, and are slowed down by this inconvenience.

This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues"  common with aftermarket lift pumps.

Tank Type Midship
S&B Capacity (Approximate) 52 gallons
Weight (Dry) 40lbs
Ground Clearance Compare to OE Tank 2.4 " Lower
Sump Yes
Drain Yes
Sending Unit OE
Straps Included Yes
Compatible with OE Skid Plate No
Compatible with Gooseneck and 5th Wheel Yes
Transfer Pump Ready Yes
Embedded Fitting Thread Size 1/2" NPT
Dimensions 63.62" X 17.84" X 22.07"

Do you have an Auxiliary Fuel Tank?
WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.

Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.
