S&B 10-1004 60 Gallon Replacement Fuel Tank for 2017-2026 Ford Powerstroke 6.7L Crew Cab Short Bed

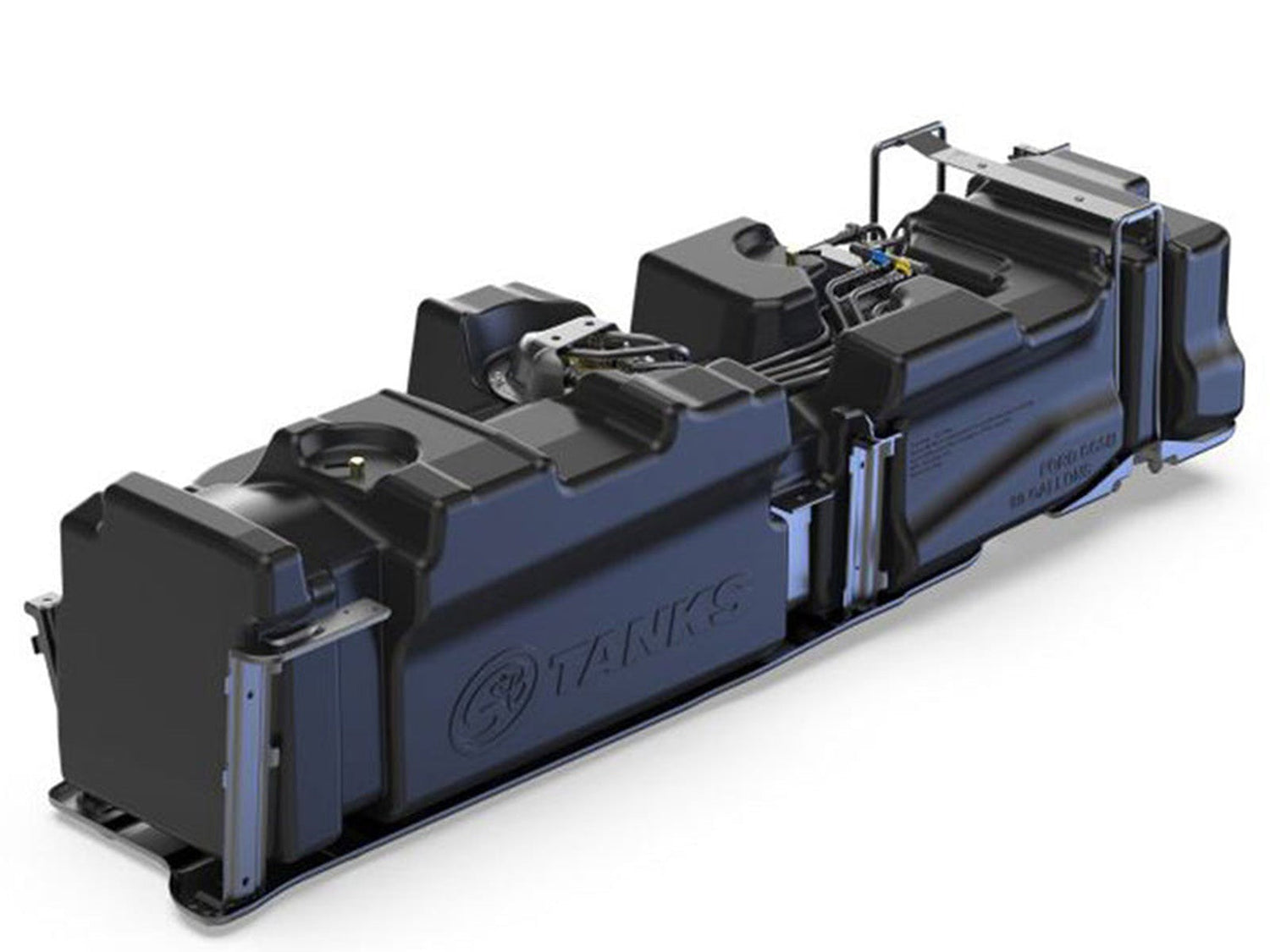

S&B 10-1004 60 Gallon Replacement Fuel Tank.
For 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford Powerstroke 6.7L Crew Cab Short Bed.
Holds approximately 60 gallons of fuel. Add a refundable EZLynk to your order to re-calibrate your miles to empty on your vehicle.

Note - Fuel sending unit is not included

According to the Ford TSB 17-0046. If your truck has a build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.

This tank hold approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.

Tank Type Midship
S&B Capacity (Approximate) 60 gallons
Weight (Dry) 50lbs
Ground Clearance Compare to OE Tank 1.75" Lower
Sump No
Drain Yes
Sending Unit OEM
Straps Included Yes
Compatible with OE Skid Plate Yes
Compatible with Gooseneck and 5th Wheel Yes
Transfer Pump Ready Yes
Embedded Fitting Thread Size 1/2" NPT
Dimensions 76.02" X 20.69" X 19.08"

Do you have an Auxiliary Fuel Tank?
WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.

Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.
