PRV 12” Car Subwoofer RS12-SUB Dual 4 Ohm 1000 Watts Double Stacked Magnet 17.5mm Xmax
For 15 years, PRV Audio has developed and marketed live PRO audio speakers, and is thrilled to introduce the RS Series bringing new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.
This 12″ subwoofer will give you bass like never before! The RS12-SUBD4 is perfect for boosting the lows in your car system or shaking your entire neighborhood.
This subwoofer was designed to be a great combination of price and performance without a compromise on quality. It is a must-have for daily builds where you want to keep electrical upgrades to a minimal and get excellent performance with a minimal amount of power.
- Bass machine that will reproduce low-end frequencies with authority with small amount of power
- 4 layer high-temperature copper voice coil capable of handling 1000 watts RMS program power, which makes high acoustic output
- High roll U surround gives an 17.5 mm of Xmax for low bass reproduction without any issues
- Side forced cooling system with vented back plate design for better heat dissipation
- Dual 4 Ohm, easy setup to connect two subs in parallel to 1 ohm
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 4 + 4 Ohm |
| Nominal Power Handling | 500 Watts |
| Continuous Program Power (RMS) | 1000 Watts |
| Max Peak Power | 2000 Watts |
| Sensitivity 1.41V at 1m | 86 dB (Parallel VC) |
| Voice Coil Diameter | 2.6″ (65.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 40.0 mm |
| Former Material | Black Aluminum |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 21.2 l |
| Excursion (mathematical)*** | Xmax | 17.5 mm |
| Free Air Resonance | Fs | 42.7 Hz |
| Mechanical Factor | Qms | 9.90 |
| Electrical Factor | Qes | 0.79 |
| Total Factor | Qts | 0.73 |
| Cone Area | Sd | 551 cm² |
| Mechanical Mass | Mms | 237.5 g |
| Bl Factor | Bl | 11.71 Tm |
| Dc Resistance (Parallel VC) | Re | 1.7 Ohm |
| Inductance | Le | 1.53 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 230.9 g |
| Mechanical Compliance | Cms | 0.058 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

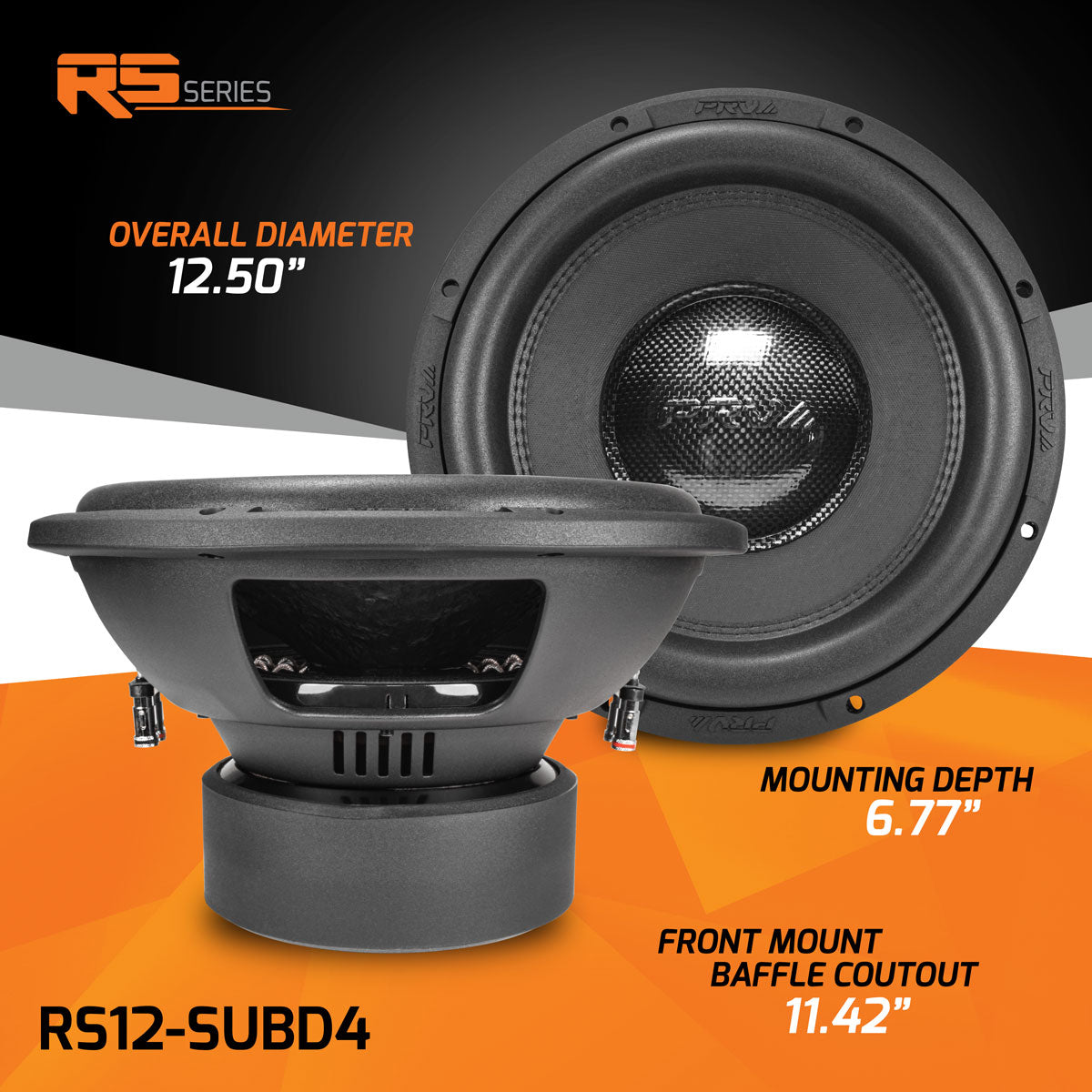

EXTRA INFO
| Overall Diameter | 12.50″ (317.5 mm) |
| Front Mount Baffle Cutout | 11.42″ (290 mm) |
| Mounting Depth | 6.77″ (172 mm) |
| Overall Depth | 7.75″ (197 mm) |
| Net Weight | 21.56 Lbs (9.78 kg) |
| Shipping Weight | 25.35 Lbs (11.50 kg) |
| Carton Dimensions W x L x H | 13.78″ x 13.78″ x 8.66″ (350 x 350 x 220 mm) |
