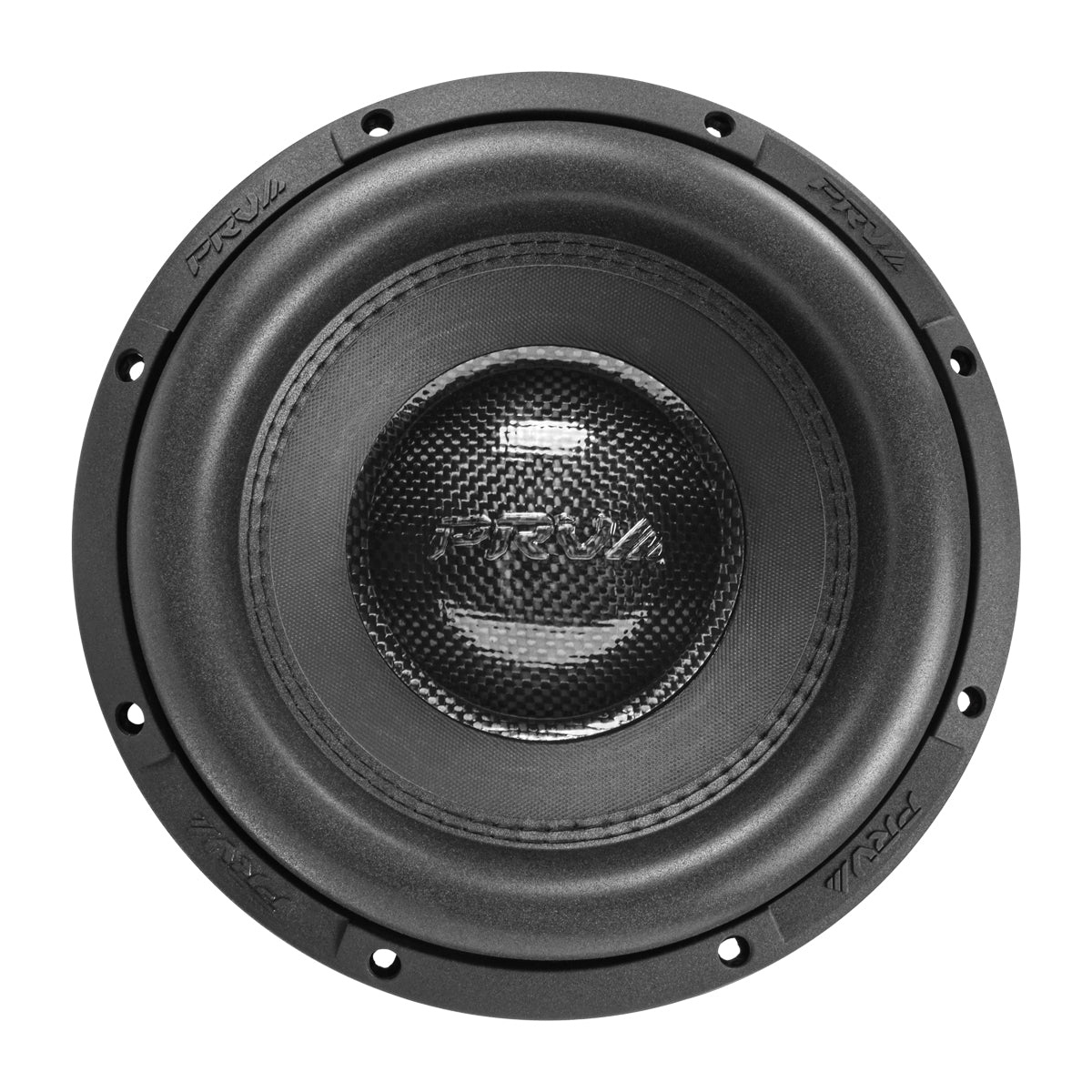

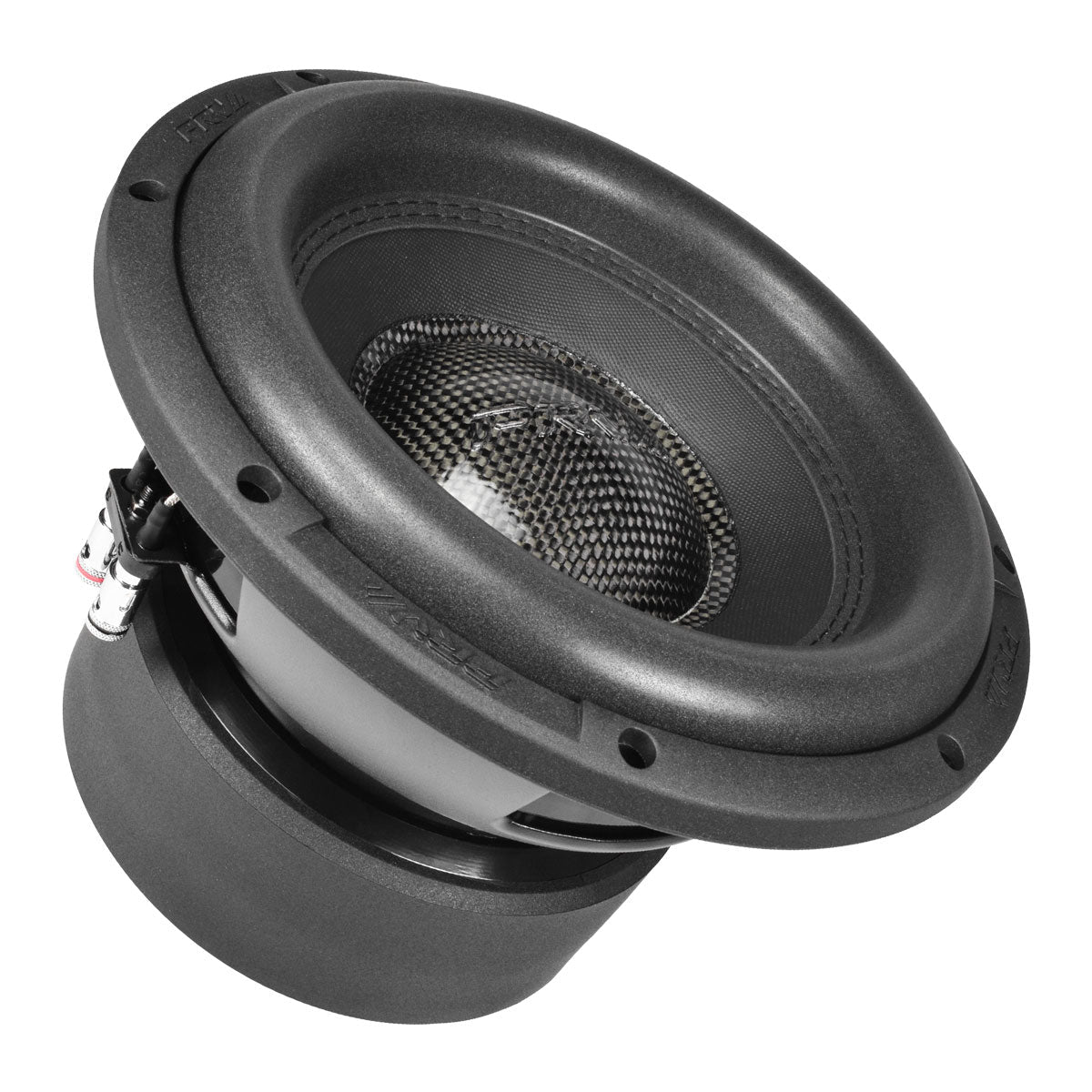

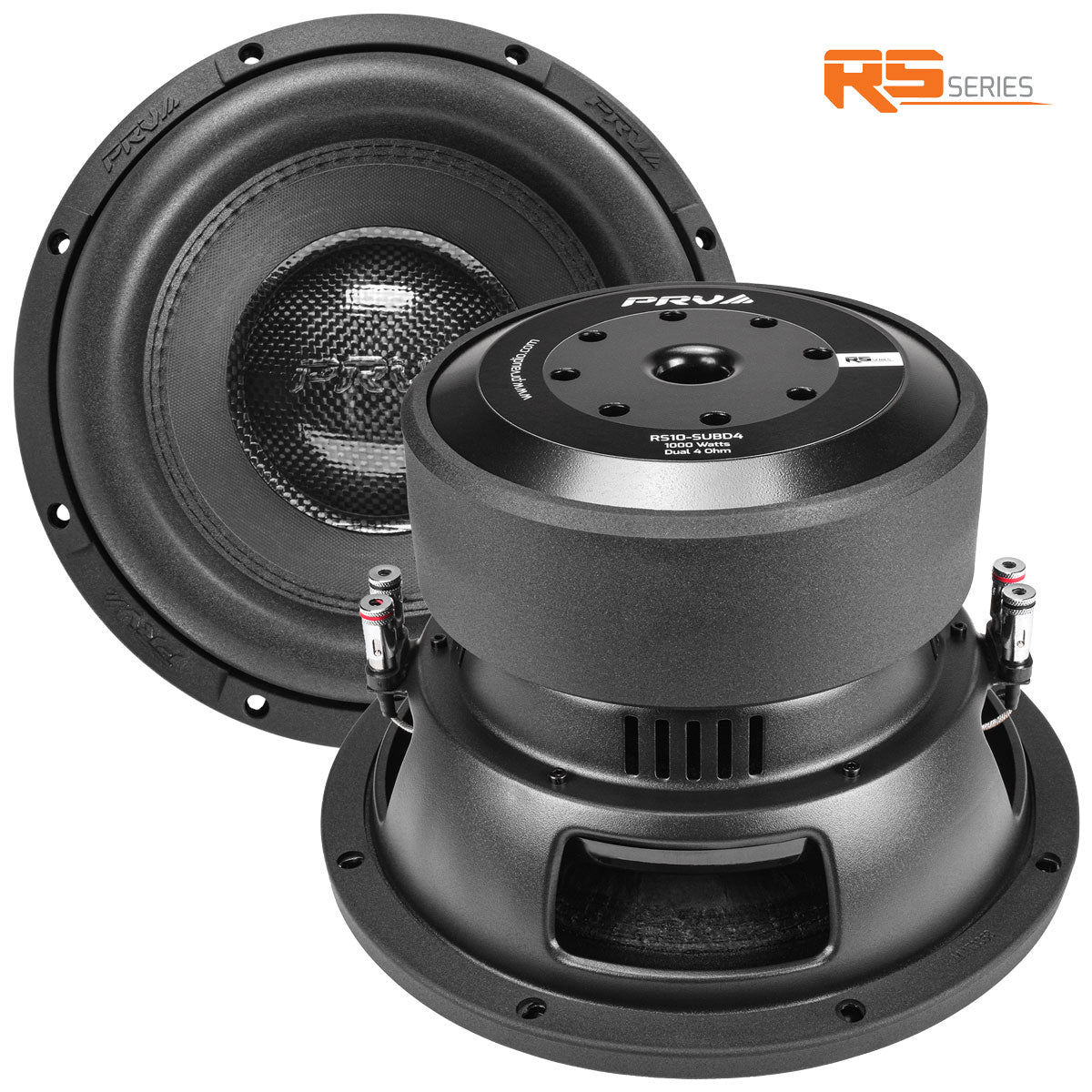

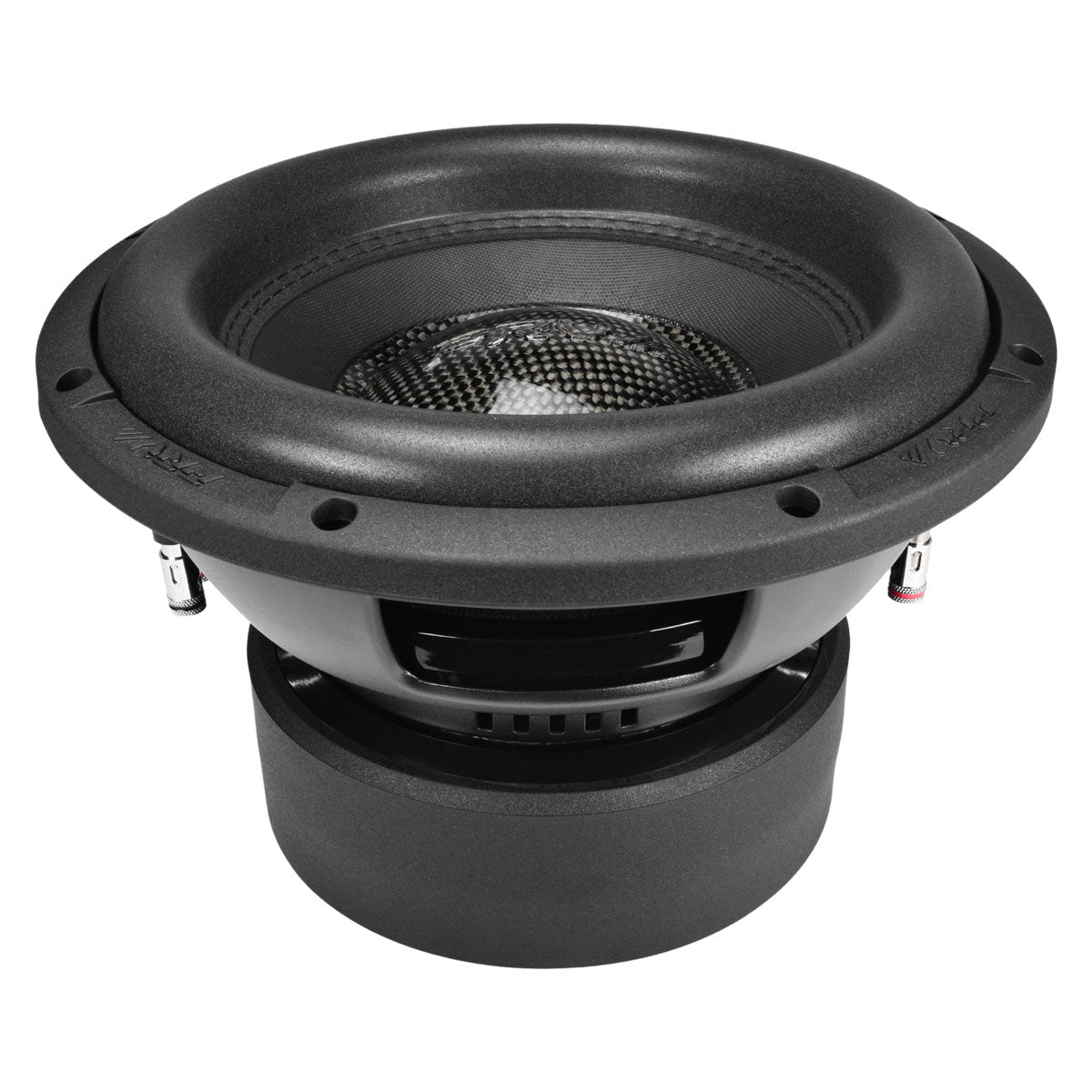

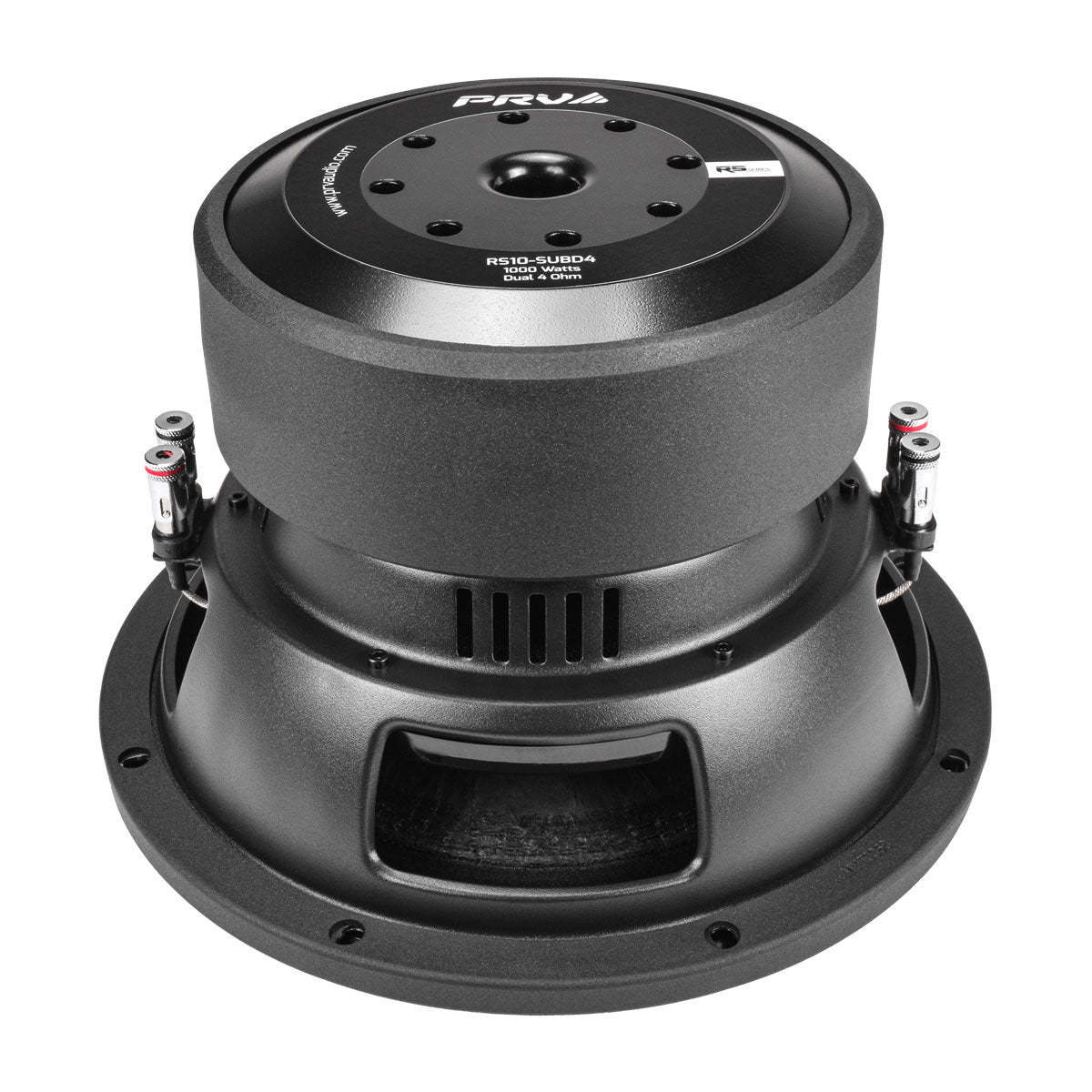

RS10-SUBD4 PRV 10” Car Subwoofer Dual 4 Ohm 1000 Watts
RS10-SUBD4 PRV 10” Car Subwoofer Dual 4 Ohm 1000 Watts is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
RS10-SUBD4 PRV 10” Car Subwoofer Dual 4 Ohm 1000 Watts
RS10-SUBD4 PRV 10” Car Subwoofer Dual 4 Ohm 1000 Watts is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
PRV 10” Car Subwoofer RS10-SUB Dual 4 Ohm 1000 Watts Double Stacked Magnet 17.5mm Xmax
For 15 years, PRV Audio has developed and marketed live PRO audio speakers, and is thrilled to introduce the RS Series bringing new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.
This 10″ subwoofer will give you bass like never before! The RS10-SUBD4 is perfect for boosting the lows in your car system or shaking your entire neighborhood.
This subwoofer was designed to be a great combination of price and performance without a compromise on quality. It is a must-have for daily builds where you want to keep electrical upgrades to a minimal and get excellent performance with a minimal amount of power.
- Bass machine that will reproduce low-end frequencies with authority with small amount of power

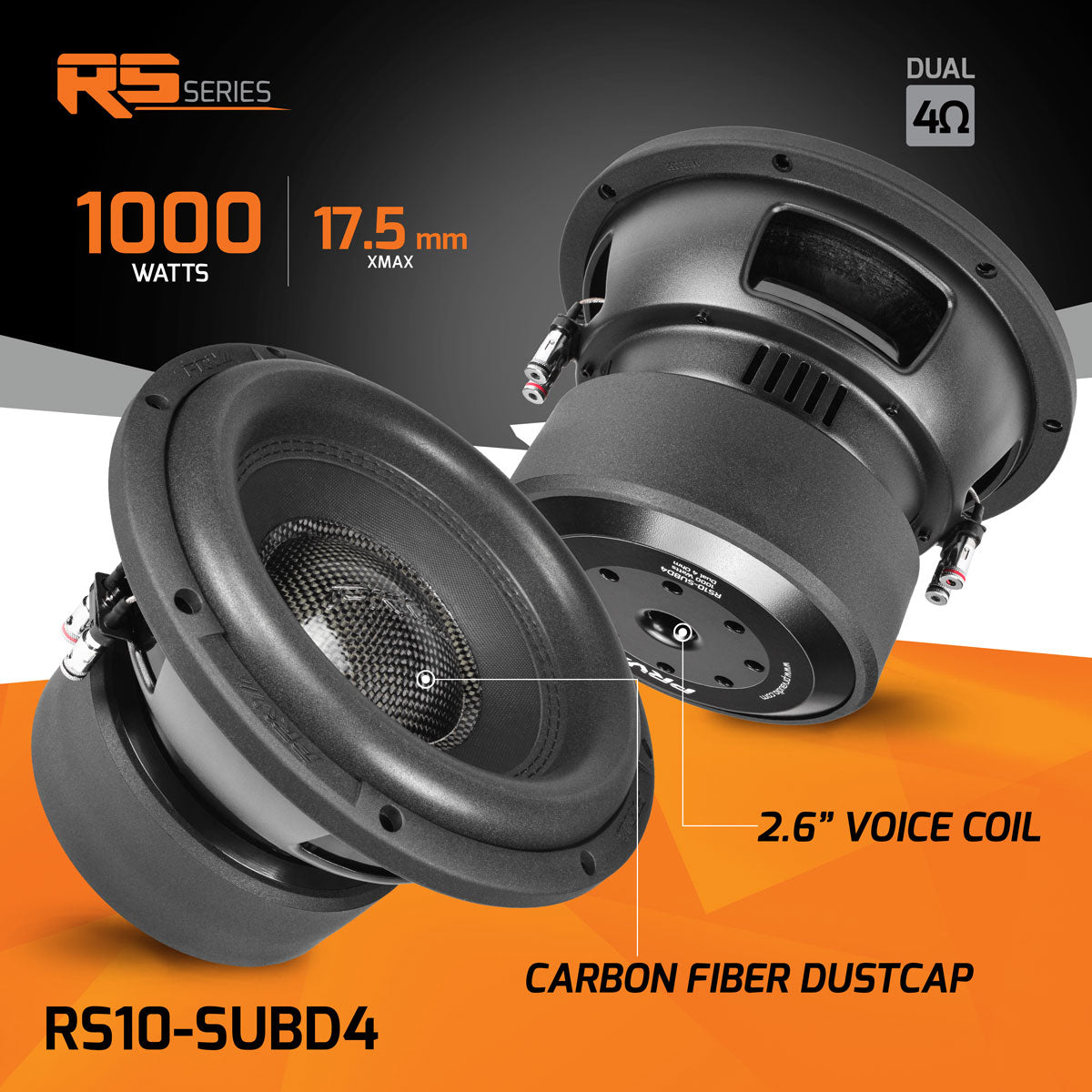

- 4 layer high-temperature copper voice coil capable of handling 1000 watts RMS program power, which makes high acoustic output
- High roll U surround gives an 17.5 mm of Xmax for low bass reproduction without any issues.
- Side forced cooling system with vented back plate design for better heat dissipation
- Dual 4 Ohm, easy setup to connect two subs in parallel to 1 ohm
GENERAL SPECIFICATIONS
| Nominal Diameter | 10″ (254 mm) |
| Nominal impedance | 4 + 4 Ohm |
| Nominal Power Handling | 500 Watts |
| Continuous Program Power (RMS) | 1000 Watts |
| Max Peak Power | 2000 Watts |
| Sensitivity 1.41V at 1m | 84 dB (Parallel VC) |
| Voice Coil Diameter | 2.6″ (65.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 40.0 mm |
| Former Material | Black Aluminum |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 8.22 l |
| Excursion (mathematical)*** | Xmax | 17.5 mm |
| Free Air Resonance | Fs | 48.5 Hz |
| Mechanical Factor | Qms | 10.00 |
| Electrical Factor | Qes | 0.74 |
| Total Factor | Qts | 0.69 |
| Cone Area | Sd | 330 cm² |
| Mechanical Mass | Mms | 198.7 g |
| Bl Factor | Bl | 11.76 Tm |
| Dc Resistance (Parallel VC) | Re | 1.7 Ohm |
| Inductance | Le | 1.54 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 195.3 g |
| Mechanical Compliance | Cms | 0.054 mm/N |
EXTRA INFO

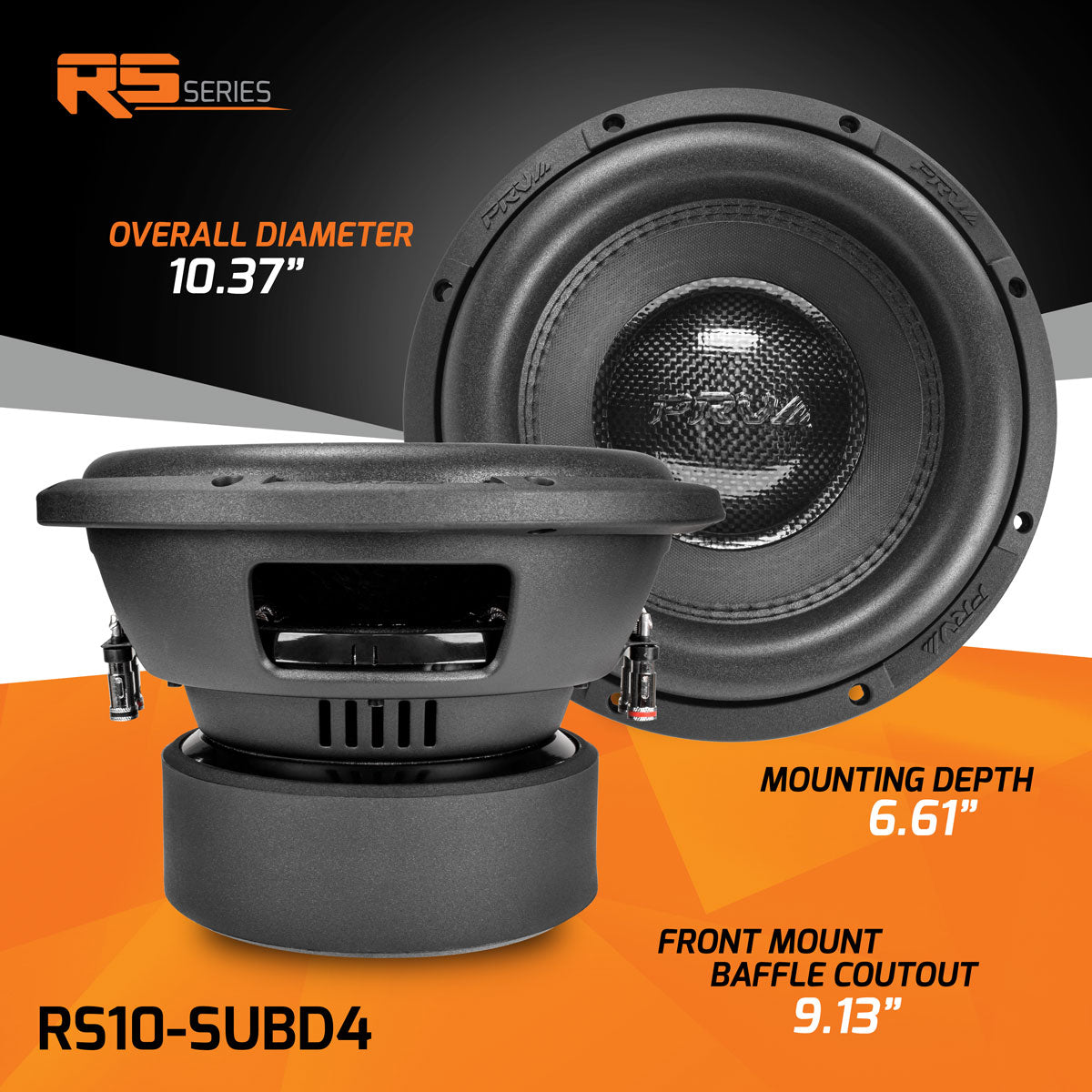

| Overall Diameter | 10.37″ (263.5 mm) |
| Front Mount Baffle Cutout | 9.13″ (232 mm) |
| Mounting Depth | 6.61″ (168 mm) |
| Overall Depth | 7.16″ (182 mm) |
| Net Weight | 21.27 Lbs (9.65 kg) |
| Shipping Weight | 24.25 Lbs (11.00 kg) |
| Carton Dimensions W x L x H | 11.61″ x 11.61″ x 7.87″ (295 x 295 x 200 mm) |
