Description
Description

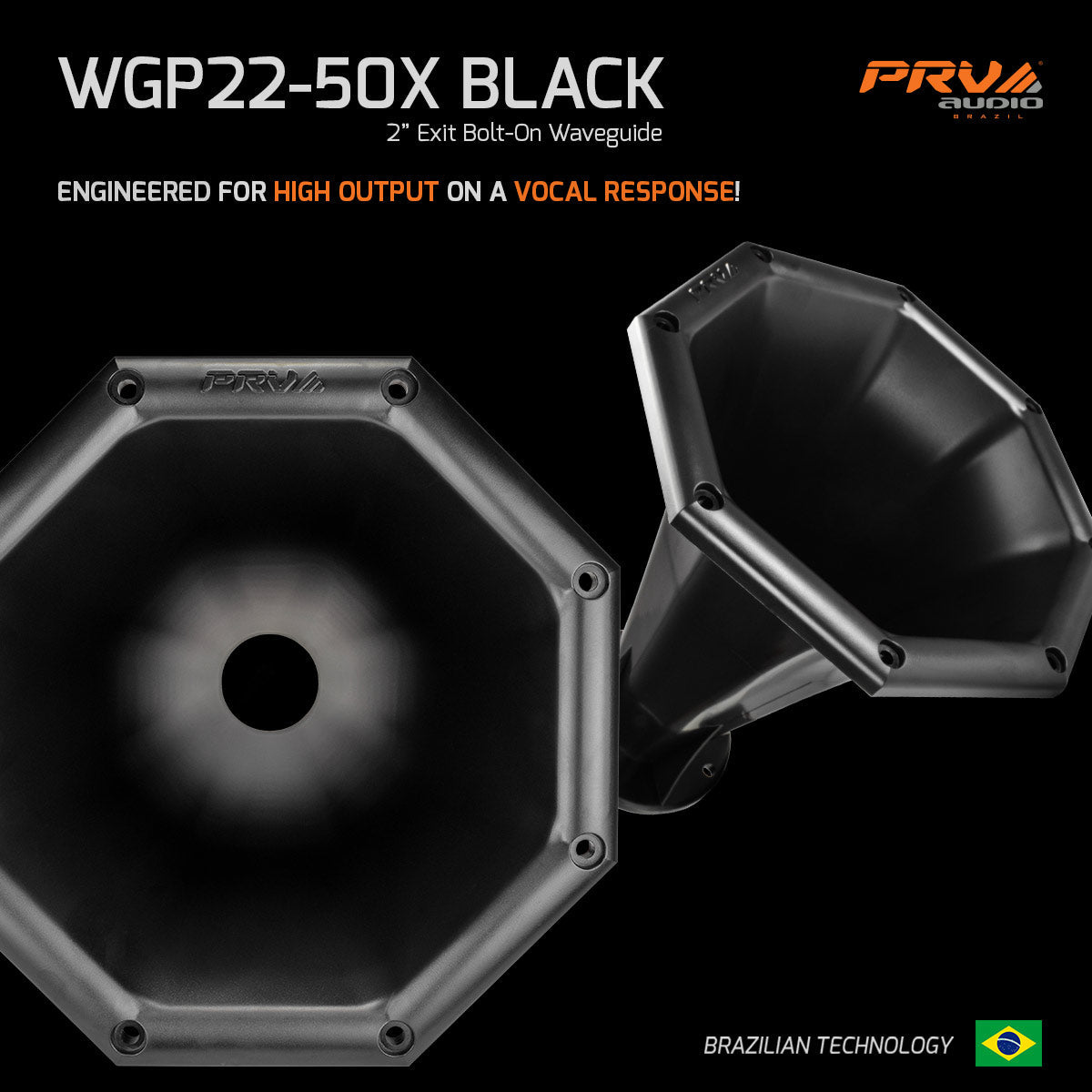

We are proud to present the WGP22-50X Series. We have implemented our cutting-edge technology from the WGP14-50X Horn Series, which features an unique octagonal shape engineered not only for outstanding looks, but to dramatically increase dispersion and output on vocal frequency range!
Designed to reproduce the highest vocal output possible, this long throw horn can take your custom system to the next level. The WGP22-50X Horn Series is a waveguide with a 2″ throat exit designed to work with any of our 2″ Exit Midrange Compression Drivers.
This new series is available in BLACK or WHITE finishes, making it easy to blend with any color system.
- Long throw design allows mounting to 2″ midrange drivers and amplifying vocal response
- Squared outside edges allow easy side or up stacking of multiple drivers in a compact format
- 2″ throat with standard 4-bolt mounting pattern
- Non-resonant reinforced plastic construction
- The 30° x 30° dispersion is suitable for direct focus output with a low 350Hz cutoff frequency
GENERAL SPECIFICATIONS
| Throat Diameter | 2” (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.31″ 8 mm |
| Bolt Circle | 4″ 102 mm |
| Nominal Coverage | |
| Horizontal | 30° |
| Vertical | 30° |
| Flare type | Hybrid |
| Material | Plastic (ABS) |
| Finish / Coating | Black/White |

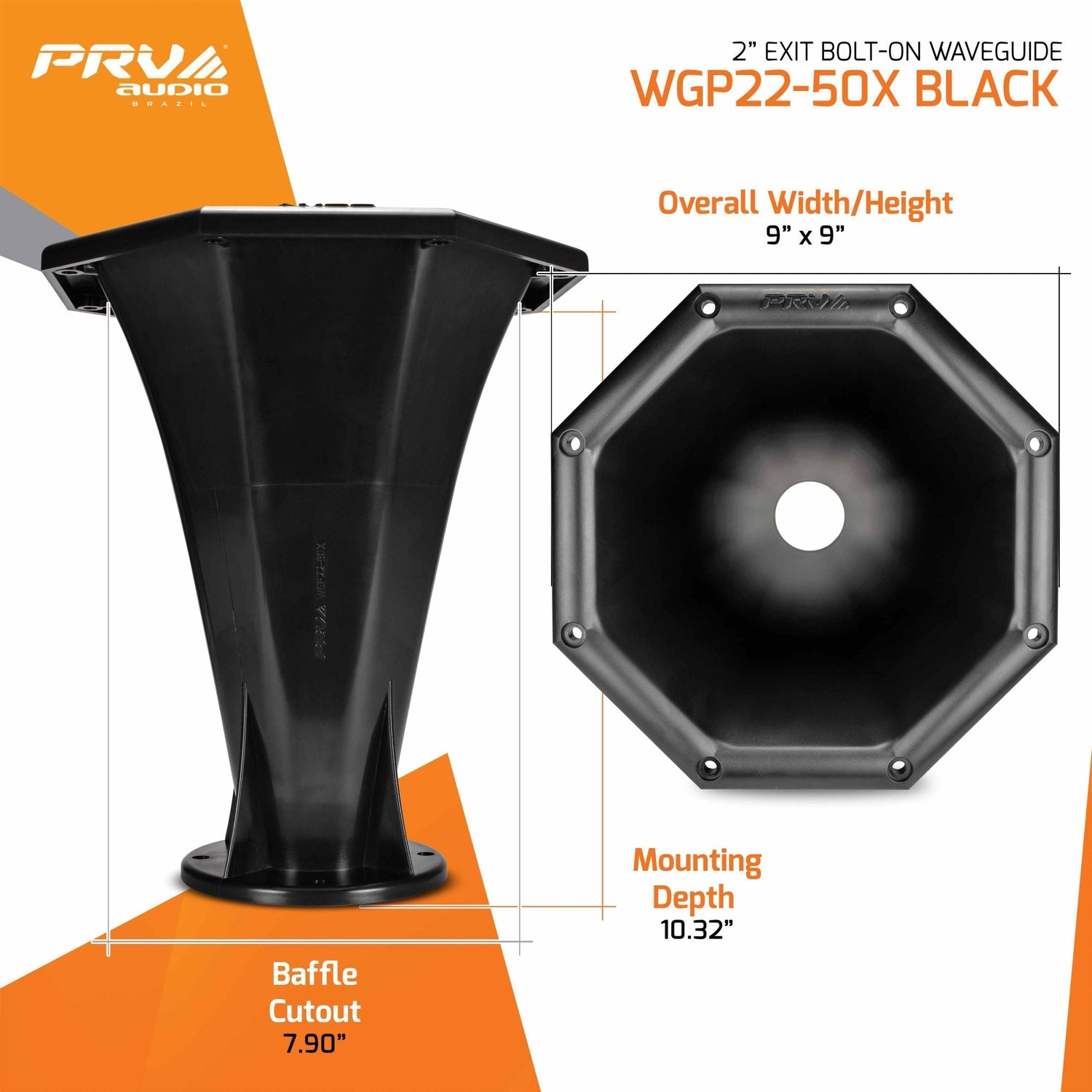

| Dimensions | |
| Height | 9.00″ (228.6mm) |
| Width | 9.00″ (228.6 mm) |
| Depth | 10.85″ (275.5 mm) |
| Mount Depth | 10.32″ (262 mm) |
| Baffle Cutout | |
| Diameter | 7.9″ (200.7 mm) |
| Net weight | 1.23lb (0.56 kg) |
