Description
Description

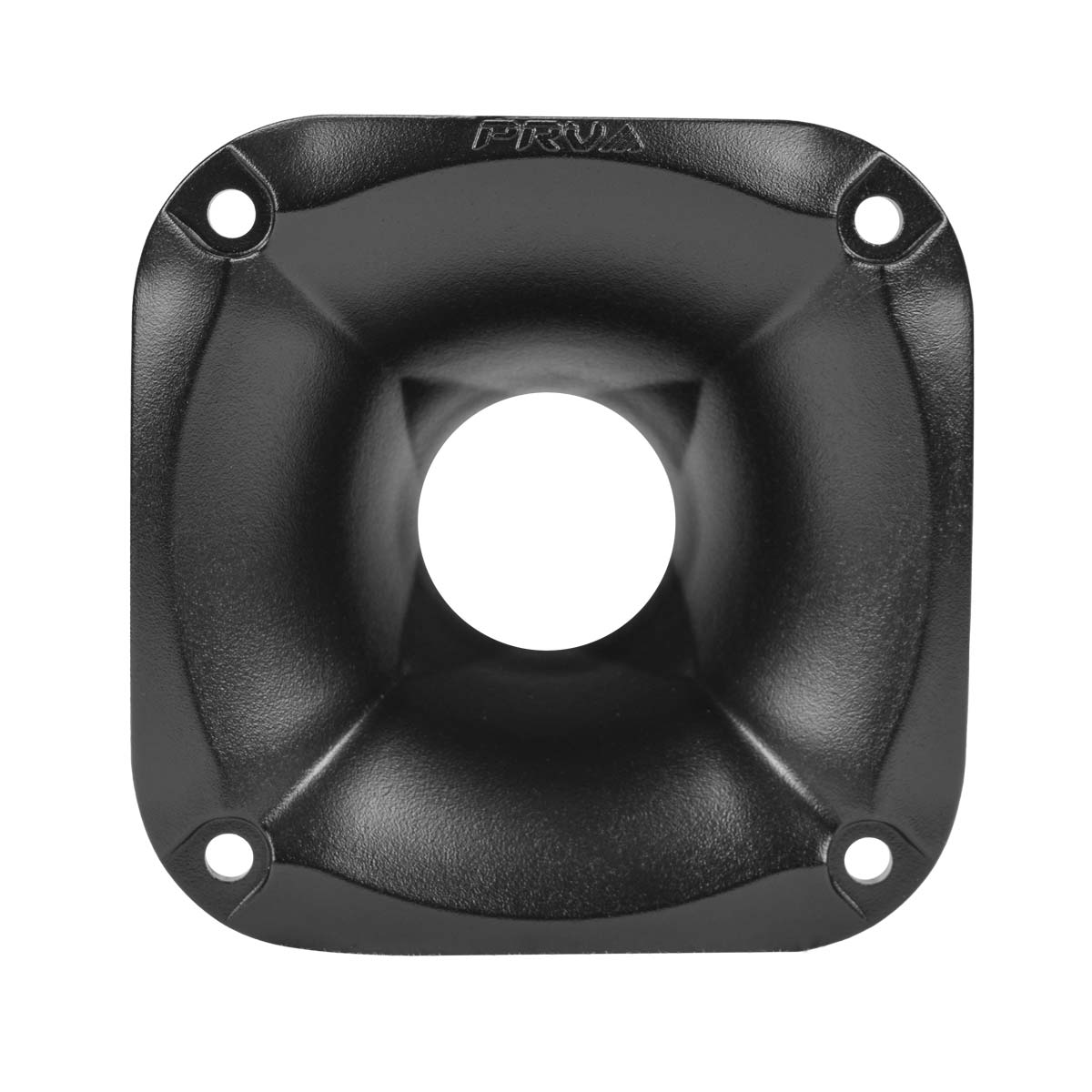

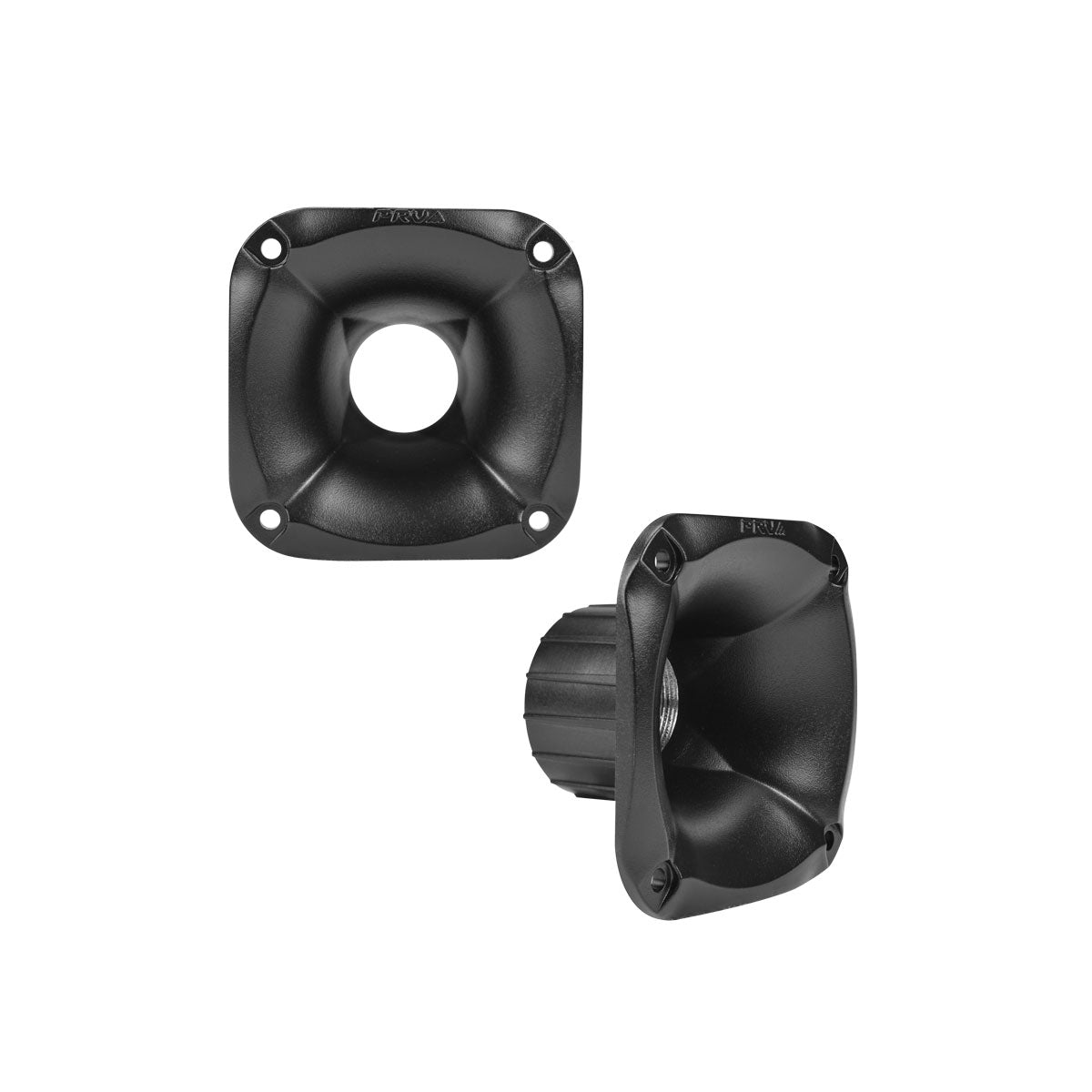

Screw-on mini waveguide WG08-25 from PRV Audio is an exponential horn to consider! At 1.72″ of depth, this horn makes installation easy in tight spaces.
A standard 1-3/8″-18 TPI Screw on mount is compatible with any PRV 1″ exit screw-on compression drivers. The WG08-25 is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1600 Hz.

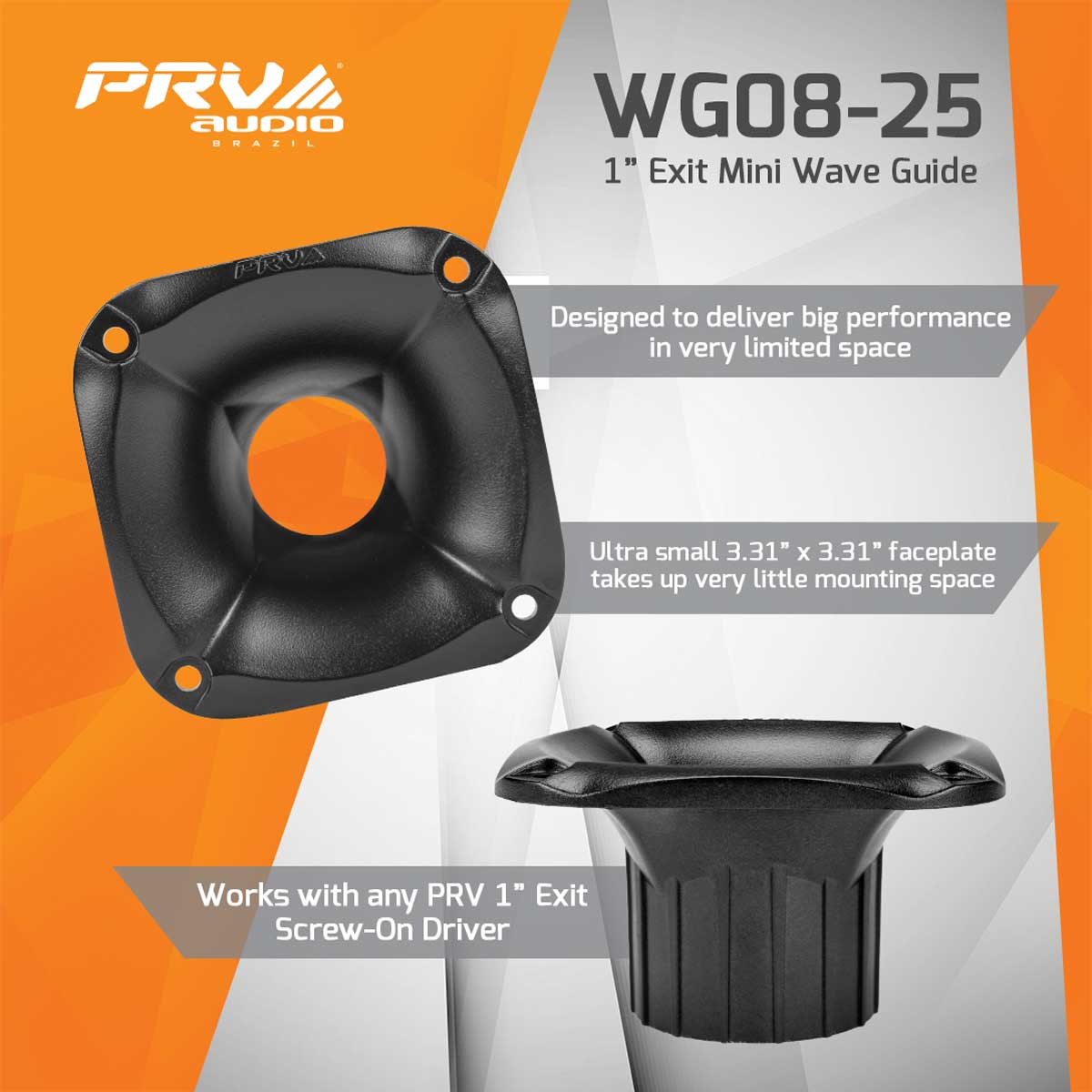

- Its slim mounting depth of 1.72″, with an ultra small 3.31″ x 3.31″ faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
- Designed to deliver big performance in very limited space, when you add any PRV 1″ Exit Driver to it.
- Its 90° x 90° dispersion pattern is ideal for short throw applications
- Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
- Recommended minimum crossover frequency of 1,600 Hz

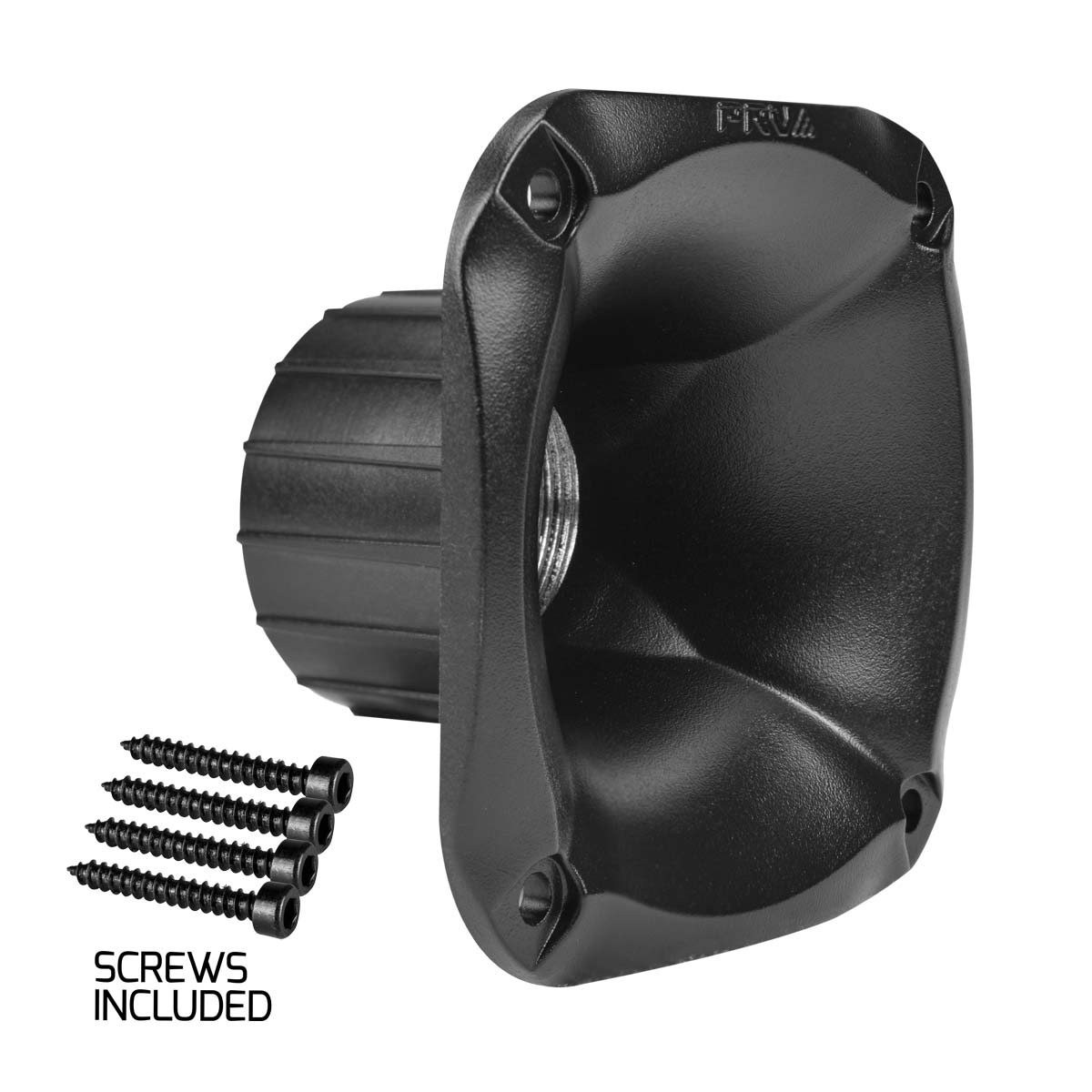

- Includes 4x screws
GENERAL SPECIFICATIONS
| Throat Diameter | 1” (25.4mm) |
| Mounting Type | Screw-on |
| Thread dimensions | 1-3/8″ |
| Nominal Coverage | |
| Horizontal | 90° |
| Vertical | 90° |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Black |

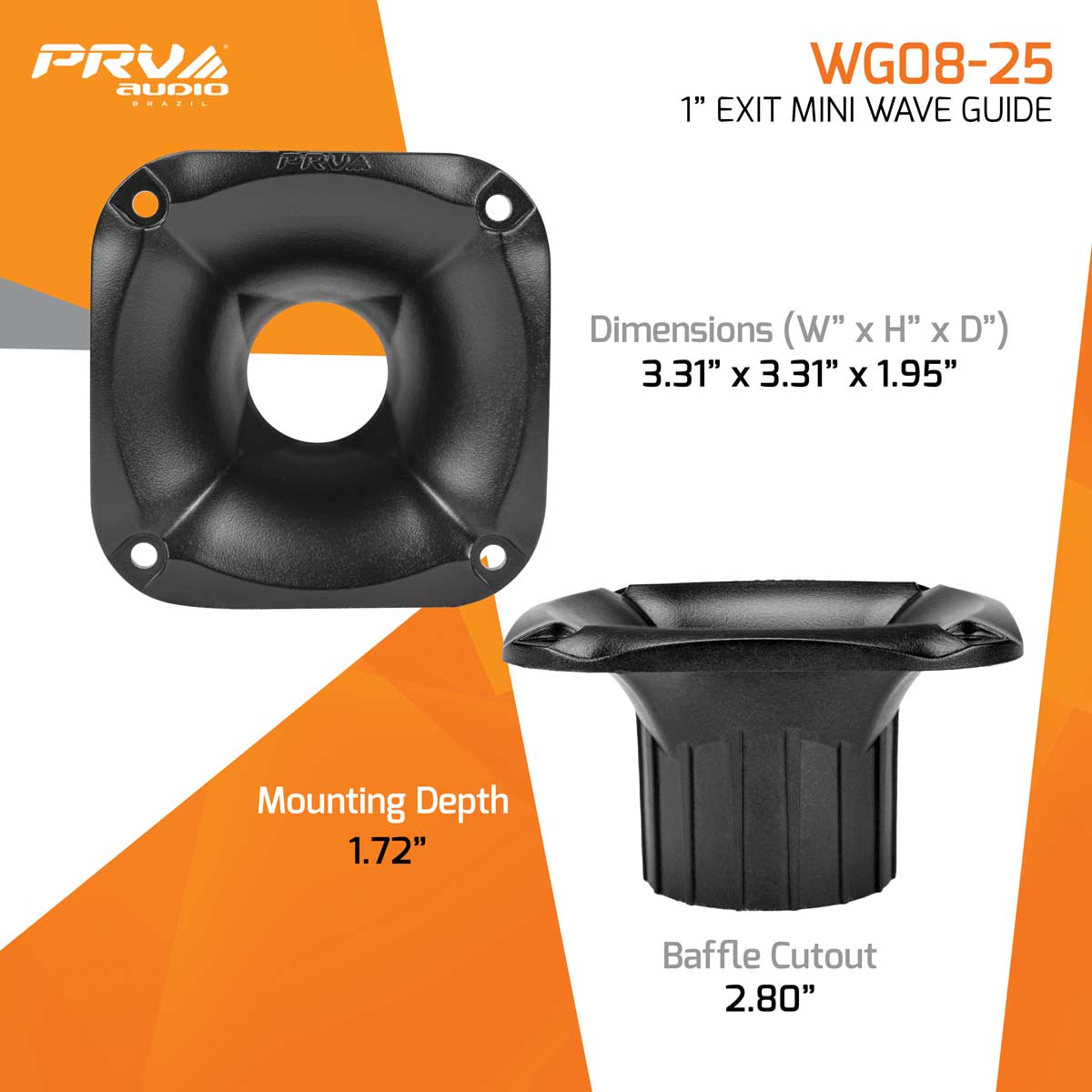

| Dimensions | |
| Height | 3.31″ (84mm) |
| Width | 3.31″ (84mm) |
| Depth | 1.95″ (49.5mm) |
| Mount Depth | 1.72″ (43.5mm) |
| Baffle Cutout | |
| Width | 2.80″ (71mm) |
| Height | 3.31″ (84mm) |
| Net weight | 0.13lb (0.06kg) |
