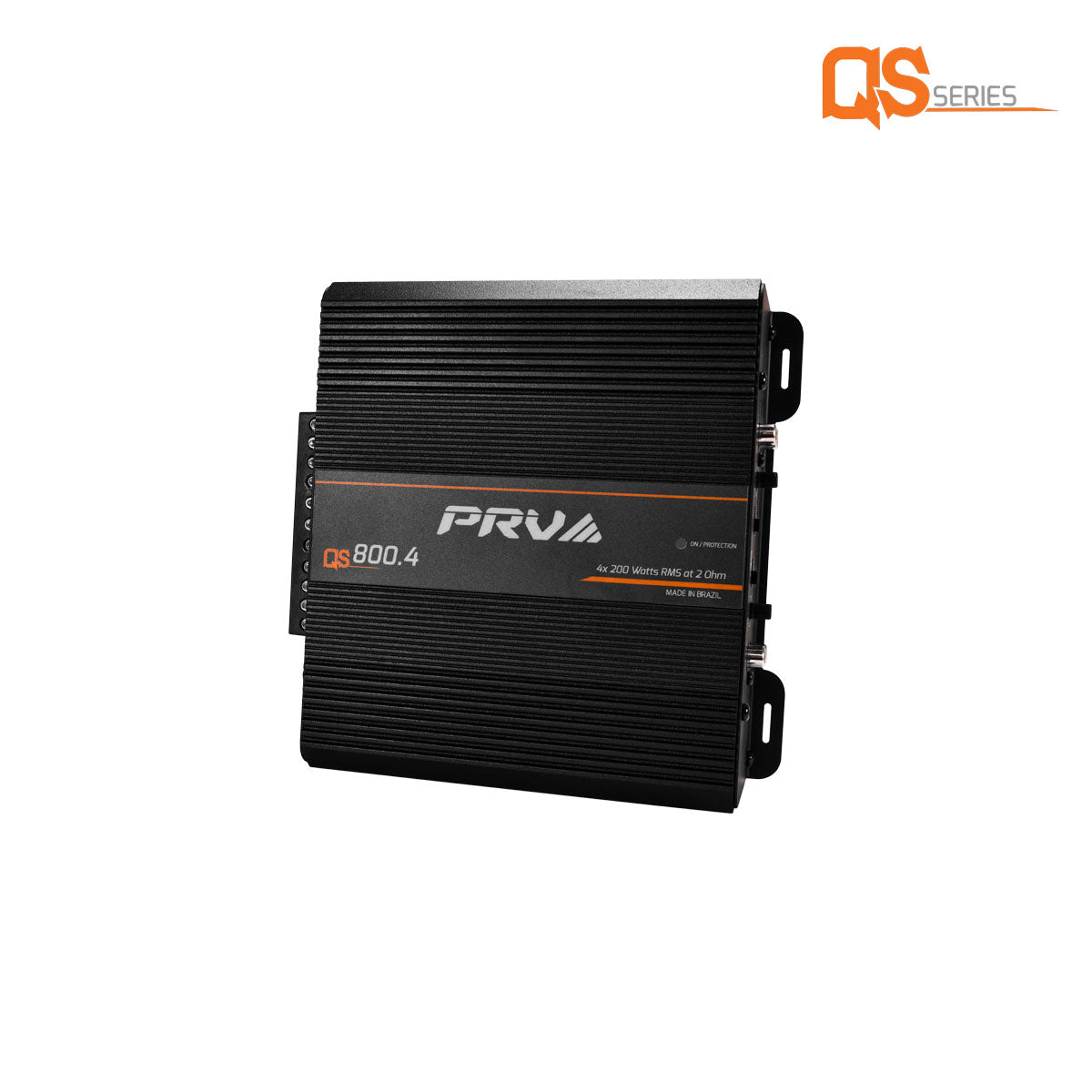

QS800.4 | 2 Ohm Compact 4 Channel Car Audio Amplifier 4 x 220 Watts RMS
QS800.4 | 2 Ohm Compact 4 Channel Car Audio Amplifier 4 x 220 Watts RMS is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
QS800.4 | 2 Ohm Compact 4 Channel Car Audio Amplifier 4 x 220 Watts...
QS800.4 | 2 Ohm Compact 4 Channel Car Audio Amplifier 4 x 220 Watts RMS is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
QS Series amplifiers are all about efficient design capable of full-range frequency response at a great price!
The QS800.4 features a regulated power supply that is able to constantly deliver power and provides an unsurpassed efficiency rate of 80–90% in a small aluminum heatsink.
- 4 x 220 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology
- 4 Channel car audio amplifier stable at 2 Ohm gives you the benefit of wiring multiple speakers and dividing the power per channel.
- Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicle’s electrical system!

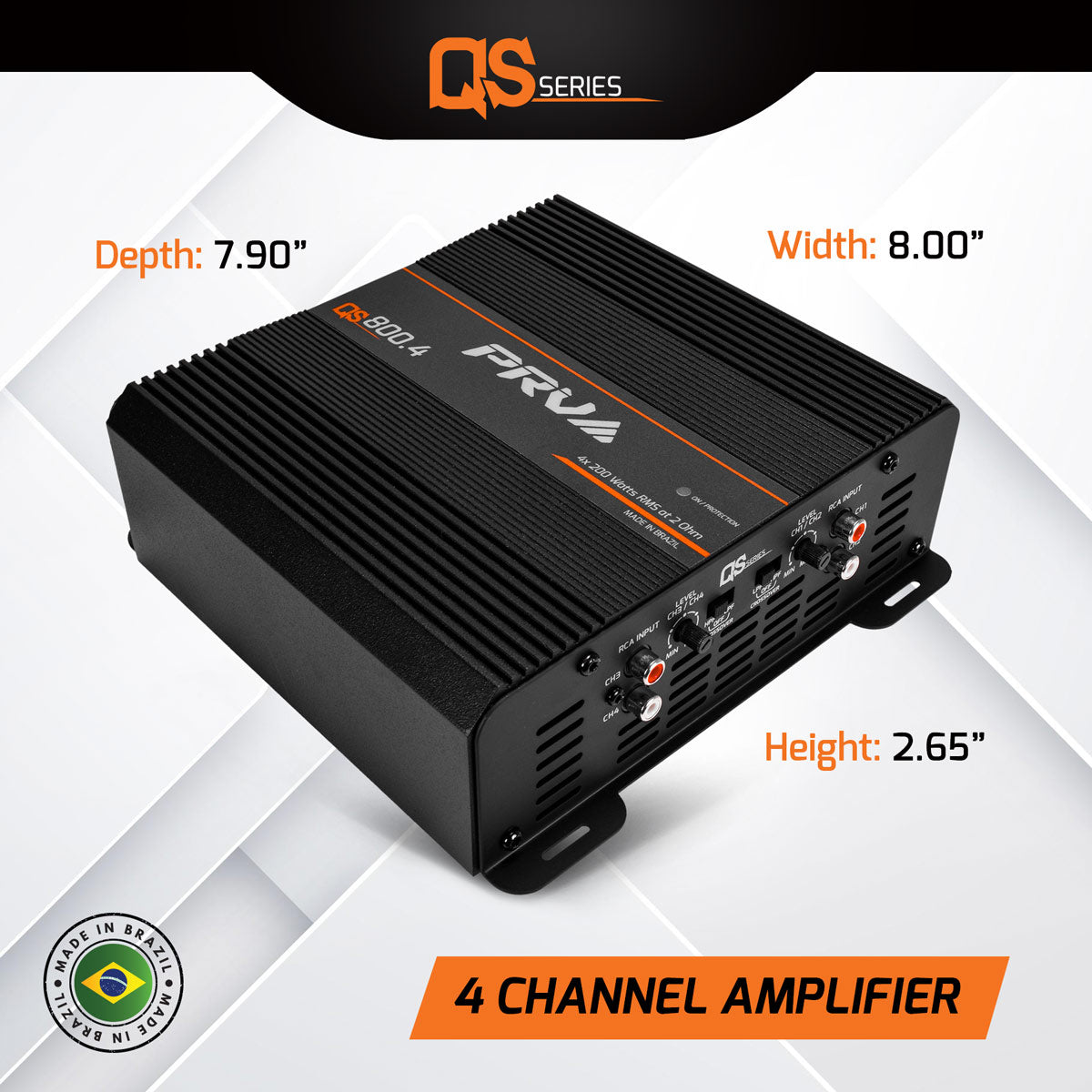

- A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 8″ Wide x 7.90″ Length x 2.65″ Height
- 2 Channel Bridged – double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohms per bridged channel at output power of 2 x 450 Watts RMS.
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 220 Watts |
| Rated RMS Power at 14.0 V at 4 Ohm | 4x 140 Watts |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 2x 450 Watts |
GENERAL SPECIFICATIONS
| Impedance | 2 Ohm |
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 220 Watts RMS |
| Rated RMS Power at 14.0 V at 4 Ohm | 4x 140 Watts RMS |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 2x 450 Watts RMS |
| Average Efficiency | 82% |
| Operating Voltage | 9 to 15 Volts |
| Musical Current Draw | 45 A |
| Minimal Power Wire Input | (OFC) 4 Gauge wires |
| Built-in Crossover | Fixed HPF & LPF at 90 Hz |
| Minimal Speaker Wire Output | 14 Gauge |
| Frequency Response(-3dB) | 20 – 25,000 Hz |
| Min. Input Sensitivity for Max. Output | 200 mV |

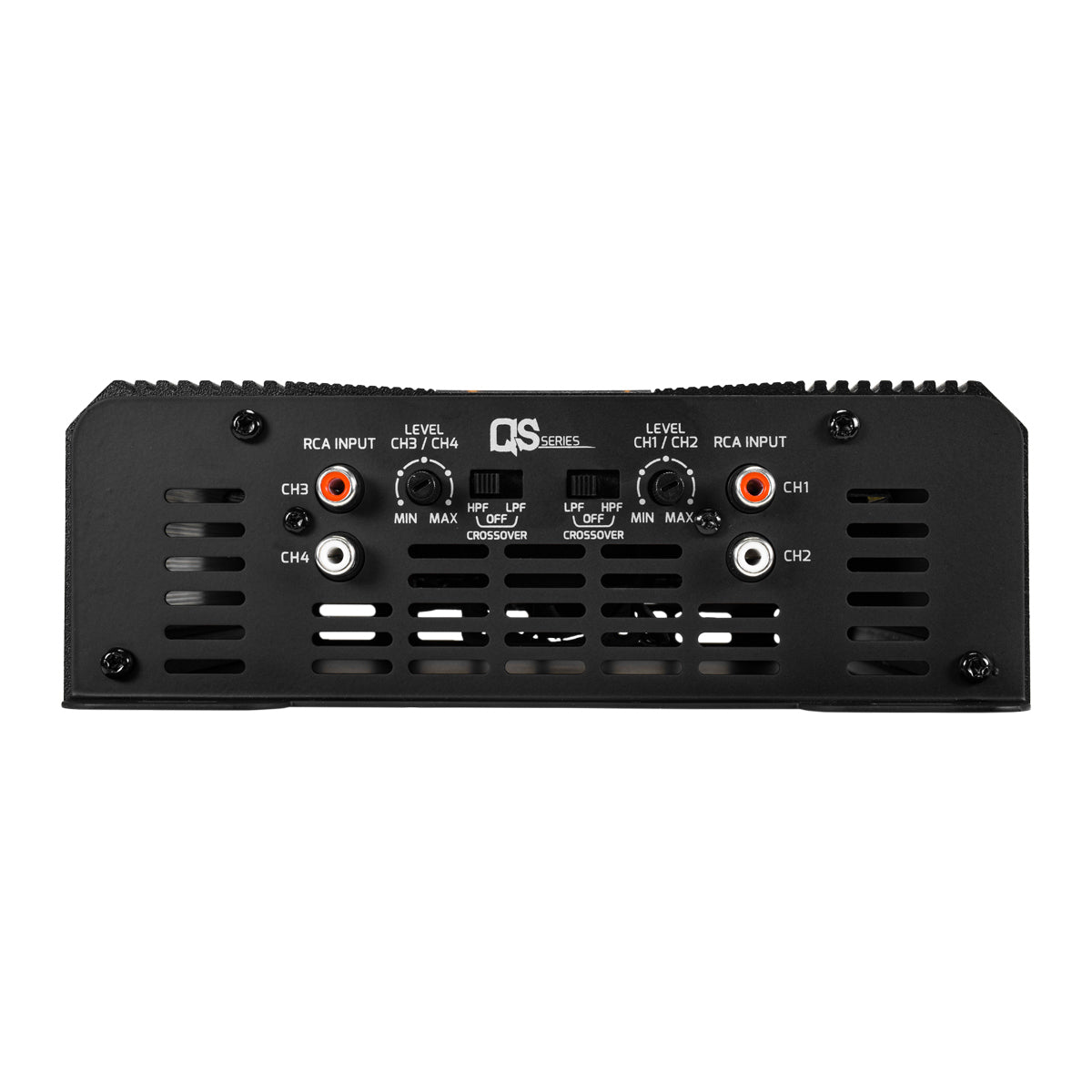

| Signal Input | 2 Pair RCA |
| Signal to Noise | >90 dB |
| Protection System | High Temperature / Short circuit on Output |
| Heat Sink Type | Heavy Duty Cast Aluminum |
| Dimensions ( Width x Depth x Height ) | 7.90″ x 8.00″ x 2.65″ |
| Weight | 3.80 Lbs |
