D3220Ti | 2" Exit High Frequency Compression Driver
D3220Ti | 2" Exit High Frequency Compression Driver is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Innovative technology for 3 inch compression drivers, the new high-strength compact motor, allows you to keep a large voice coil without sacrificing performance. With a smaller design and as powerful as ever, this high frequency 2″ exit driver is taking the industry to the next level!
The new D3220Ti design still retains the same diaphragm design as the previous model. This offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1200 to 17,000 Hz) with an emphasis on the critical upper frequency range.

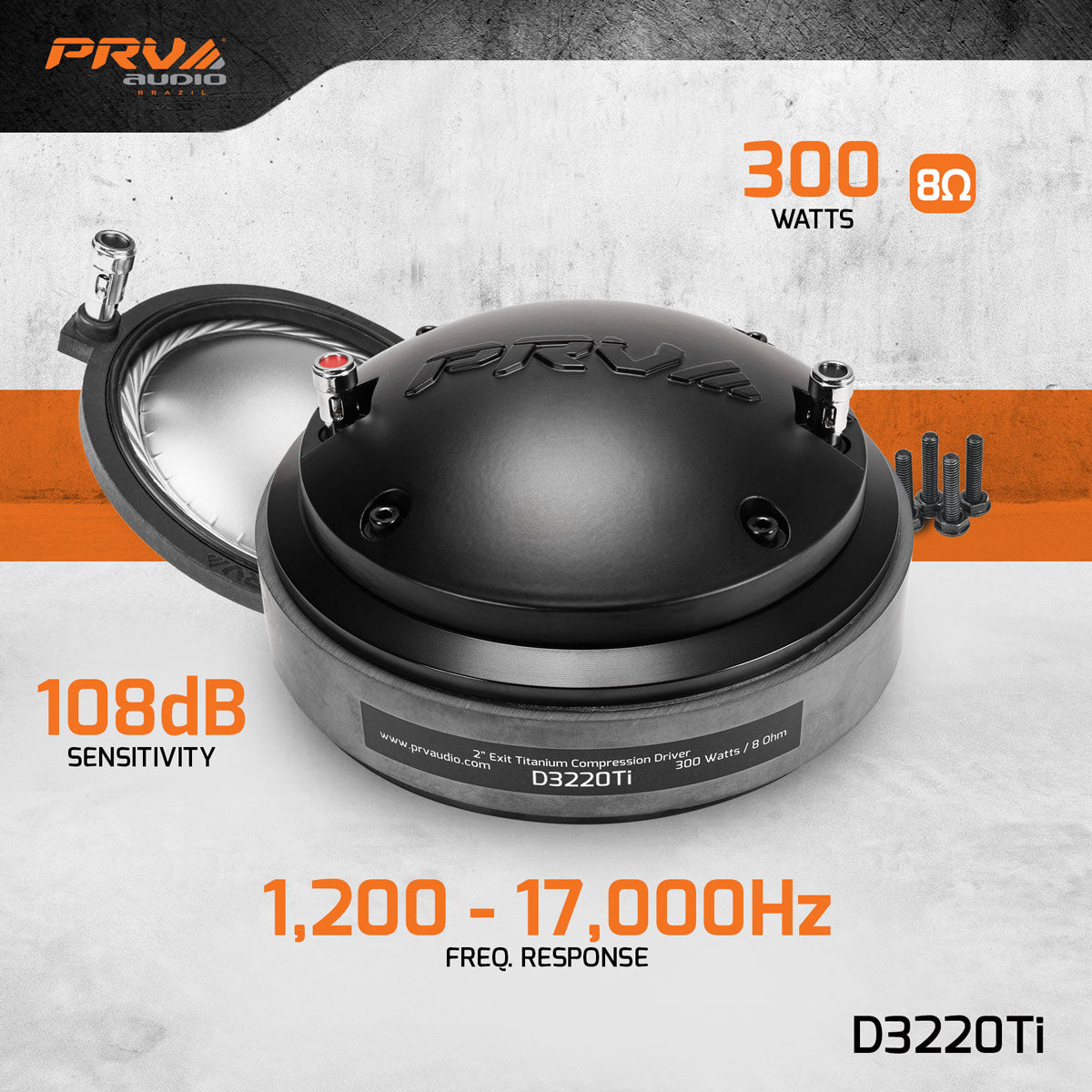

- Pure Titanium diaphragm with large 3″ Voice Coil, providing the lowest possible moving mass with excellent efficiency – 108 dB Sensitivity.

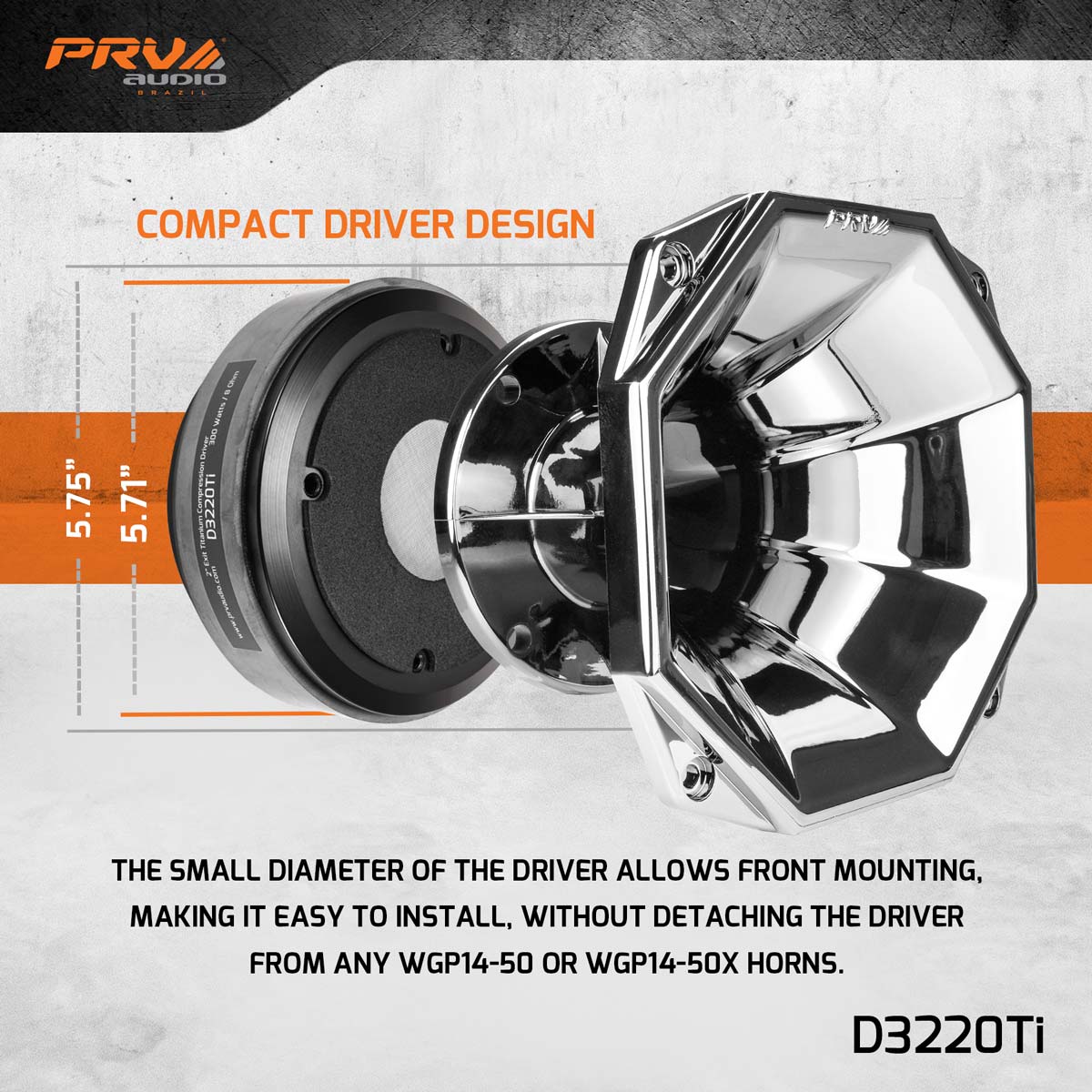

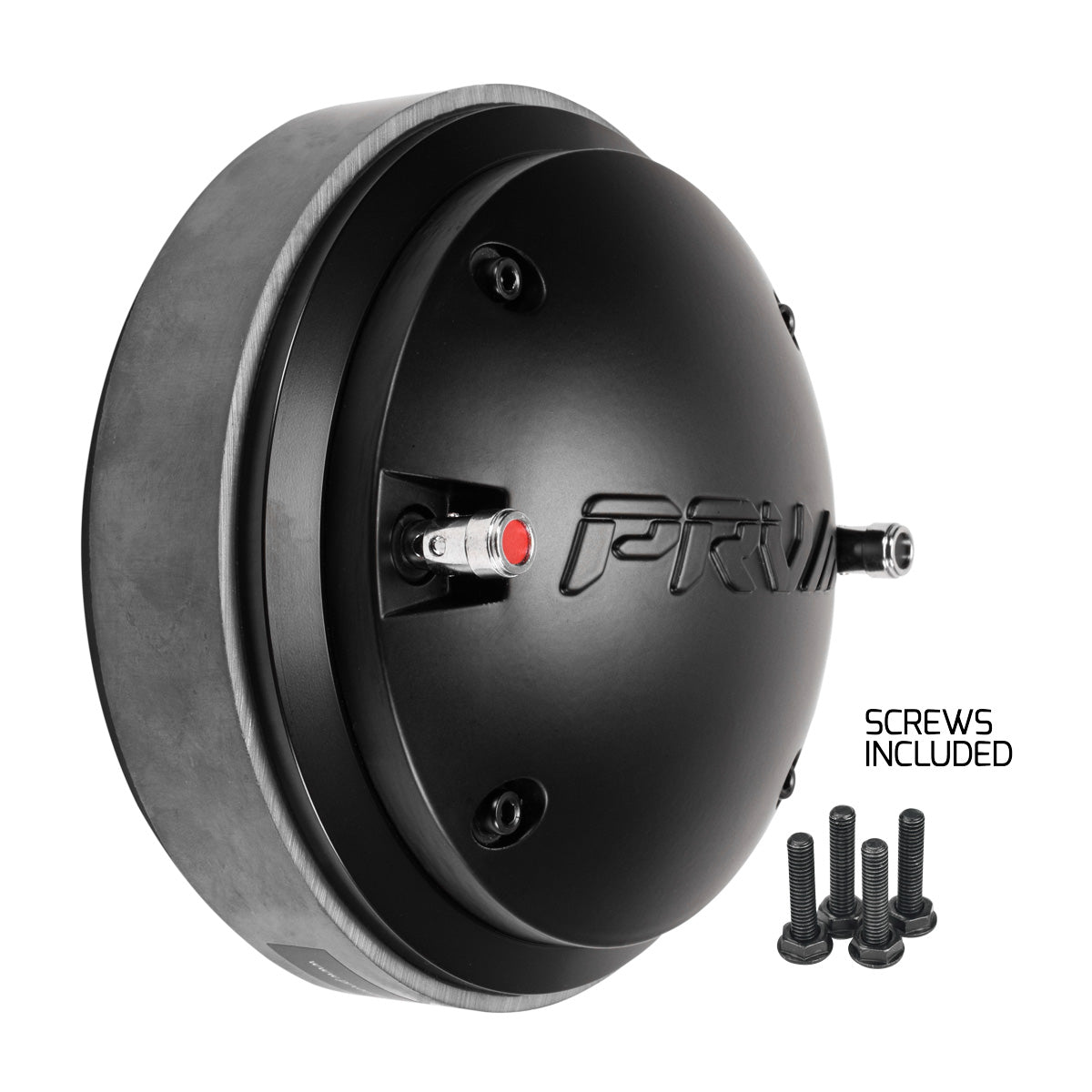

- Works great with any Shallow Horn from WGP14-50X Series – Perfect as compression driver for car audio. Mounting hardware is included.
- 2 Inch Exit horn Driver with crystal clear, high impact highs response from 1200 to 17,000 Hz
- PRO Audio high frequency driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 150 Watts |
| Continuous Program Power(RMS)** | 300 Watts |
| Max Peak Power*** | 600 Watts |
| Sensitivity 2.83V at 1m | 108 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
1400 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 1,200 – 17,000 Hz |
| Voice Coil Diameter | 3” (76 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.77 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 5.71″ (145 mm) |
| Overall Depth | 3.0″ (76 mm) |
| Mounting Bolt circle | M6 x 4″ (102 mm) |
| Net Weight | 8.9 lbs (4.0 kg) |
| Shipping Weight | 9.35 lbs (4.25 kg) |
| Carton Dimensions W x L x H | 6.89″ x 6.3″ x 4.0″ (175 x 160 x 102 mm) |
