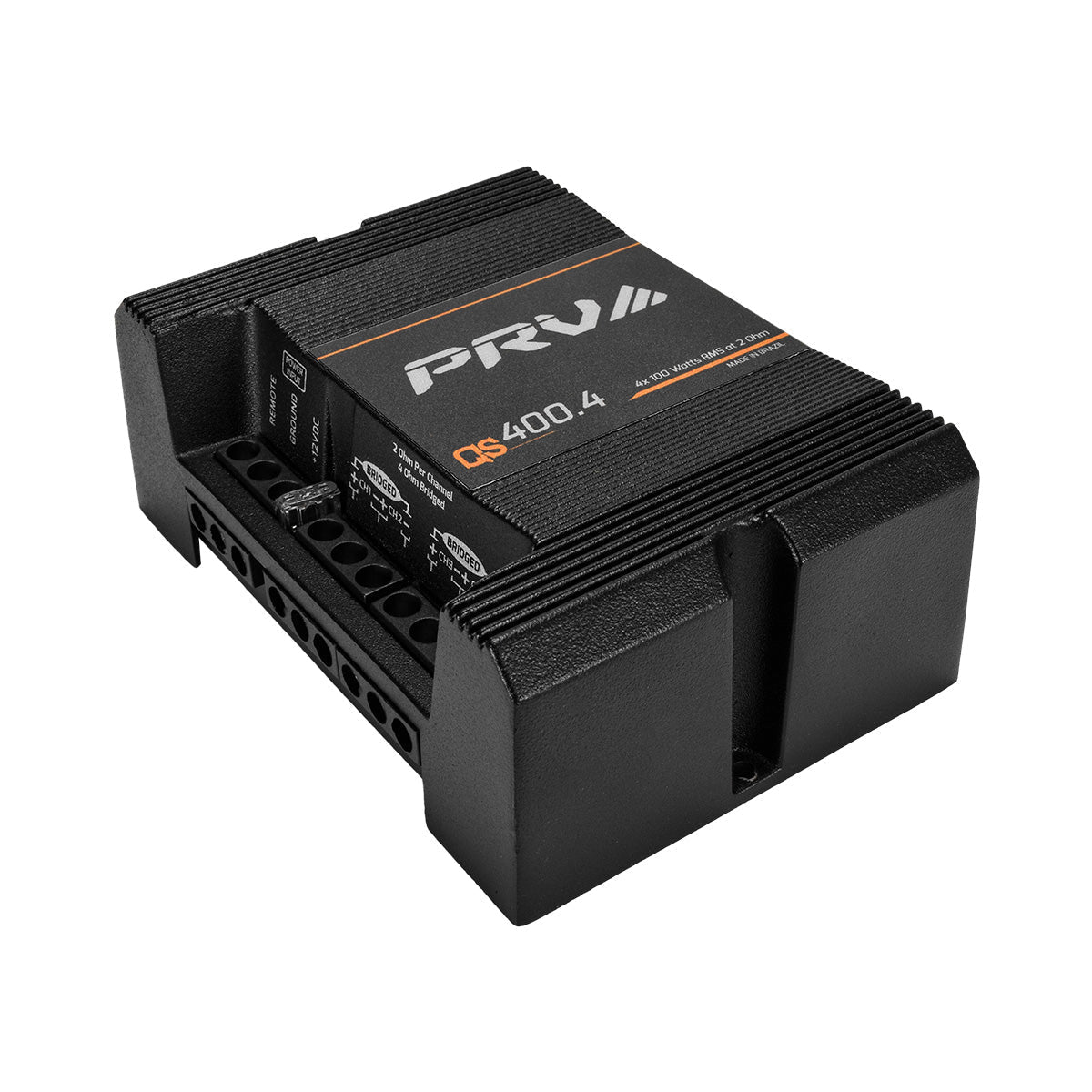

PRV Audio QS400.4 | 4-Channel Full Range Amplifier 2-Ohm
PRV Audio QS400.4 | 4-Channel Full Range Amplifier 2-Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

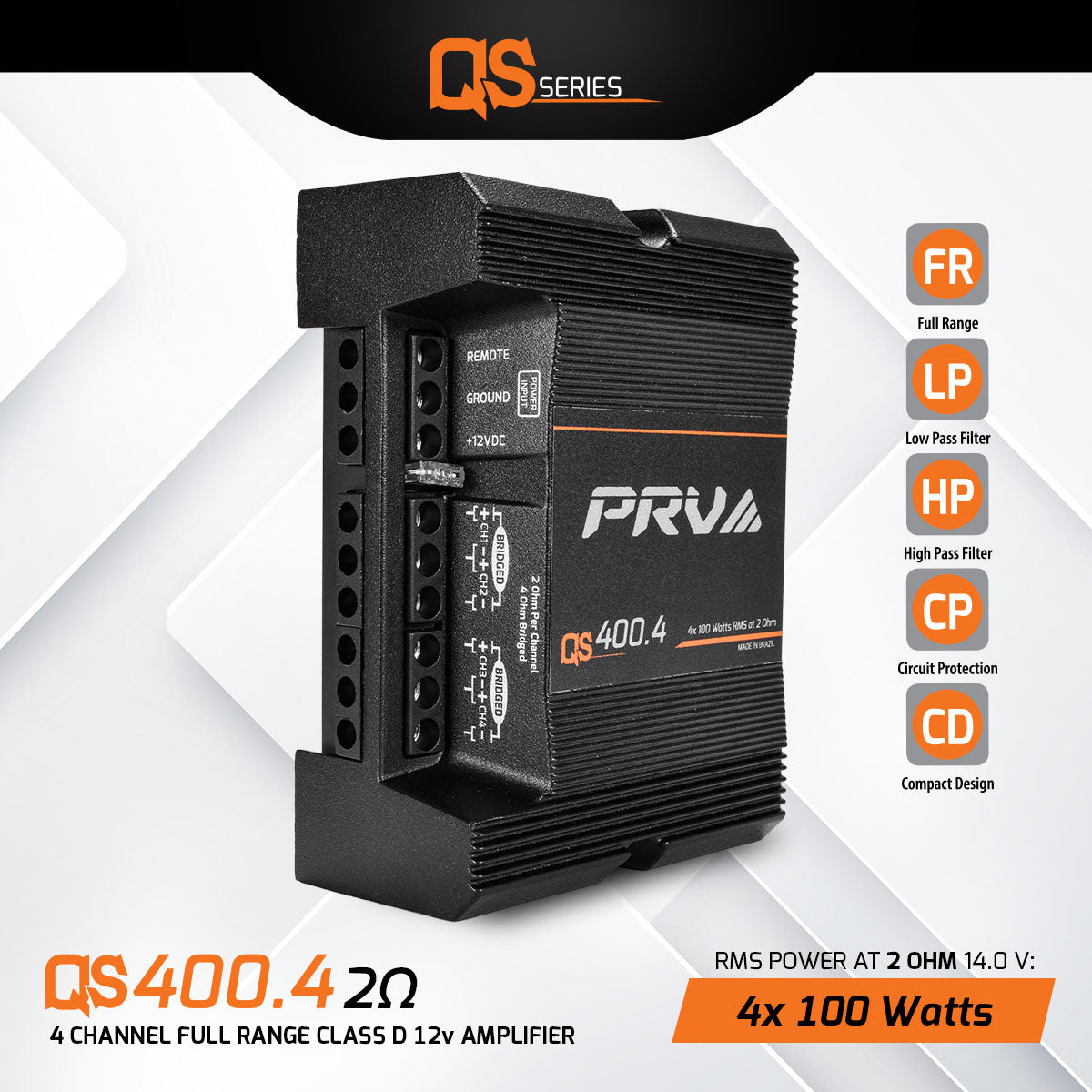

- 4 x 100 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology

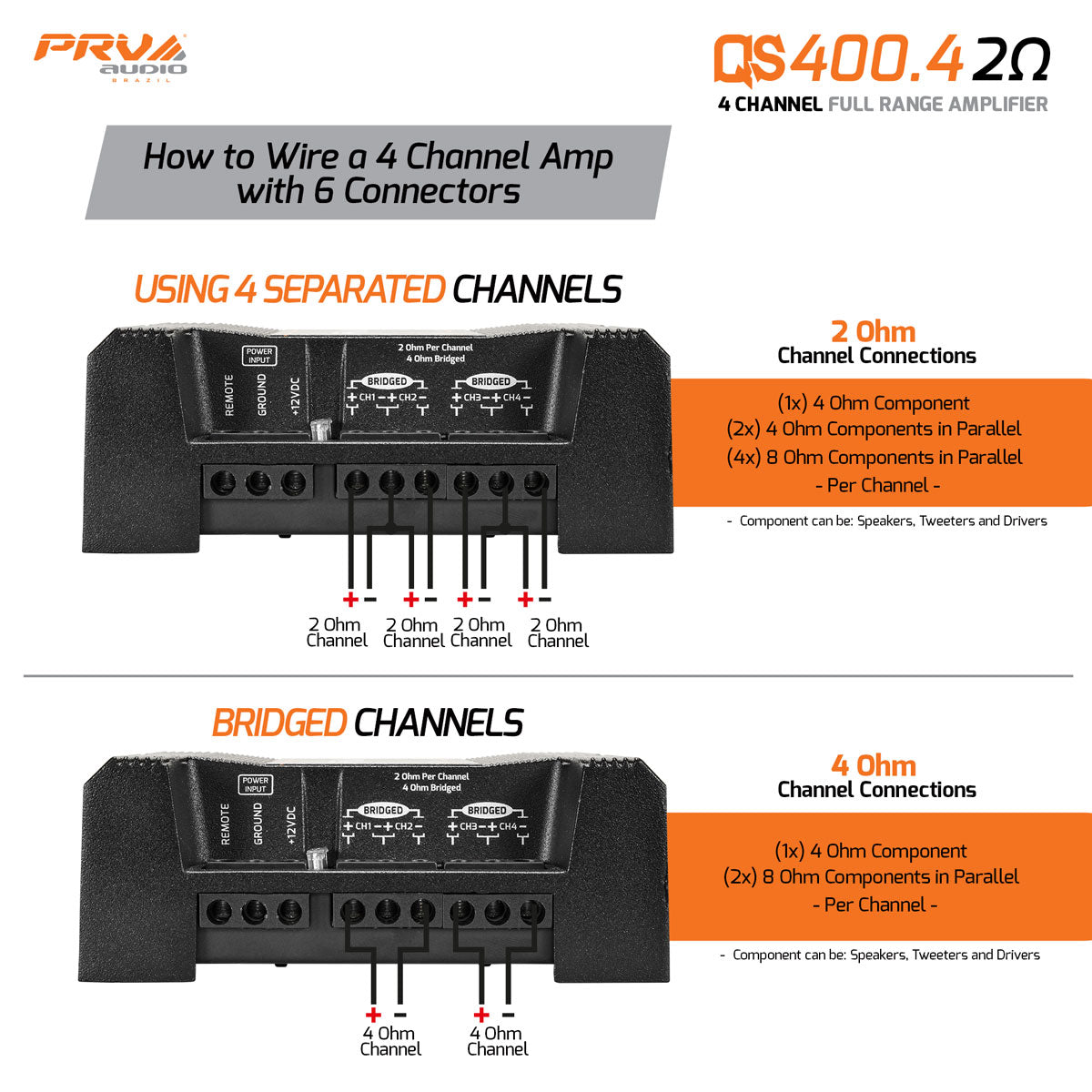

- 4 Channel car audio amplifier stable at 2 Ohm gives you the benefit of wiring multiple speakers and dividing the power per channel.
- Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicle’s electrical system!
- A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 4″ Wide x 5.40″ Length x 2″ Height
- 2 Channel Bridged – double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohms per bridged channel at output power of 2 x 200 Watts RMS.
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 100 Watts |
| Rated RMS Power at 14.0 V at 4 Ohm | 4x 70 Watts |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 2x 200 Watts |
Its small heatsink offers high fidelity sound, with precise midbass punch and crystal clear highs. This amplifier is perfect for anyone who wants to experience maximum sound quality and power at an affordable price. This proprietary heat dissipation design will ensure its temperature to run cool on the most demanding playlists.

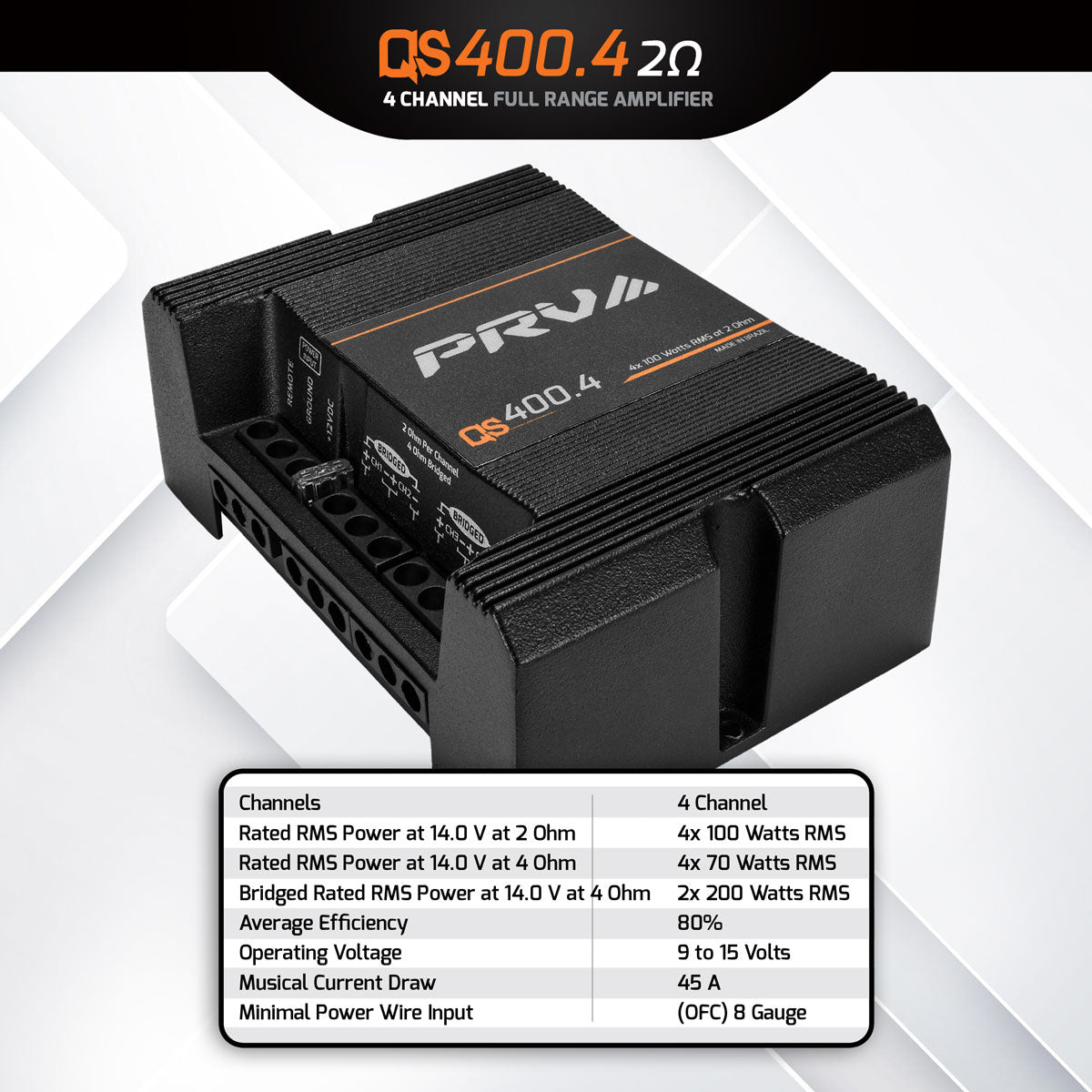

GENERAL SPECIFICATIONS
| Impedance | 2 Ohm |
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 100 Watts RMS |
| Rated RMS Power at 14.0 V at 4 Ohm | 4x 70 Watts RMS |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 2x 200 Watts RMS |
| Average Efficiency | 80% |
| Operating Voltage | 9 to 15 Volts |
| Musical Current Draw | 45 A |

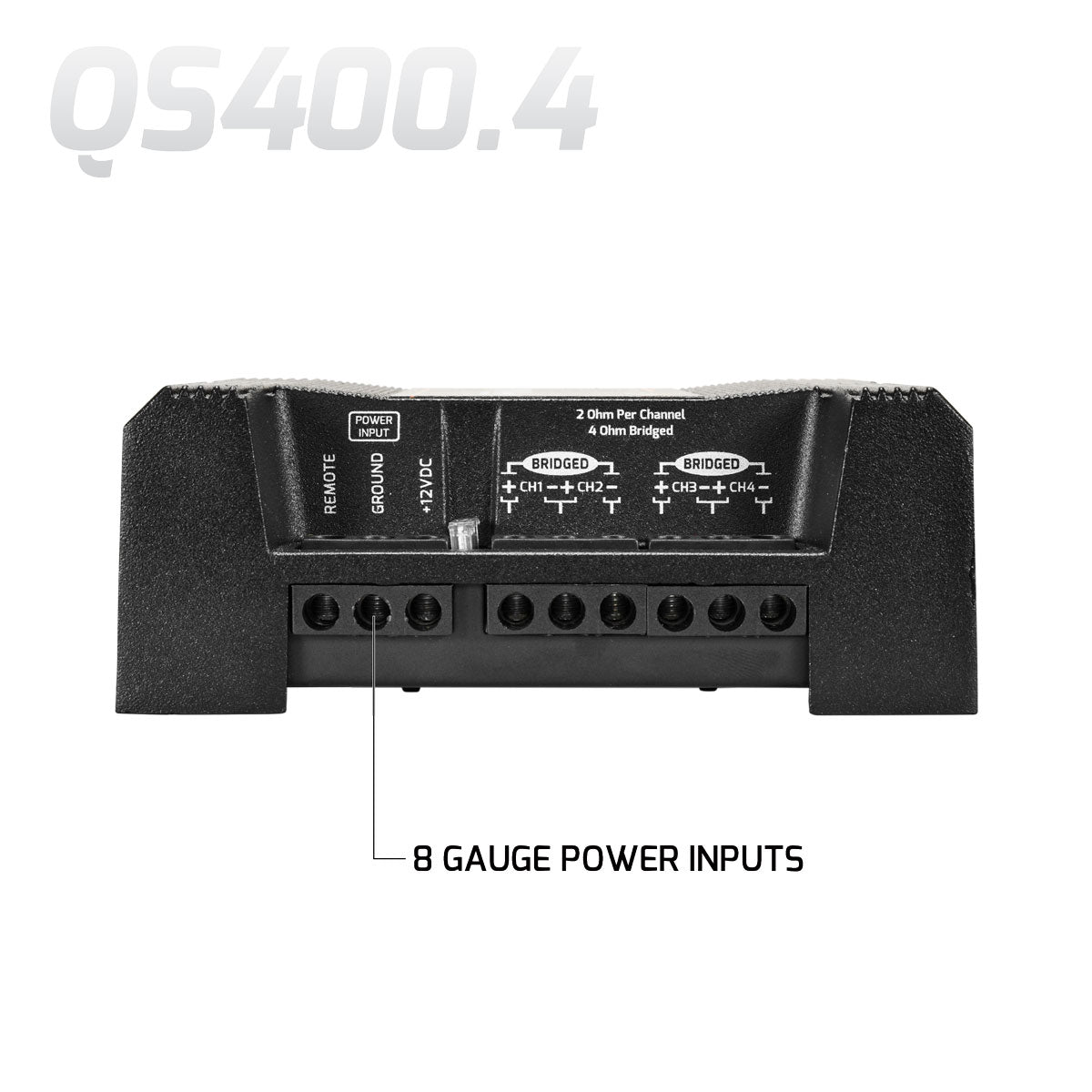

| Minimal Power Wire Input | (OFC) 8 Gauge wires |

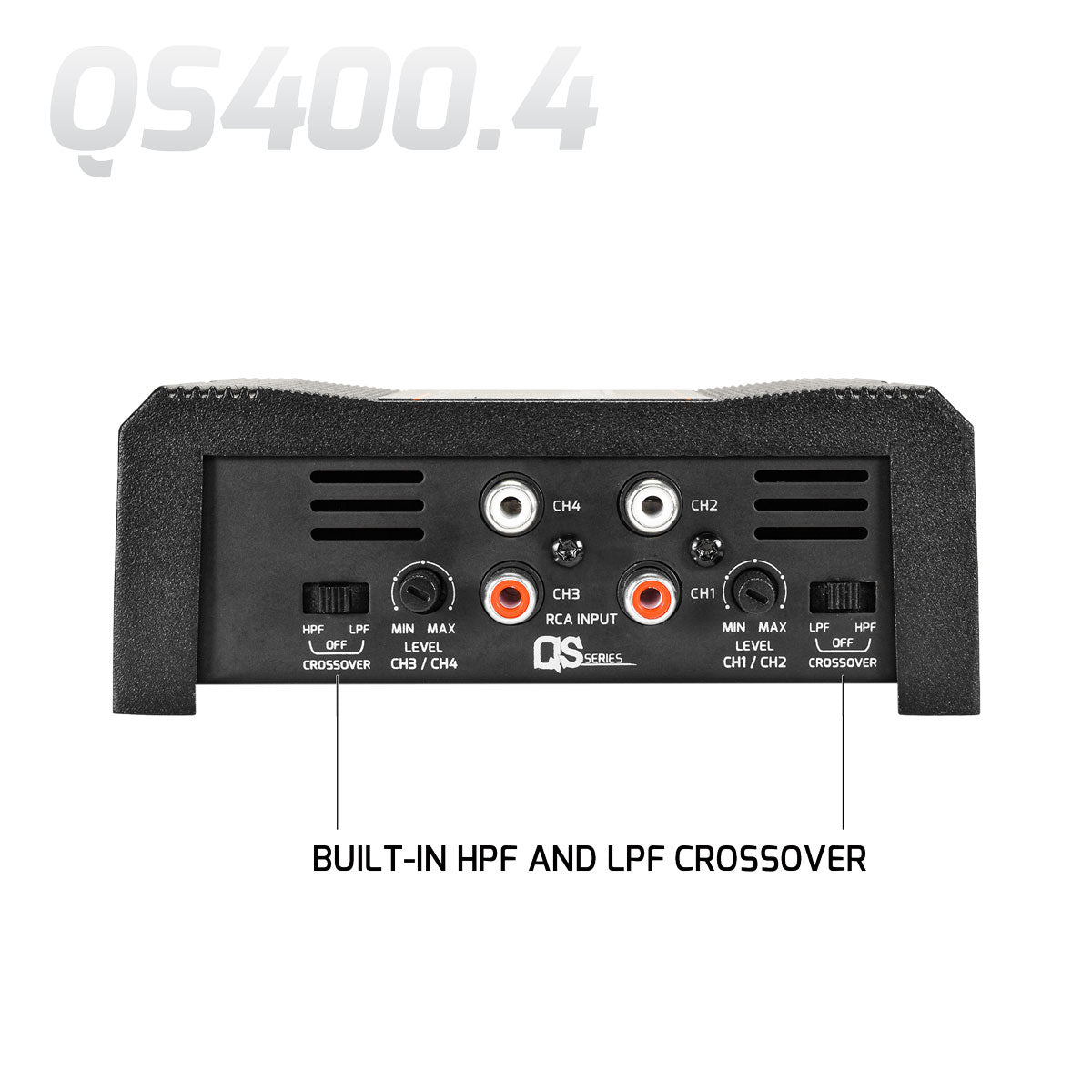

| Built-in Crossover | Fixed HPF & LPF at 90 Hz |
| Minimal Speaker Wire Output | 14 Gauge |
| Frequency Response(-3dB) | 20 - 25,000 Hz |
| Min. Input Sensitivity for Max. Output | 200 mV |
| Signal Input | 2 Pair RCA |
| Signal to Noise | >90 dB |
| Protection System | High Temperature / Short circuit on Output |
| Heat Sink Type | Heavy Duty Cast Aluminum |

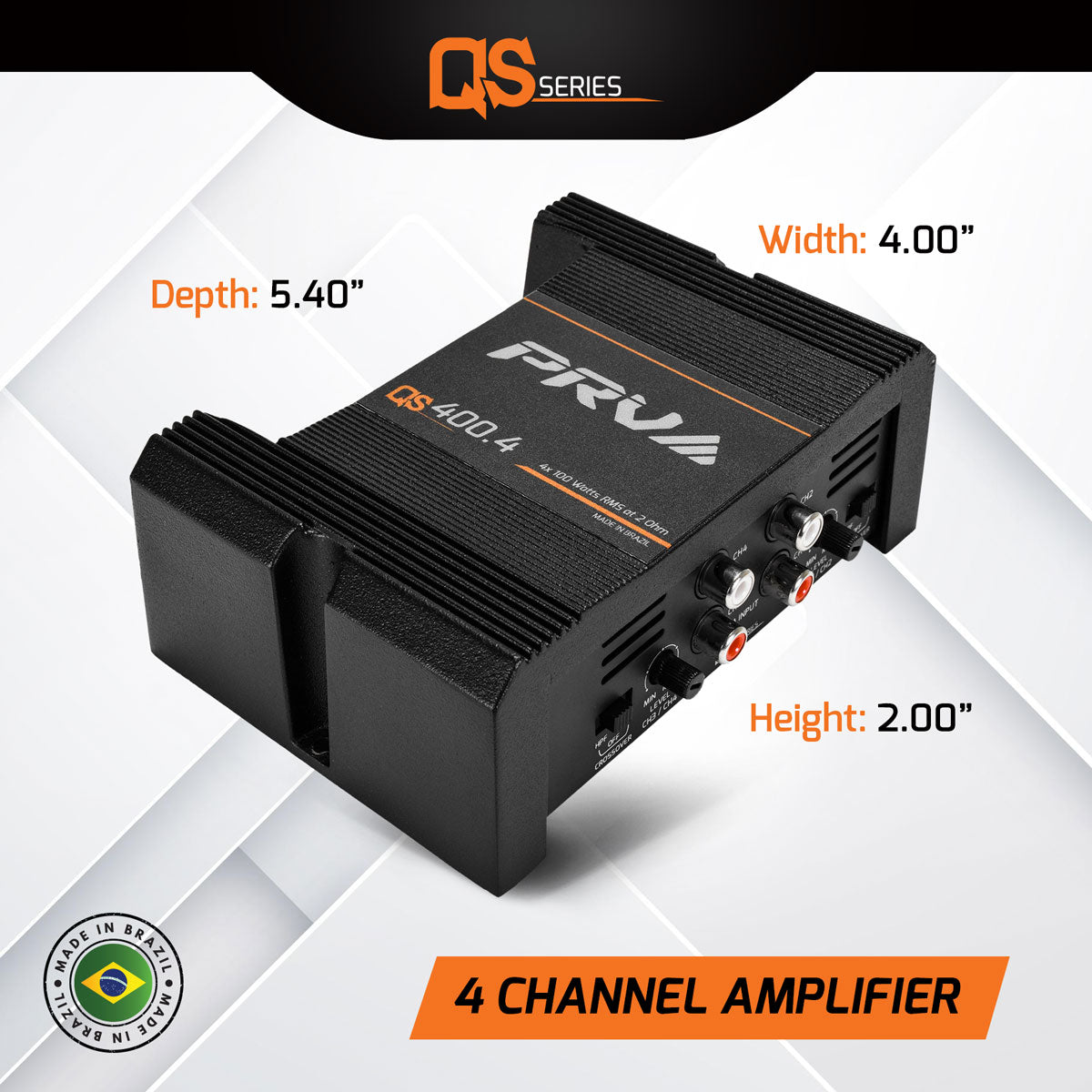

| Dimensions ( Width x Depth x Height ) | 4.00" x 5.40" x 2.00" |
| Weight | 1.18 Lbs |
