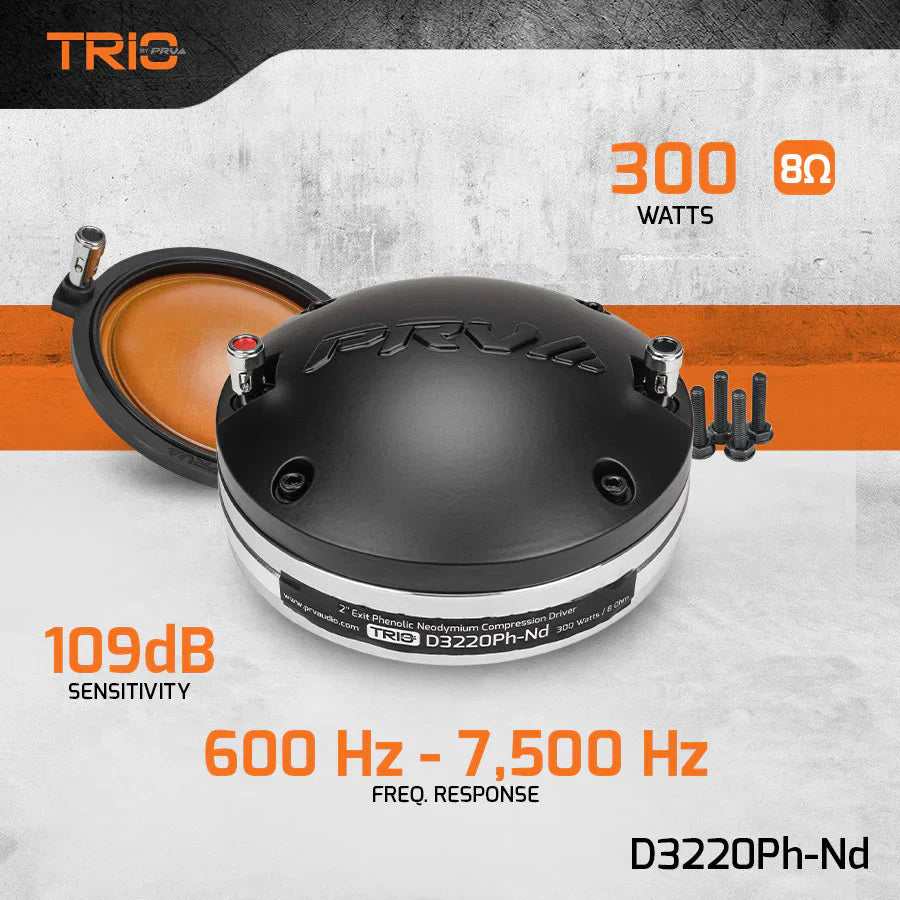

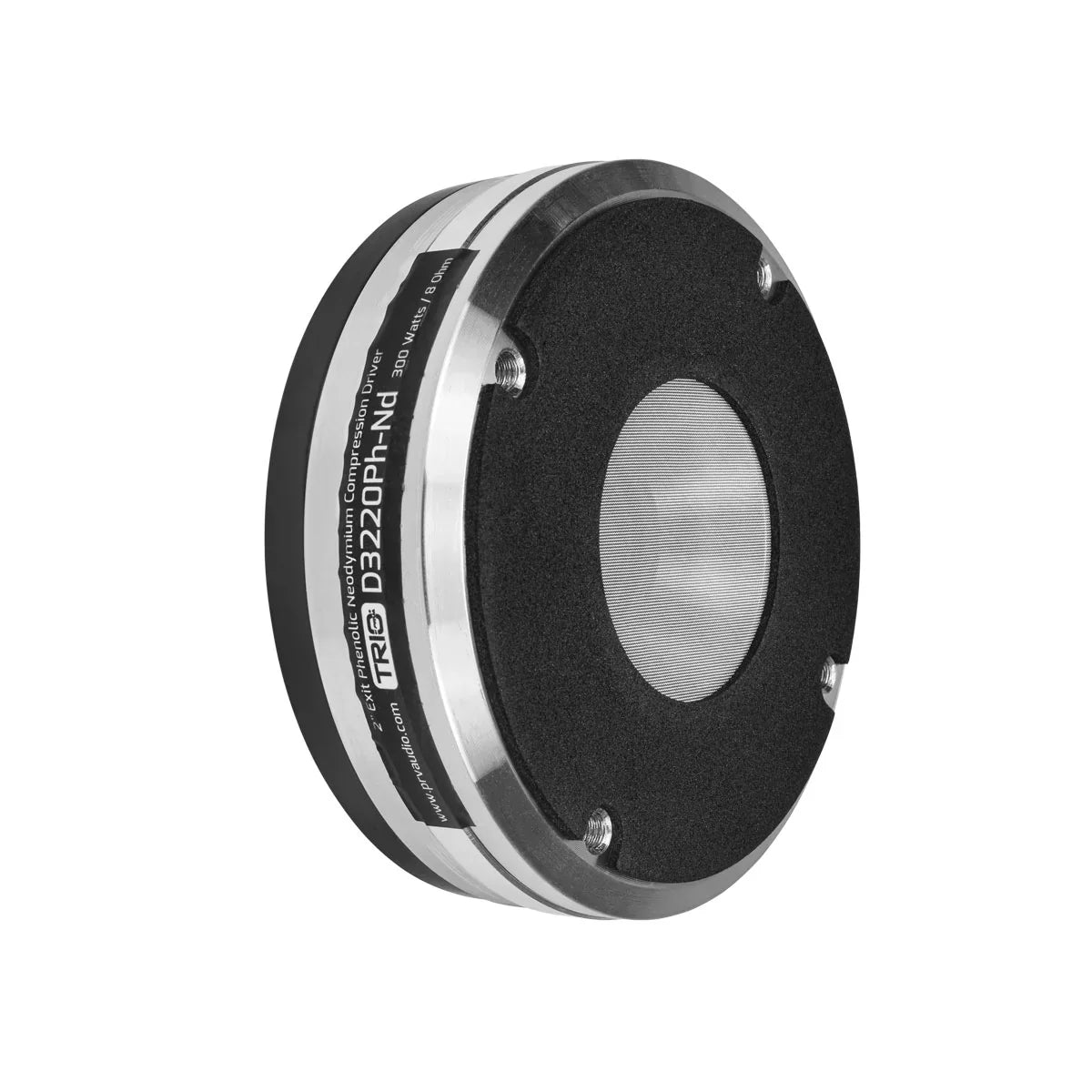

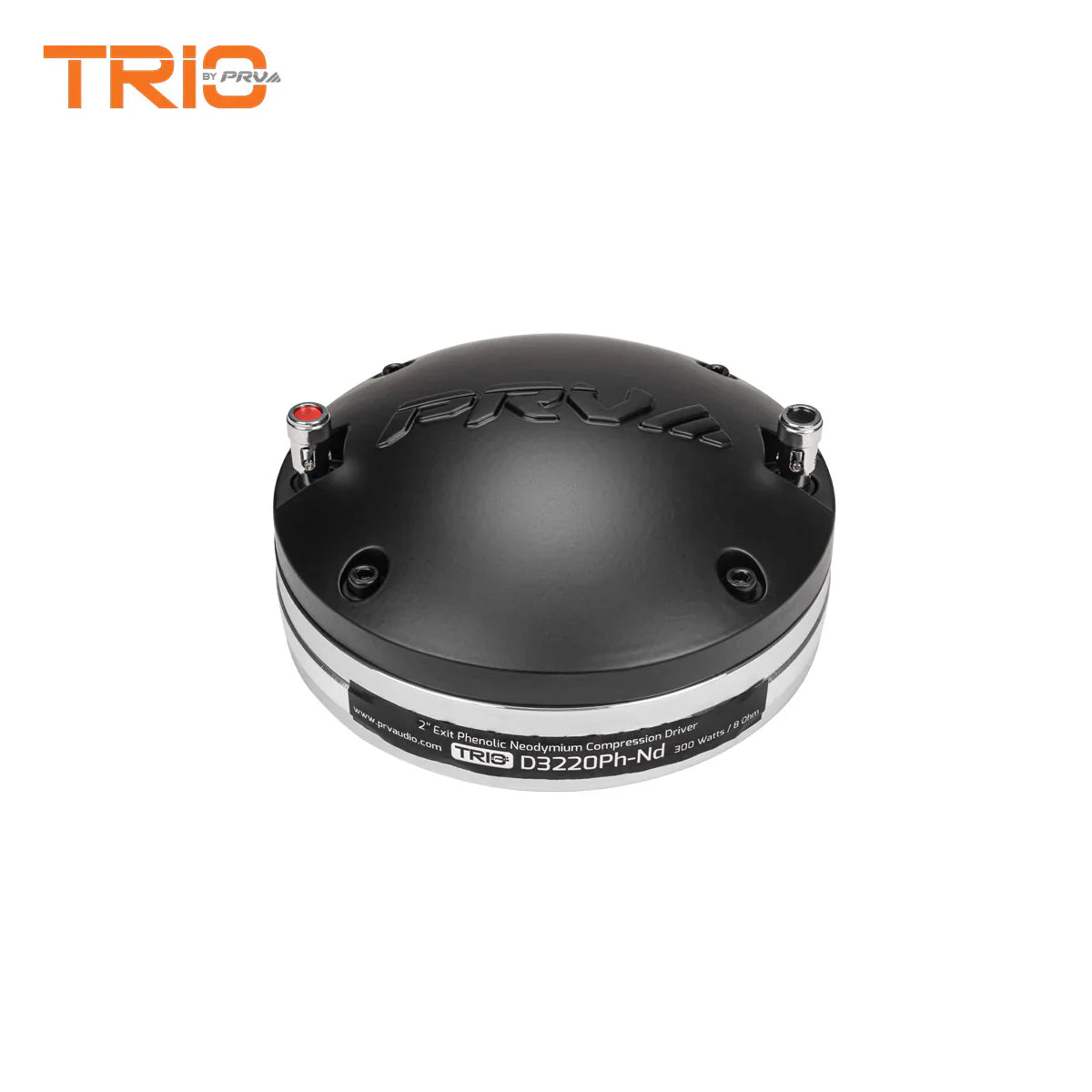

PRV Audio D3220Ph-Nd Driver 2" 300W RMS Midrange Driver

Regular price $199.00
Shipping calculated at checkout.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

Innovative technology for 3 inch compression drivers, featuring Powerful neodymium motor for minimal size and weight, allows you to keep a large voice coil without sacrificing performance.

The D3220Ph-Nd is our best driver for vocal reinforcement in car audio systems due to its impressive power-to-size ratio and ability to deliver low midrange response from 650 to 7,500Hz, pure midrange vocal reproduction.

With this innovative technology, car audio enthusiasts can now build 3 or 4-Way Systems with more sound quality and performance in their vehicles.

  • With a nearly indestructible phenolic diaphragm and a 3 inch voice coil, this Brazilian technology delivers natural vocal midrange response at an efficient of 109 dB sensitivity.
  • Extremely powerful neodymium magnet for minimal size and weight without sacrificing output capability

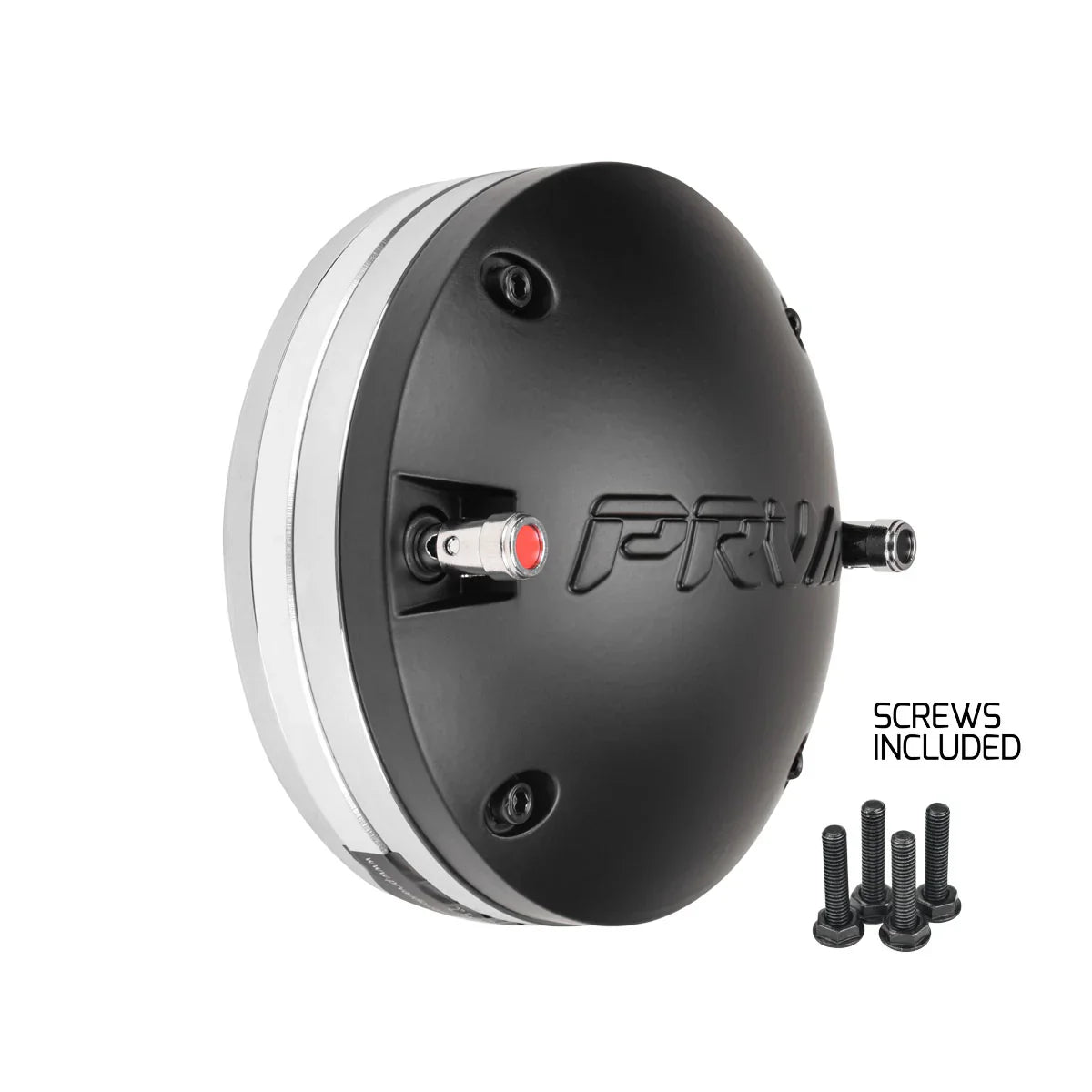

  • Works great with any Shallow Horn from WGP14-50X Series – Perfect as compression driver for car audio. Mounting hardware is included.
  • 2 Inch Exit horn Driver designed for vocal reinforcement on 3-Way car audio systems with a usable frequency response from 600 to 7,500 Hz
  • PRO Audio midrange driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.

GENERAL SPECIFICATIONS



*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Exit Throat Diameter2” (50 mm)
  • Nominal Impedance8 Ohm
  • Nominal Power Handling*150 Watts
  • Continuous Program Power (RMS)**300 Watts
  • Max Peak Power***600 Watts
  • Sensitivity 2.83V at 1m109 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling800 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB600 – 7,500 Hz
  • Voice Coil Diameter3”(76 mm)
  • Voice Coil WireCopper
  • Former MaterialKapton
  • DiaphragmPhenolic
  • Flux Density1.80 T
  • Magnet TypeNeodymium
