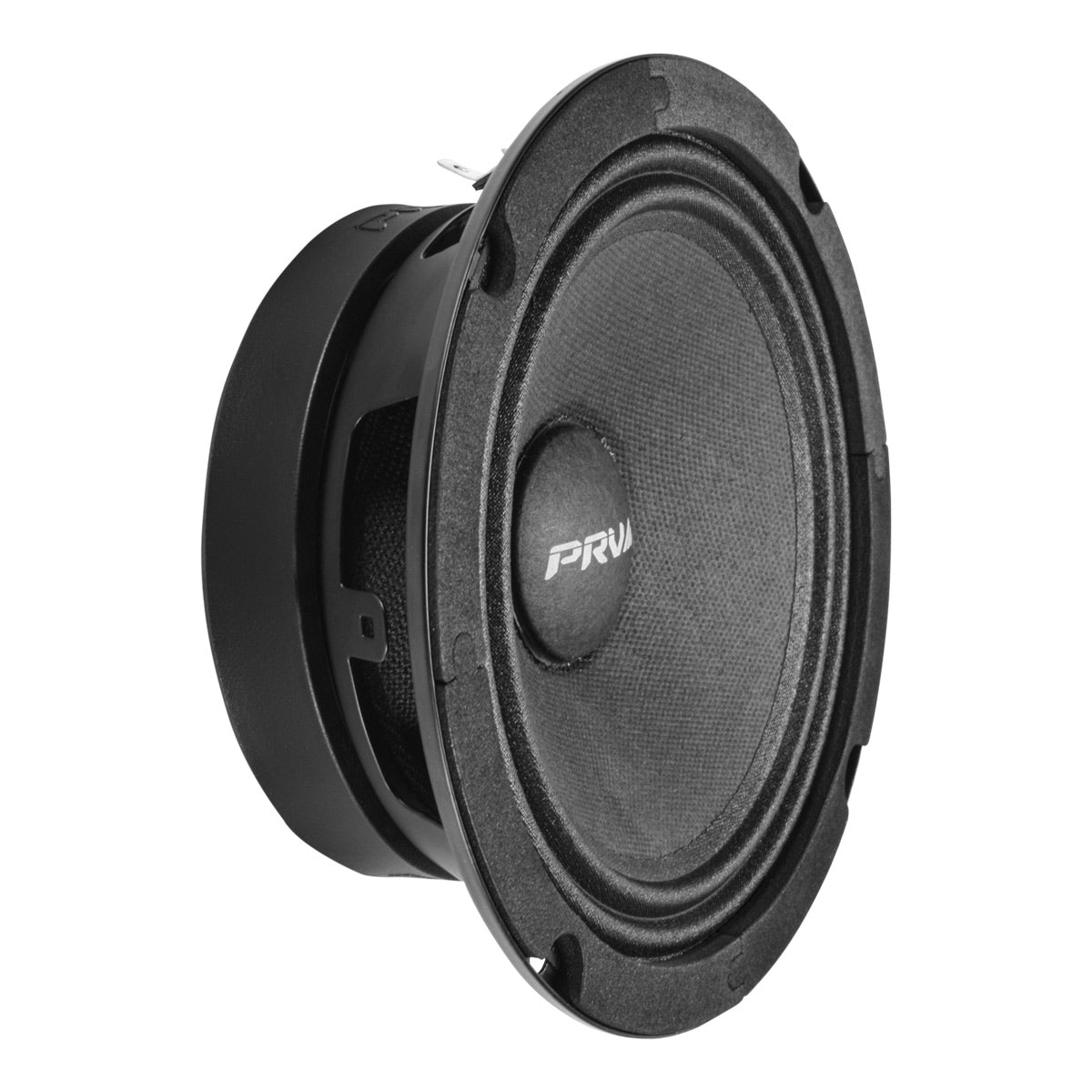

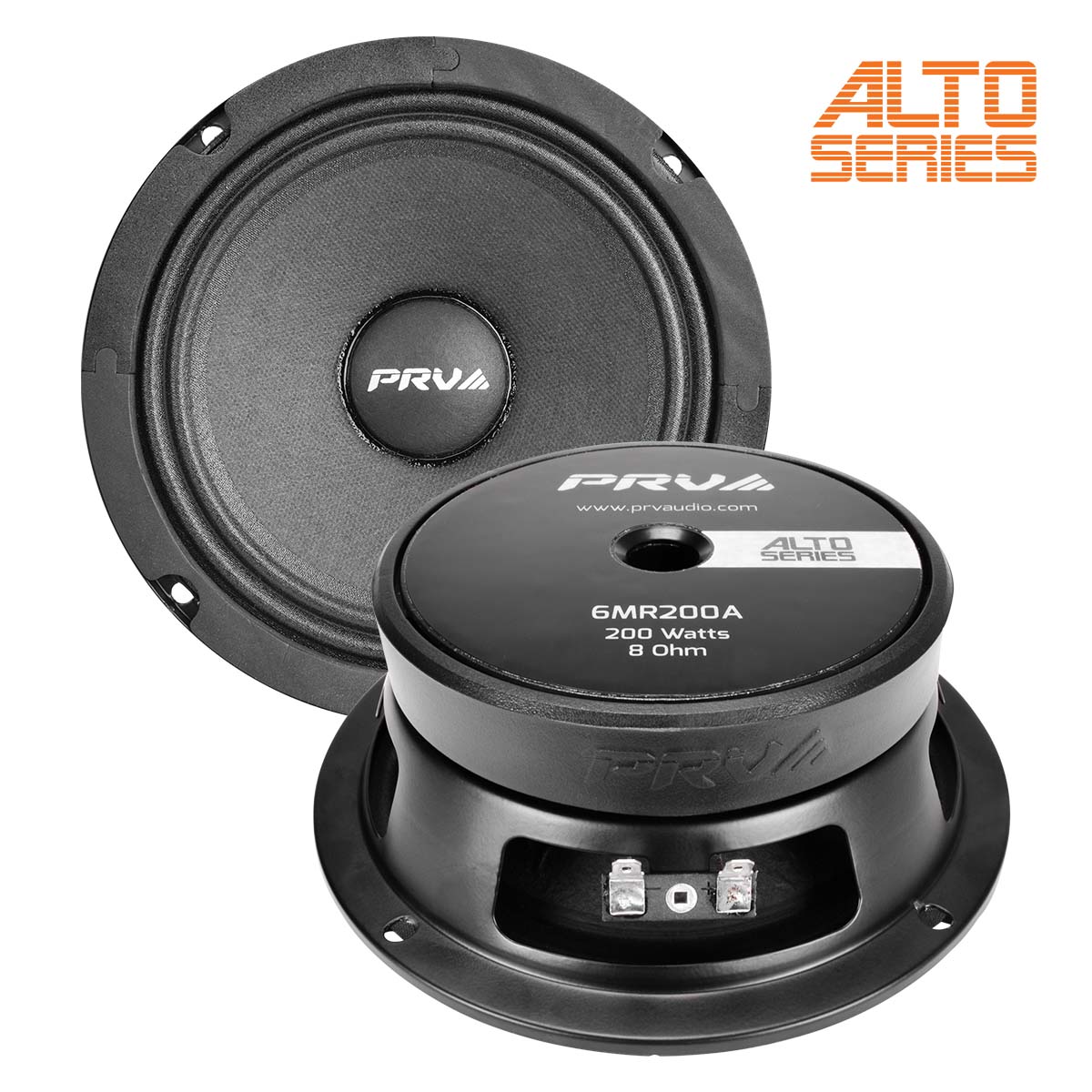

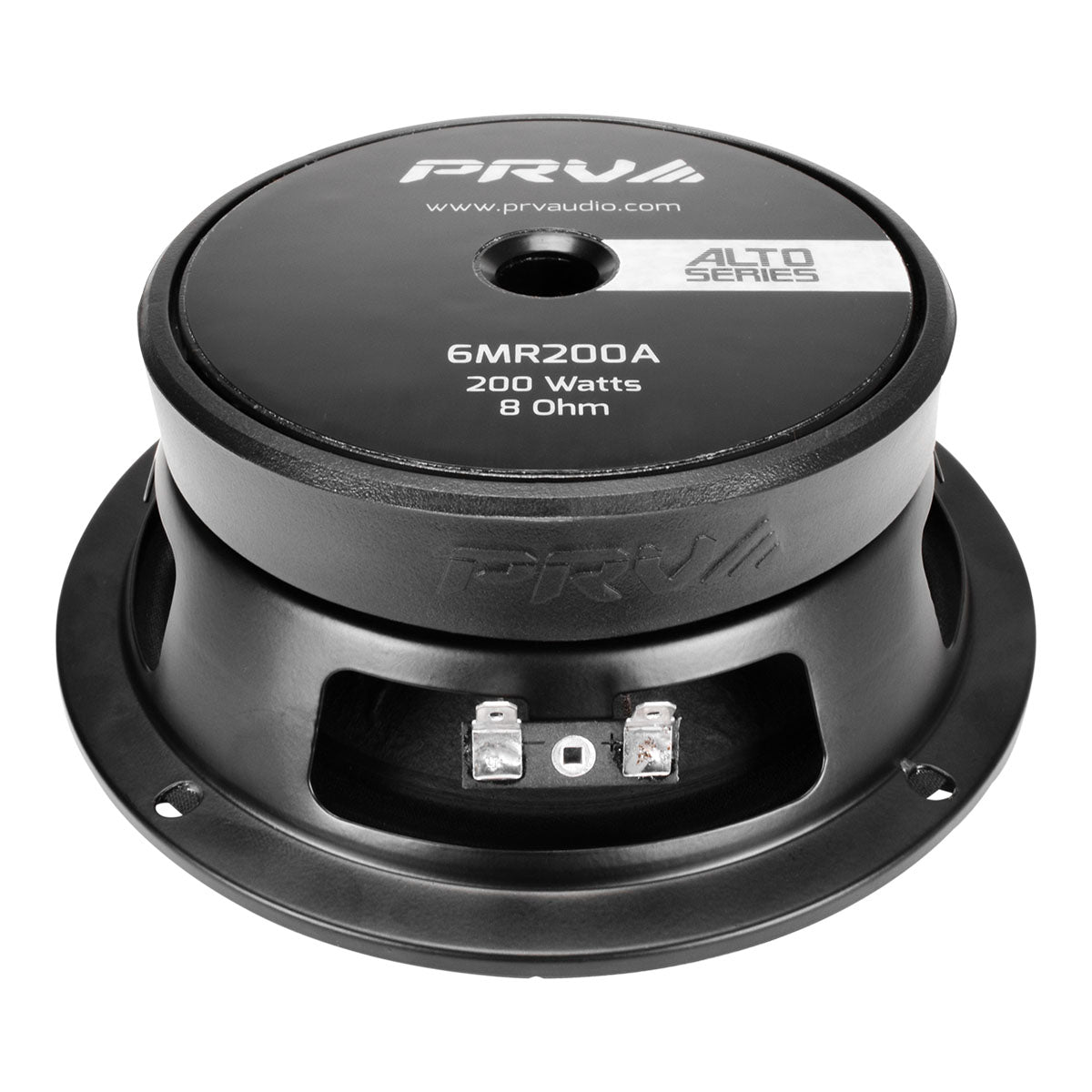

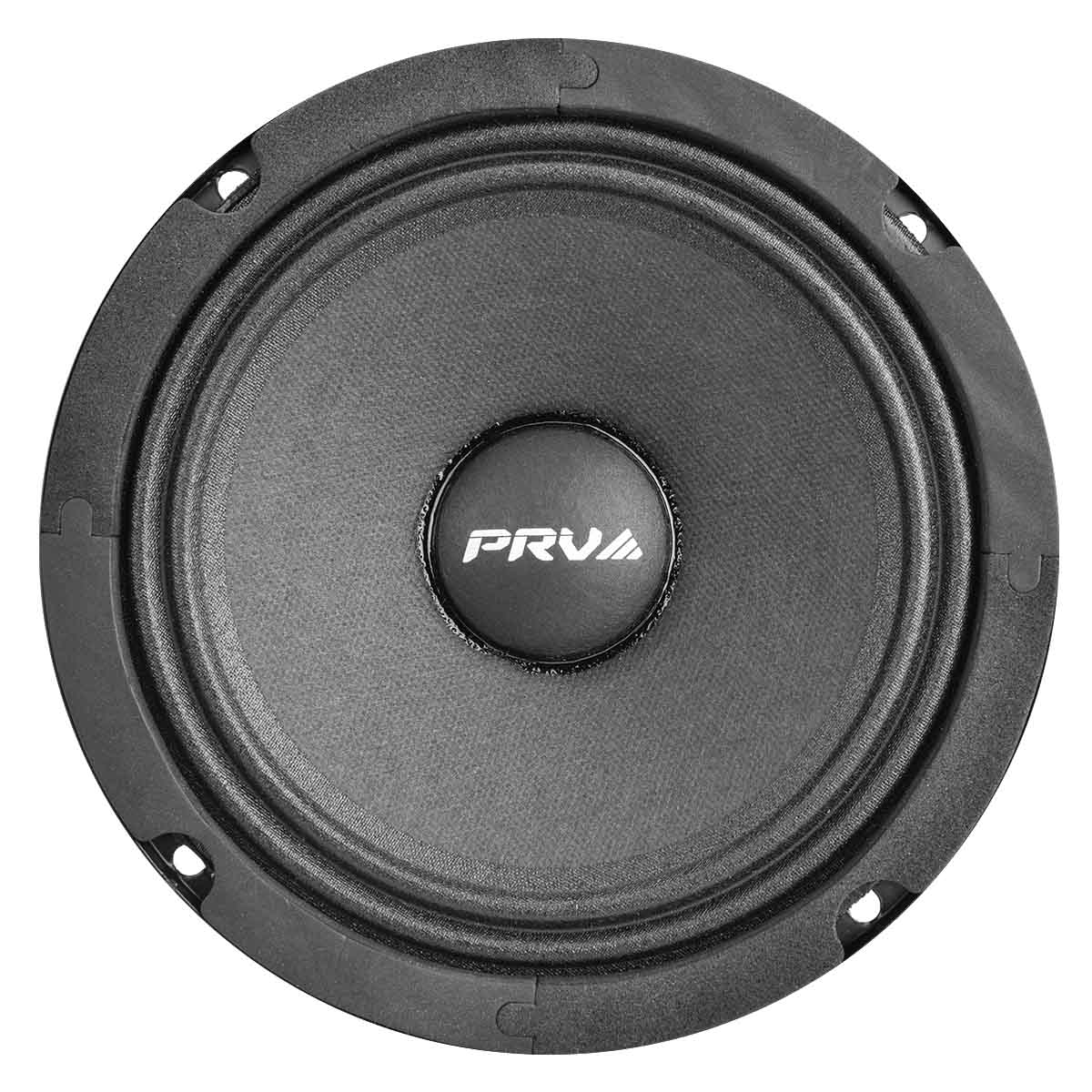

6MR200A | 6.5" MIDRANGE LOUDSPEAKER
6MR200A | 6.5" MIDRANGE LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
6MR200A | 6.5" MIDRANGE LOUDSPEAKER
6MR200A | 6.5" MIDRANGE LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
PRV Audio’s ALTO series were carefully crafted and voiced to reproduce a natural, smooth sound while remaining dynamic. To get the superior fidelity, a special composite cone is used to smooth frequency response and to keep the moving mass low, increasing the efficiency.
- 6.5″ PRO audio Midrange speaker designed for Low Frequencies with shallow profile
- 200 watts RMS program power gives capability of high acoustical output with small amplifier
- Impressive choice for high output home, car, and professional audio systems – 8 Ohm Impedance
- Smooth response through the mid-bass and vocal range at at loudest volumes

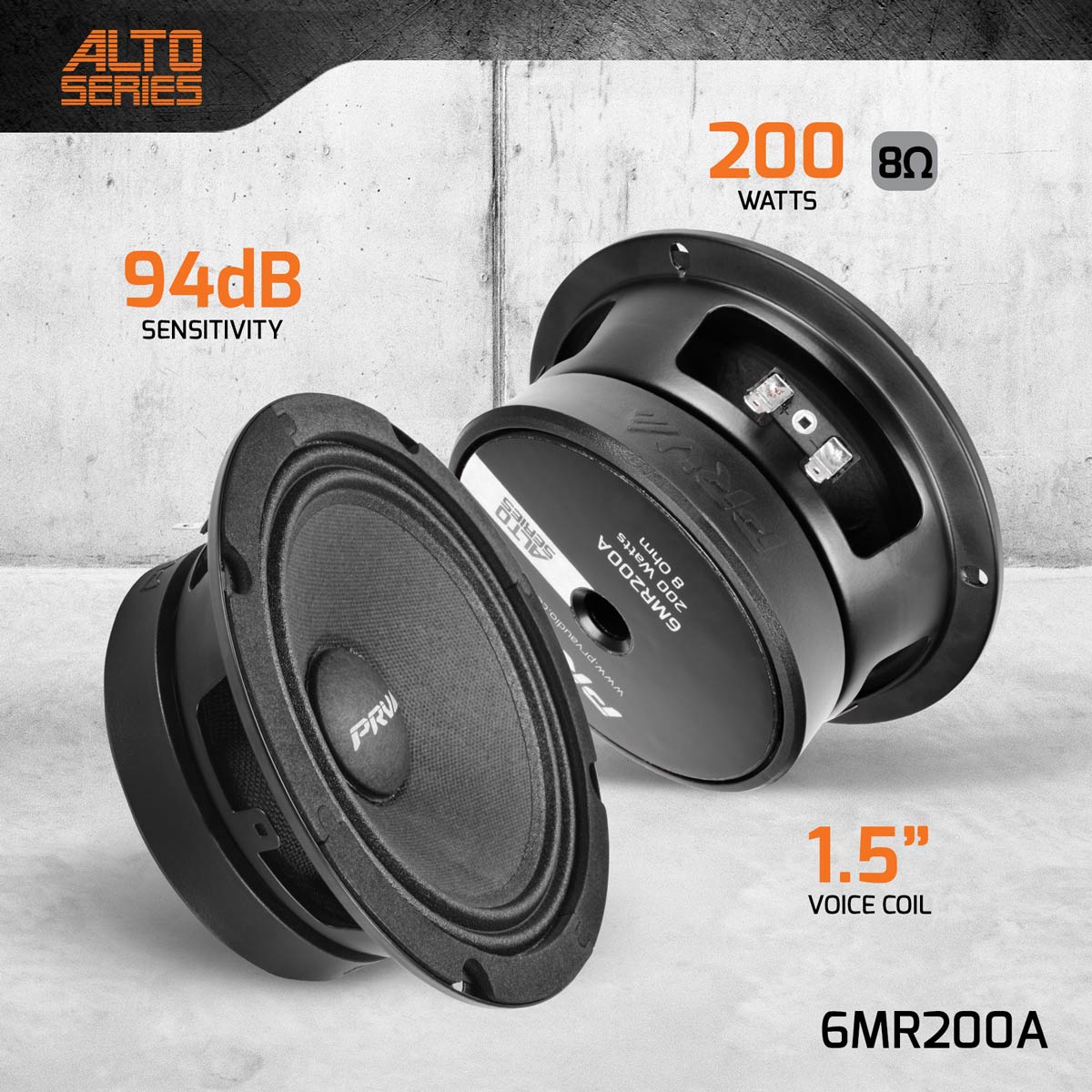

GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.83V at 1m | 94 dB |
|
Recommended Hi Pass Crossover* *For Full Power Handling |
150 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 155 – 11,000 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 8.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 3.16 l |
| Excursion (mathematical)*** | Xmax | 2.62 mm |
| Free Air Resonance | Fs | 114.1 Hz |
| Mechanical Factor | Qms | 13.16 |
| Electrical Factor | Qes | 1.28 |
| Total Factor | Qts | 1.17 |
| Cone Area | Sd | 137 cm² |
| Mechanical Mass | Mms | 10.1 g |
| Bl Factor | Bl | 6.27 Tm |
| Dc Resistance | Re | 5.5 Ohms |
| Inductance | Le | 0.26 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 9.02 g |
| Mechanical Compliance | Cms | 0.120 mm/N |
EXTRA INFO

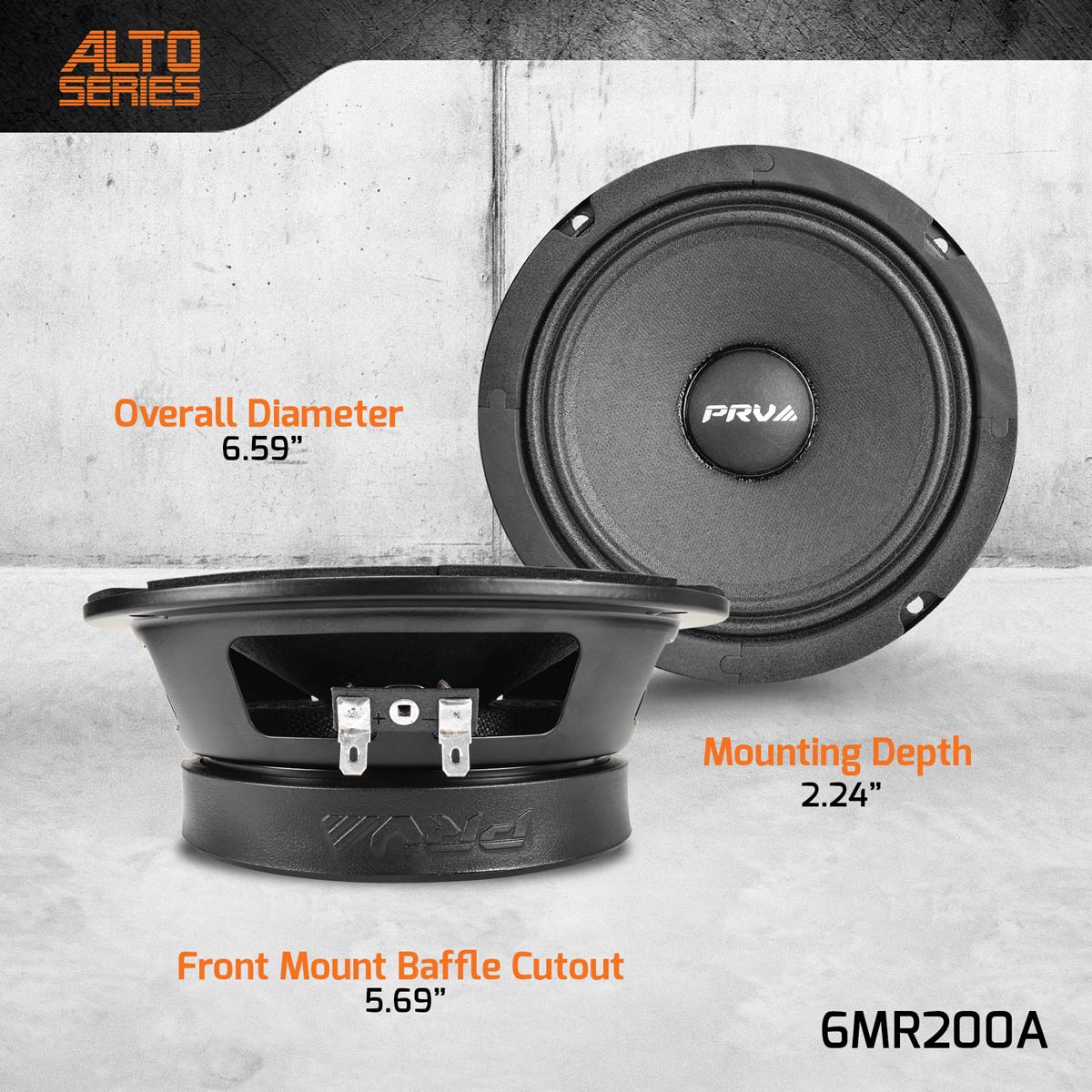

| Overall Diameter | 6.59″ (167.5 mm) |
| Front Mount Baffle Cutout | 5.69″ (144.5 mm) |
| Mounting Depth | 2.24″ (57 mm) |
| Overall Depth | 2.5″ (63.5 mm) |
| Net Weight | 3.52 Lbs (1.60 kg) |
| Shipping Weight | 3.79 Lbs (1.75 kg) |
| Carton Dimensions W x L x H | 7.40″ x 7.48″ x 4.45″ (188 x 190 x 113 mm) |
