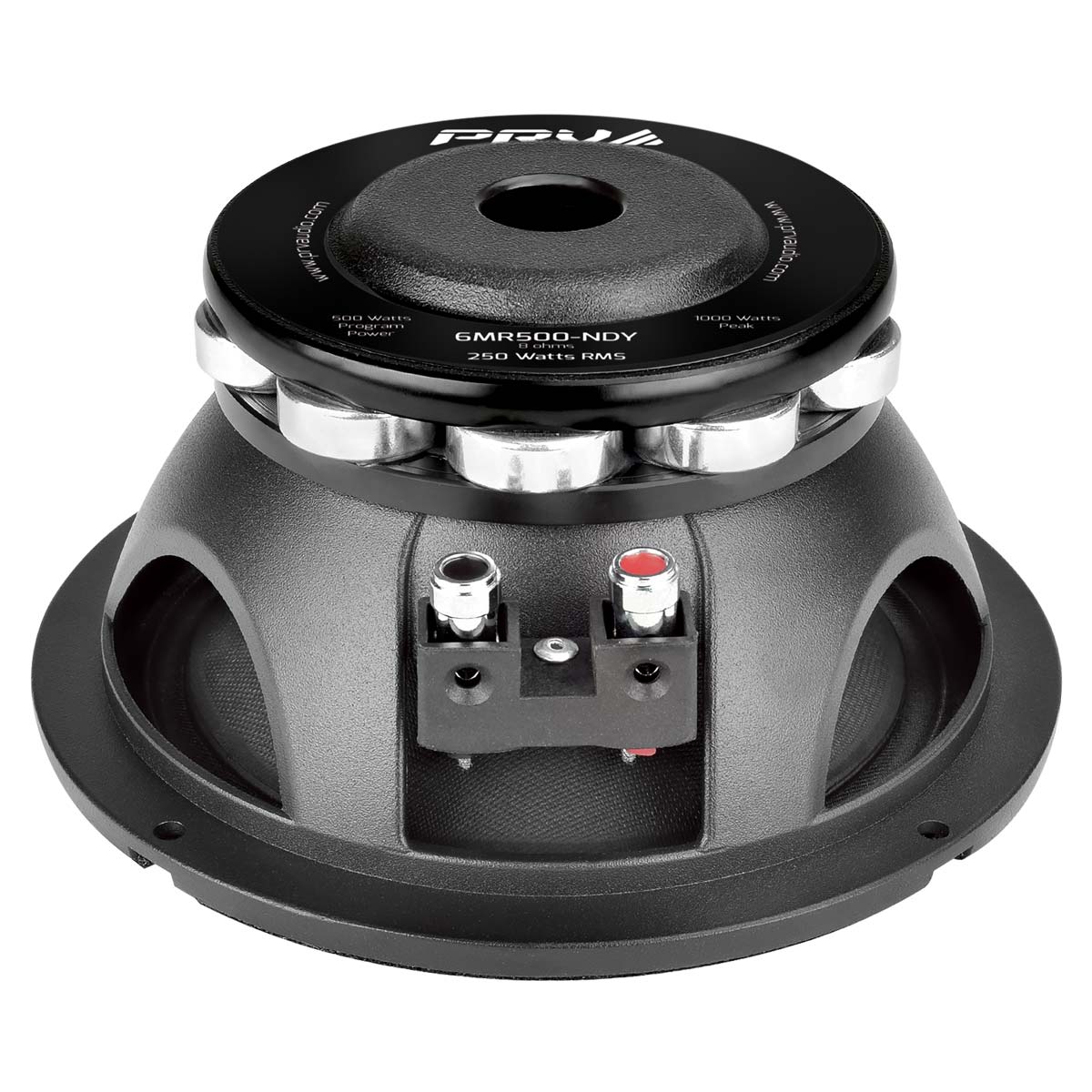

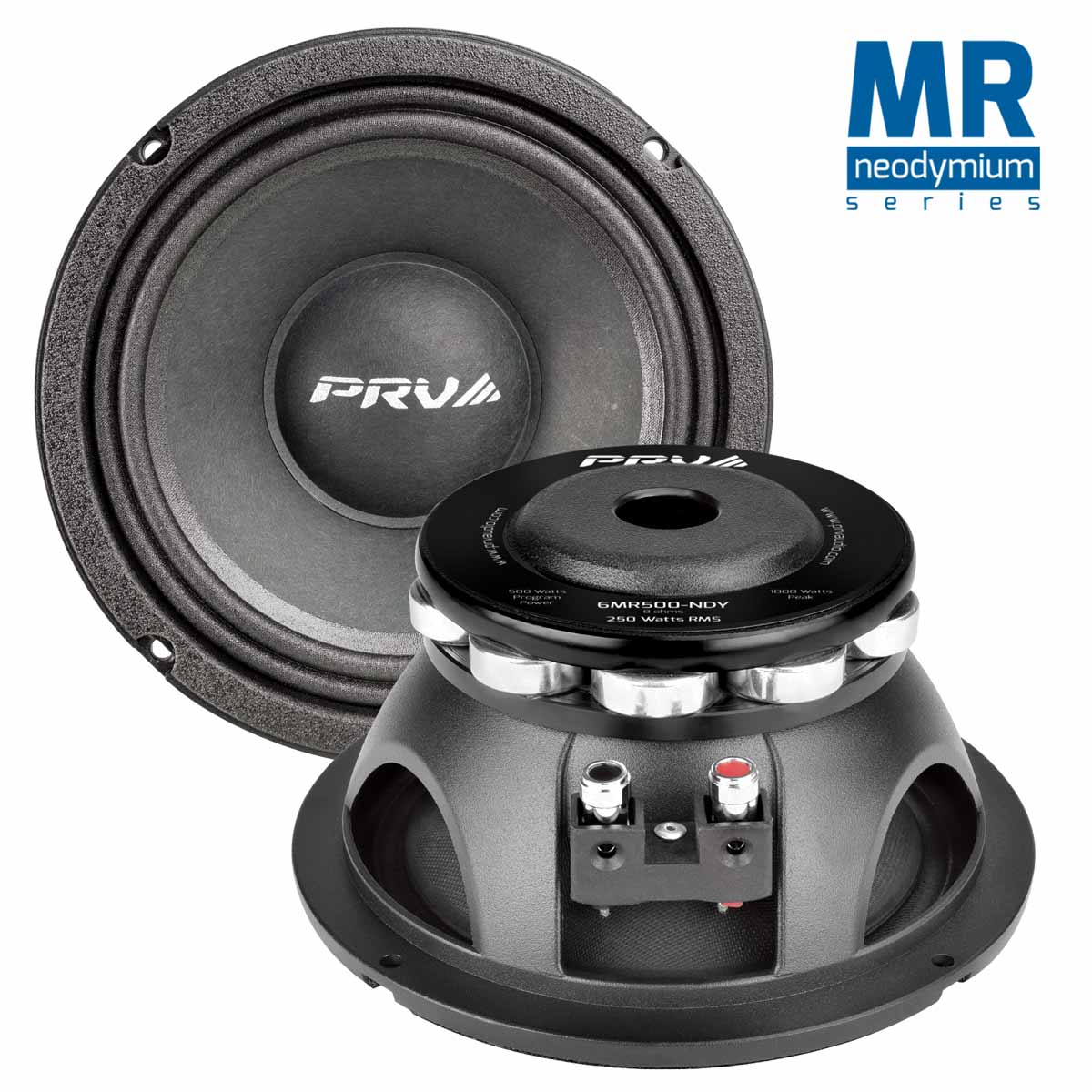

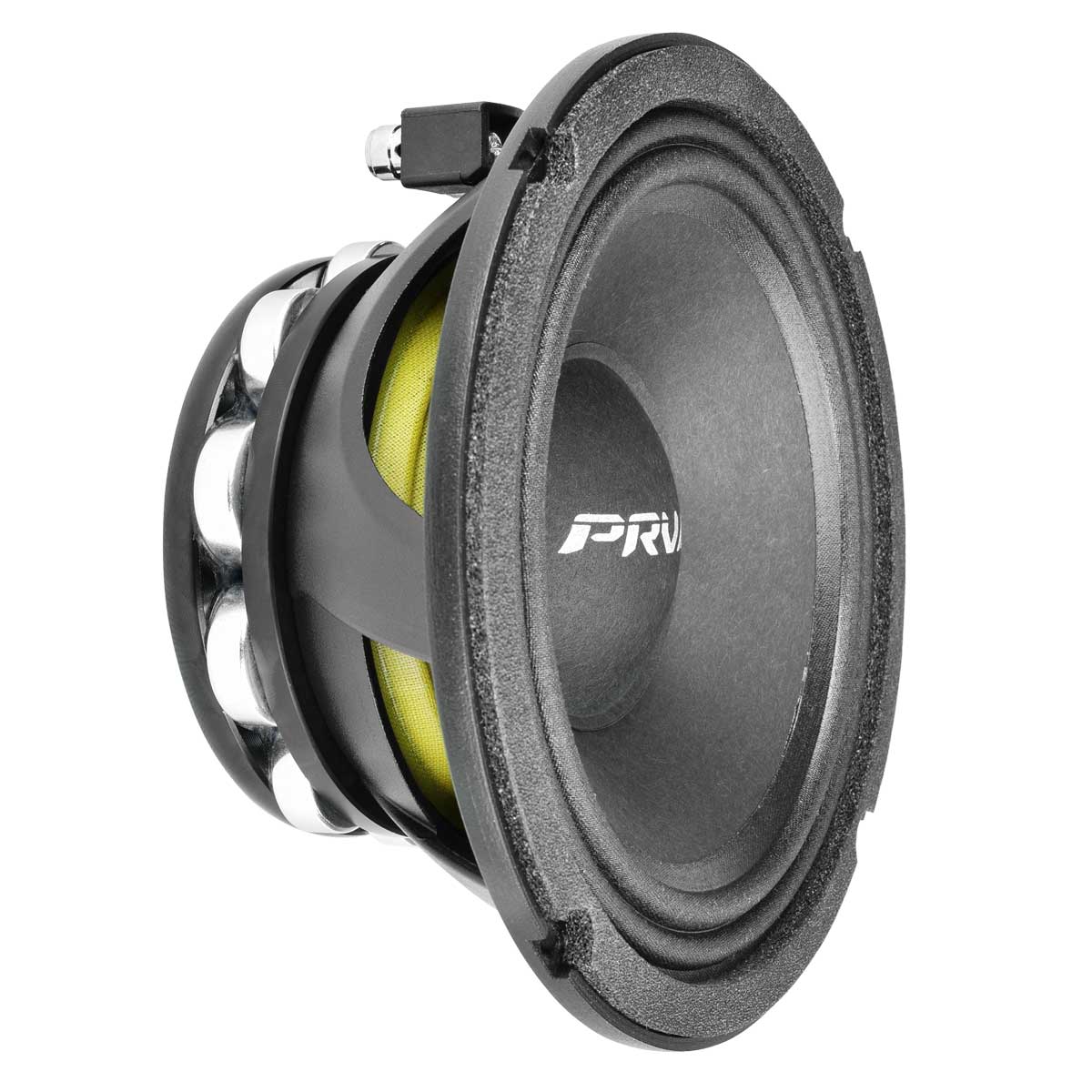

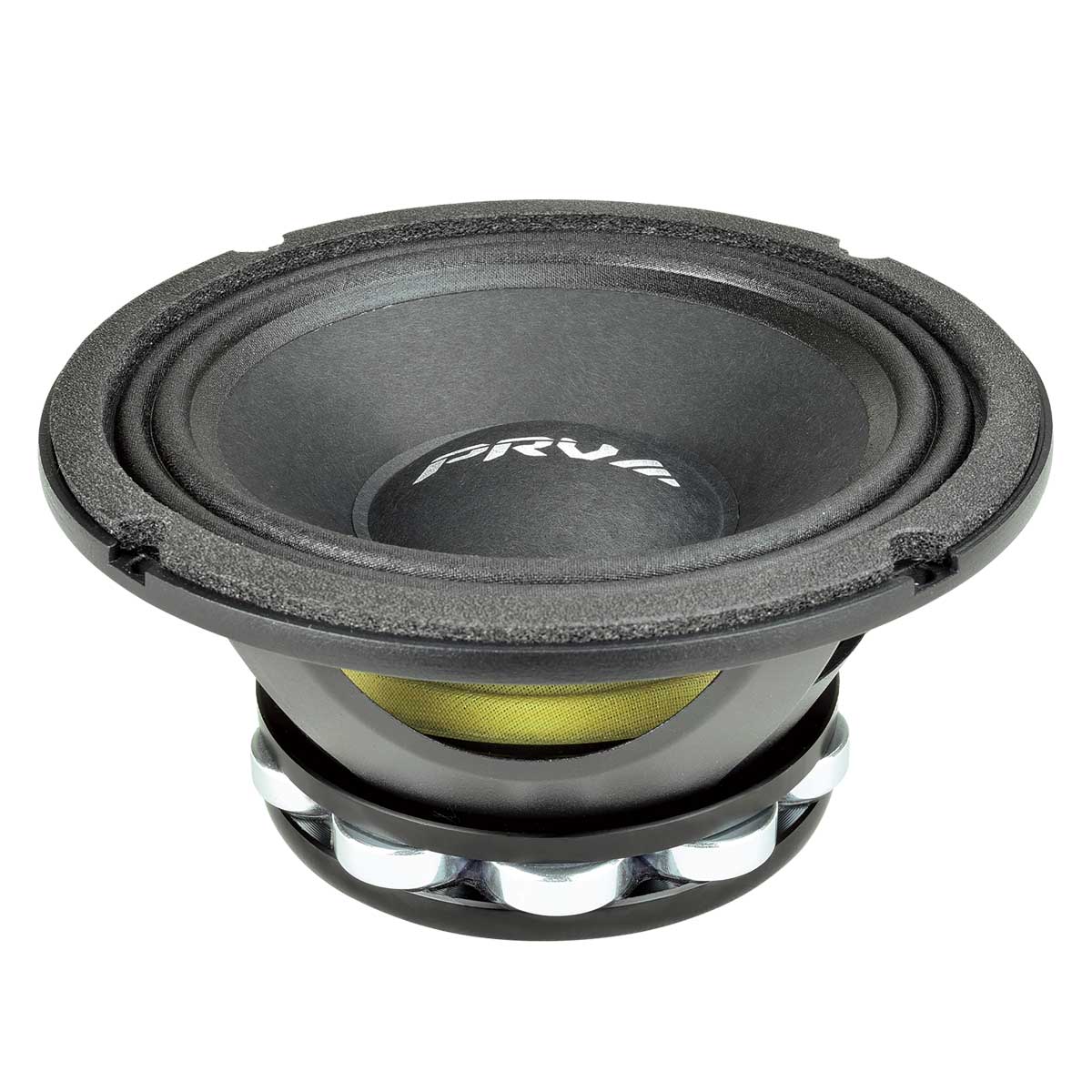

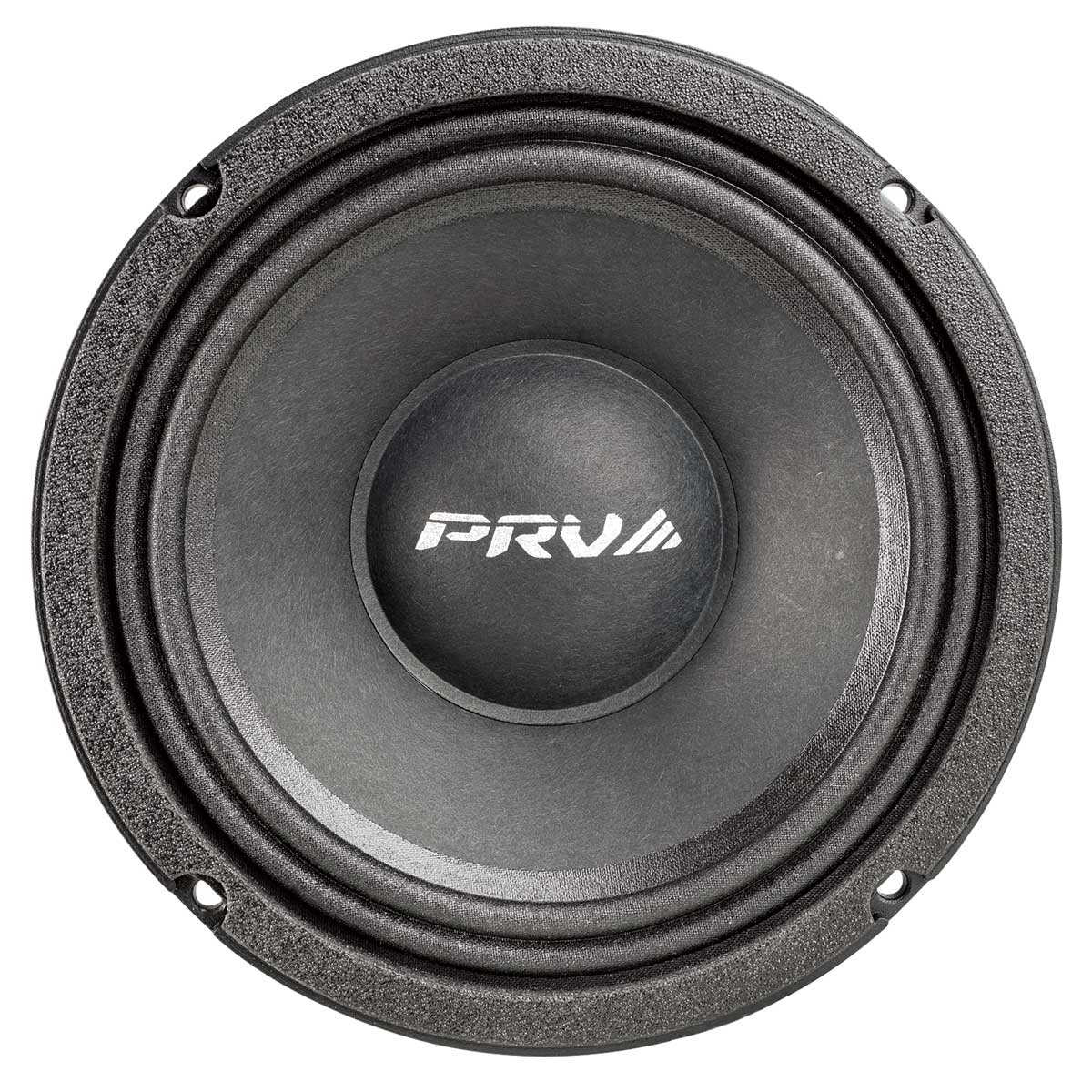

PRV AUDIO 6.5 Inch Midrange Speaker 6MR500-NDY 500 Watts 8 Ohm Neodymium Magnet
PRV AUDIO 6.5 Inch Midrange Speaker 6MR500-NDY 500 Watts 8 Ohm Neodymium Magnet is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
PRV AUDIO 6.5 Inch Midrange Speaker 6MR500-NDY 500 Watts 8 Ohm Neod...
PRV AUDIO 6.5 Inch Midrange Speaker 6MR500-NDY 500 Watts 8 Ohm Neodymium Magnet is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The PRV Audio Pro Audio Loudspeaker, 6MR500-NDY midrange woofer offers outstanding durability and a smooth fullrange response through 13,000kHz. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.
The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment. Its light weight of only 3.3 lbs helps keep your enclosures light and is a great use for car audio installers looking for high SPL midrange and upper midrange responses.
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 250 Watts
- Program Power: 500 Watts
- Sensitivity (1W/1m): 96 dB
- Voice Coil Diameter: 2″
Nominal Diameter6″ (152 mm)Nominal impedance8 OhmsRated AES Power Handling (RMS)250 WattsProgram Power500 WattsSensitivity 2.83V at 1m96 dBRecommended Hi Pass Crossover**
**For Full Power Handling220 Hz**
**12db Per Octave CrossoverFrequency Response at -10dB90 – 13,000 HzVoice Coil Diameter2″ (50 mm)Voice Coil WireCCAWVoice Coil Winding Depth11.2 mmFormer MaterialKaptonMagnetic Gap Depth5.5 mmFrame MaterialDie Cast Aluminum
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 5.13 l |
| Excursion (mathematical)*** | Xmax | 4.22 mm |
| Free Air Resonance | Fs | 104.6 Hz |
| Mechanical Factor | Qms | 22.73 |
| Electrical Factor | Qes | 0.54 |
| Total Factor | Qts | 0.53 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 12.88 g |
| Bl Factor | Bl | 9.84 Tm |
| Dc Resistance | Re | 6.2 Ohms |
| Inductance | Le | 0.12 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 11.91 g |
| Mechanical Compliance | Cms | 0.179 mm/N |
EXTRA INFO
| Overall Diameter | 6.47″ (164.5 mm) |
| Front Mount Baffle Cutout | 5.59″ (142 mm) |
| Mounting Depth | 2.91″ (74 mm) |
| Overall Depth | 3.22″ (82 mm) |
| Net Weight | 3.34 Lbs (1.51 kg) |
| Shipping Weight | 3.64 Lbs (1.65 kg) |
| Carton Dimensions W x L x H | 7.09″ x 7.09″ x 4.37″ (155 x 155 x 95 mm) |
