PRV - 12MR2000 | 12" MIDRANGE LOUDSPEAKER
PRV - 12MR2000 | 12" MIDRANGE LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
PRV - 12MR2000 | 12" MIDRANGE LOUDSPEAKER
PRV - 12MR2000 | 12" MIDRANGE LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The PRV Audio 12MR2000 midbass woofer offers outstanding durability and is our most powerful midrange driver. This woofer is great for high power 2 or 3-way systems and produces excellent vocal support for stage monitors.
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 1000 Watts
- Continuous Program Power (RMS): 2000 Watts
- Sensitivity (1W/1m): 97 dB
- Voice Coil Diameter: 4″
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 1000 Watts |
| Continuous Program Power (RMS)** | 2000 Watts |
| Max Peak Power*** | 4000 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
145 Hz 12db Per Octave Crossover |
| Frequency Response | 72 – 5,000 Hz |
| Voice Coil Diameter | 4″ (101 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 17.0 mm |
| Former Material | Aluminum |
| Magnetic Gap Depth | 7.5 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 52.52 l |
| Excursion (mathematical)*** | Xmax | 6.62 mm |
| Free Air Resonance | Fs | 57.23 Hz |
| Mechanical Factor | Qms | 23.84 |
| Electrical Factor | Qes | 0.34 |
| Total Factor | Qts | 0.33 |
| Cone Area | Sd | 573 cm² |
| Mechanical Mass | Mms | 67.39 g |
| Bl Factor | Bl | 21.25 Tm |
| Dc Resistance | Re | 6.3 Ohms |
| Inductance | Le | 0.83 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 59.64 g |
| Mechanical Compliance | Cms | 0.114 mm/N |
EXTRA INFO

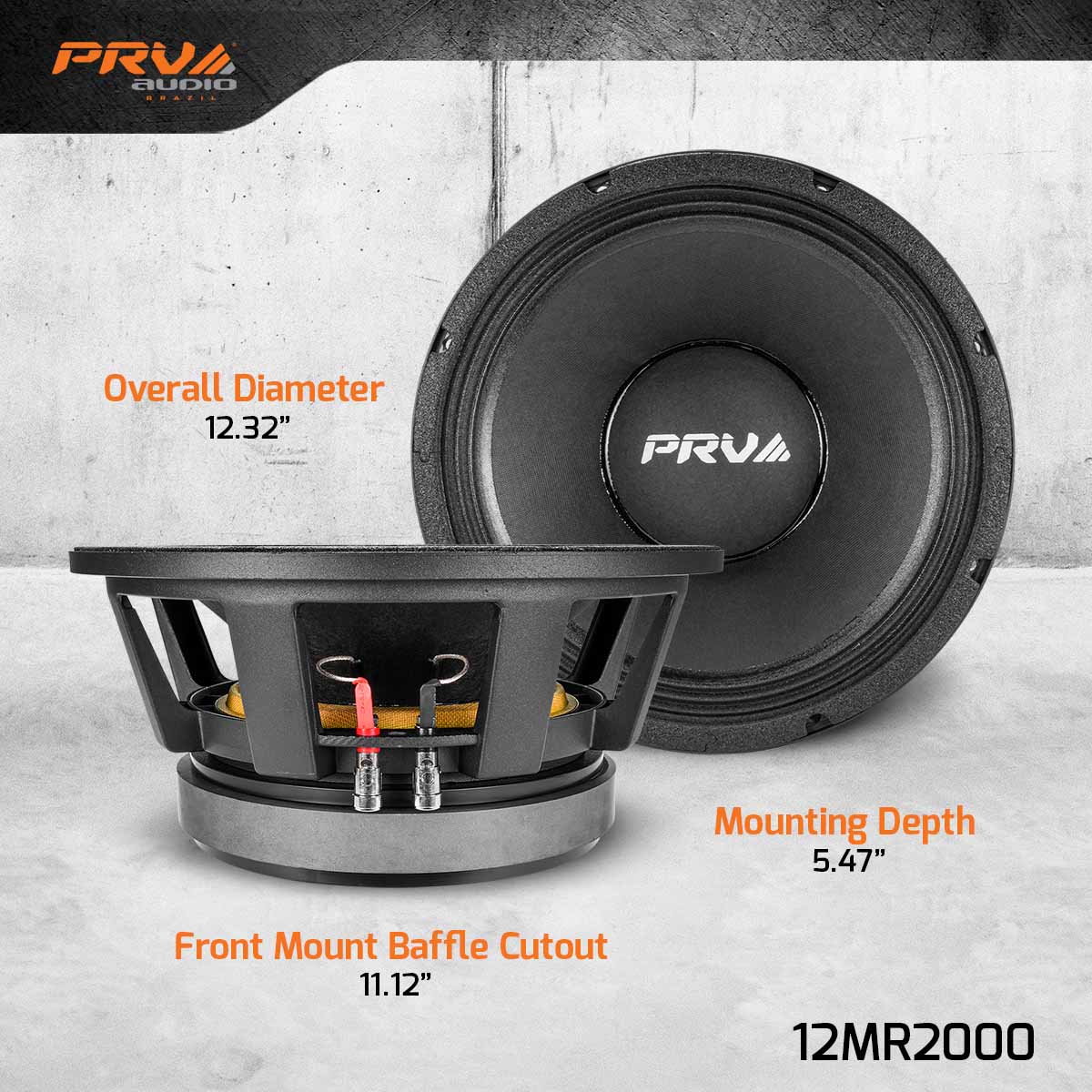

| Overall Diameter | 12.32” (313 mm) |
| Front Mount Baffle Cutout | 11.12” (282.5 mm) |
| Mounting Depth | 5.47” (139 mm) |
| Overall Depth | 5.91” (150 mm) |
| Net Weight | 23.04 Lbs (10.45 kg) |
| Shipping Weight | 24.92 Lbs (11.30 kg) |
| Carton Dimensions W x L x H | 14.37” x 14.37” x 8.07” (365 x 365 x 205 mm) |
