The PRV Audio 10MR2000-NDY midrange offers outstanding durability and is our most powerful midrange loudspeaker with a 4 inch voice coil. This mid is an ideal option for high power 2 or 3-way systems. It produces excellent vocal support for stage monitors, custom car doors and stuntwalls.
A powerful neodymium motor keeps size and weight to a minimum to make it easy to install this mid in any system, even when you are short on space.
- 4″ Inside/Out copper clad voice coil wound on fiberglass former for high-temp performance – 8 Ohm
- One of the most outstanding pro audio midrange for high SPL systems, this 2000 Watts 10″ midrange is one beast of a speaker!
- Excellent performance in compact enclosures and custom car door panels.
- During hard play, the large 4″ voice coil provides very high efficiency while providing smooth and accurate midbass response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 10″ (254 mm) | |
| Nominal impedance | 8 Ohm | |
| Nominal Power Handling* | 1000 Watts | |
| Continuous Program Power (RMS)** | 2000 Watts | |
| Max Peak Power*** | 4000 Watts | |
| Sensitivity 2.00V at 1m | 99 dB | |
| Recommended Hi Pass Crossover For Full Power Handling | 160 Hz 12db Per Octave Crossover | |
| Frequency Response | 90 – 6,500 Hz | |
| Voice Coil Diameter | 4″ (101 mm) | |
| Voice Coil Wire | CCAW | |
| Voice Coil Winding Depth | 14.5 mm | |
| Former Material | Glass Fiber | |
| Magnetic Gap Depth | 9.0 mm | |
| Frame Material | Die Cast Aluminum | |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 27.98 l |
| Excursion | Xmax*** | 5.00 mm |
| Free Air Resonance | Fs | 54.48 Hz |
| Mechanical Factor | Qms | 1.54 |
| Electrical Factor | Qes | 0.21 |
| Total Factor | Qts | 0.21 |
| Cone Area | Sd | 373 cm² |
| Mechanical Mass | Mms | 59.33 g |
| Bl Factor | Bl | 21.73 Tm |
| Dc Resistance | Re | 5.0 Ohm |
| Inductance | Le | 0.50 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 35.96 g |
| Mechanical Compliance | Cms | 0.143 mm/N |
EXTRA INFO

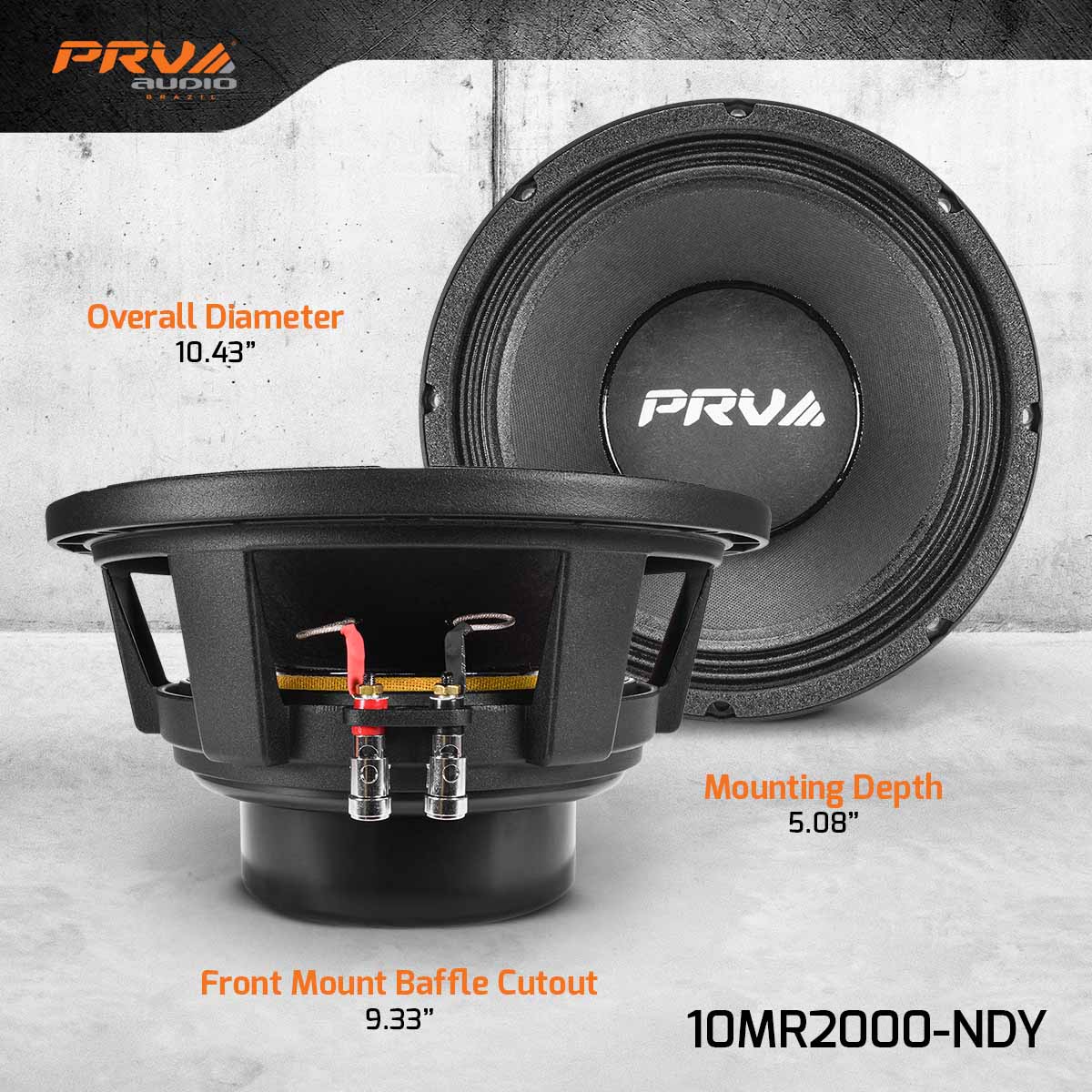

| Overall Diameter | 10.43″ (265 mm) |
| Front Mount Baffle Cutout | 9.33″ (237 mm) |
| Mounting Depth | 5.08″ (129 mm) |
| Overall Depth (with grill) | 5.49″ (139.5 mm) |
| Net Weight | 12.78 Lb (5.8 kg) |
| Shipping Weight | 14.55 Lb (6.6 kg) |
| Carton Dimensions W x L x H | 12.6″ x 12.6″ x 7.8″ (320 x 320 x 195 mm) |
