PRV AUDIO 10 Inch Midrange Speaker 10MR1000X
PRV AUDIO 10 Inch Midrange Speaker 10MR1000X is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
PRV AUDIO 10 Inch Midrange Speaker 10MR1000X
PRV AUDIO 10 Inch Midrange Speaker 10MR1000X is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
X-treme midrange performance is what PRV Audio’s 10MR1000X is all about. The PRV Audio 10MR1000X is the evolution of our line, after intense 2 years of development we have created the midrange loudspeaker that offers outstanding durability. This specially designed loudspeaker is assembled with top of the line components for long lasting play, even during intense use.
- 3″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
- 1,000 watts continuous program power rating makes high acoustical output
- Excellent performance in compact enclosures
- 100 dB sensitivity, which makes it capable of generating a lot of output!
- Detailed vocal reproduction, high fidelity response
GENERAL SPECIFICATIONS
| Nominal Diameter | 10″ (254 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 500 Watts |
| Program Power | 1000 Watts |
| Sensitivity 2.83V at 1m | 100 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
150 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 75 – 6,500 Hz |
| Voice Coil Diameter | 3″ (76 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 9.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 28.68 l |
| Excursion (mathematical)*** | Xmax | 2.50 mm |
| Free Air Resonance | Fs | 72.02 Hz |
| Mechanical Factor | Qms | 11.22 |
| Electrical Factor | Qes | 0.23 |
| Total Factor | Qts | 0.22 |
| Cone Area | Sd | 391 cm² |
| Mechanical Mass | Mms | 36.26 g |
| Bl Factor | Bl | 19.42 Tm |
| Dc Resistance | Re | 5.2 Ohms |
| Inductance | Le | 0.43 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 31.89 g |
| Mechanical Compliance | Cms | 0.134 mm/N |
EXTRA INFO

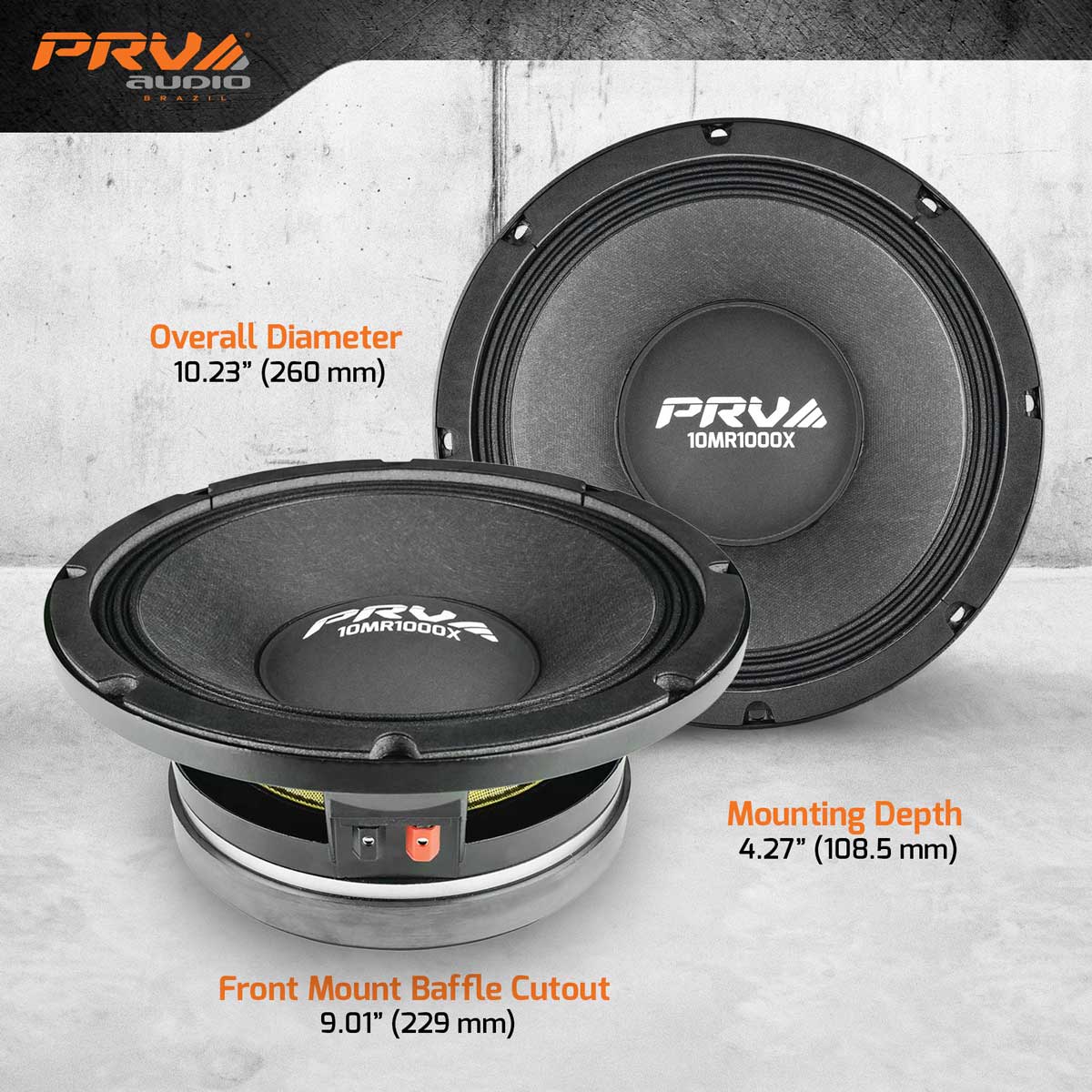

| Overall Diameter | 10.23” (260 mm) |
| Front Mount Baffle Cutout | 9.01” (229 mm) |
| Mounting Depth | 4.27” (108.5 mm) |
| Overall Depth | 4.84” (123 mm) |
| Net Weight | 15.43 Lbs (7.0 kg) |
| Shipping Weight | 16.53 Lbs (7.5 kg) |
| Carton Dimensions W x L x H | 11.22” x 11.22” x 6.89” (285 x 285 x 175 mm) |
