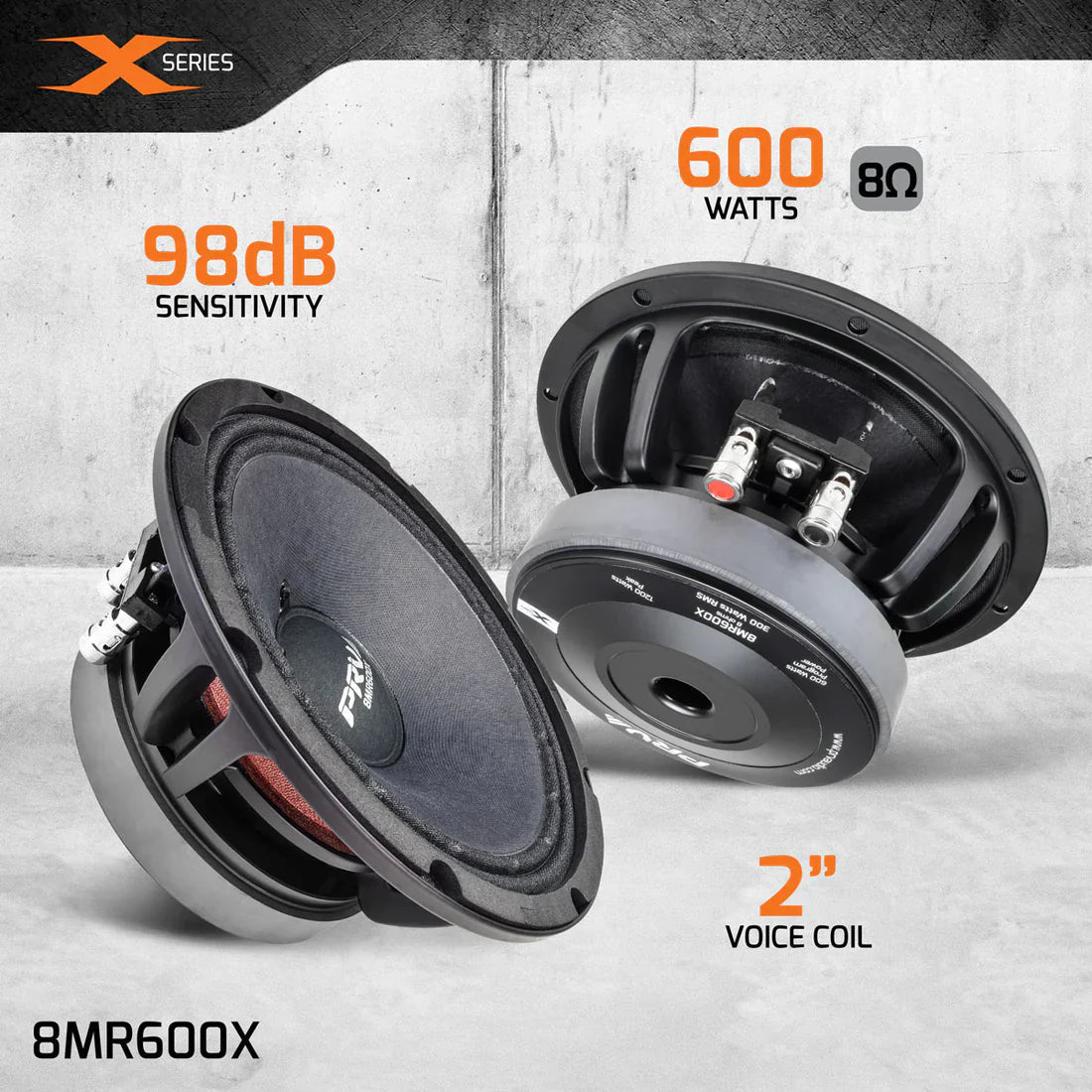

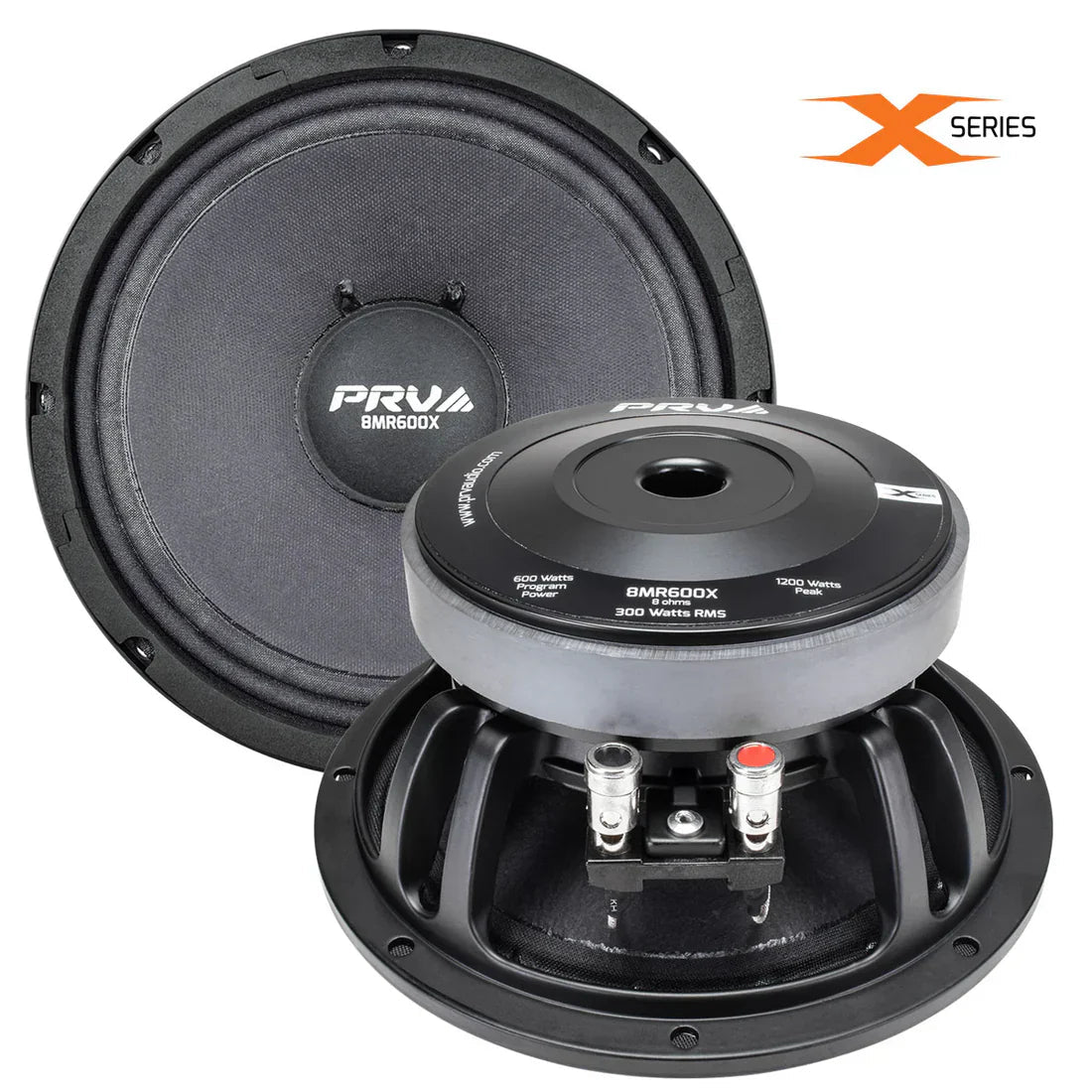

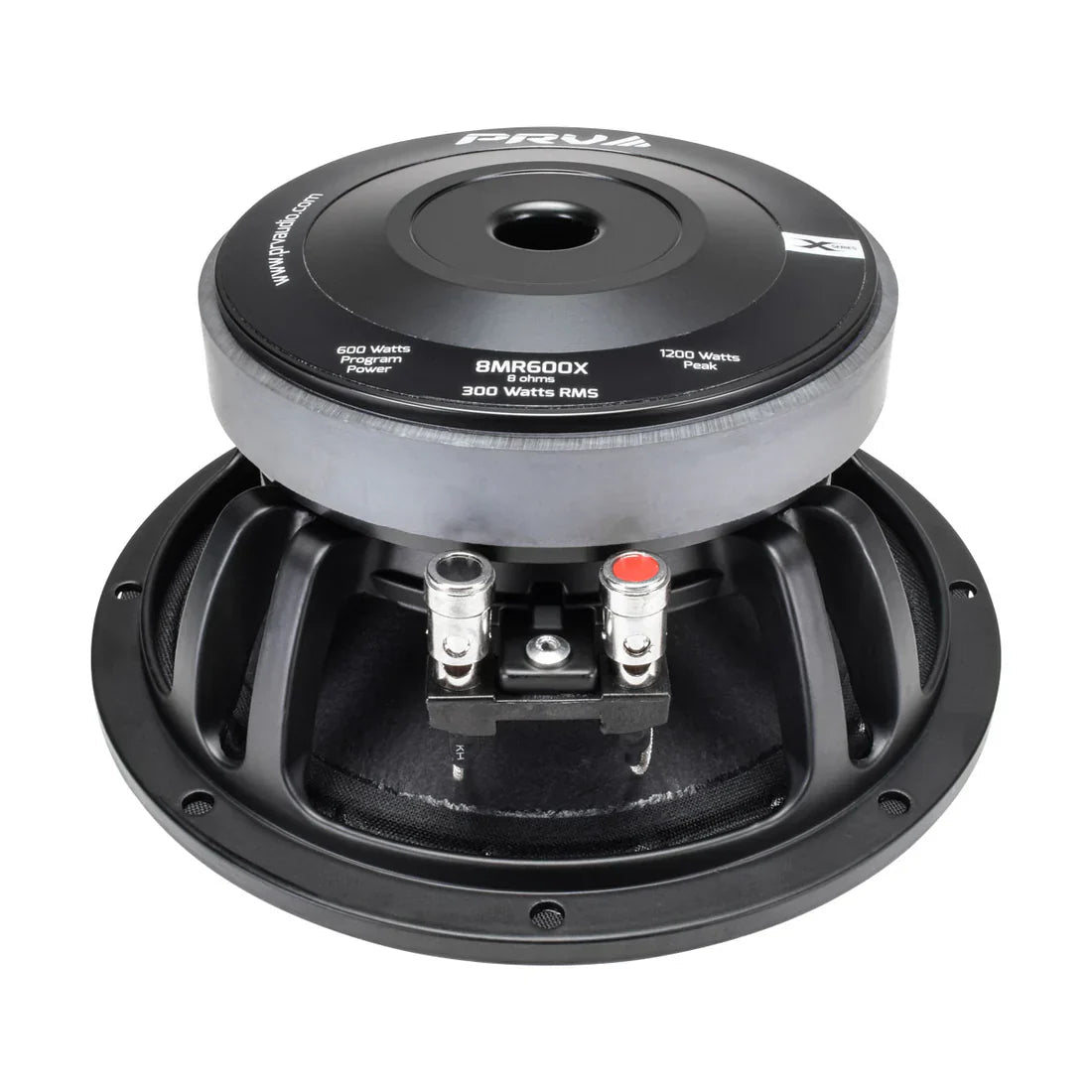

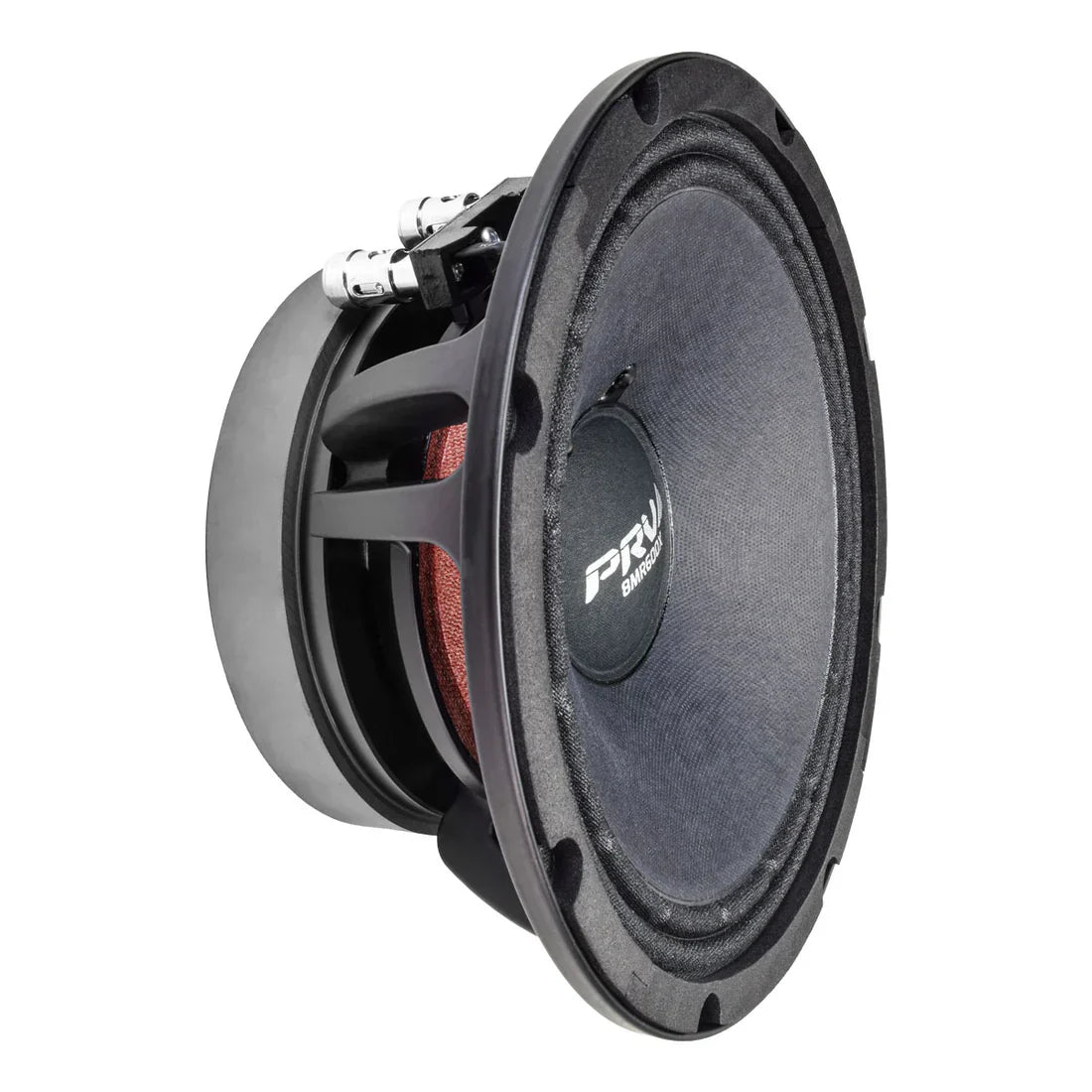

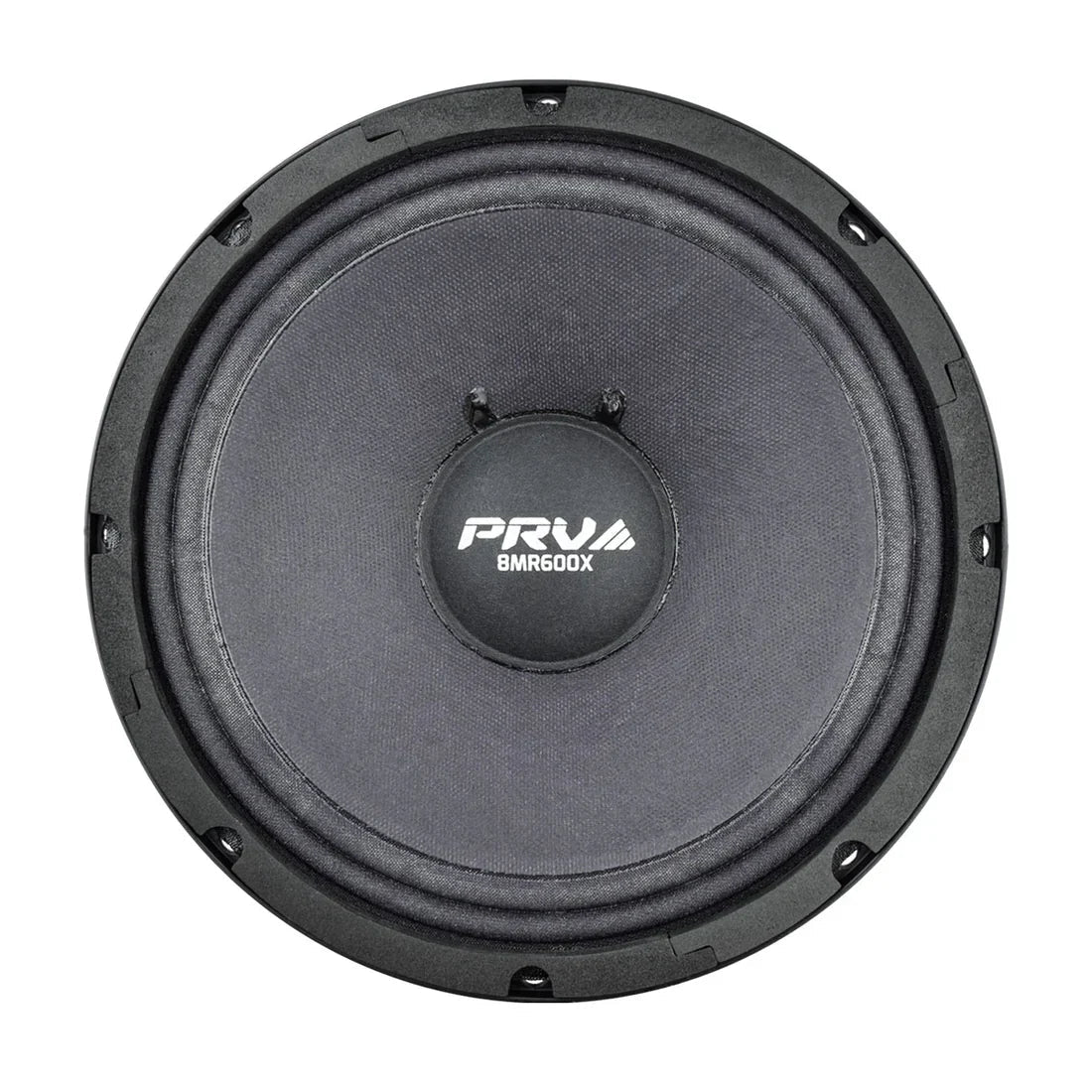

8MR600X PRV 8 Inch Midrange Speaker

X-treme midrange performance is what PRV Audio’s 8MR600X is all about. Made to be a class leading midrange in the pro audio realm, this driver has a sensitivity of 98 dB and only weighs 7 pounds. This low frequency driver is optimized for professional audio or MI (musical instrument) speaker system applications, a car audio version is available at 4ohms 8MR600X-4

The powerful magnet assembly assures high flux concentration. The ventilated basket designed between the basket and the magnetic structure significantly improves thermal connection and heat dissipation, further increasing power handling and lowering power compression.

Capable of high output and low distortion, this midrange is perfect for filling in the important midrange response in any high output sound system.

• 2″ DUAL layer CCAW voice coil wound on polyimide former, 8 ohms
• Ventilated voice coil gap reduces power compression
• High Xmax for more Mid bass output
• 600 watts continuous program power rating makes high acoustical output
• Excellent performance in 2-way or 3-way systems
• Unique double roll dimple suspension design

GENERAL SPECIFICATIONS

• Nominal Diameter8″ (203 mm)
• Nominal Impedance8 Ohm
• Rated AES Power Handling (RMS)**300 Watts
• Program Power***600 Watts
• Sensitivity 2.83V at 1m98 dB
• Recommended Hi Pass Crossover" "For Full Power Handling160 Hz** **12db Per Octave Crossover
• Frequency Response at -10dB85 – 8,500 Hz
• Voice Coil Diameter2.0″ (51 mm)
• Voice Coil WireCCAW
• Voice Coil Winding Depth14.5 mm
• Former MaterialPolyimide
• Magnetic Gap Depth8.0 mm
• Frame MaterialDie cast aluminum
• Magnet TypeFerrite

EXTRA INFO

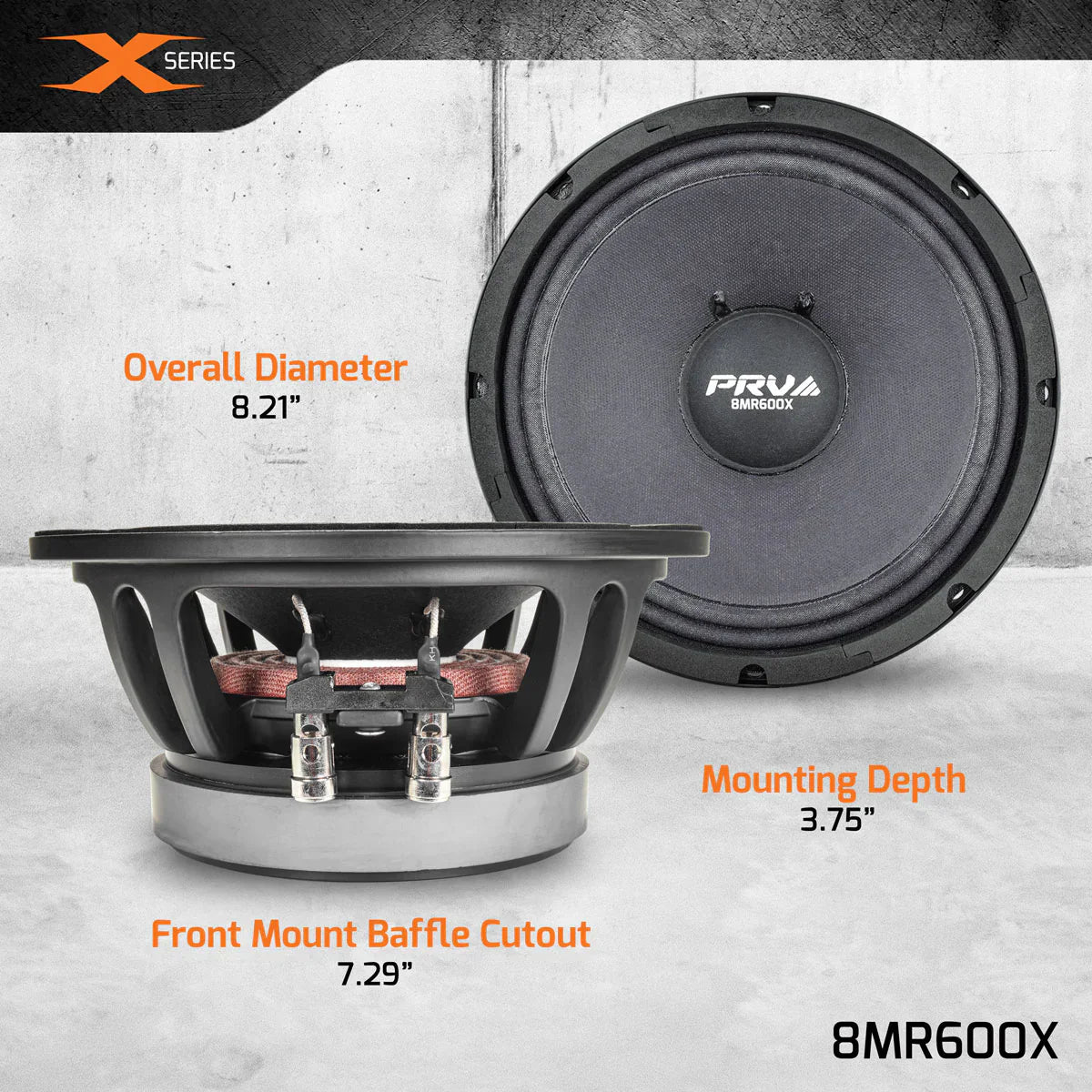

• Overall Depth 4.03” (102.5 mm)
• Mounting Depth 3.75” (95.5 mm)
• Overall Diameter 8.21” (208.5 mm)
• Front Mount Baffle Cutout7.29” (185.3 mm)
• Net Weight 7.04 Lbs (3.20 kg)
• Shipping Weight 11.90 Lbs (3.45 kg)
• Carton Dimensions WxLxH8.85” x 8.85” x 4.92” (225 x 225 x 125 mm)
