PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm – High Performance Waterproof Cone
PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm – High Performance Waterproof Cone is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm ...
PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm – High Performance Waterproof Cone is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The 8MR500SEAL PRO offers very smooth midrange response to the upper midrange up to 7,500 Hz. Designed to provide definition and high output on midrange frequencies, perfect for use in any high output 3-way system.
Now you can pair this 8″ speaker with any 10″ or 12″ speaker from our PRO Series, to build the ultimate custom Chuchero® or PRO Audio systems.
- A sealed back basket simplifies cabinet manufacture, eliminating the need for a separate enclosure for other speakers.
- Capable of handling 500 Watt RMS this midrange has enough output capability to keep up with the most powerful drivers, suitable for use in 3-way cabinet systems ( Midbass + Seal Basket + High Frequency Driver or Tweeter).
- Its naturally damped paper cone is coated with a waterproof coating, ensuring high performance even in harsh damp or wet weather conditions.
- Optimized to deliver detailed reproduction of mid-range frequencies from 300Hz to 7,500Hz. A powerful output peak at 400hz reaches 104dB of sensitivity at 1w/1m.
GENERAL SPECIFICATIONS
| Nominal Diameter | 8″ (203 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 250 Watts |
| Continuous Program Power (RMS) | 500 Watts |
| Max Peak Power | 1000 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 400 Hz** **12db Per Octave Crossover |
| Frequency Response at -10DB | 400 – 7,500 Hz |
| Voice Coil Diameter | 2″ (50 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 12.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 0.97 l |
| Excursion (mathematical)*** | Xmax | 4.00 mm |
| Free Air Resonance | Fs | 392.2 Hz |
| Mechanical Factor | Qms | 18.14 |
| Electrical Factor | Qes | 2.58 |
| Total Factor | Qts | 2.26 |
| Cone Area | Sd | 241 cm² |
| Mechanical Mass | Mms | 13.63 g |
| Bl Factor | Bl | 8.83 Tm |
| Dc Resistance | Re | 6.0 Ohm |
| Inductance | Le | 0.25 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 11.53 g |
| Mechanical Compliance | Cms | 0.012 mm/N |
EXTRA INFO

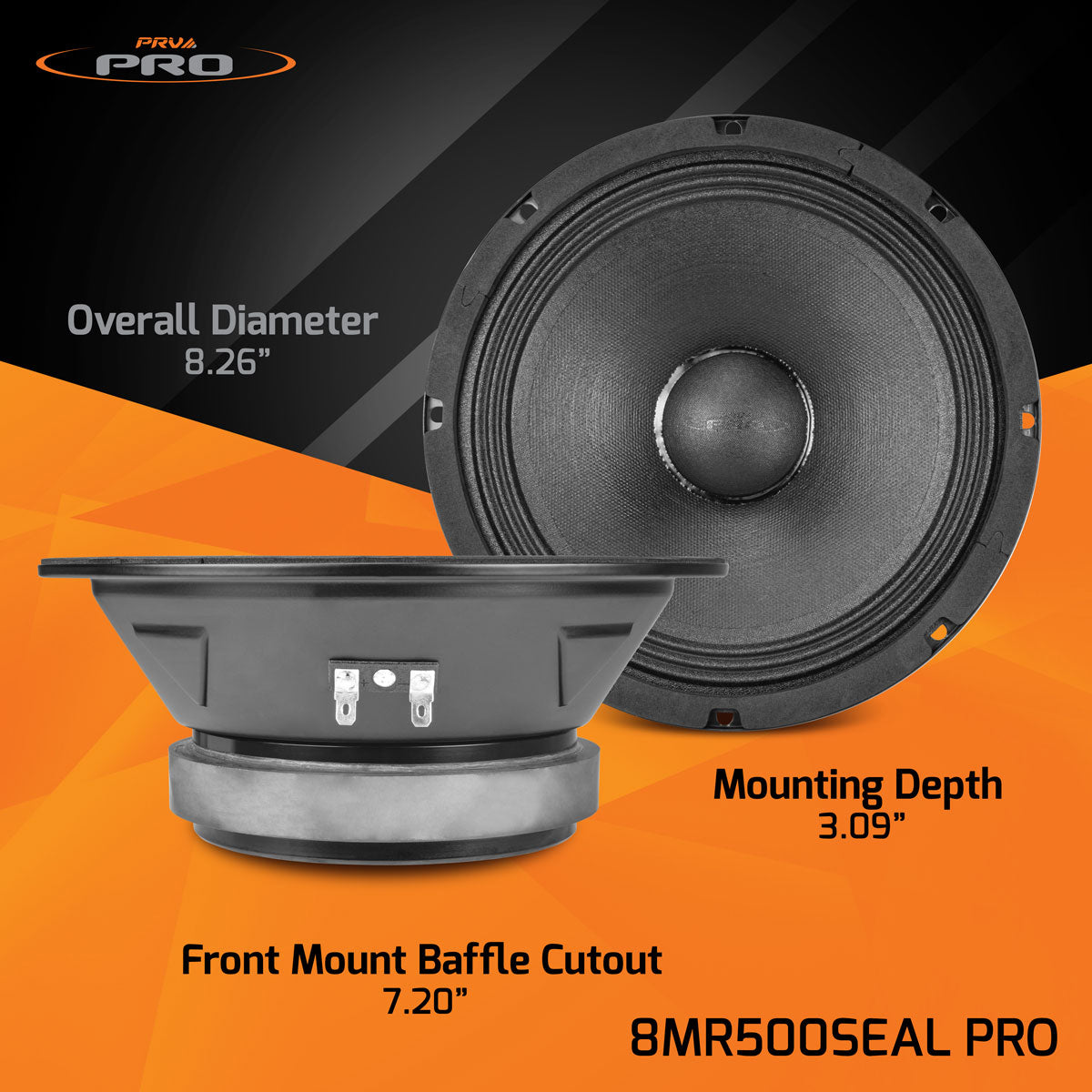

| Overall Diameter | 8.26″ (209.7 mm) |
| Front Mount Baffle Cutout | 7.20″ (183 mm) |
| Mounting Depth | 3.09″ (78.5 mm) |
| Overall Depth | 3.40″ (86.5 mm) |
| Net Weight | 6.40 Lbs (2.90 kg) |
| Shipping Weight | 7.0 Lbs (3.18 kg) |
| Carton Dimensions W x L x H | 9.05″ x 9.05″ x 3.94″ (230 x 230 x 100 mm) |
