PRV AUDIO Carbon Fiber 8" Midrange Speaker 500 Watts 4 Ohm Neodymium 8MR500CF-NDY-4 Water Resistant Pro
PRV AUDIO Carbon Fiber 8" Midrange Speaker 500 Watts 4 Ohm Neodymium 8MR500CF-NDY-4 Water Resistant Pro is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
PRV AUDIO Carbon Fiber 8" Midrange Speaker 500 Watts 4 Ohm Neo...
PRV AUDIO Carbon Fiber 8" Midrange Speaker 500 Watts 4 Ohm Neodymium 8MR500CF-NDY-4 Water Resistant Pro is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The MR500CF-NDY series was designed for Power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment!
Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle, this mid range speaker becomes the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high-temperature voice coil, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion.
- Water Resistant with true PRO audio midrange performance
- Damped carbon fiber cone lowers moving mass and minimizes unwanted resonances
- Low inductance and extended frequency response
- Powerful neodymium magnet structure features distortion-canceling fixtures
- Fast transient response, minimal tonal coloration, and deep, dynamic midbass

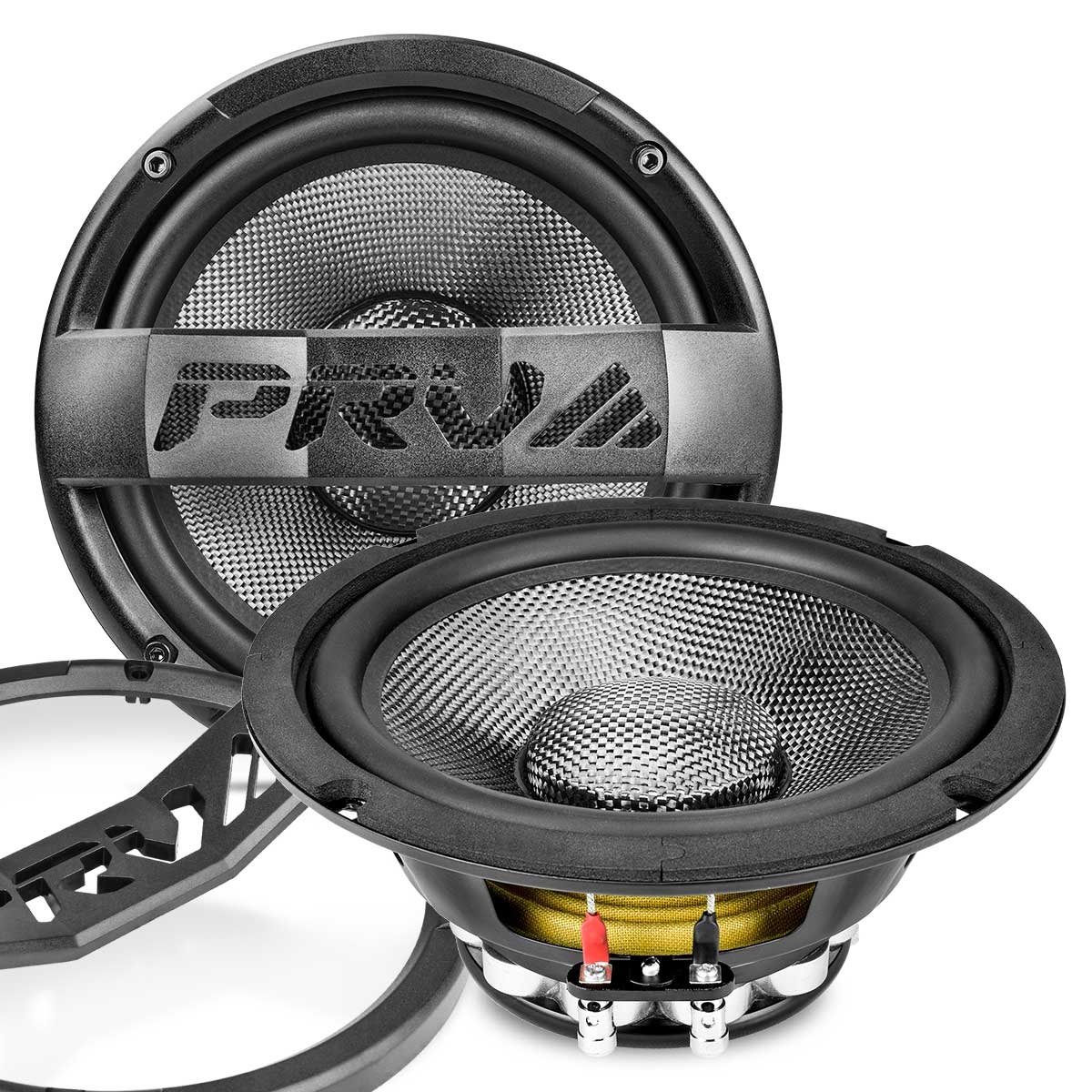

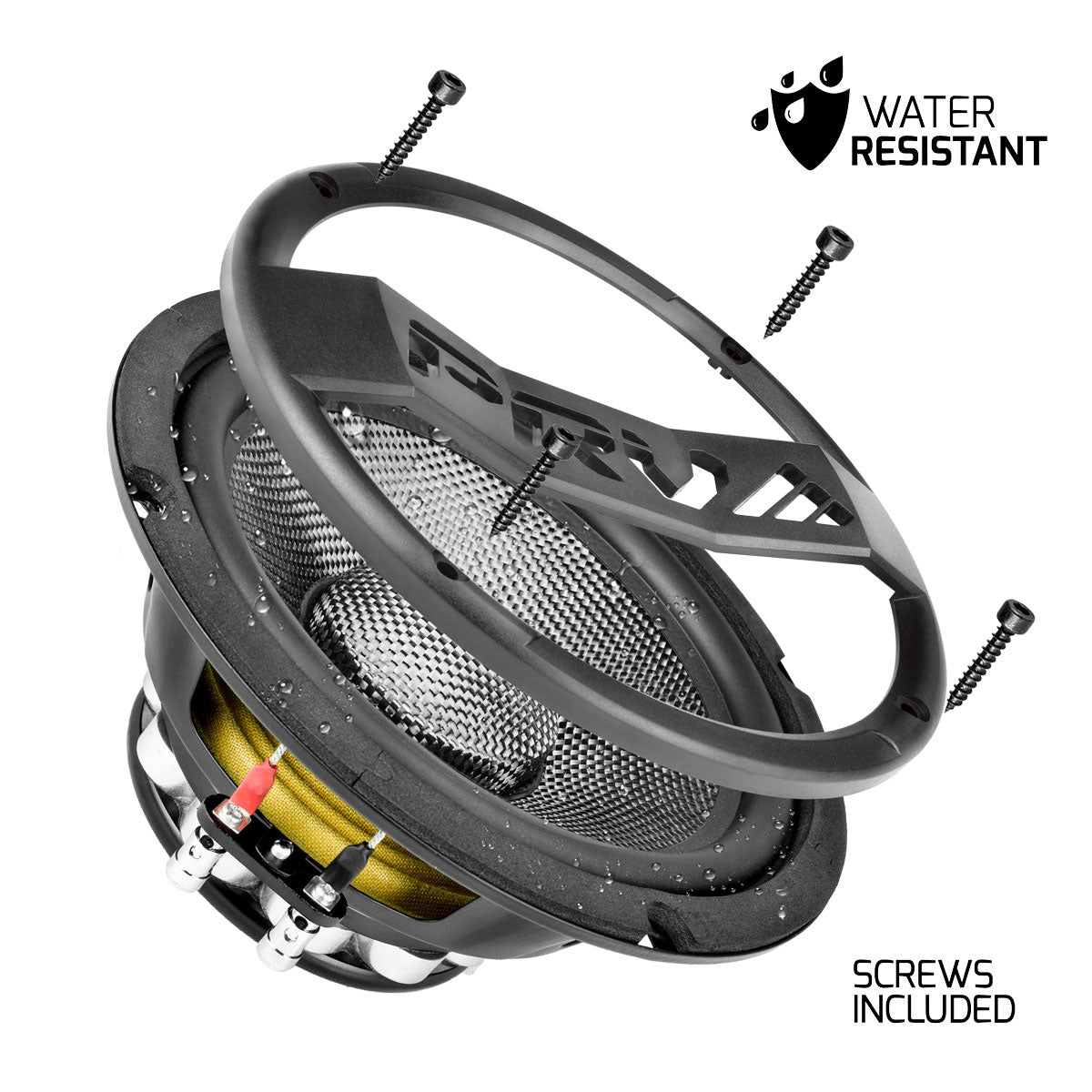

- Sold in pairs – Grill and screws are included
GENERAL SPECIFICATIONS
| Nominal Diameter | 8″ (203 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling | 250 Watts |
| Continuous Program Power (RMS) | 500 Watts |
| Max Peak Power | 1000 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 85 Hz** **12db Per Octave Crossover |
| Frequency Response | 95 – 10,000 Hz |
| Voice Coil Diameter | 2.5″ (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 10.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 7.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 18.62 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 62.90 Hz |
| Mechanical Factor | Qms | 10.06 |
| Electrical Factor | Qes | 0.25 |
| Total Factor | Qts | 0.25 |
| Cone Area | Sd | 227 cm² |
| Mechanical Mass | Mms | 24.73 g |
| Bl Factor | Bl | 11.29 Tm |
| Dc Resistance | Re | 3.3 Ohm |
| Inductance | Le | 0.047 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 22.79 g |
| Mechanical Compliance | Cms | 0.258 mm/N |
EXTRA INFO

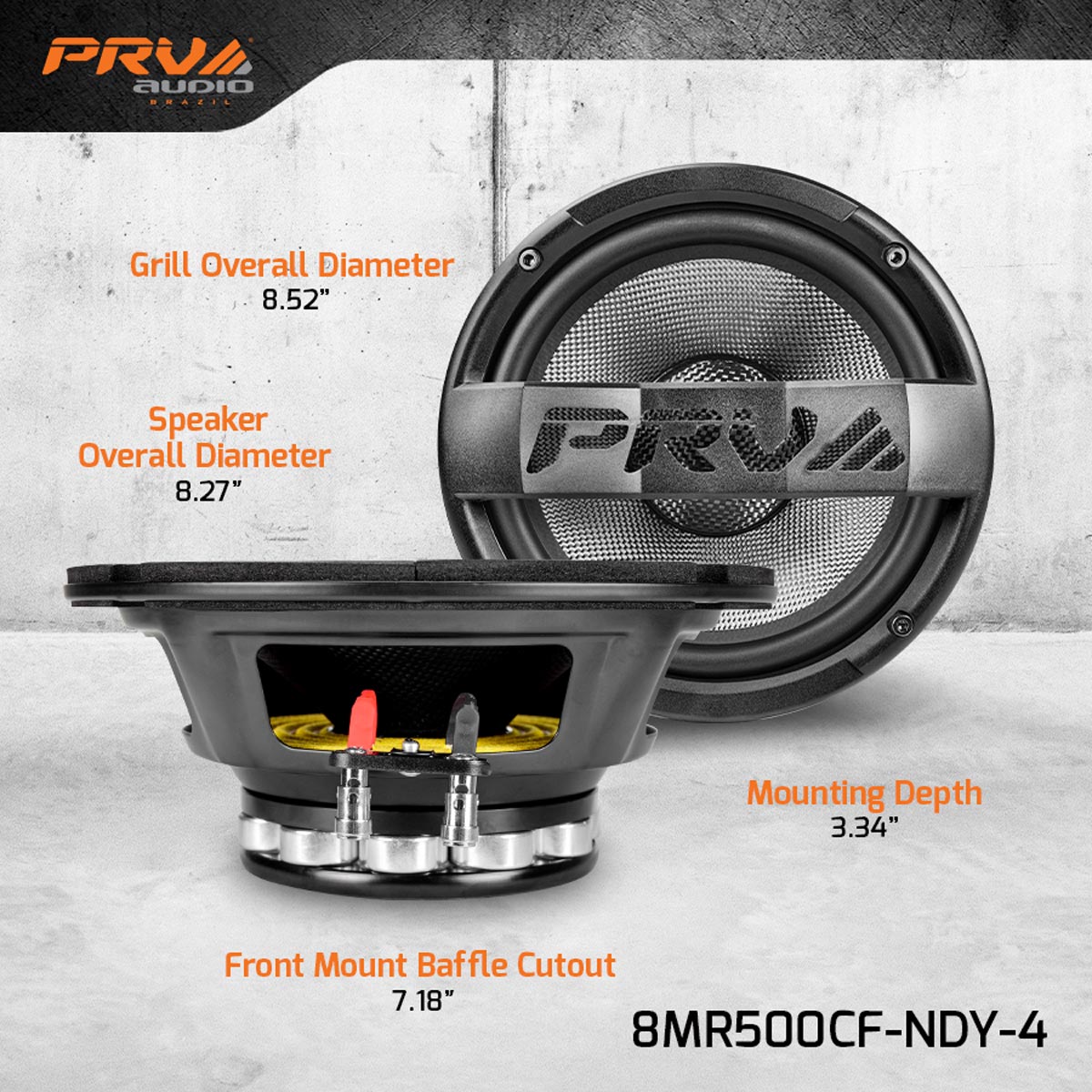

| Overall Diameter | 8.27″ (210 mm) |
| Front Mount Baffle Cutout | 7.18″ (182.5 mm) |
| Mounting Depth | 3.34″ (85 mm) |
| Overall Depth | 3.74″ (95 mm) |
| Net Weight | 4.16 Lbs (1.89 kg) unit |
| Shipping Weight | 10.18 Lbs (4.62 kg) pair |
| Carton Dimensions W x L x H | 18.9″ x 8.86″ x 5.98″ (480 x 225 x 152 mm) |
