2" Throat Bolt on With Spacer Driver 500 Watts 3" Titanium Vc 8-Ohm
2" Throat Bolt on With Spacer Driver 500 Watts 3" Titanium Vc 8-Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
2" Throat Bolt on With Spacer Driver 500 Watts 3" Titaniu...
2" Throat Bolt on With Spacer Driver 500 Watts 3" Titanium Vc 8-Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

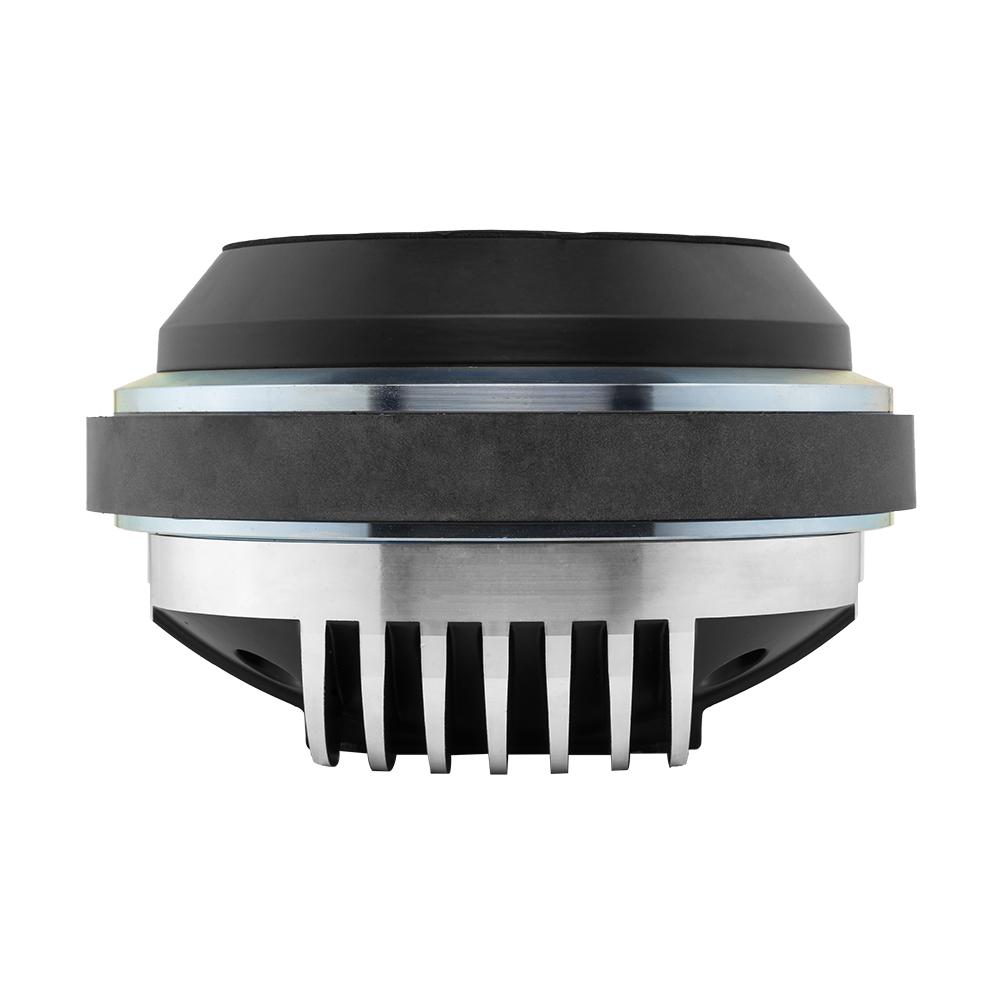

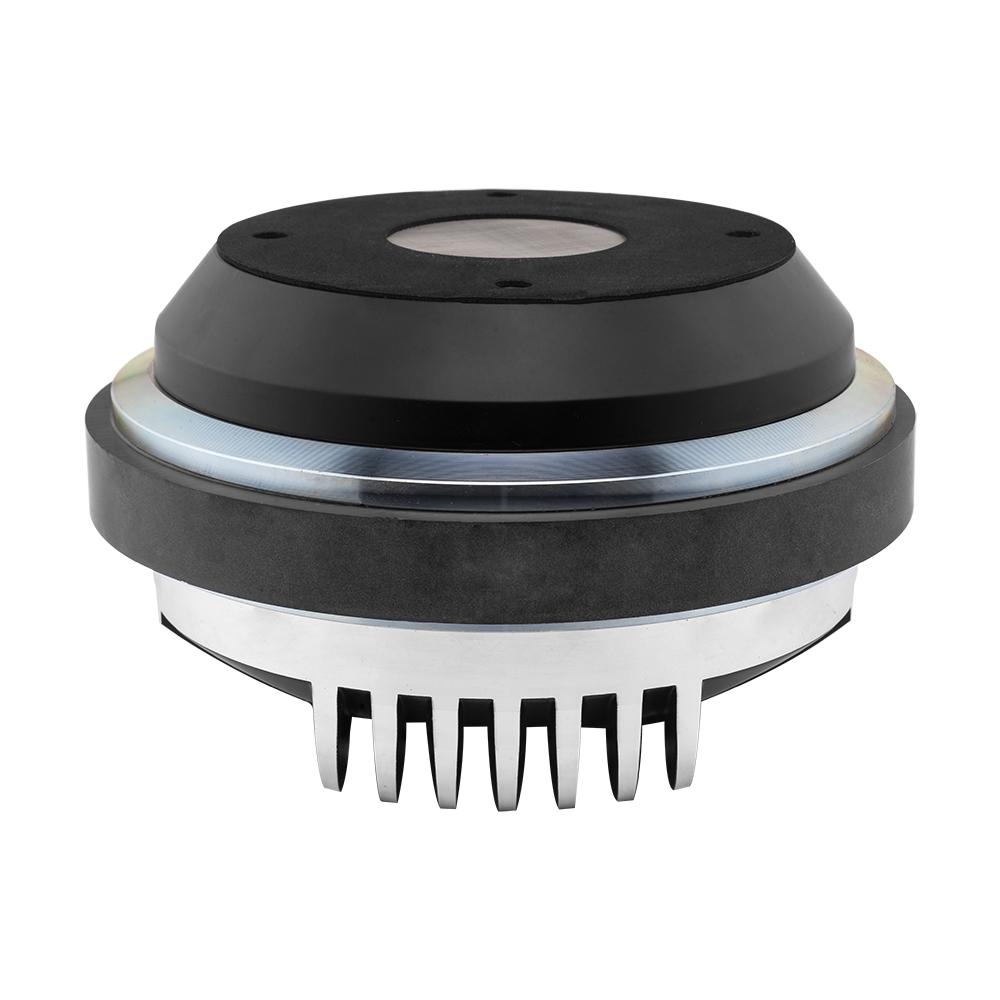

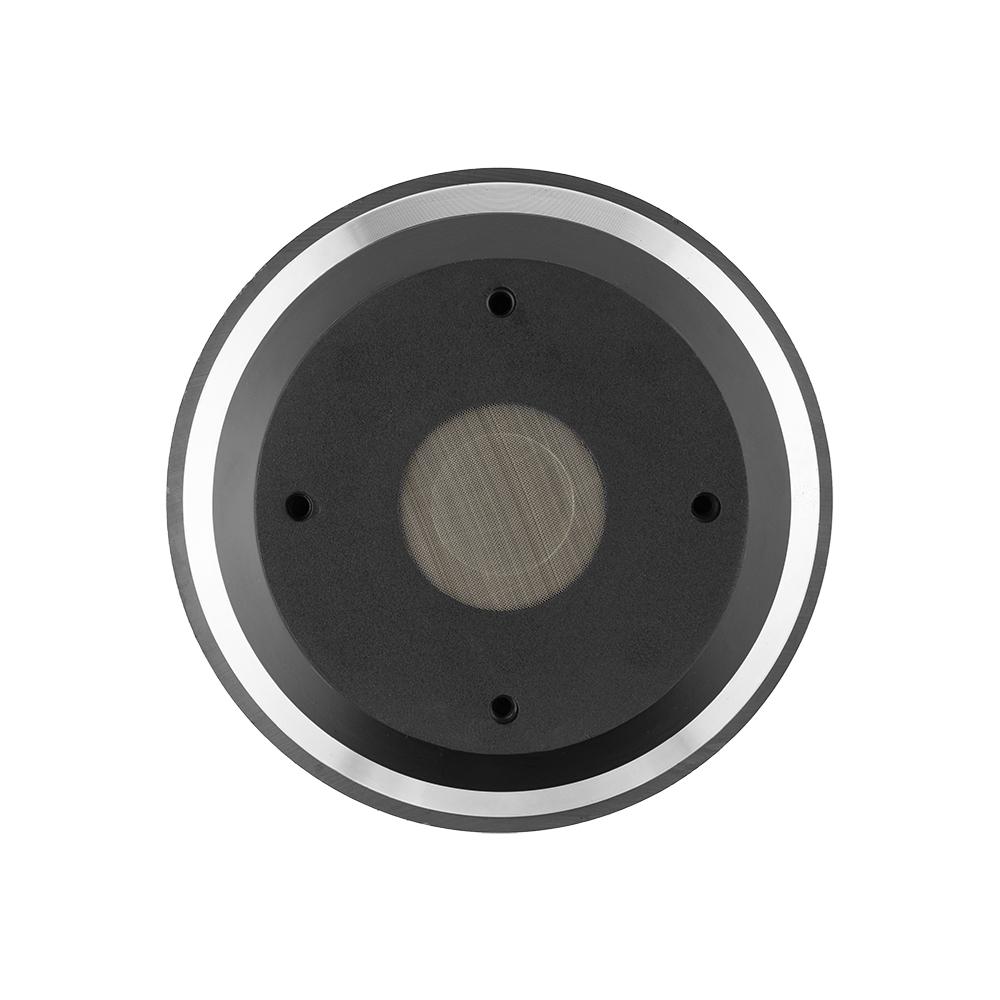

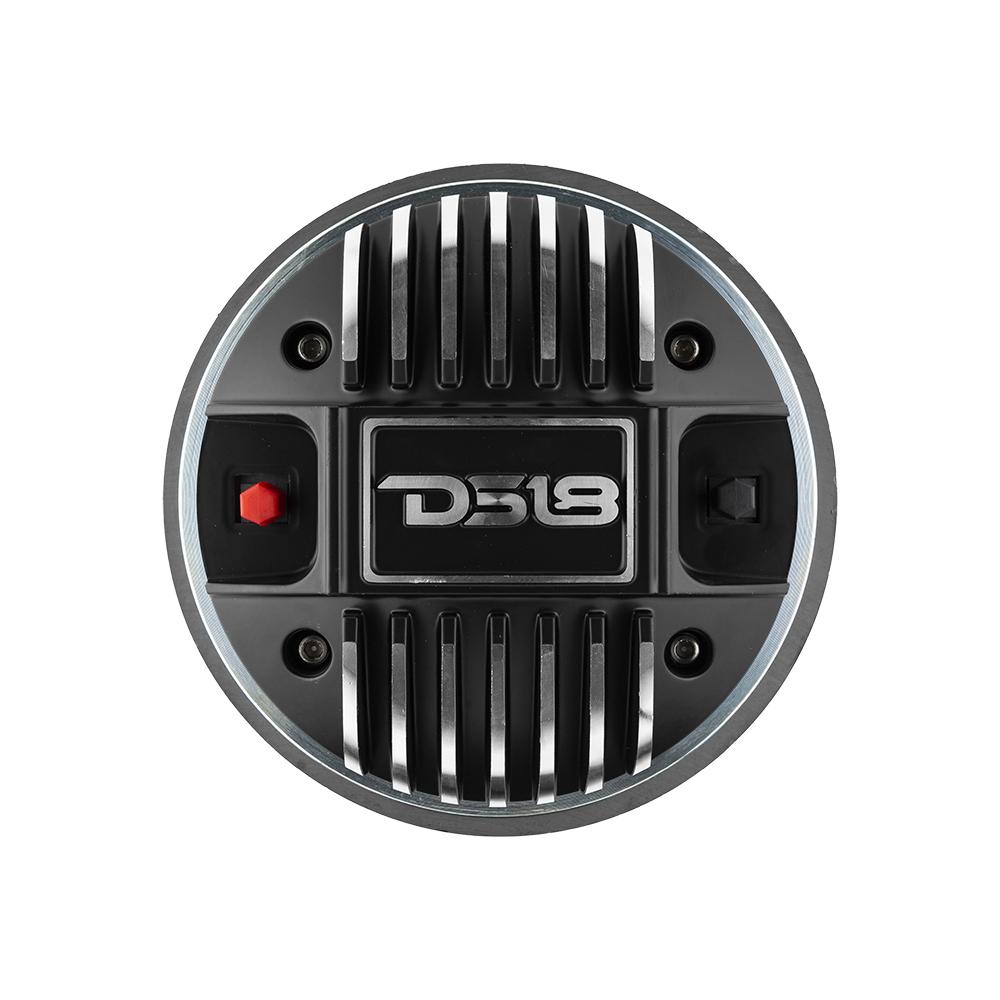

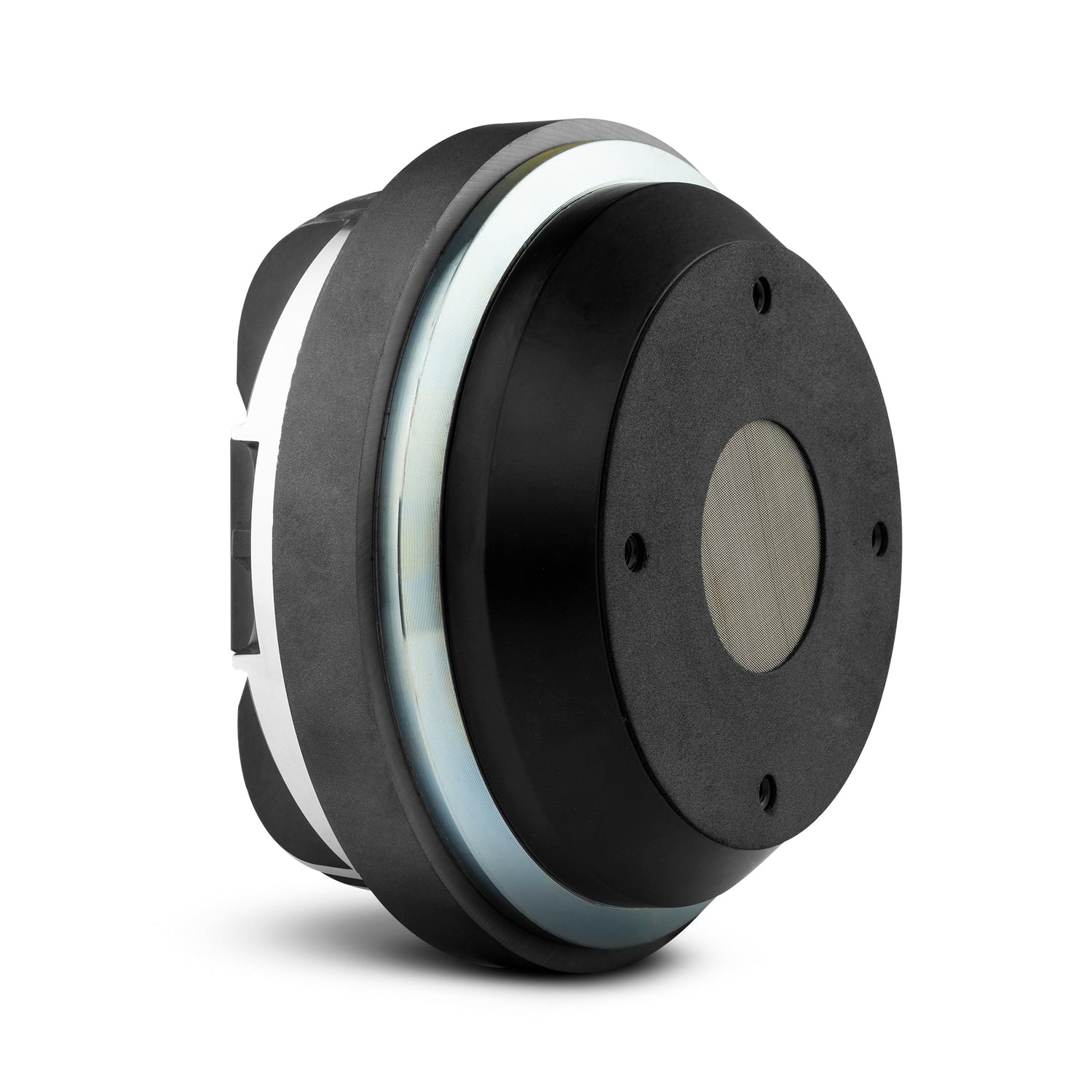

DS18 PRO-D2X 2" Throat Bolt On Compression Driver 3" Titanium VC 1000 Watts 8 ohm with Spacer
Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises!
This driver comes with a large 2 inch voice coil that takes 250 AES and 1000w Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength phenolic voice coil taking 250 AES watts and 1000 peak watts.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.
Technical Details
| SPECIFICATIONS | |
| Throat Diameter | 2” / 50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 250W |
| Program Power Handling | 500W |
| Peak Power Handling | 1000W |
| Sensitivity (1w/1m) | 110 dB |
| Frequency Response | 600Hz-18KHz |
| Recommended Hi Pass Crossover | 900 Hz |
| MOTOR | |
| Voice Coil Diameter | 3” / 76.2mm |
| Voice Coil Former Materia | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Magnet Materia | Ferrite |
| Magnet Weight | 75 Oz |
| Body Material | Aluminum |
| Color | Black | Machined |
| MEASUREMENTS | |
| Overall Diameter | 7.08”/180 mm |
| Overall Depth | 4.25”/ 108 mm |
| Bolt Pattern | Type | 4*M6 | 4.01”/102 mm |
