2.5"High Compression Neodymium Tweeter 100 Watts 1" Pen 4-Ohm Vc
2.5"High Compression Neodymium Tweeter 100 Watts 1" Pen 4-Ohm Vc is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
2.5"High Compression Neodymium Tweeter 100 Watts 1" Pen 4...
2.5"High Compression Neodymium Tweeter 100 Watts 1" Pen 4-Ohm Vc is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

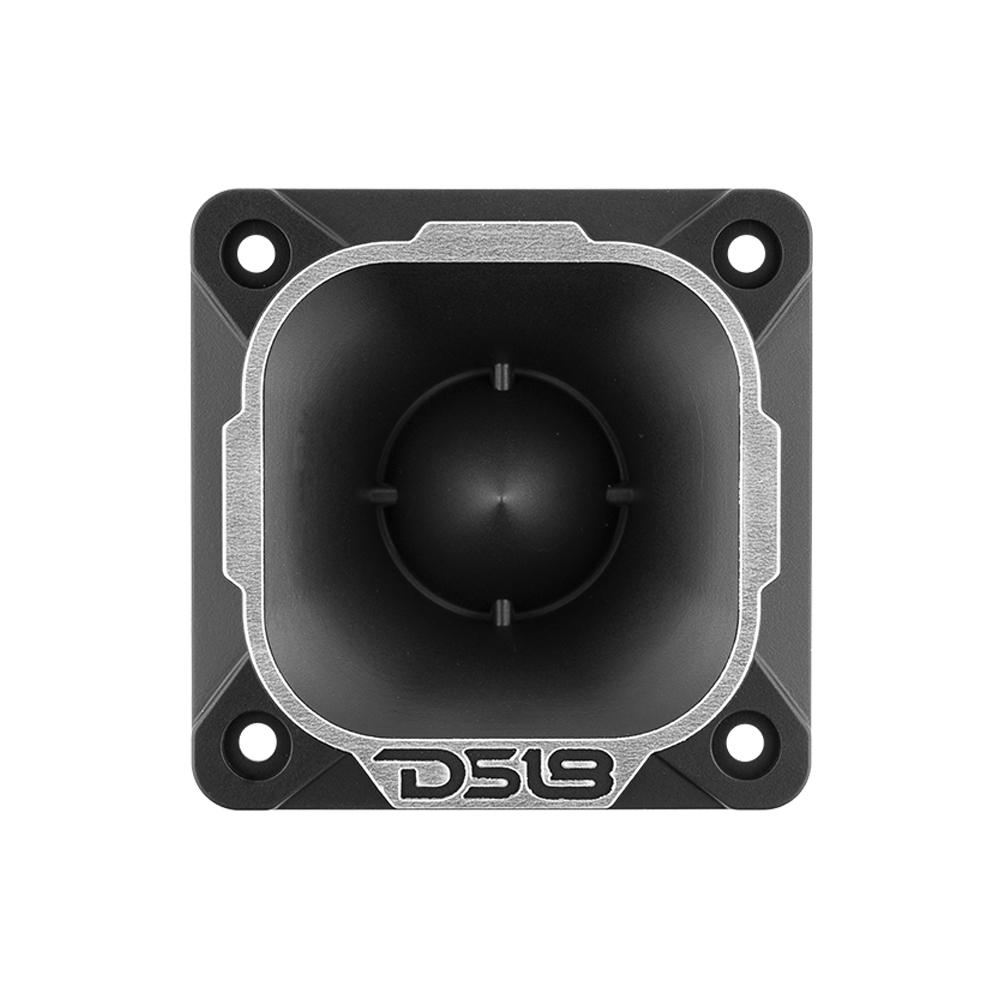

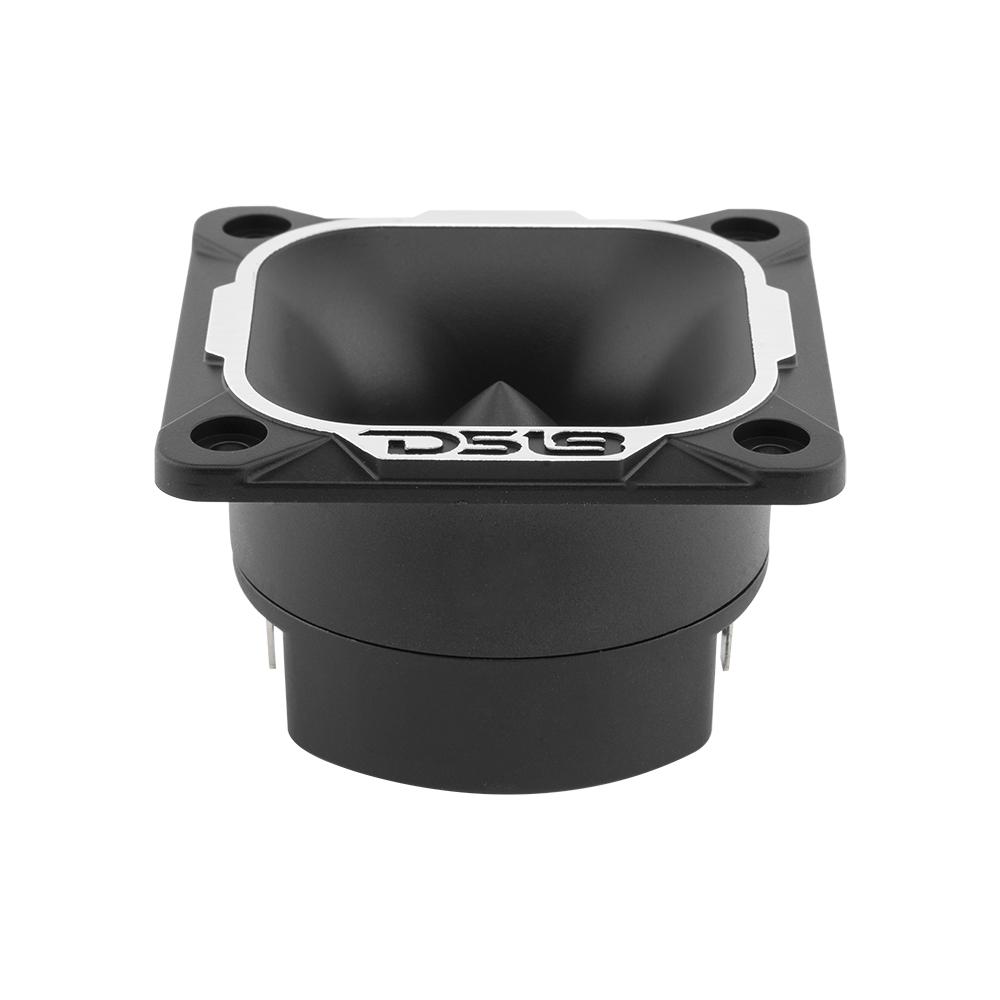

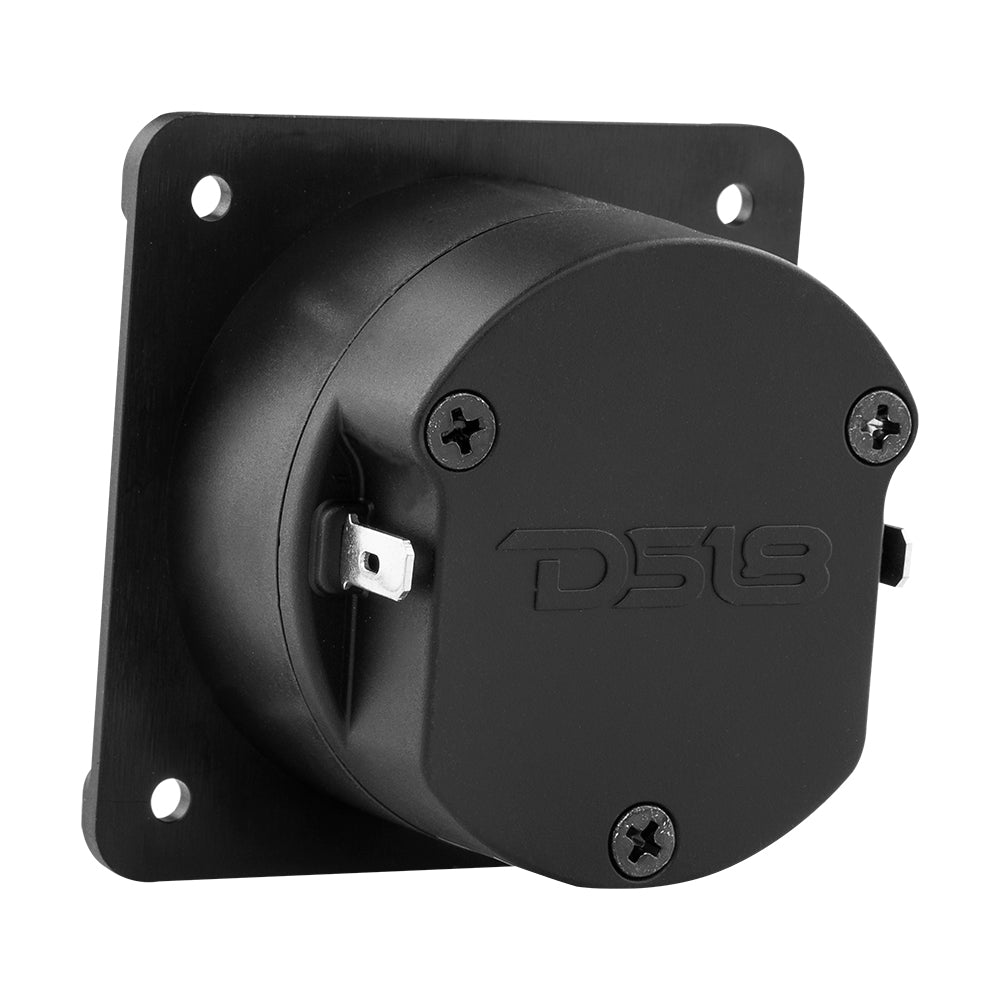

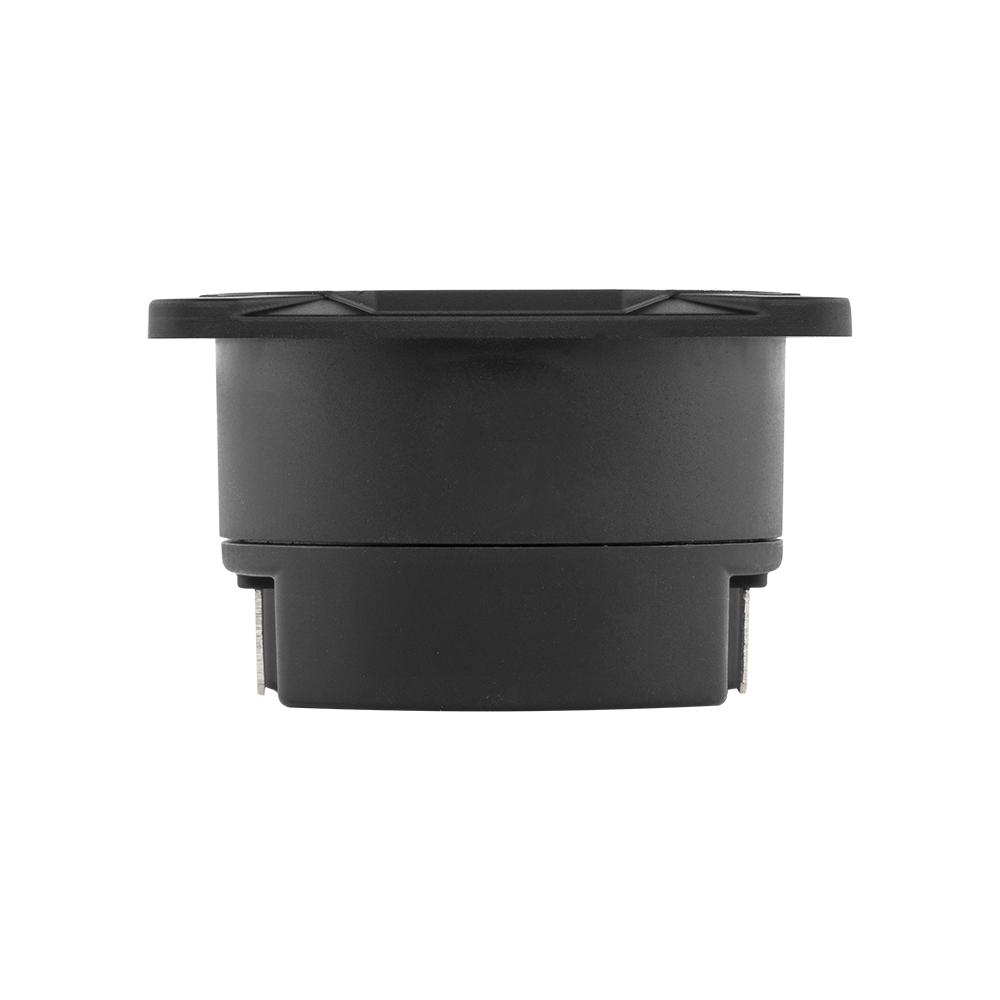

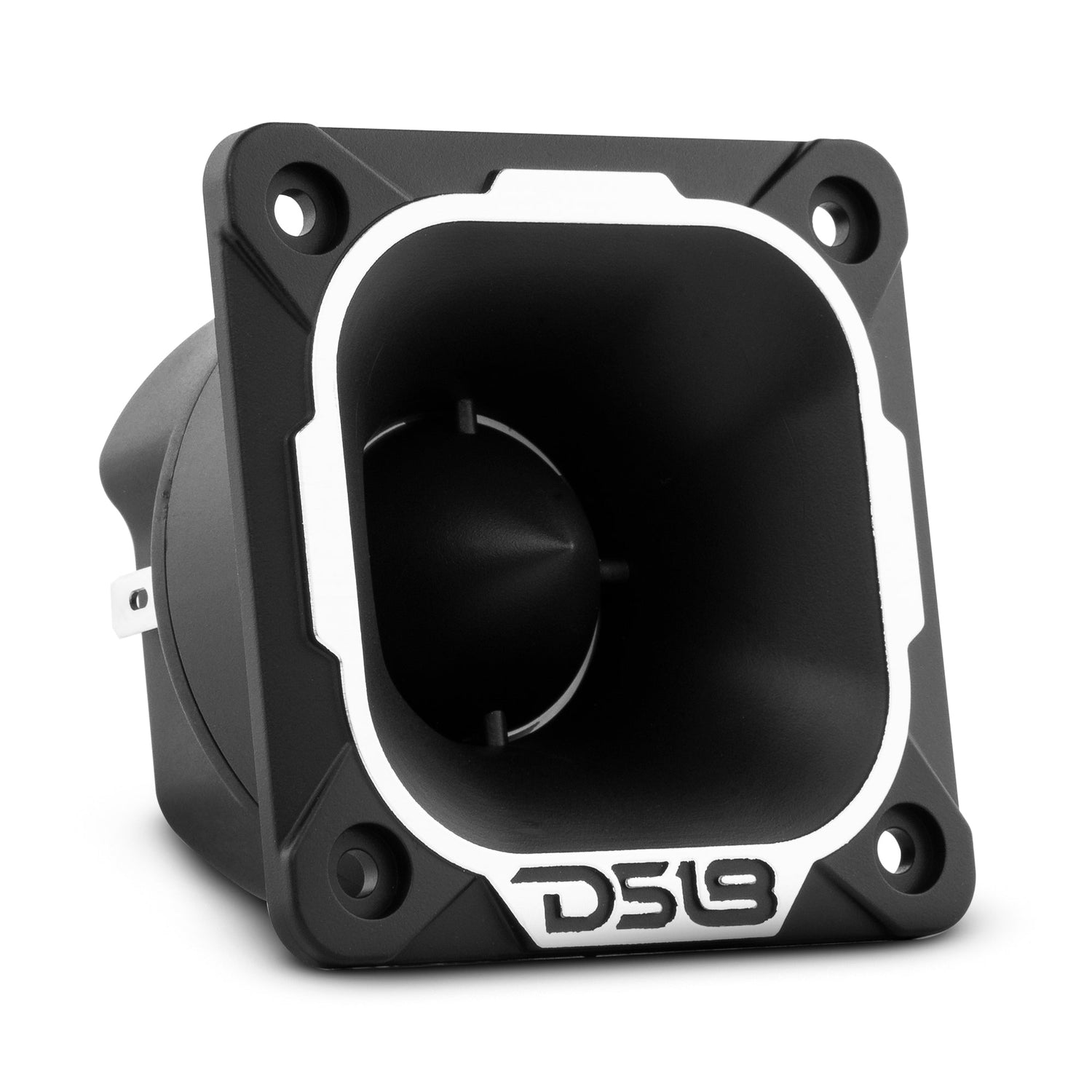

DS18 PRO-TWN3 2.5"High Compression Neodymium Tweeter 200 Watts 1" Vc
Amazing option for those wanting competition level tweeters that not only sound great, but have that intense volume that DS18's super tweeters are known around the world for.
This PRO-TWN3 super tweeter maximizes and emphasizes volume over all with high power and high frequency notes. The square design gives it a unique look that demands attention and you can also tightly mount them side by side for a complete wall of outstanding highs for your system. This 2.5 inch tweeter can handle 50w AES and 200w peak power so it will be sure to deliver all the high range frequencies you are looking for.
Highlights
- 2.5 inch tweeter design is made to bring crisp and bright high frequencies to maximum loudness for your system.
- Small design makes it easy to mount and even easier to pair together for great looks and easy installations.
- Power rating of 50w AES and 200 peak which will allow the high frequencies to play with authority.
Technical Details
| Nominal Diameter | 2.5” / 63 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 50W |
| Program Power Handling | 100W |
| Peak Program Handling | 200W |
| Sensitivity (1w/1m) | 107dB |
| Frequency Response | 1.6KHz-20KHz |
| Recommended Hi Pass Crossover | 2 KHz |
| Pair or Single | Single |
| Filter Included | Yes, 2.2 uf |
| MOTOR | |
| Voice Coil Diameter | 1” / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Magnet Weight | 0.57 |
| Body Material | PC |

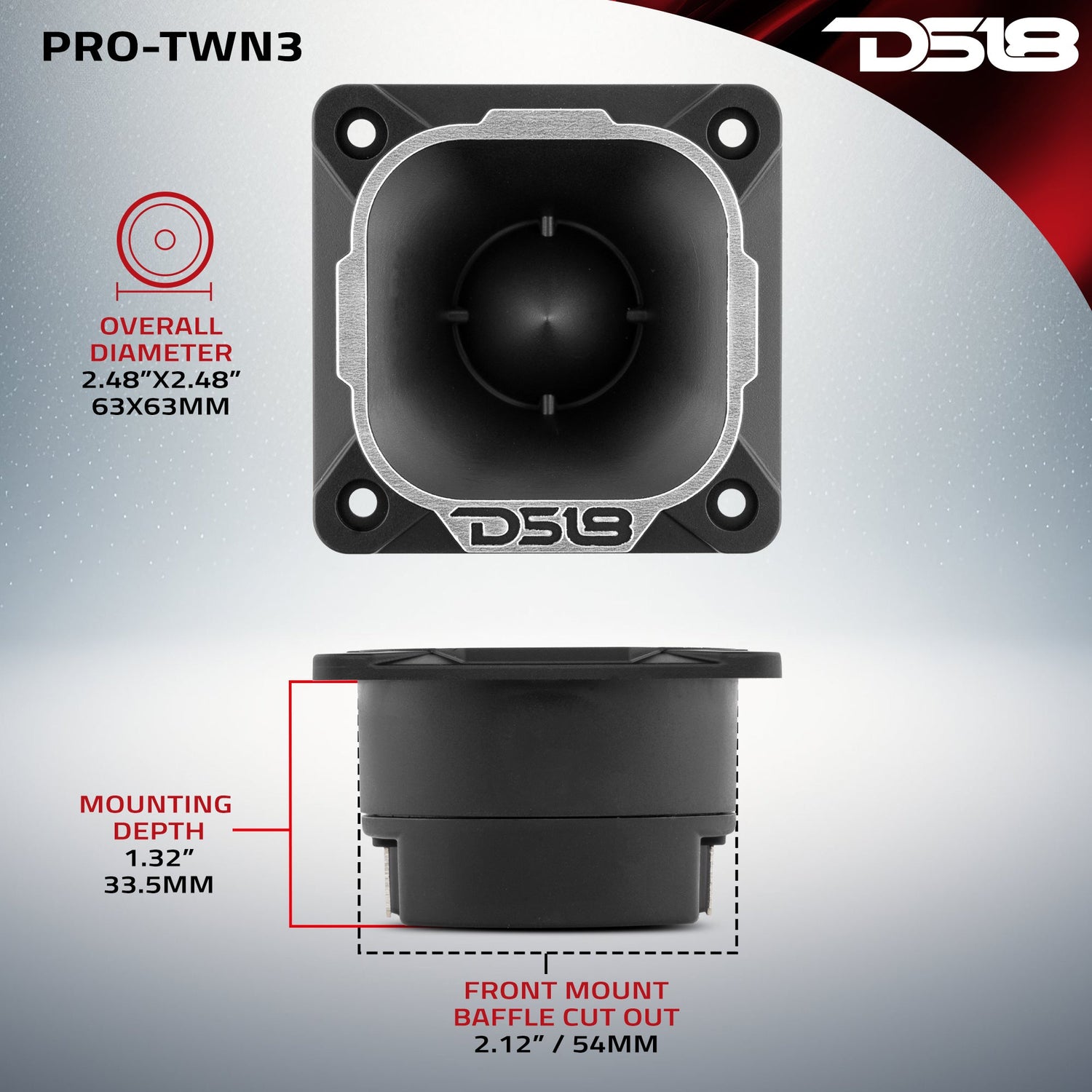

| MEASUREMENTS | |
| Overall Diameter | 2.48x2.48" / 63x63 mm |
| Overall Depth | 1.49" / 37.8 mm |
| Front Mount Baffle Cutout | 2.12" / 54 mm |
| Mounting Depth | 1.32" / 33.5 mm |
