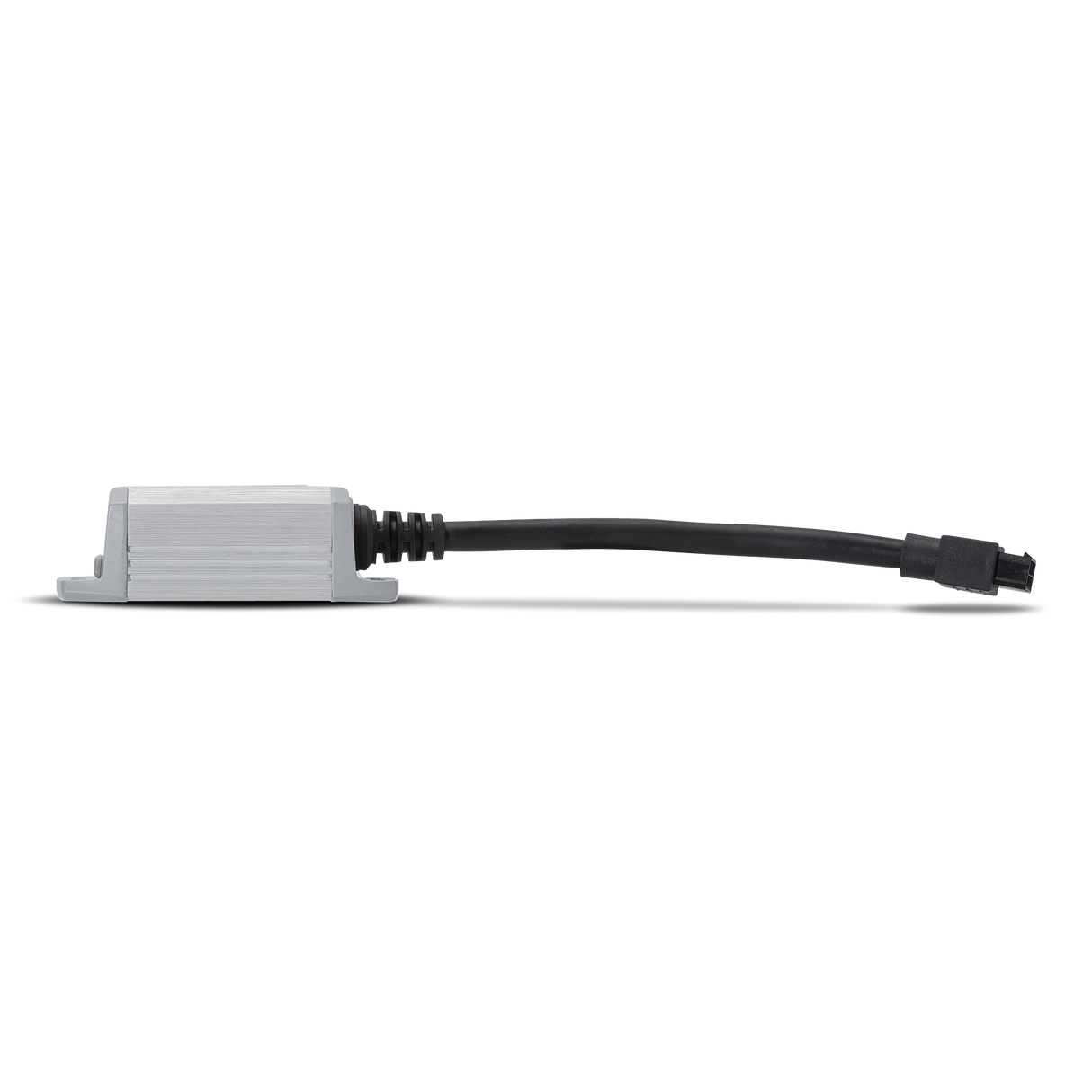

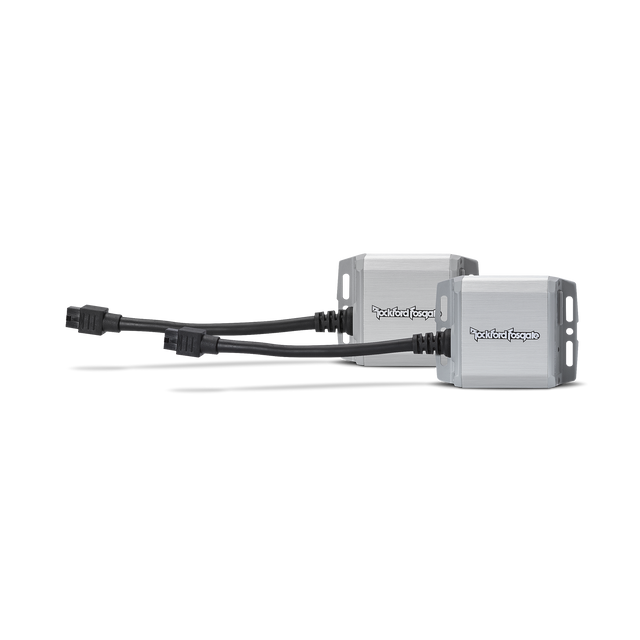

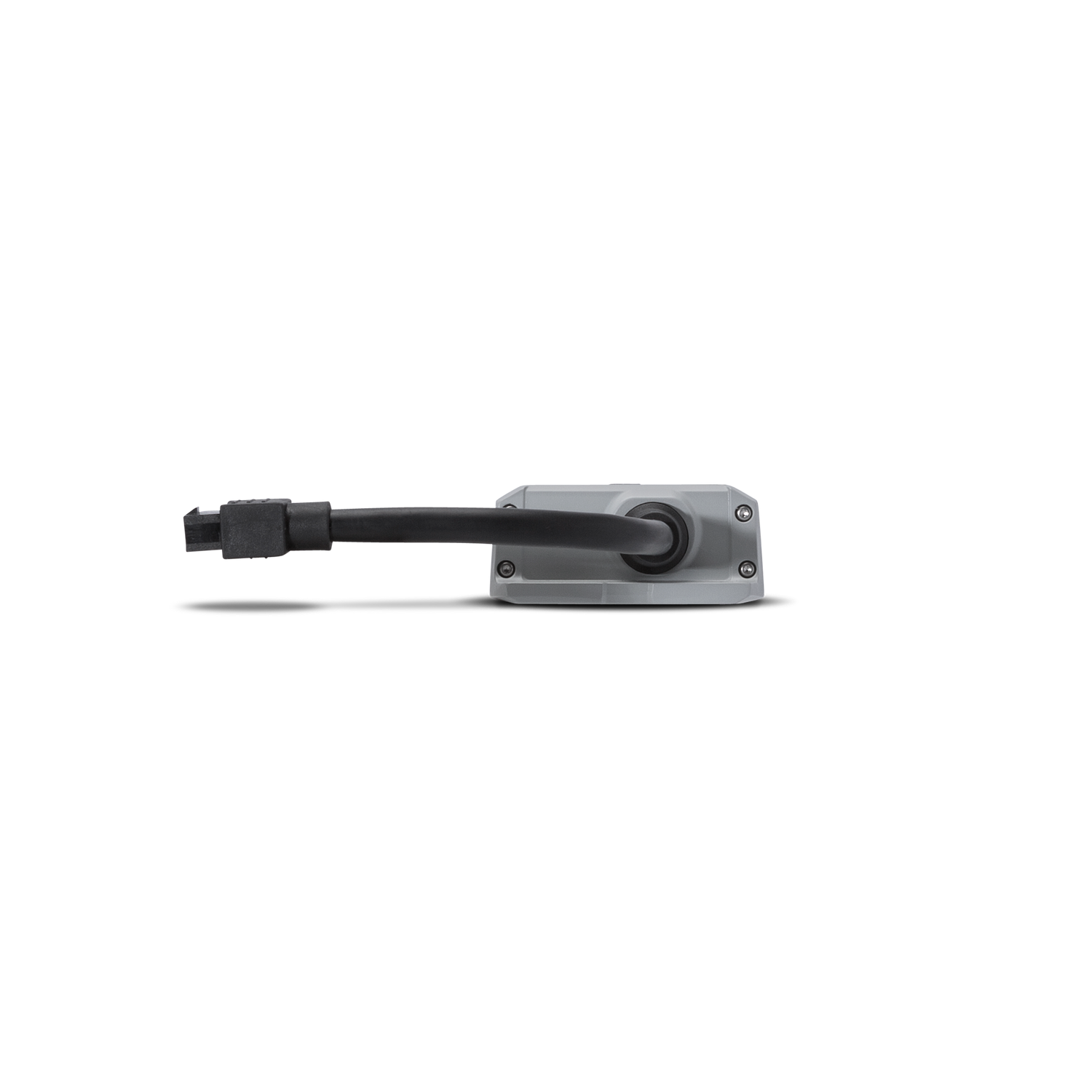

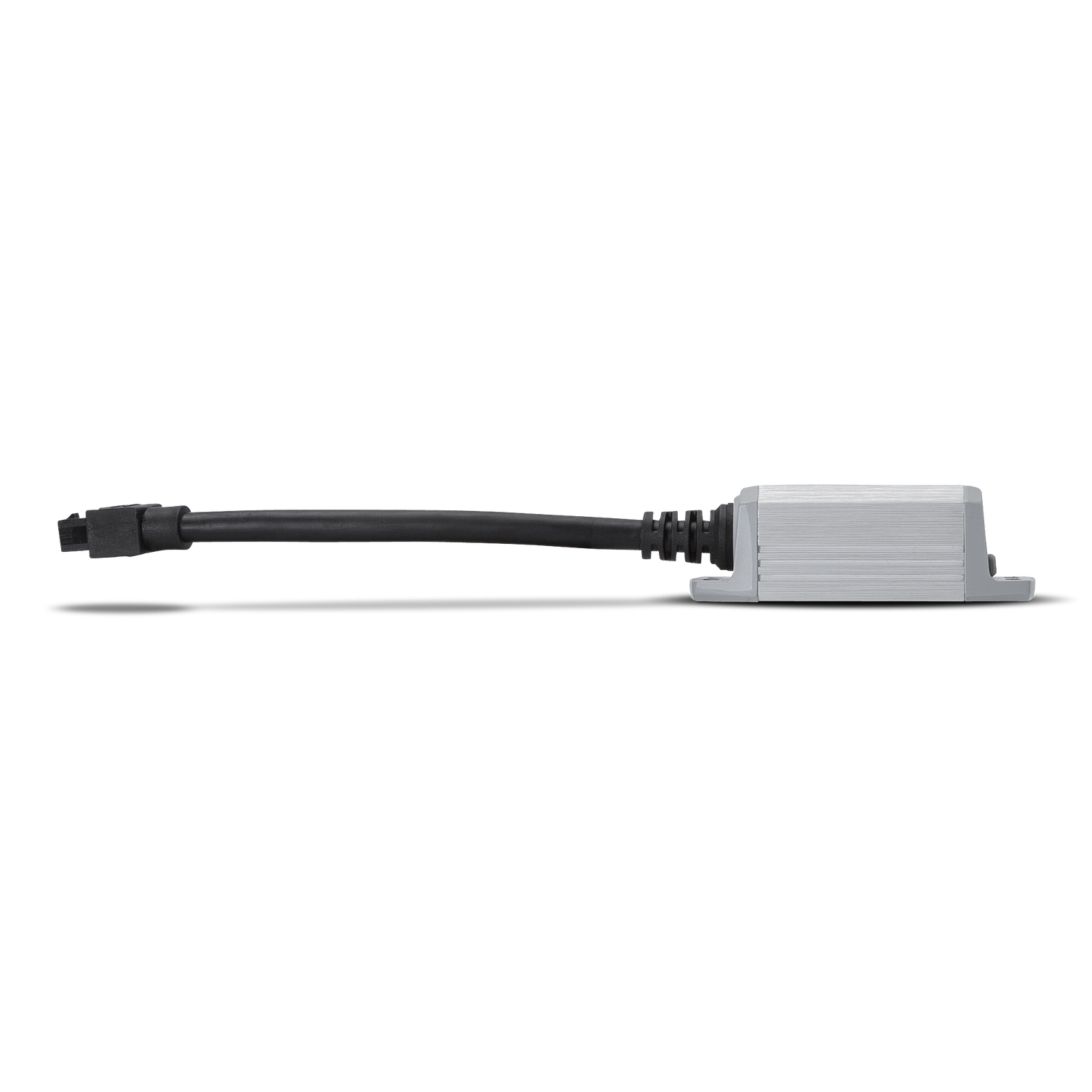

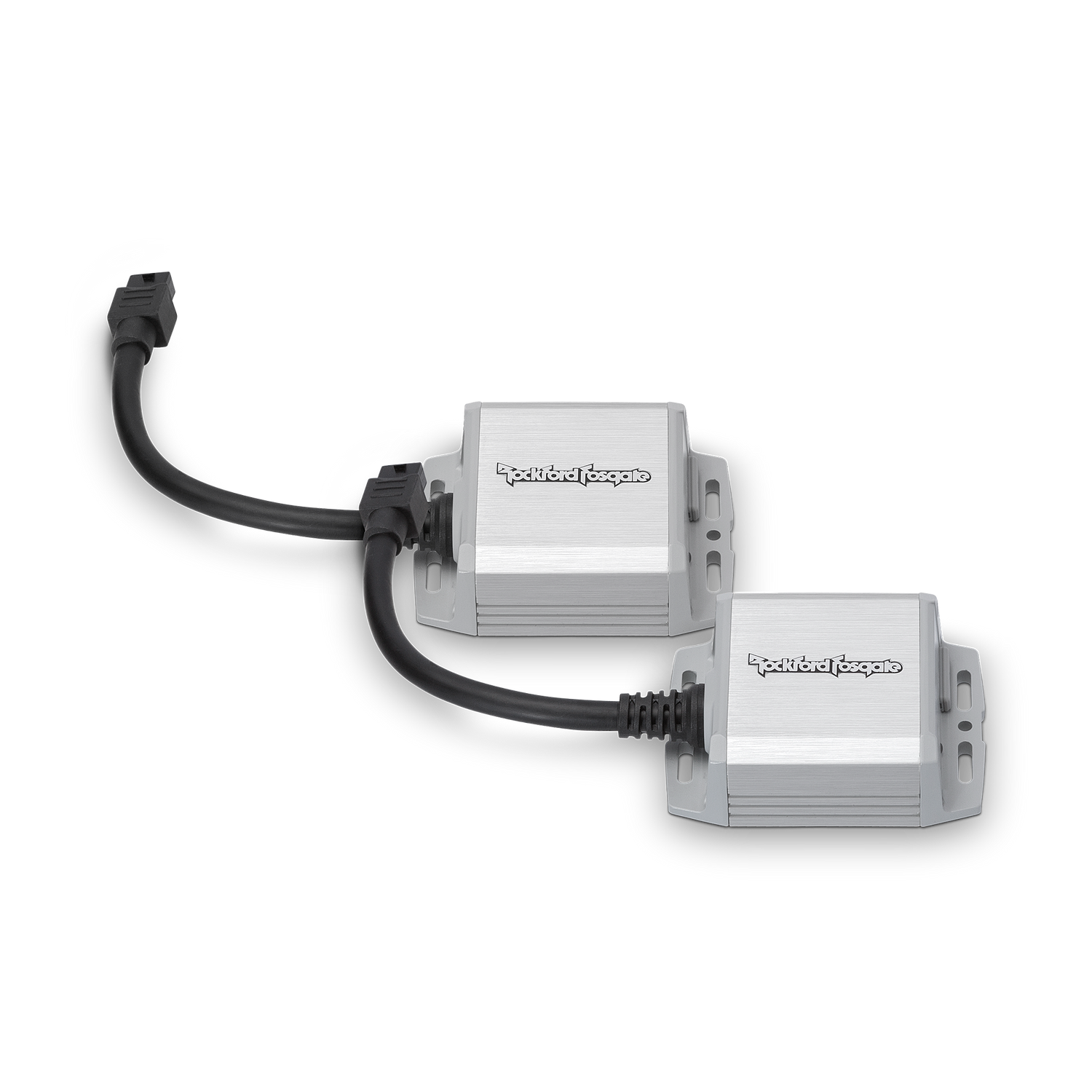

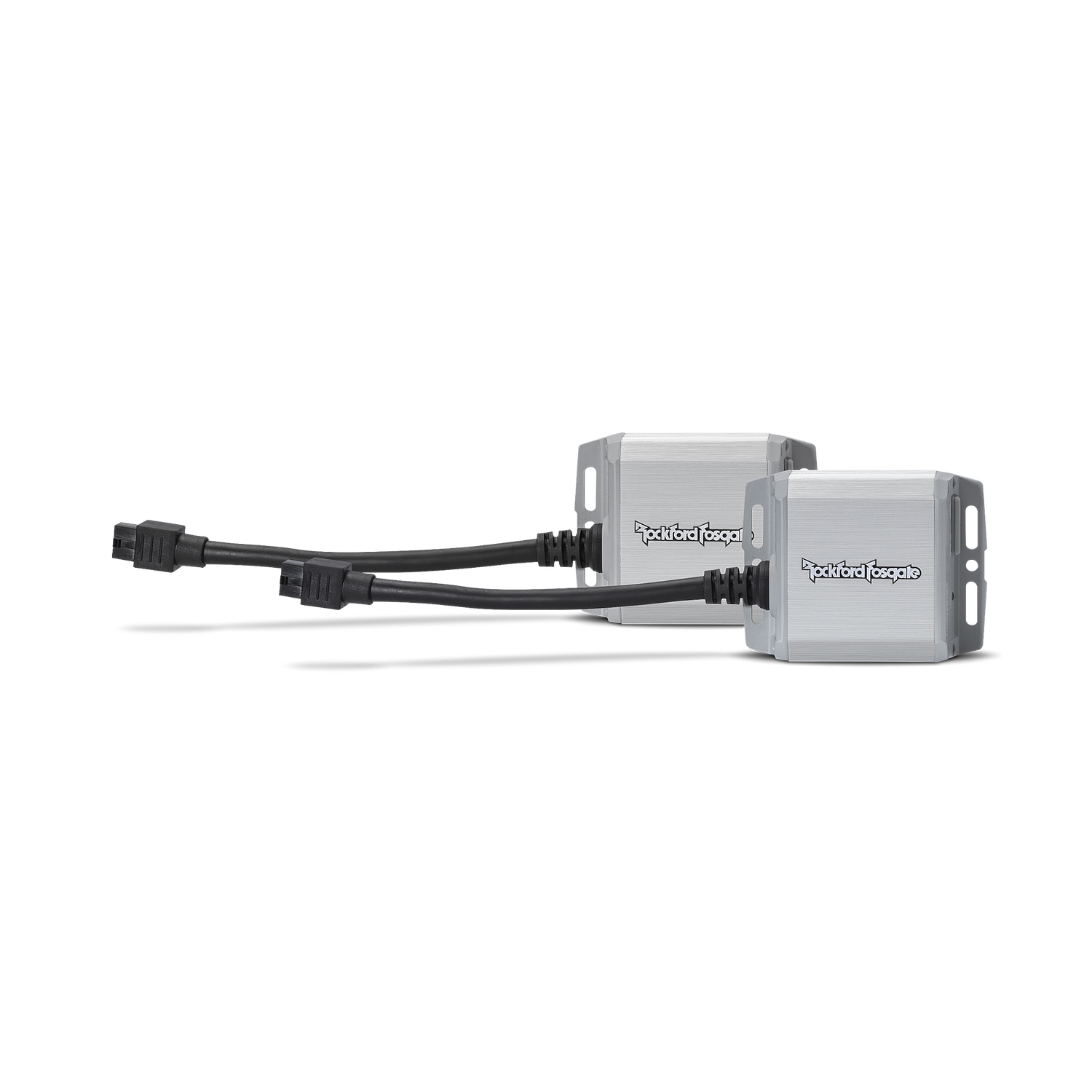

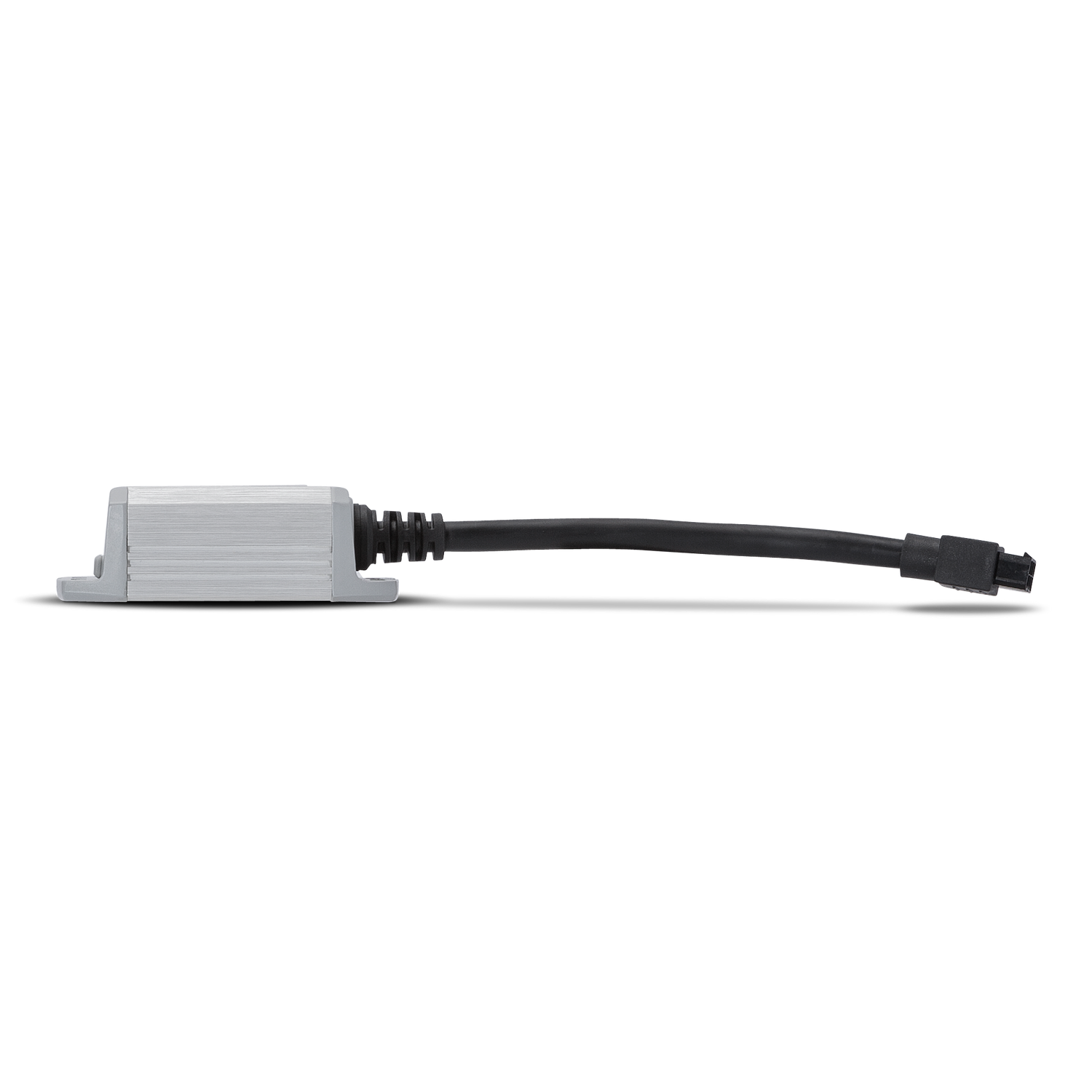

Punch Marine 100 Watt Full-Range Mono Amplifier (pair)
Punch Marine 100 Watt Full-Range Mono Amplifier (pair) is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Punch Marine 100 Watt Full-Range Mono Amplifier (pair)
Punch Marine 100 Watt Full-Range Mono Amplifier (pair) is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Initially, it uses the DC offset voltage for its turn on power as well as primary amplification power. As volume is increased and the output power demand rises, the amplifier begins sharing the power load between the DC and AC signals. Once high volume is reached, the majority of the amplifier's power is provided from the AC signal only and is supplemented by its internal storage bank.

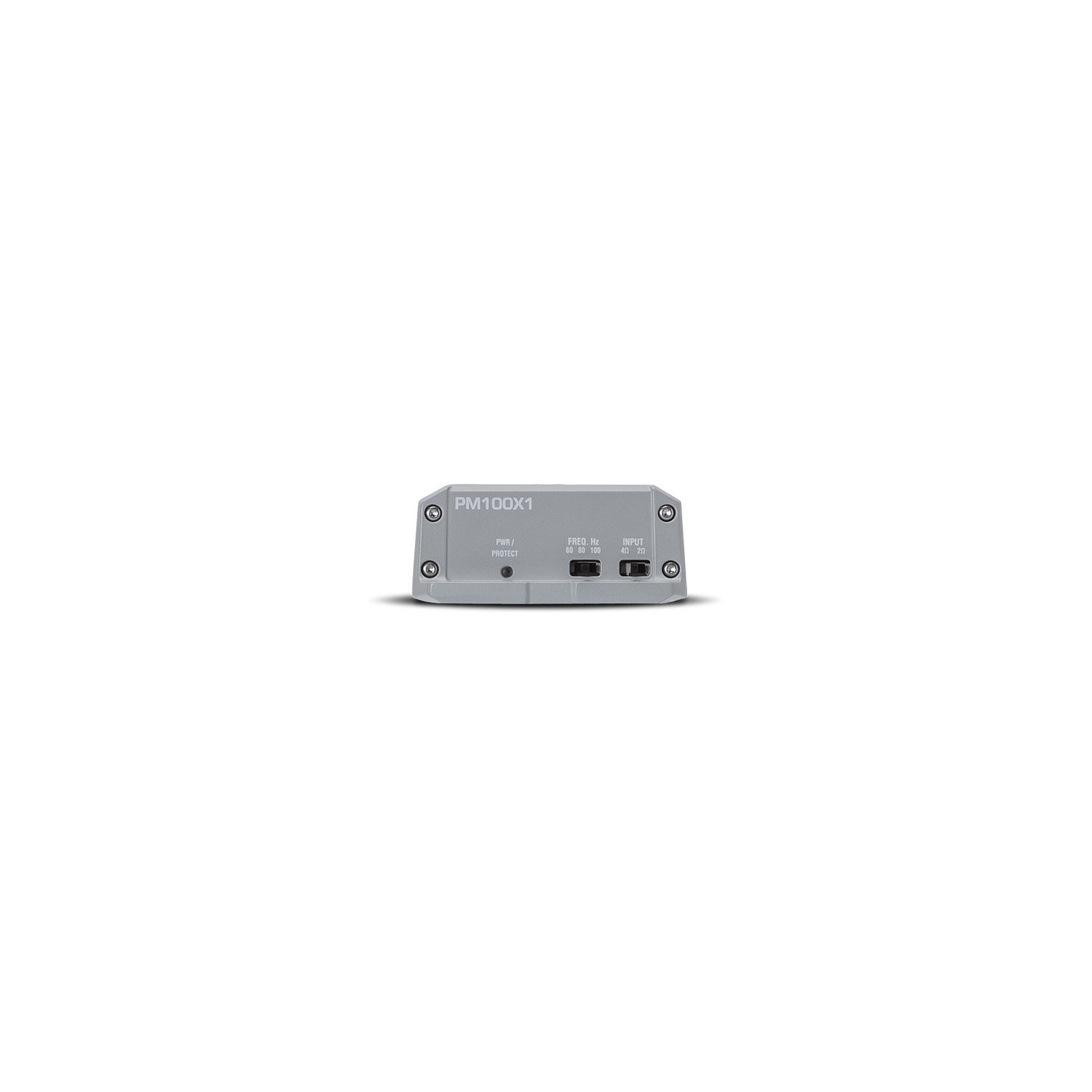

This design allows it to actually charge its capacitive bank on the downside of the AC signal wave which is essentially unused power anyway. It also presents no more load to the radio than a standard 2 or 4 ohm speaker would thus keeping the radio amplifier circuit safe from low impedance conditions. This design allows the amplifier to be connected to a radio with a rated 20 watt output and produce up to 100 watts dynamically. The unit also features a 2/ 4 ohm input switch to match the amplifier to the output impedance rating of the radio circuit. For speaker protection, we incorporate and selectable high pass crossover with setting at 60, 80 and 100Hz.
In rare cases there is not enough DC voltage present to power the amp at turn on so an add on B+ wire is included and can be tied to other lower current circuits in its proximity. This design makes the amplifier ideal for OEM or aftermarket upgrades without having to use physically larger amplifiers as they can be hidden in the dash or doors of the vehicle. It is also IPX6 rated for those installs where moisture may be present.
