Metra AXDIS-FD1 Data Interface with SWC Ford 2006-2022

The Metra Axxess AXDIS-FD1 is a vehicle-specific radio replacement data interface designed for select Ford vehicles from 2006 to 2022. This interface enables seamless integration of an aftermarket head unit while retaining critical factory features such as steering wheel controls, retained accessory power, factory warning chimes, and balance and fade control. It also provides essential navigation-related outputs required by modern multimedia receivers. Engineered for reliability and broad compatibility, the AXDIS-FD1 is well suited for professional installers and experienced enthusiasts looking for OEM-level functionality retention during a radio upgrade.

KEY BENEFITS

• Retains factory steering wheel audio controls when used with a compatible SWC input
• Preserves retained accessory power (R.A.P.) for proper ignition and radio shutdown behavior
• Maintains factory warning chimes for OEM-style alerts and notifications
• Provides navigation outputs including parking brake, reverse, and vehicle speed sense signals
• Supplies a 12-volt accessory output rated at 10 amps to power aftermarket head units
• Retains factory balance and fade functionality for consistent sound staging
• Micro-USB update port allows firmware updates to maintain compatibility with newer radios
• Vehicle-specific design minimizes wiring modifications and installation time

TECHNICAL SPECIFICATIONS

• Power Handling: 12 V accessory output, 10 A
• Interface Type: Data interface with steering wheel control retention
• Vehicle Compatibility: Select Ford models 2006–2022
• Factory System Type: Non-amplified and select amplified systems (application-dependent)
• Retained Features: Steering wheel controls, retained accessory power, warning chimes, balance & fade
• Navigation Outputs: Parking brake, reverse signal, vehicle speed sense
• Update Method: Micro-USB firmware update port

INSTALLATION & COMPATIBILITY

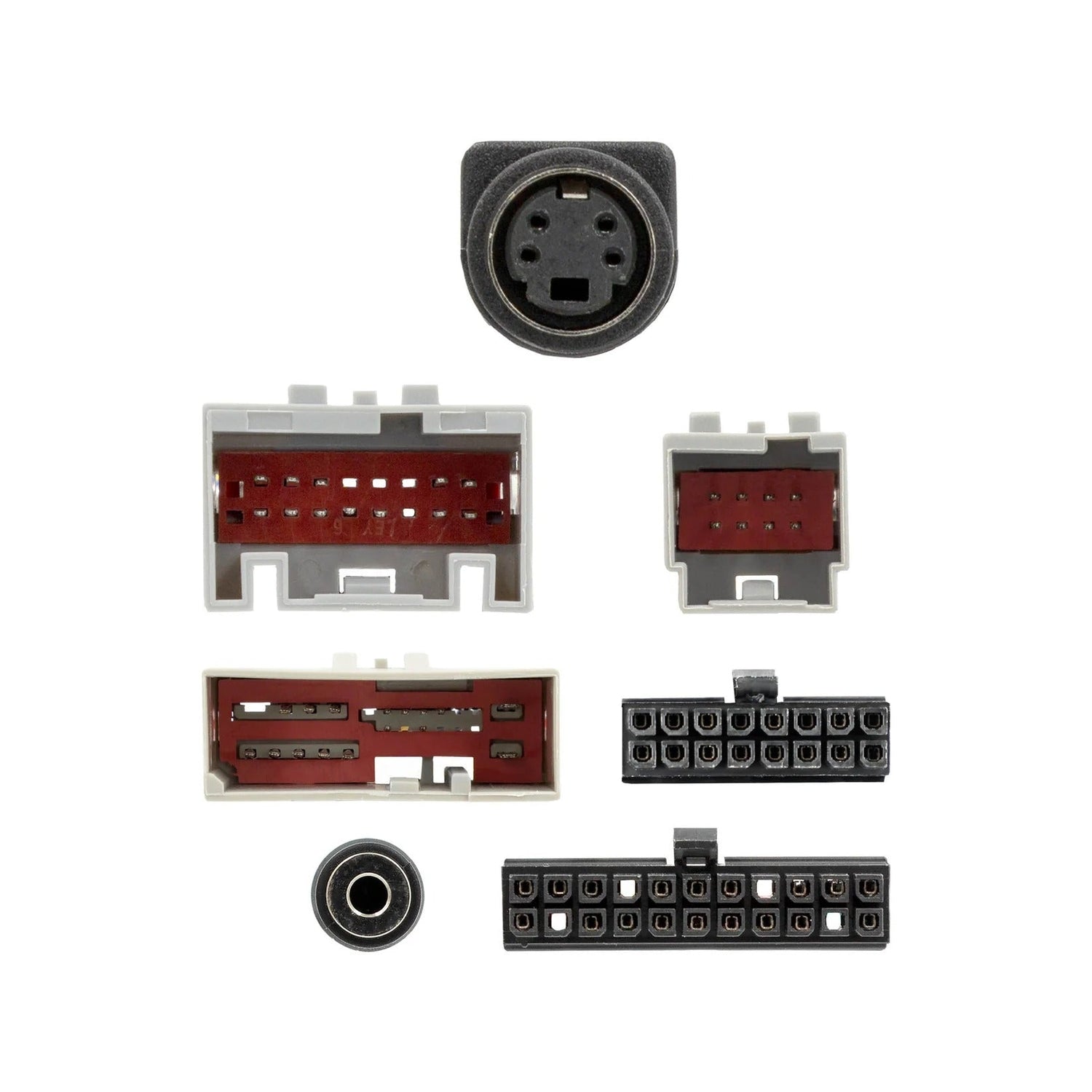

The AXDIS-FD1 installs inline between the factory wiring harness and the aftermarket radio, allowing full data communication without cutting factory wiring. It is compatible with a wide range of Ford vehicles across multiple generations, though exact feature retention may vary by model and trim level. The interface works with most aftermarket head units that accept external steering wheel control inputs. Adequate dash space is required for the module, and professional installation is recommended to ensure proper data initialization and SWC programming.

FAQS

• What does the AXDIS-FD1 interface do?
  AXDIS-FD1 allows aftermarket radios to be installed in select Ford vehicles while maintaining data-controlled functions like retained accessory power and warning chimes.
• How is AXDIS-FD1 different from basic wiring harnesses?
  Unlike analog harnesses, AXDIS-FD1 communicates with the vehicle’s data network, reducing wiring errors and preventing power or functionality issues.
• Does AXDIS-FD1 support steering wheel controls?
  Yes, when paired with compatible modules or radios, it helps retain steering wheel audio controls for safer and more convenient driving.
• Is AXDIS-FD1 recommended for DIY installs?
  Experienced DIY installers can use it, but professional installation ensures all data features are retained and the system works as intended.
