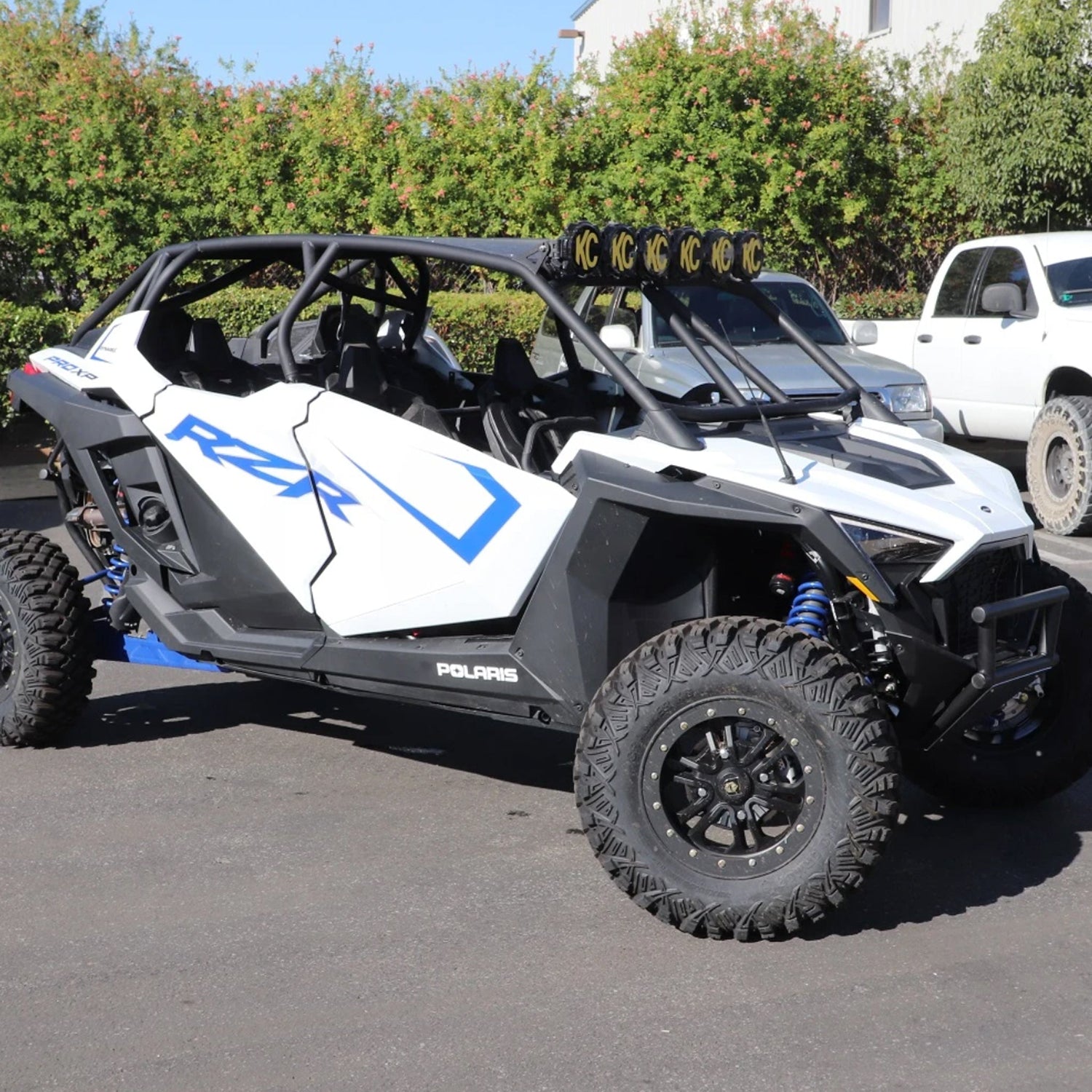

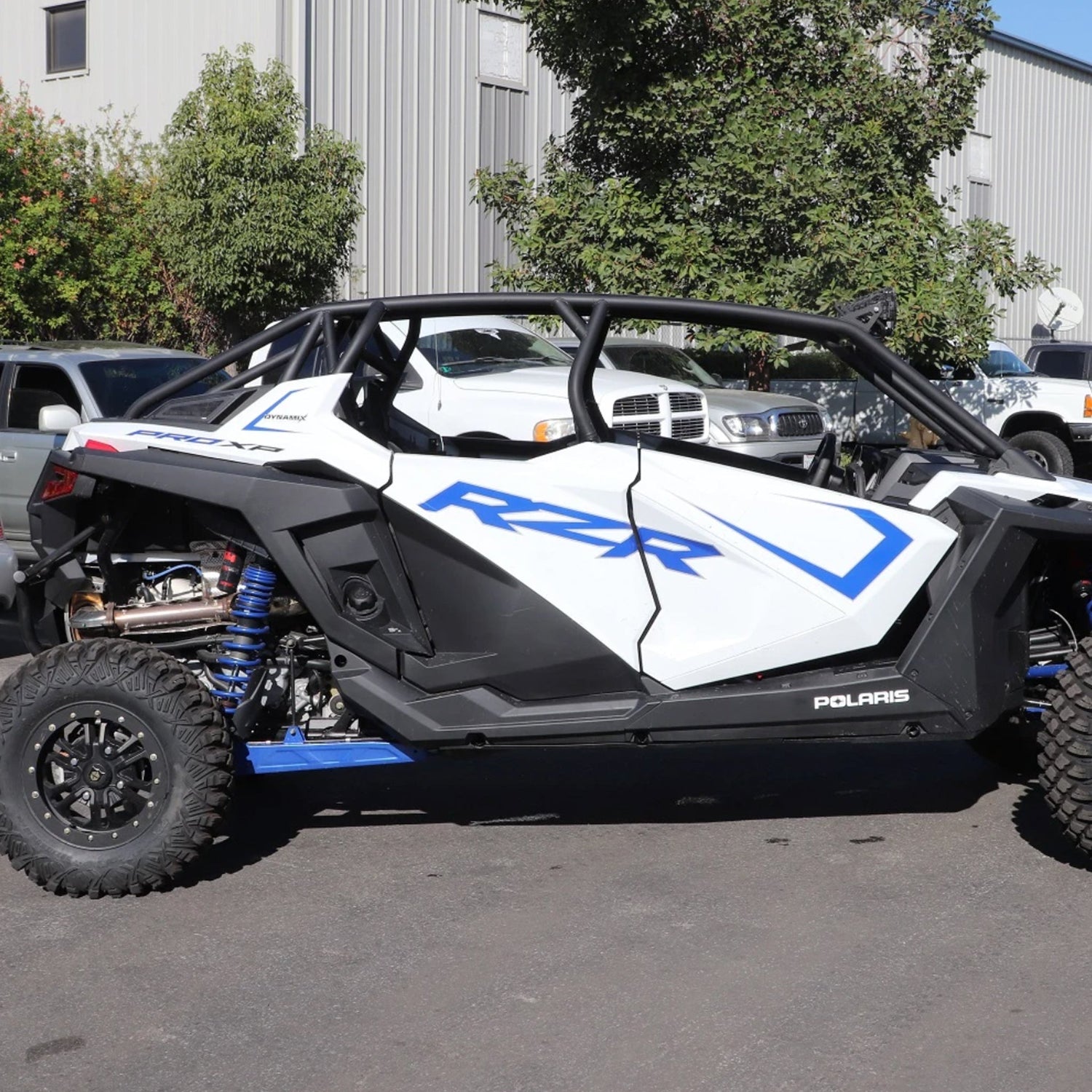

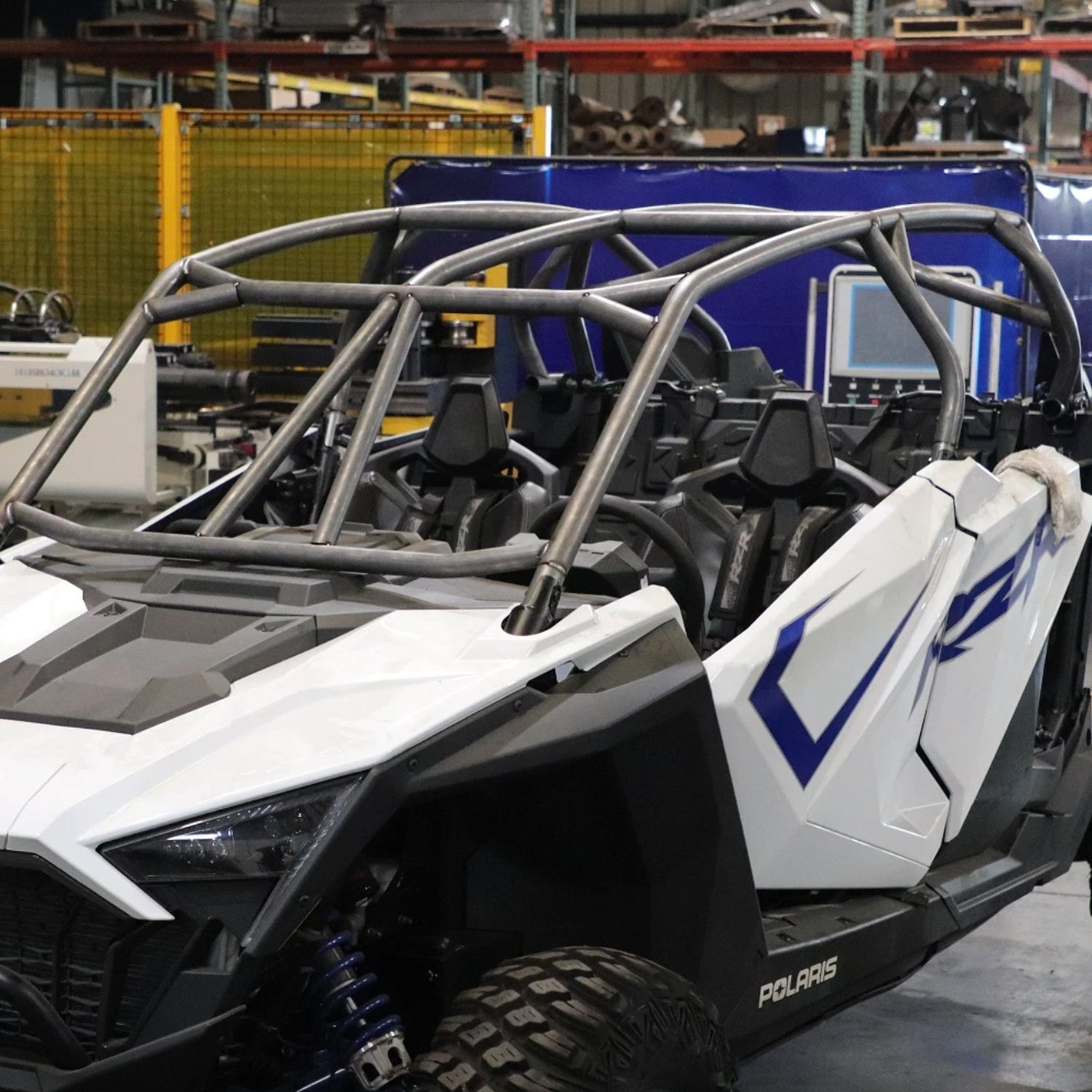

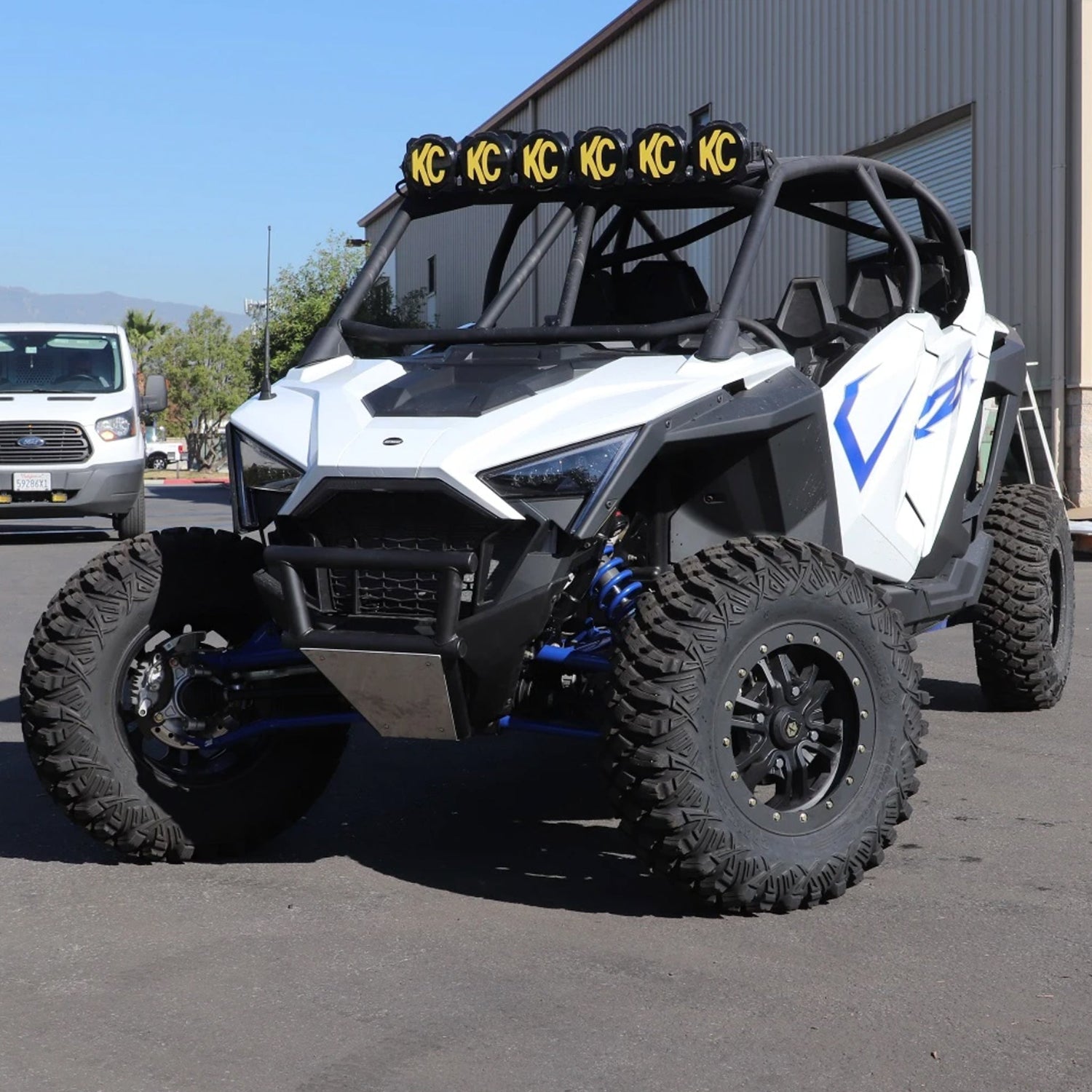

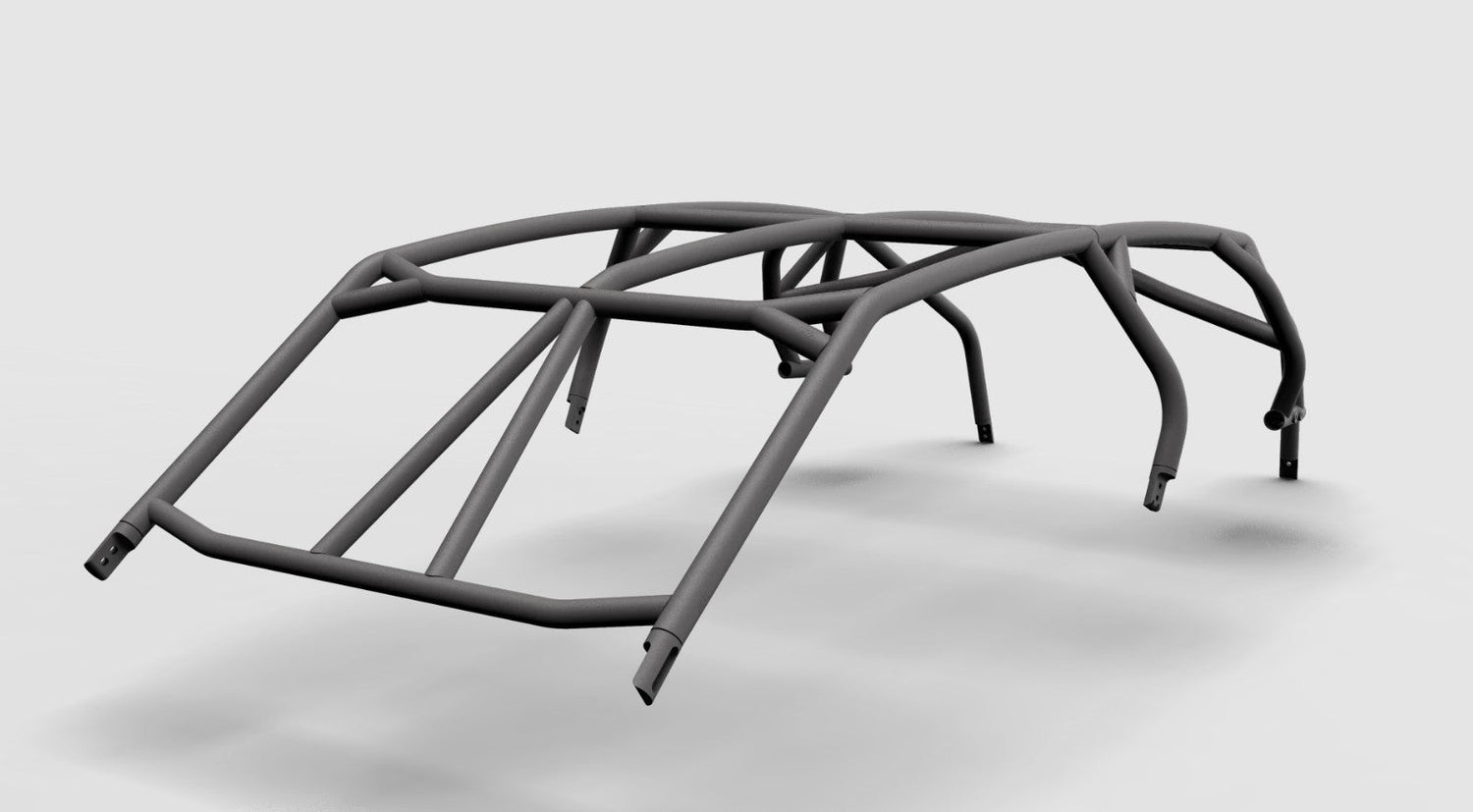

LSK RZR Pro XP 4-Seat Radius Cage Kit

Introducing The Weld It Yourself Cage Kit For The RZR PRO XP 4 Seater! This Cage Is Built With .120 Wall DOM Main Tubes And .095" DOM Support Tubing That Can Be Either MIG or TIG Welded Without The Use Of A Specialized Fixture - Just Install The Supplied Connector Plates To The Stock Cage Locations And Piece Together The Cage On The Vehicle.  For adding whips or antennas add some Whip Tabs to your order.

WE NOW OFFER FULL INSTALLS OF THIS PRODUCT AT OUR SIGNAL HILL, CA LOCATION (WELDING, CUSTOMIZATION, INSTALL & POWDERCOAT)

CONTACT US TO SCHEDULE AN APPOINTMENT

Includes:

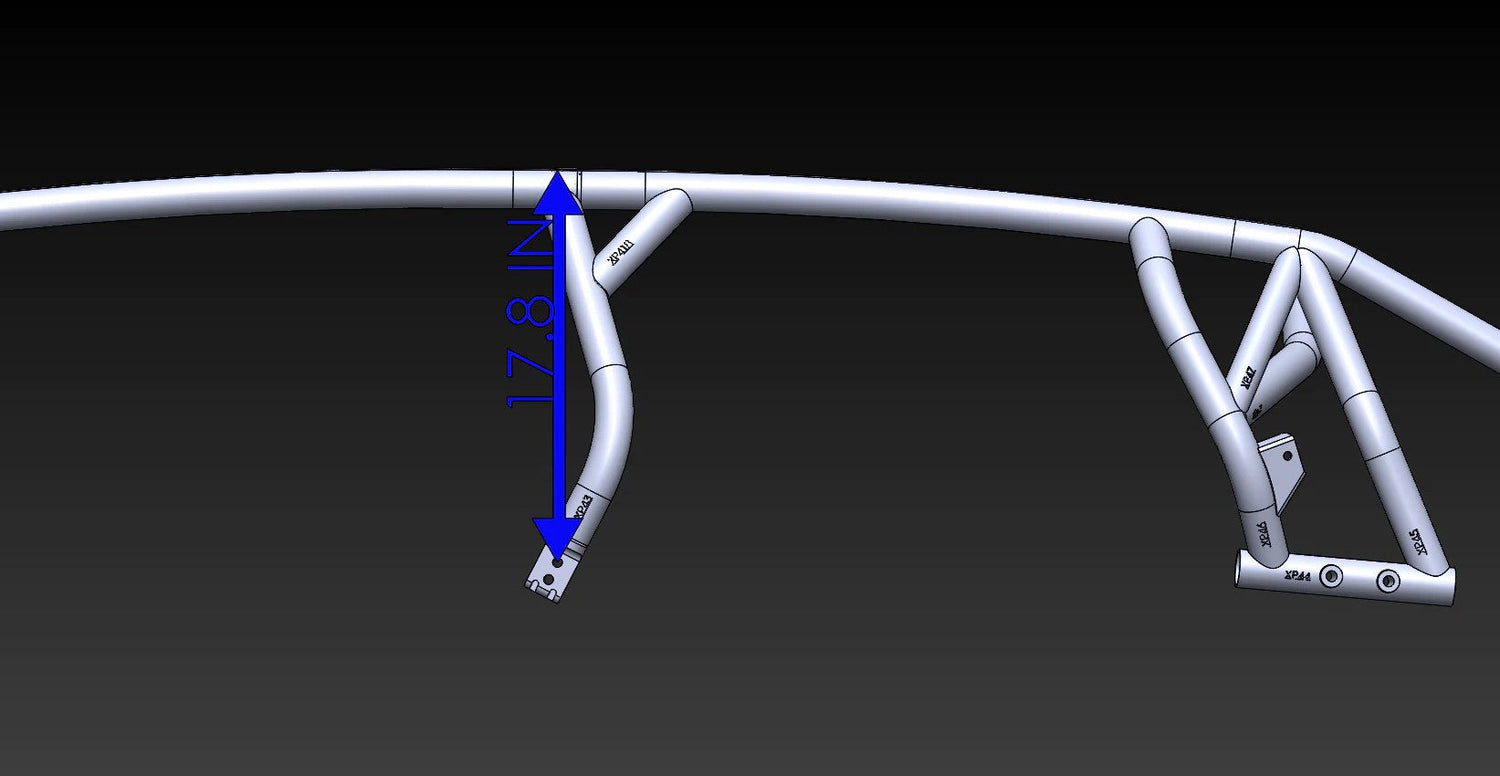

•30 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component

•1.75" OD .120 Wall DOM Tubing For Main Structure

•1.50" OD .095 Wall DOM Tubing For Windshield Cross Bars

•Cage Bungs & Hardware To Mount In Factory Cage Mounting Locations

Requires:

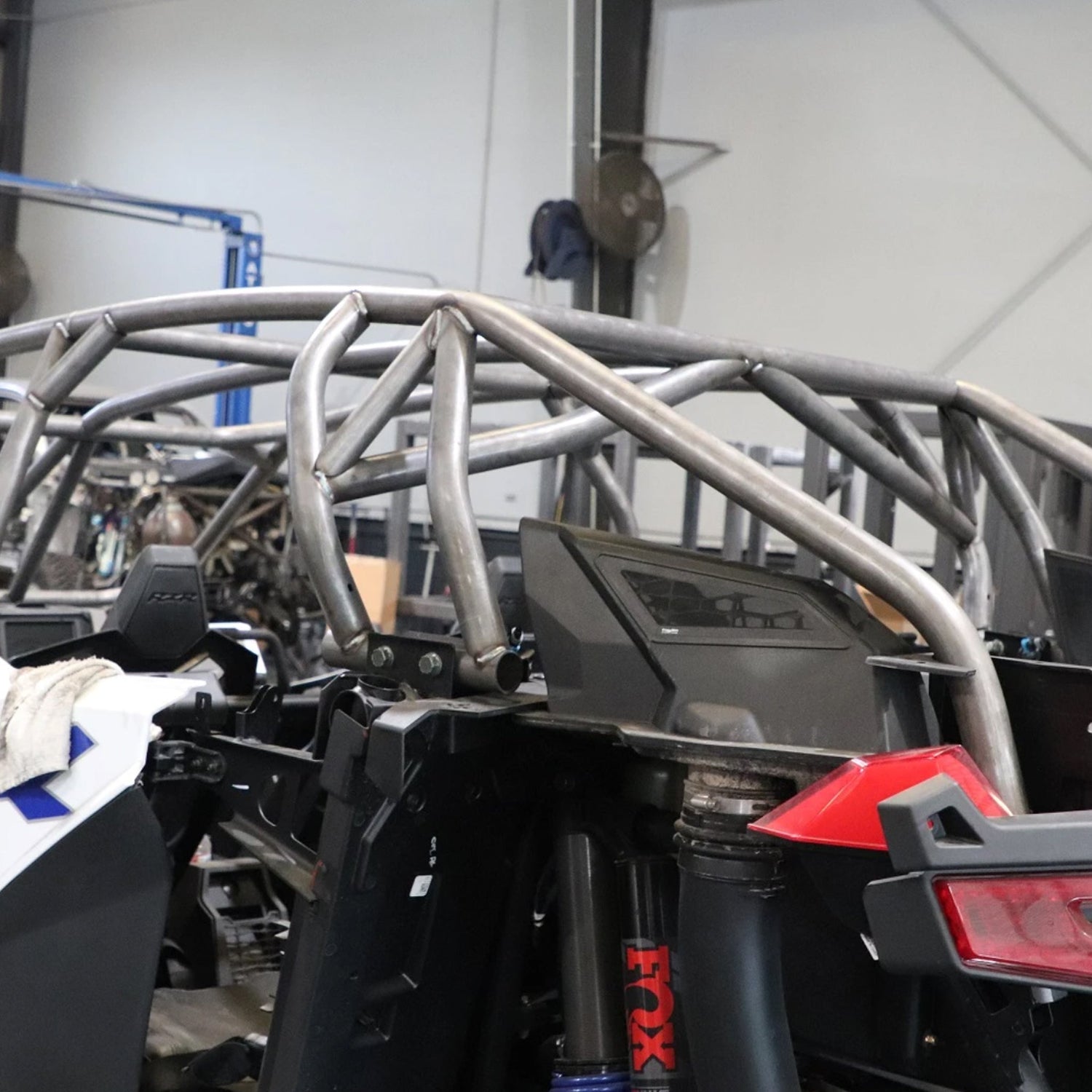

•Welding - This Kit Can Be Welded Together Once Configured On The Vehicle

Upgrades:

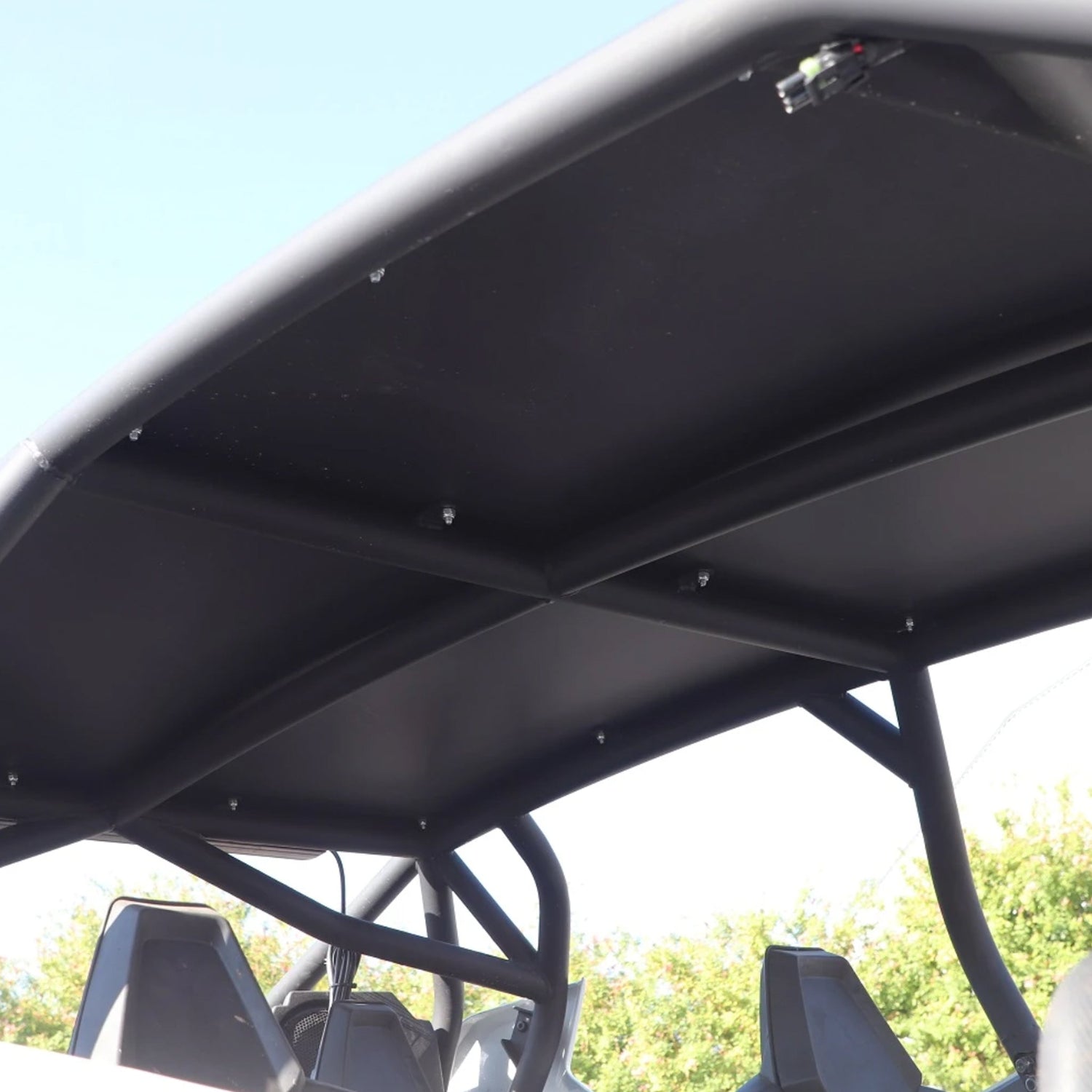

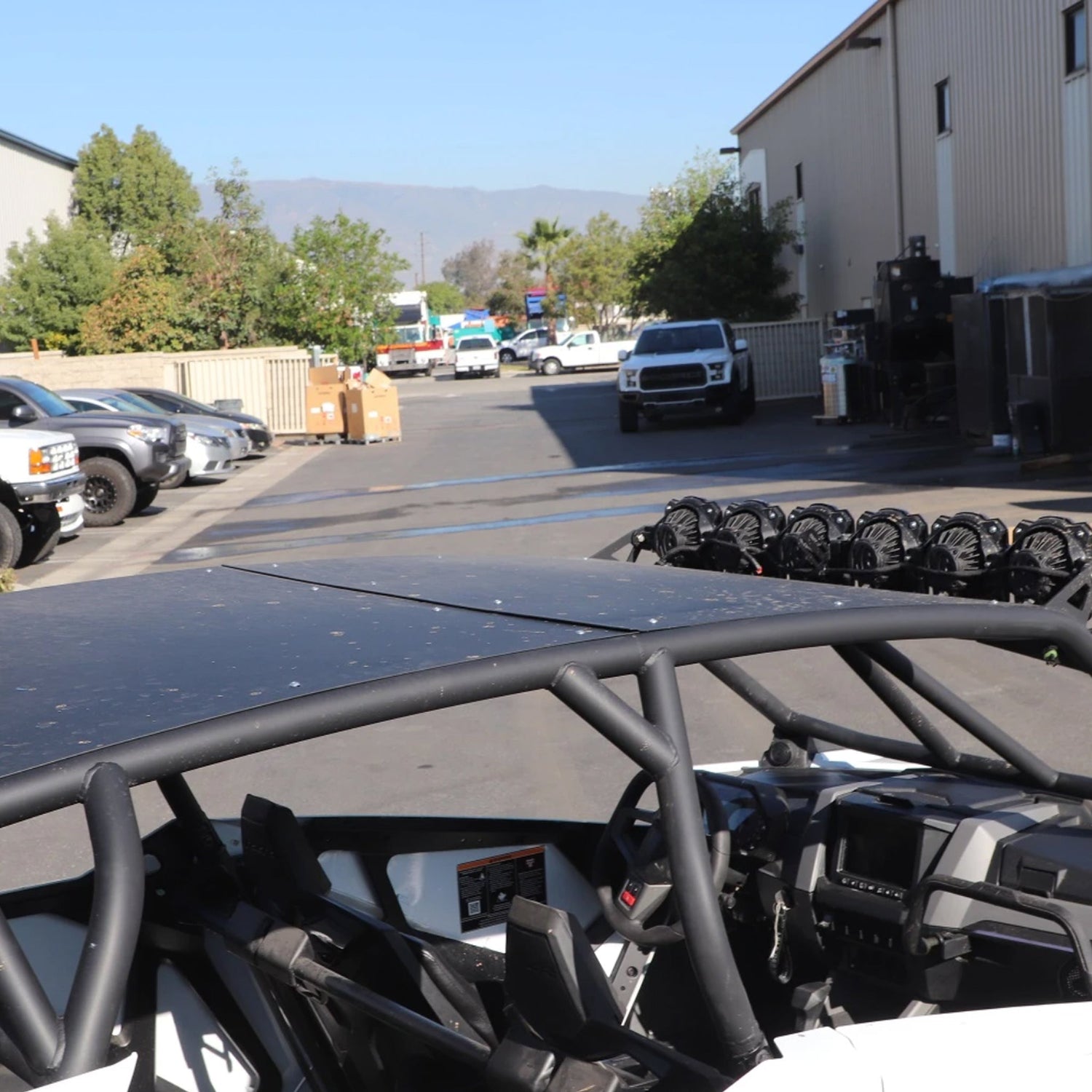

•Aluminum Roof - .06 Thick 2 Piece Roof W/ Small Visor Bend And Bead Rolled Joint - Complete With Weld On Tabs And 1/4" Grade 8 Hardware

Notes:

•Must Use A Floor Jack Under Center Of Vehicle During Installation To "level Out" The Frame Rails - Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult
