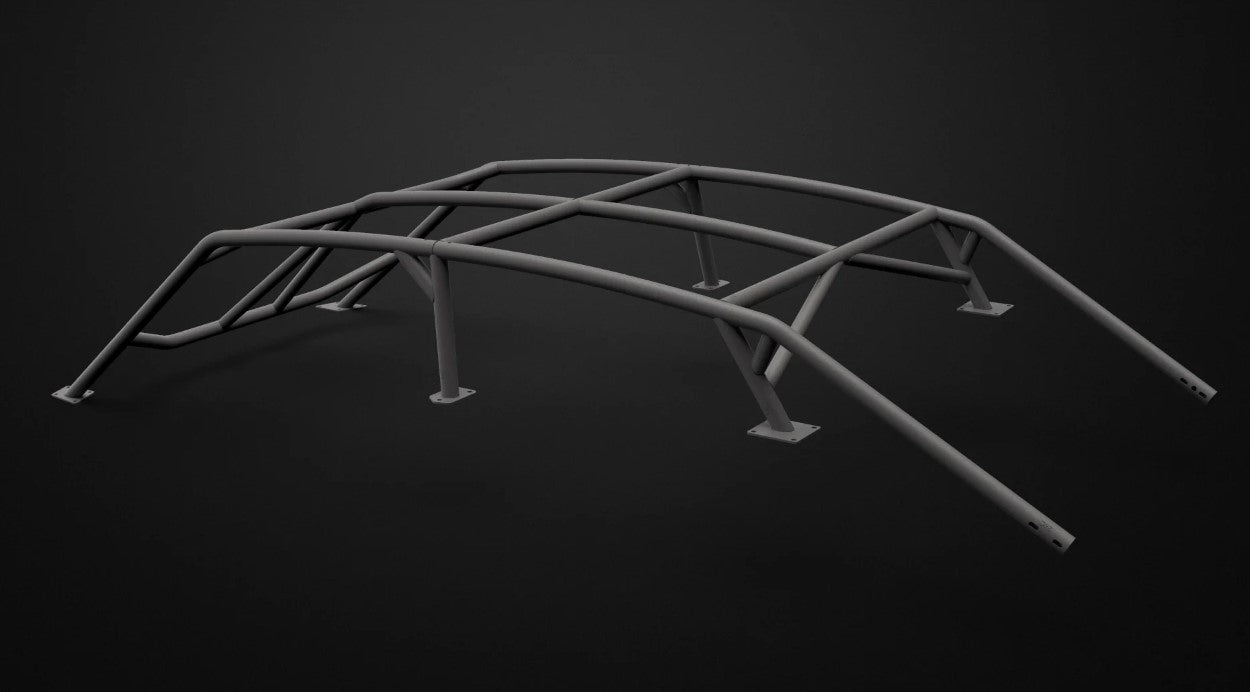

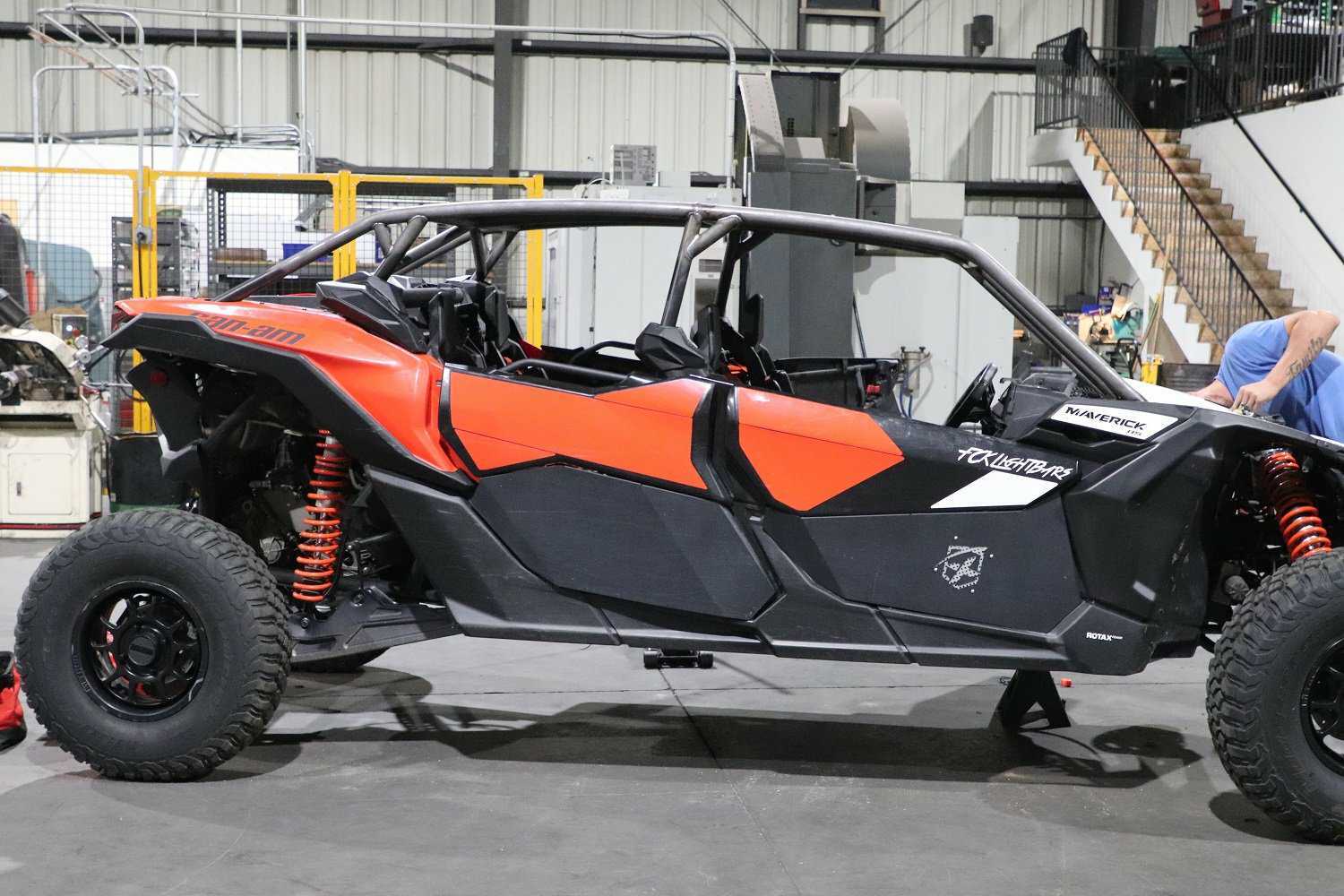

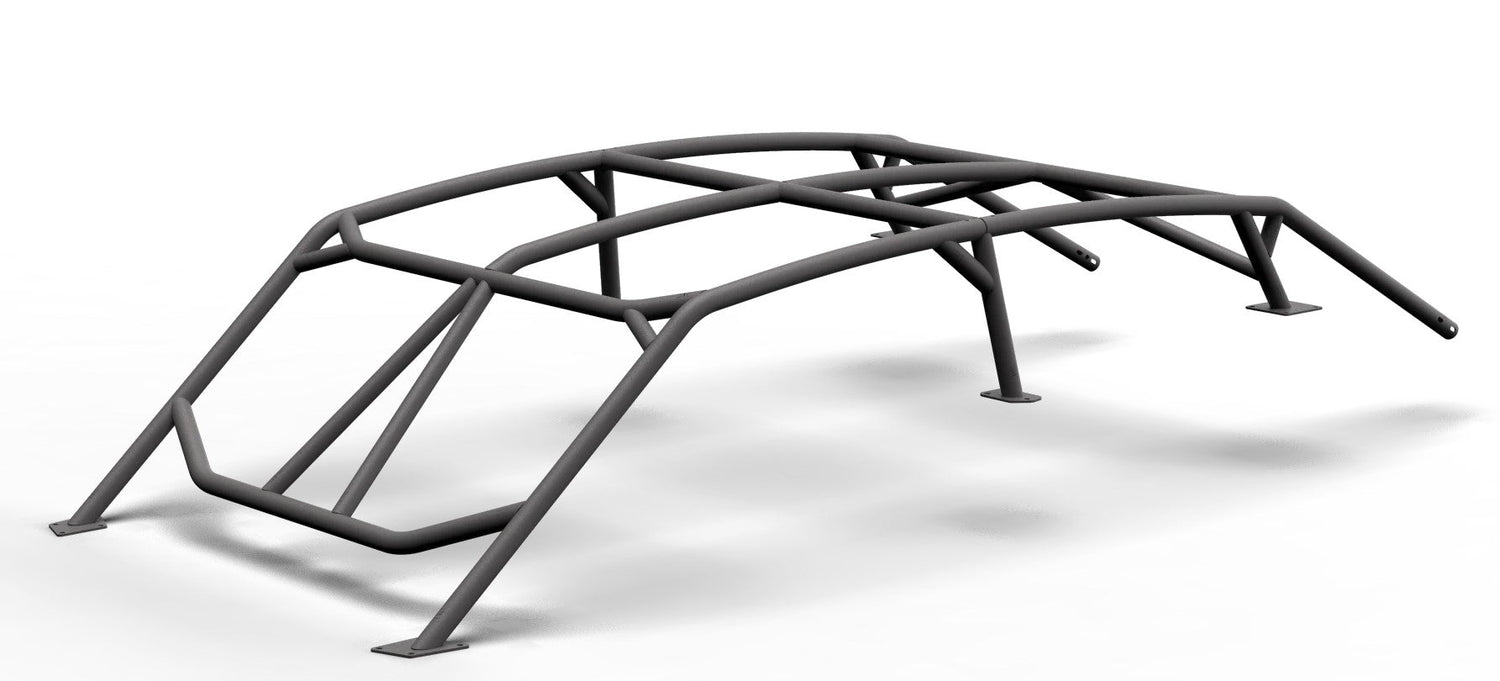

LSK Can-Am X3 MAX Radius Cage Kit
Introducing The Weld It Yourself RADIUS Cage Kit For The Can-am X3 MAX! This Cage Is Built With .120 Wall DOM Main Tubes And .095" DOM Support Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture - Just Install The Supplied Connector Plates To The Stock Cage Locations And Piece Together The Cage On The Vehicle.Ā Ā For adding whips or antennas add someĀ Whip TabsĀ to your order.
WE NOW OFFER FULL INSTALLS OF THIS PRODUCT AT OUR SIGNAL HILL, CA LOCATION (WELDING, CUSTOMIZATION, INSTALL & POWDERCOAT)
CONTACT US TO SCHEDULE AN APPOINTMENT
Includes:
ā¢24Ā Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component
ā¢1.75" OD .120 Wall DOM Tubing For Main Hoops
ā¢1.50" OD .095 Wall DOM Tubing For Windshield Cross Bars
ā¢Mounting Plates & Hardware To Mount In Factory Landing Locations
Requires:
ā¢Welding - This Kit Can Be Welded Together Once Configured On The Vehicle
Cutting off factory cage or cage bungs on 2020+ Vehicles
Upgrades:

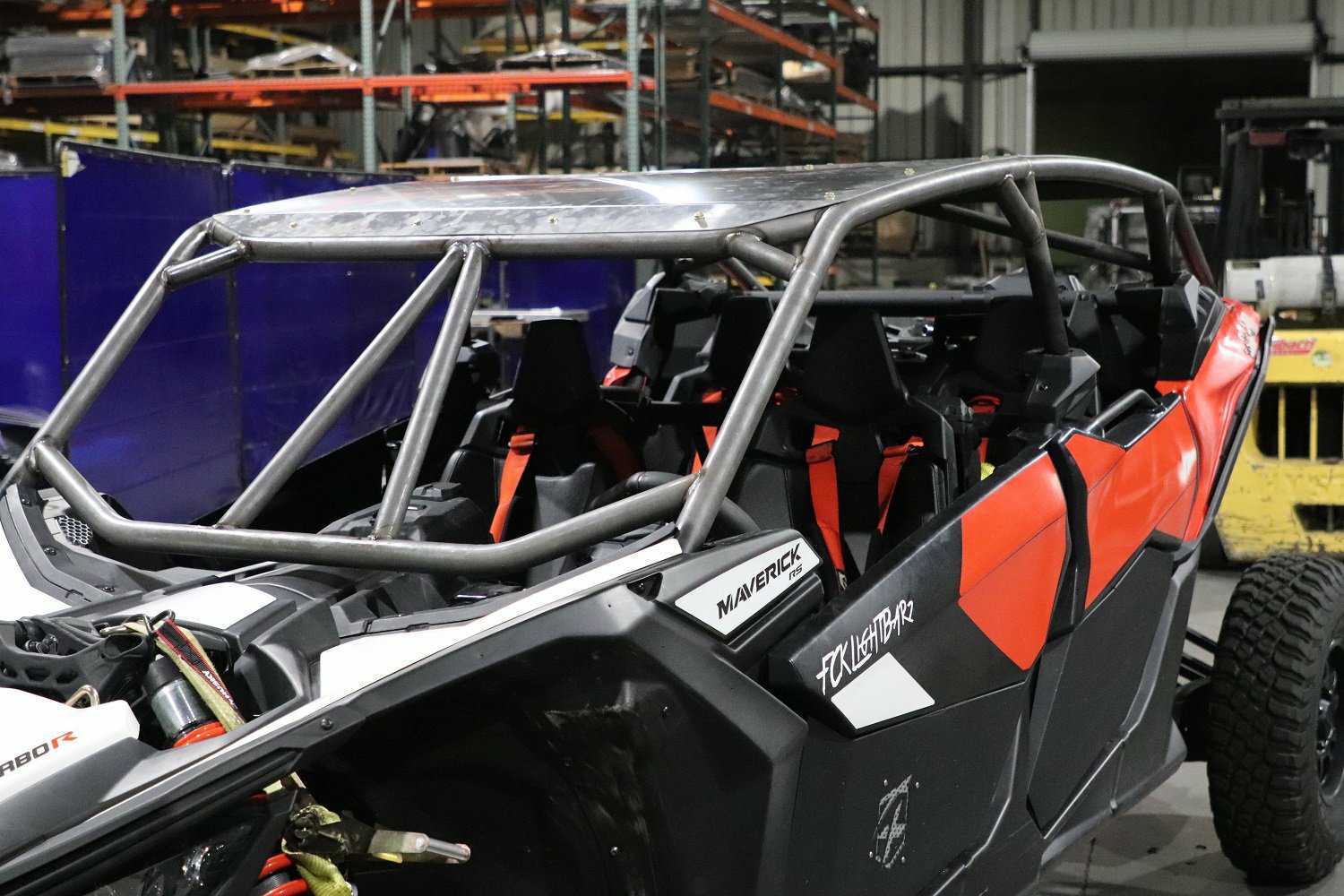

ā¢Aluminum Roof - .06 Thick 2 Piece Roof W/ Small Visor Bend And Bead Rolled Joint - Complete With Weld On Tabs And 1/4" Grade 8 Hardware
Notes:
ā¢Late Model X3's Come With A Clamp Style Mount At The A-Pillar Landing Point - This Clamp Must Be Cut Off And The Supplied Flat Plate Will Be Installed In Its Place.
ā¢Must Use A Floor Jack Under Center Of Vehicle During Installation To "Level Out" The Frame Rails - Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult
