Lower Triangulated 4 Link Bracket
Lower Triangulated 4 Link Bracket is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
- Made from 1/4" material
- Fit 1 3/4" tube but can easily fit 2" with some grinding
- 2 5/8 (2.63) Width mounting width for rod ends
- 9/16" bolt hole but can be drilled out for larger
- Each link will be 25* from center for combined 50* angle

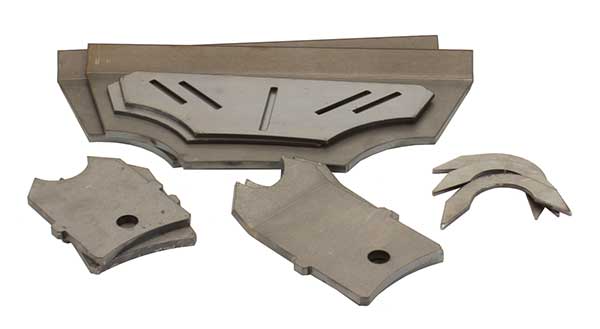

- Sold Unwelded
We make ours a bit different than the rest, improving where we could and of course out of a solid 1/4" material rather than the 3/16" many companies will tell you is enough. I really want to make a point that 3/16" is not enough for this type of bracket. These are right down on the bottom and take serious hits all day. We even add a reinforcement skid to them so they don't wear out from all the dragging over the rocks! We also add front reinforcement's that tie the top to bottom and take the first hit so the rocks do not damage the crossmember.
They are made in a 2 5/8" width to fit all the standard joints, we do not make them smaller because a smaller joint just dosen't belong down there. They have a 9/16" hole but are easily drilled out to a larger size. The Crossmember you use should be a stout piece of tubing, they are cut for 1.75" tube and I would suggest at least 1/4" wall. They come unwelded.
