LF Audio HVPM High Precision Voltmeter
LF Audio HVPM High Precision Voltmeter is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
HPVM Voltage Meter
- Precision volt meter for automotive and car audio
- 1.3-inch LCD with 65,000 colors
- Monitors two sources at once
- Measures up to 18 volts

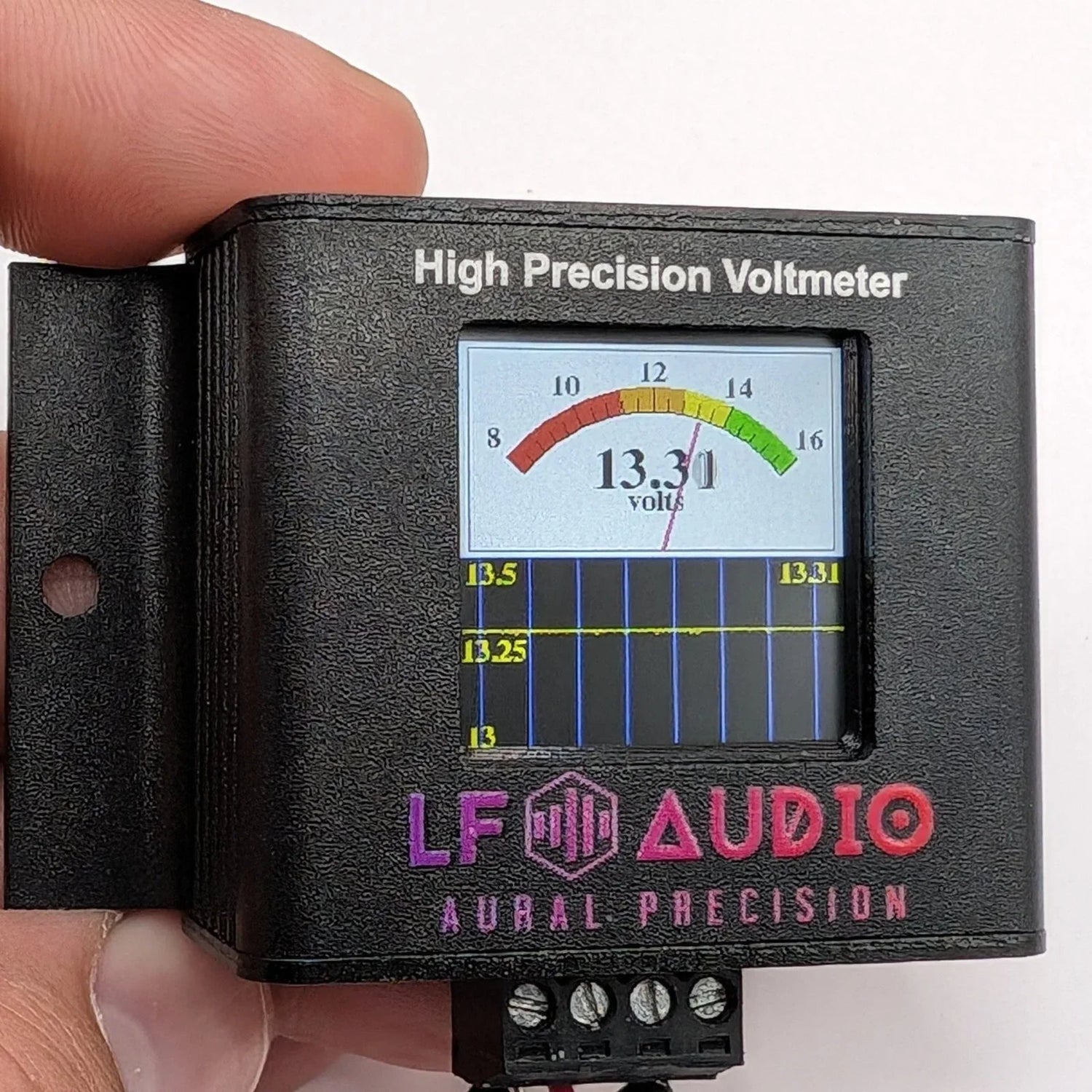

- Customizable display with ten gauge faces
- Bluetooth-enabled connection with free AuralSync app
Your Style. Our Precision.
The HPVM is the most versatile graphing volt meter available today. Accurate to 1/500 of a volt and capable of measuring two sources simultaneously, the HPVM comes equipped with Bluetooth connectivity, allowing it to connect to the free Aural Sync™ app, optional AuralSync Companion Smartwatch, and other AuralSync-enabled devices.
Use the app to choose any one of ten gauge designs, then create user-definable voltage ranges and custom colors to make each look match your needs, and your style.
Overbuilt To Last
Extremes in vibration, humidity, and temperatures are always attacking everything in your vehicle. A solid aluminum case houses high-density/temperature internal supports, and gold-plated ENIG PCB to survive – and thrive – in any build.
Maximum Battery Efficiency
To save your battery power, the HPVM is equipped with Deep Sleep mode. When a gradual voltage drop with no transients is detected, the meter automatically reduces power consumption to just 167 milliwatts. At that rate, it would take 7,059 hours (294 days) to fully drain a 100 amp hour 12V AGM battery.
Once the meter detects a voltage spike, it instantly returns to full operation. It will also display total battery drain during low-power mode and issue a bright red warning if the voltage drop was significant, signaling a weak battery or excessive parasitic draw.
Features
| Supply Voltage | 4v-18v |
| Individual Voltage Monitoring Points | 2 |
|
Voltage Measurement Range |
1v-18v |
| Accuracy | 99.99% accurate (+/- 0.002v) |
| Precision | 1mV - 3 decimal places (e.g. 15.234v) |
| Sample Rate | 330 samples per second per channel, 660 maximum SPS in dual channel |
| Display | 1.3" diagonal TFT HD IPS LCD - 240x240 pixels / 65k color |
| Visual Refresh rate | 33 FPS |
| Power Consumption | ~460mW full power mode ~167mW in deep sleep move |
| Settings | Use our LF Audio AuralSync™ smartphone app or AuralSync Companion smartwatch to change settings on the unit. |
| Over The Air (OTA) firmware updates |
Use our LF Audio AuralSync™ smartphone app to check for and apply firmware updates |
Physical Info
| Size | 71mm wide x 44mm deep x 25mm tall |
| Weight | 2.3oz |

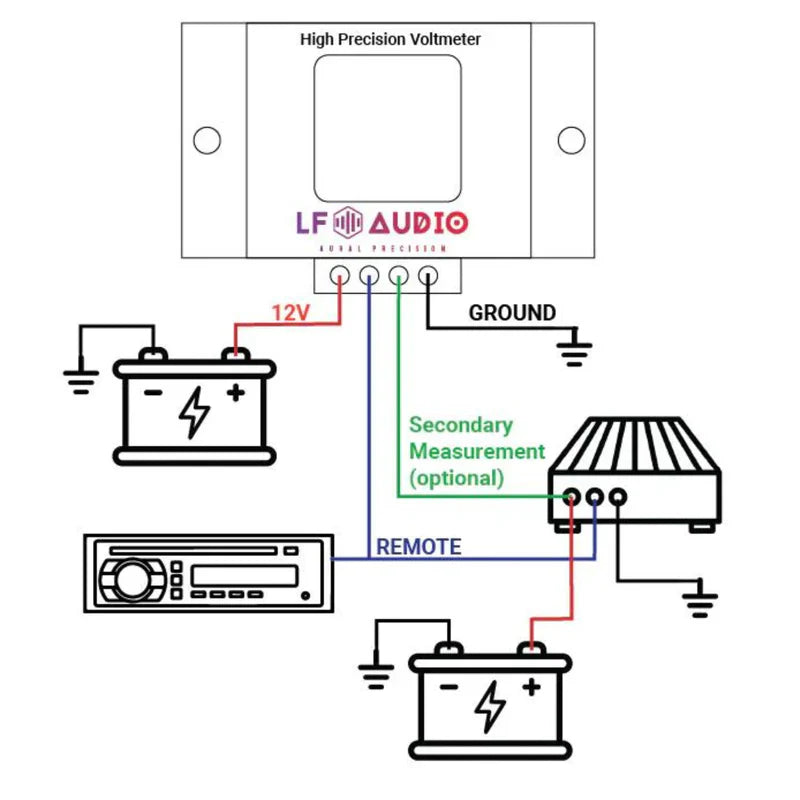

Getting started / wiring instructions
📖 Documentation
Full user guides, installation videos, and troubleshooting at help.lf-audio.com/hpvm:
