This model has been discontinued. You can find similar models here!
PREPARE TO BE BLOWN AWAY

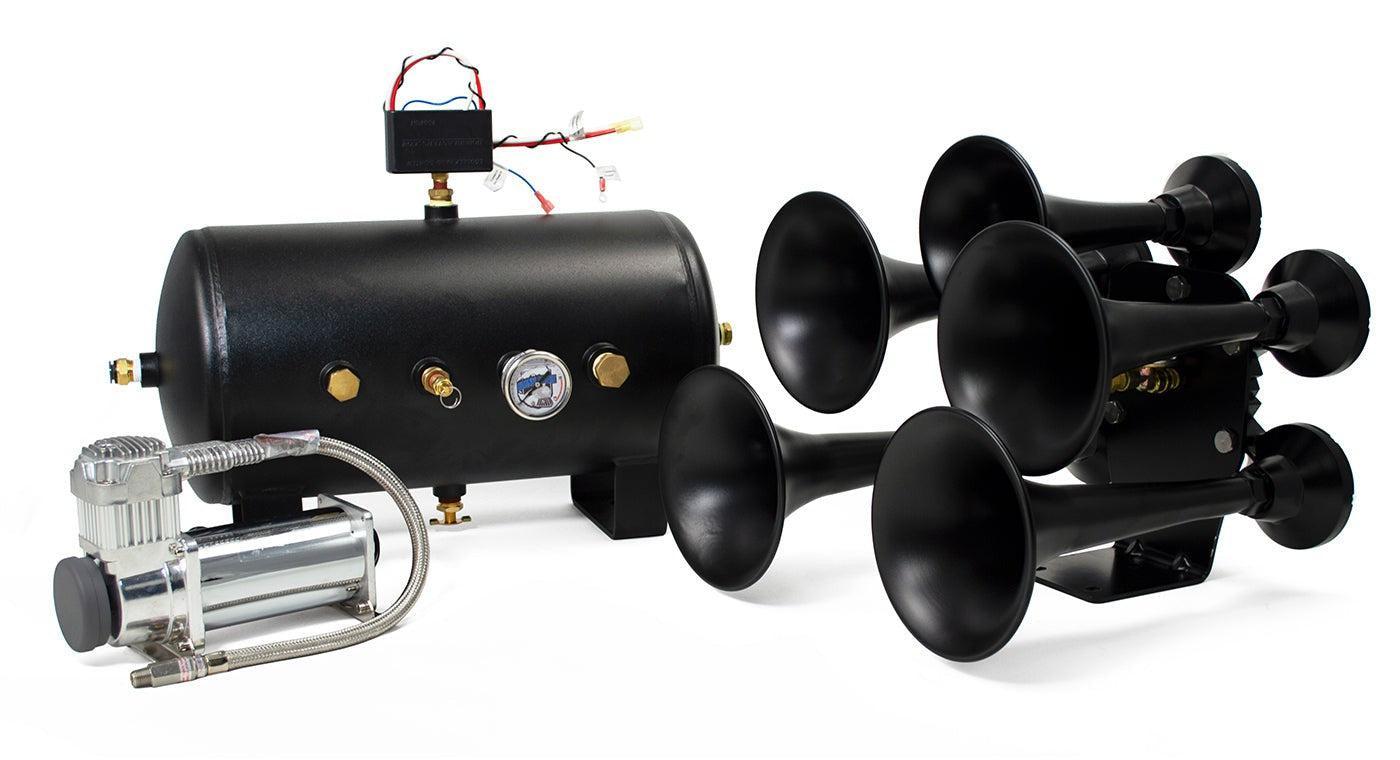

In the market for a booming train horn, quick air system, and crazy long blast time? Look no further than our Katrina 540 train horn kit! Get ready to unleash a whirlwind of sound with one of the loudest 5-Chime train horns and our speediest 5-gallon onboard air system.

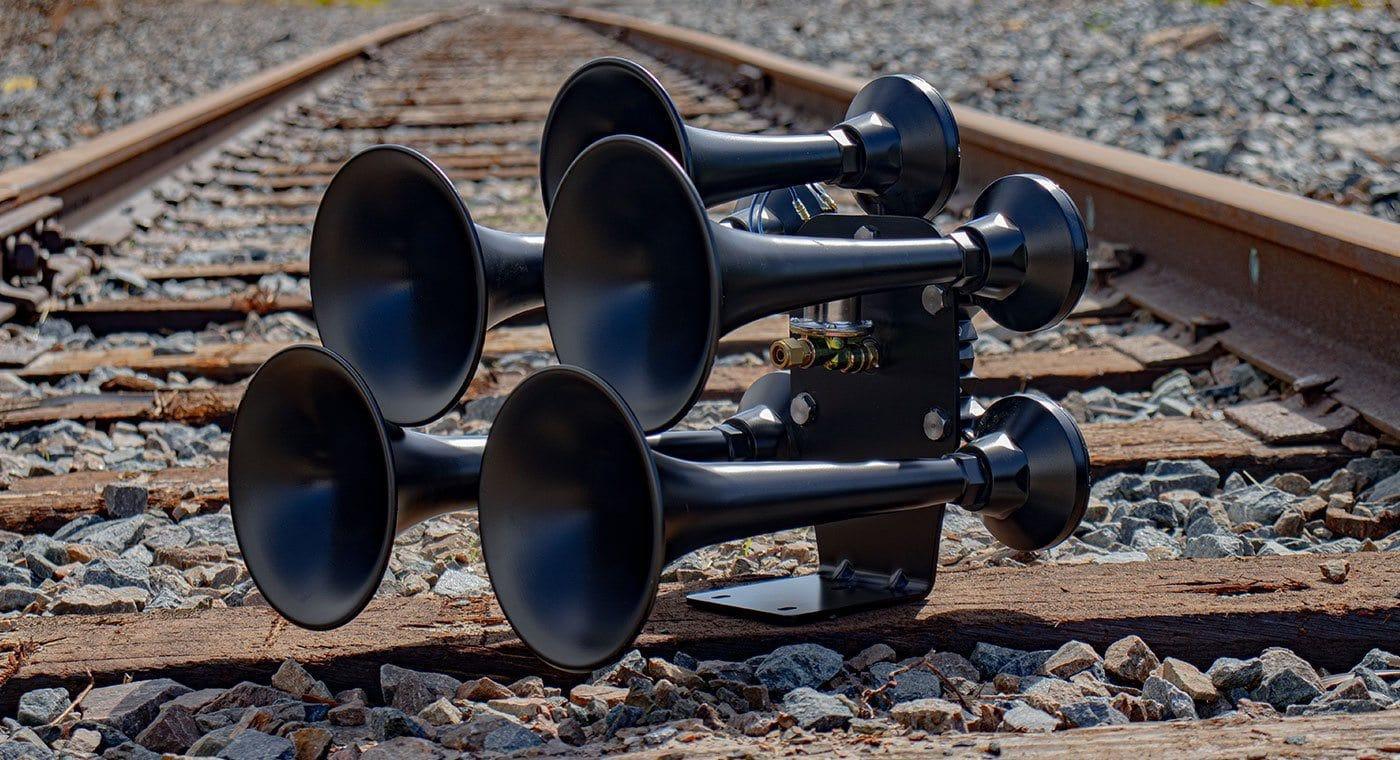

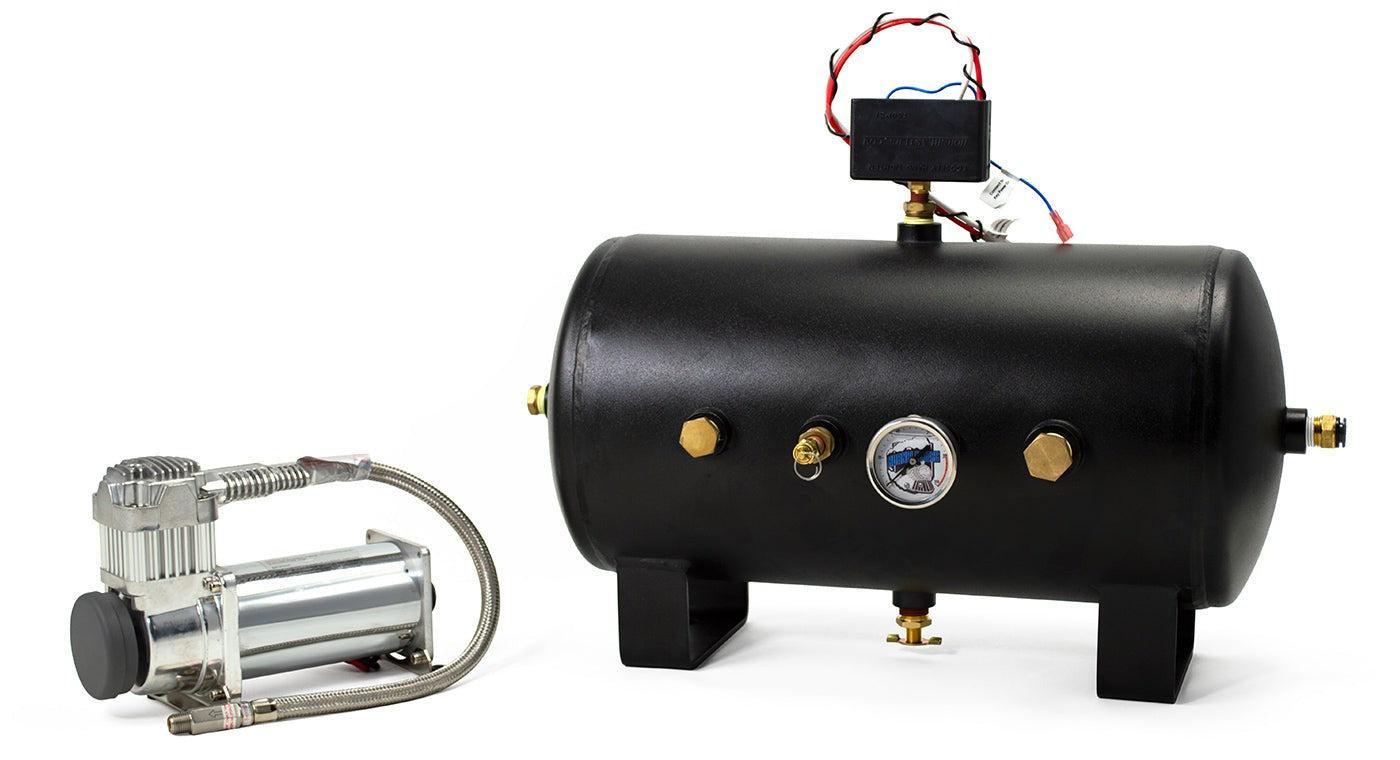

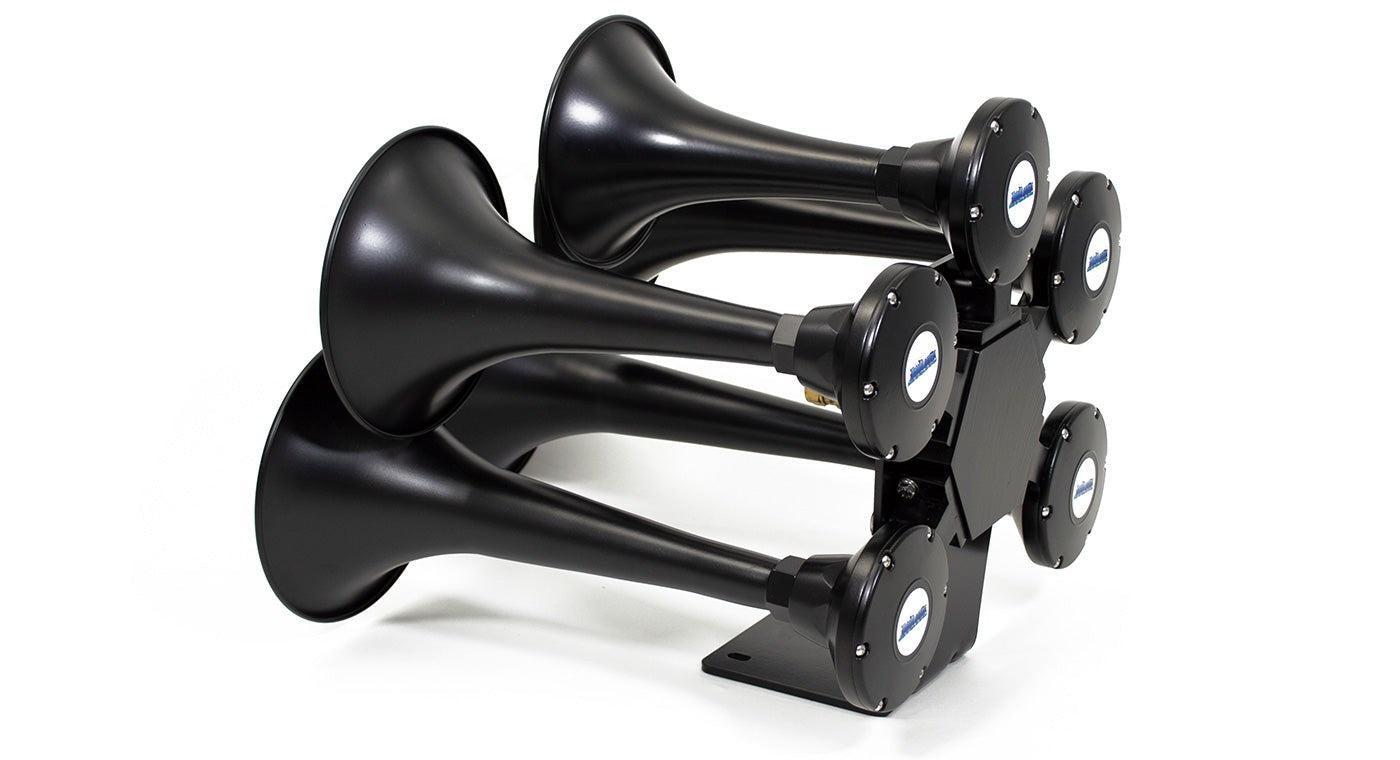

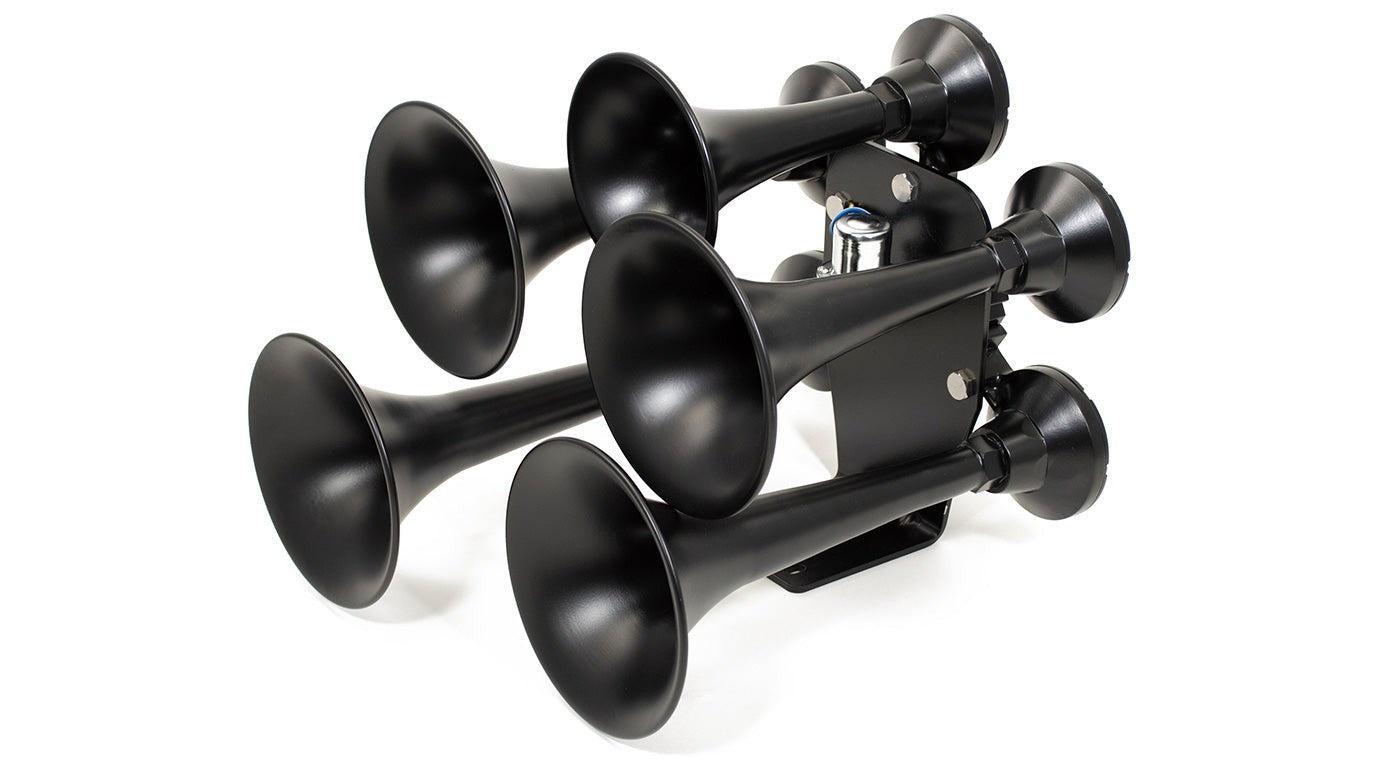

Our Katrina 540 kit features the 5-chime Katrina train horn, blasting out five distinct, deep tones that'll leave 'em shaking in their boots. With a pre-installed 3/8" air valve on the manifold, installation's a piece of cake. We've teamed up the Katrina horn with our HornAir 540 onboard air system, boasting a 5-gallon Black 8-Port Air Tank for up to 10 continuous seconds of sound. And with the lightning-fast Viair 400C compressor, you'll recharge from 110-150 PSI in just 1 minute and 40 seconds! As always, our Katrina 540 kit comes complete with all necessary hardware and easy-to-follow instructions.

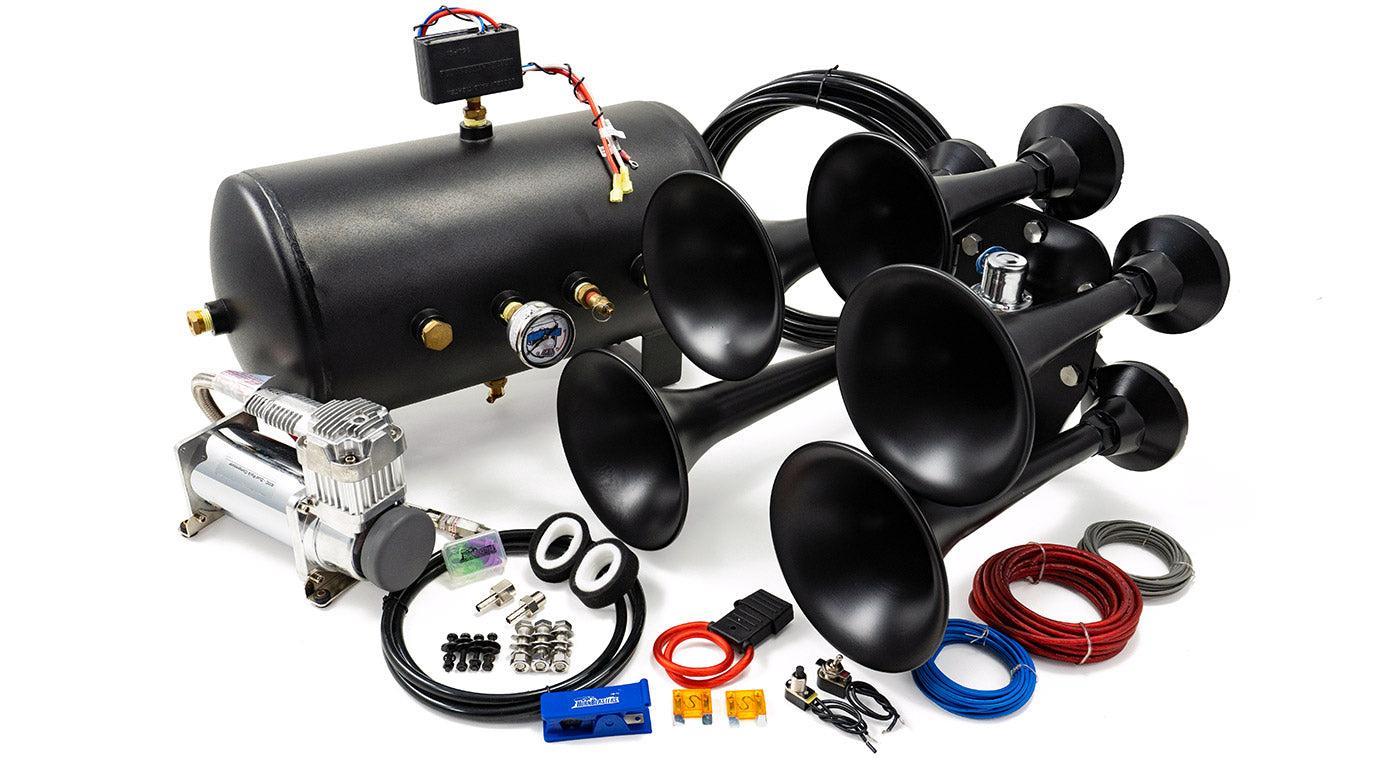

- Quality construction
- Black finish
- 5-Chimes
- Pre-installed electric air valve
- Capable of filling tires in an emergency situation
- Stainless steel liquid-filled air pressure gauge
- Heavy-duty 400C air compressor
- Extra-large 5-gallon air tank
- HornBlasters Katrina 5 chime train horn
- 5-gallon 8 port air tank
- Viair 400C air compressor
- 110/150 PSI Pressure Switch w/ Built-in 40 Amp Relay
- 17ft of 1/2" air line
- Remote mountable air intake housing
- Spare air filter elements
- Brass fitting kit including a safety blow-off & drain cock
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- 22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire
-

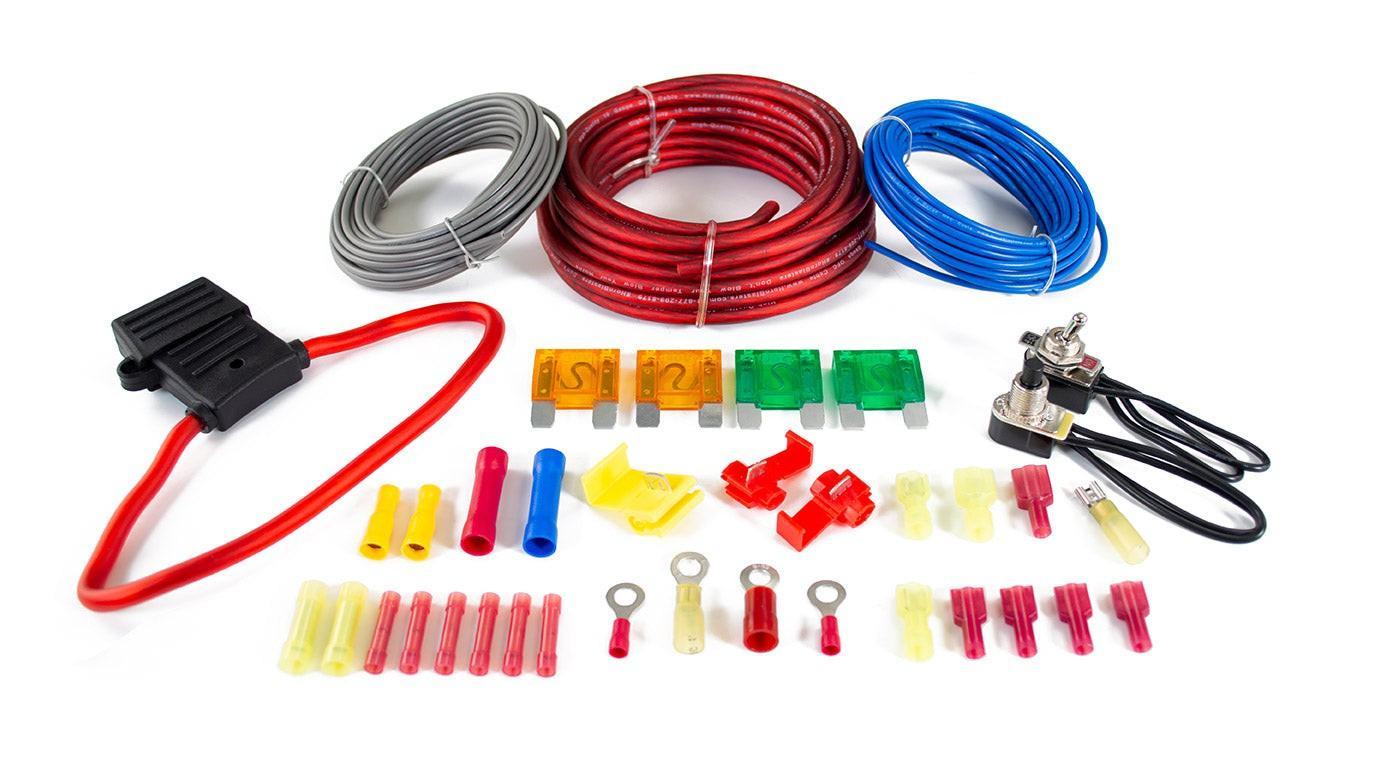

Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Air line cutter
- Earplugs
- Installation instructions
- Part Number: HK-C5B-540
- Operating Pressure: 150 PSI
- Restart Pressure: 110 PSI
- Voltage: 12-Volt DC
- Horn: HornBlasters Katrina train horn
- Horn Air Inlet: 1/2" Air Line
- Horn Length: 19.5" (495.3 mm)
- Horn Width: 19.75" (501.65 mm)
- Horn Height: 13.5" (342.9 mm)
- Horn Weight: 19.8 lb (8.98 Kg)
- Air Tank: HornAir 5-gallon 8 port air tank
- Tank Length: 20.5″ (520.7 mm)
- Tank Diameter: 9.5″ (241.3 mm)
- Tank Height: 11.5″ (292.1 mm) (With Legs)
- Tank Weight: 20 lb (9.07 Kg)
- Tank Ports: x7 1/2" NPT, x1 3/4" NPT
- Air Compressor: Viair 400C air compressor
- Average Fill Time: 1 min 30 sec
- Air Flow: 2.54 CFM at free flow
-
Max Amperage: 26 amps
- Maximum Duty Cycle: 33% @ 100 PSI
- Compressor Length: 9.0″ (228.6 mm)
- Compressor Width: 4.0″ (101.6 mm)
- Compressor Height: 7.05″ (179.07 mm)
- Compressor Weight: 7.05″ (179.07 mm)
5-Gallon Air Tank Dimensional Drawing
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 27 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 |
* Supply Voltage: 13.8 Volts
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
-
